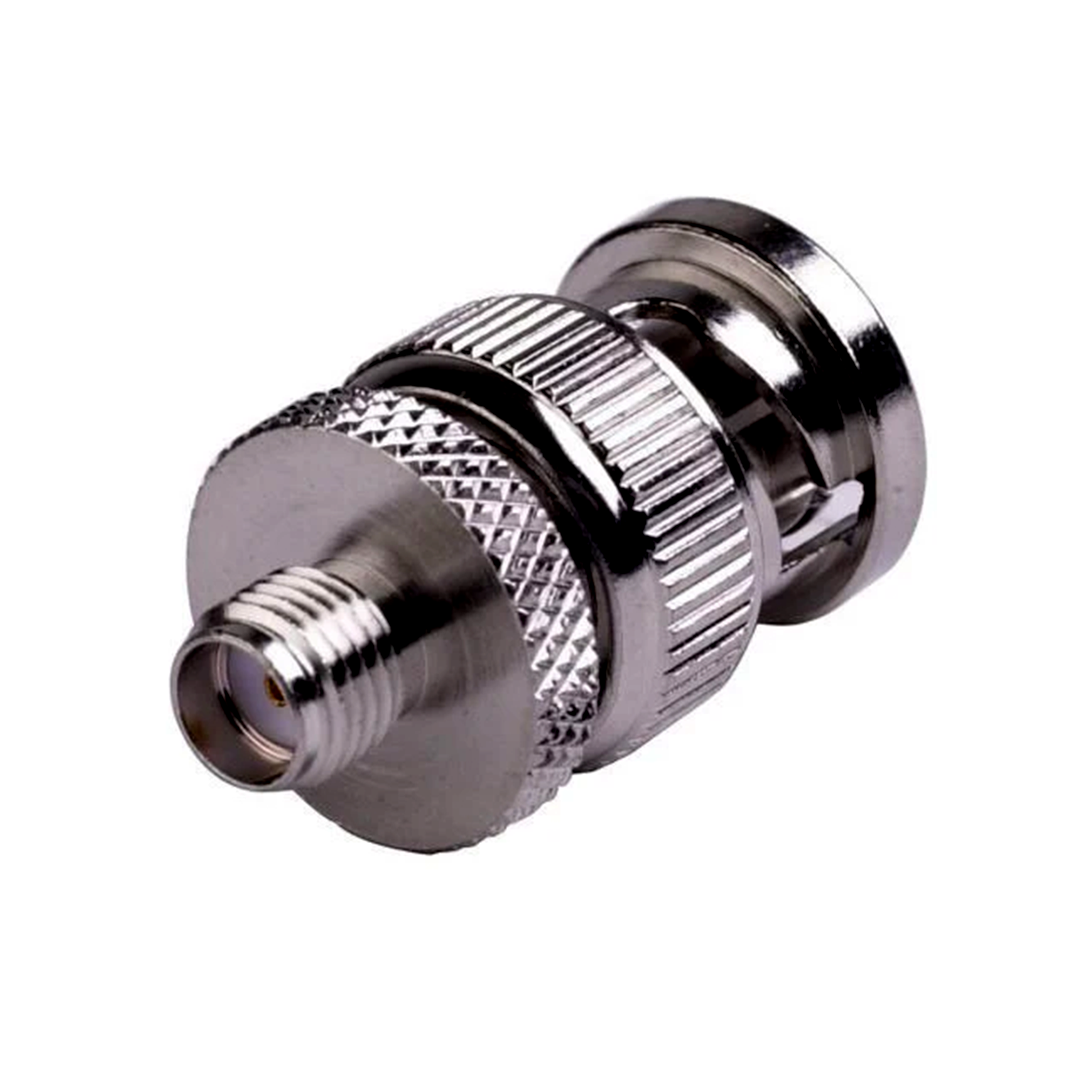

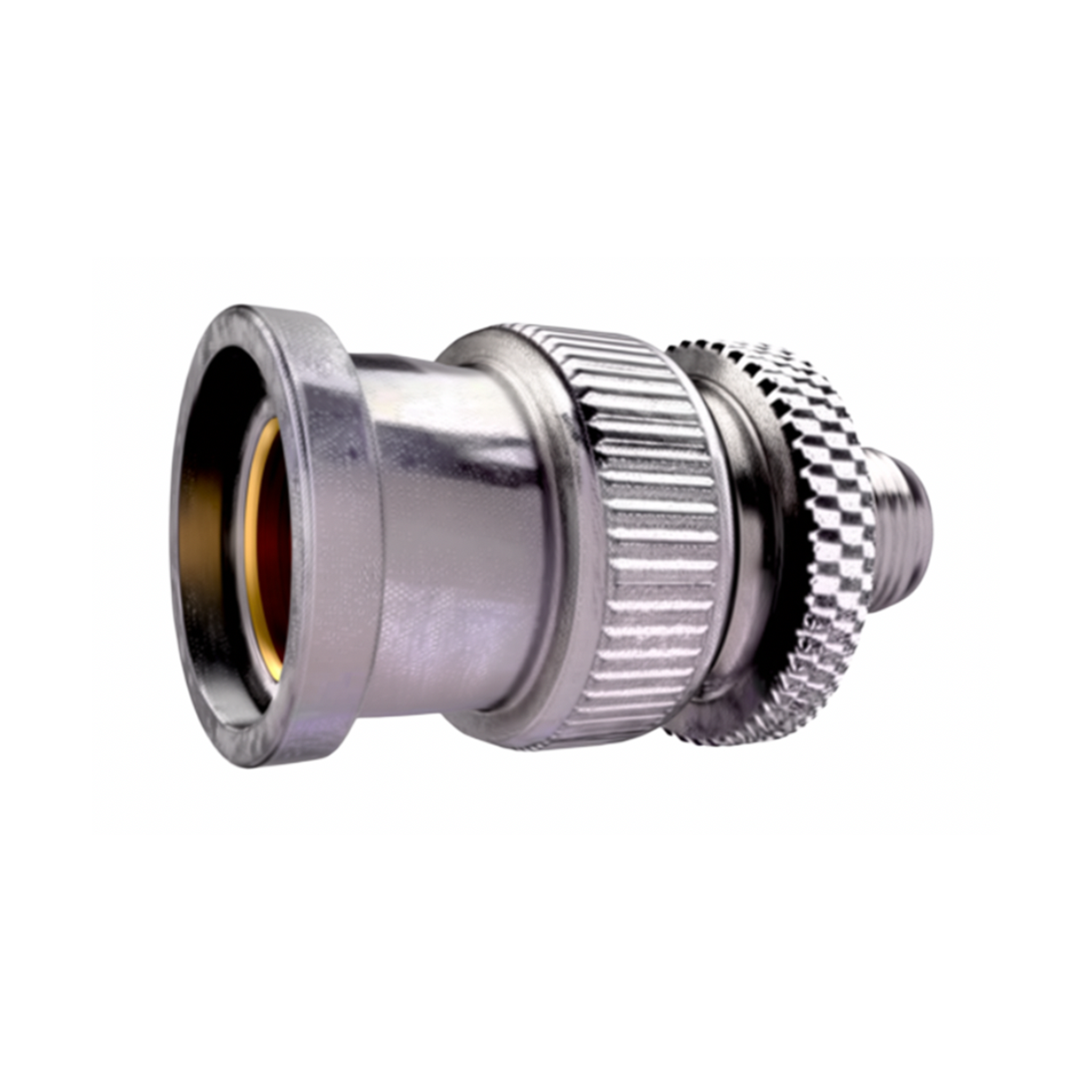

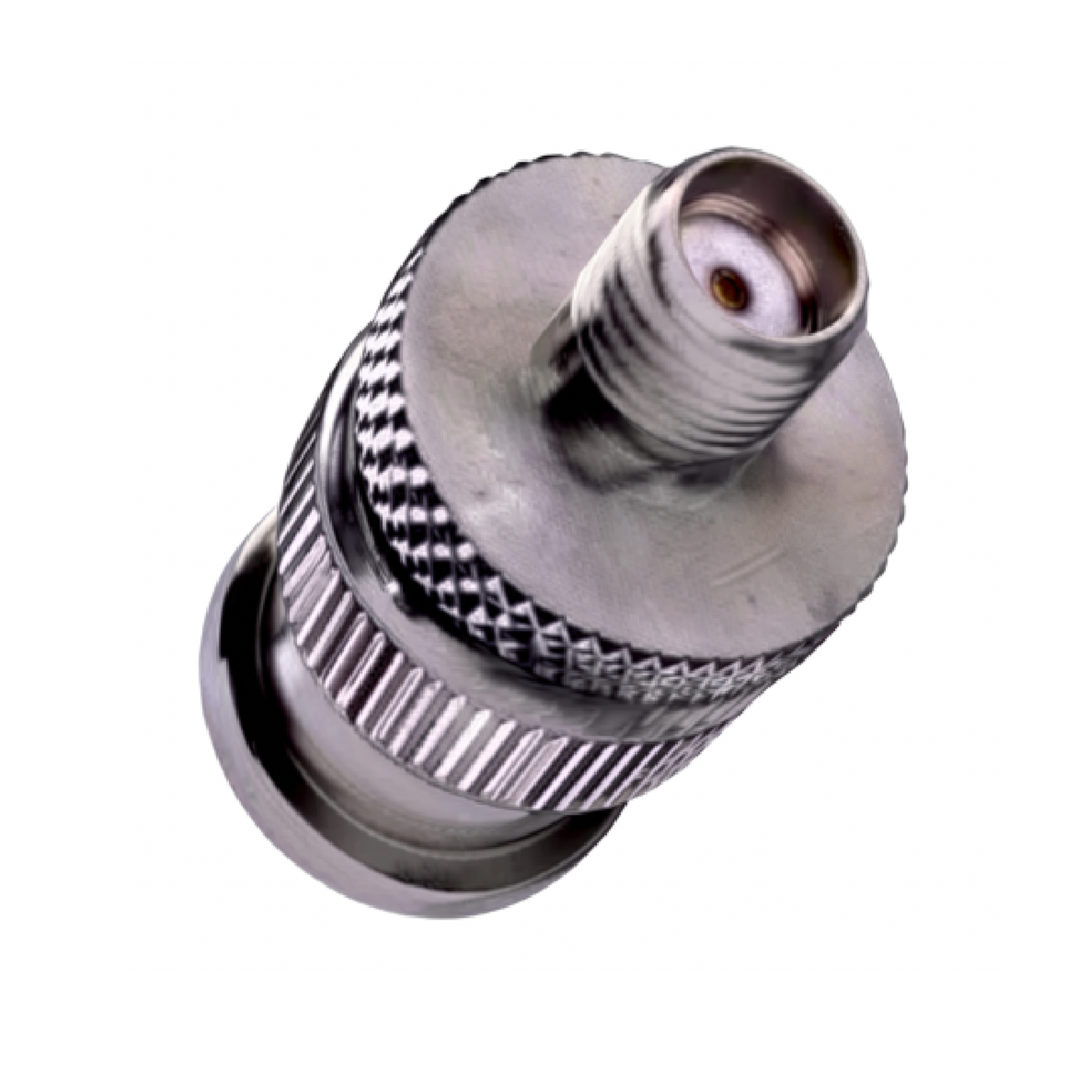

Atlantic Radio BNC Male to SMA Female Adapter
Professional Lab-Grade Coaxial Adapter
High-Precision RF Connectivity for LTE, 5G, and Wi-Fi 6 Applications
The Atlantic Radio BNC Male to SMA Female Adapter is a premium, between-series coaxial solution designed for high-frequency precision and lab-capable performance. Rated for operation from DC to 11GHz, this adapter is engineered to meet the rigorous demands of modern wireless technologies, including LTE/5G sub-6, Wi-Fi 6, and L-band satellite communications. Whether you are interfacing professional test equipment like oscilloscopes and signal generators with SMA-equipped antennas or integrating IoT modules into a broader RF network, the Atlantic Radio BNC Male to SMA Female Adapter ensures a stable, low-loss connection.
Constructed from nickel-plated solid brass with a gold-plated brass center pin, this adapter is built to maintain superior electrical conductivity and mechanical durability. The BNC male side features a classic bayonet-style quick-disconnect mechanism, allowing for rapid swapping in testing environments, while the SMA female side provides a secure, threaded, sub-miniature interface for high-vibration applications. For specialized requirements, this professional-grade component is eligible for sweep testing and certificates of conformity upon request, confirming its suitability for mission-critical laboratory and field diagnostics.
Key Features & Benefits
-
Lab-Grade DC-11GHz Rating: Supports a massive frequency range, making it ideal for next-generation 5G, Wi-Fi 6, and GPS testing.
-
Precision Machined Brass Body: Industrial-grade nickel plating provides excellent corrosion resistance and mechanical longevity.
-
Gold-Plated Center Contact: Ensures minimal insertion loss and prevents oxidation at critical signal junction points.
-
Versatile Between-Series Design: Bridges the gap between legacy BNC lab equipment and modern SMA-based wireless modules.
-
Vibration-Resistant SMA Interface: The threaded SMA female jack provides a high-torque, tight-locking connection for mobile or portable applications.
-
Quick-Connect BNC Bayonet: Facilitates rapid-fire testing and field diagnostics without the need for specialized tools.
Specifications
-
Connector A: BNC Male (Plug/Bayonet)
-
Connector B: SMA Female (Jack/Threaded)
-
Frequency Range: DC – 11GHz
-
Impedance: 50 Ohms
-
Body Material: Nickel-Plated Brass
-
Center Pin: Gold-Plated Brass
-
Body Style: Straight
Frequently Asked Questions
-
Can this adapter be used for Wi-Fi 6 and 5G testing? Yes, the Atlantic Radio BNC Male to SMA Female Adapter is specifically rated up to 11GHz, covering the sub-6GHz 5G bands and the 6GHz Wi-Fi 6E spectrum.
-
Do you provide test reports for this hardware? Yes, because this is a lab-grade component, we offer sweep testing and certificates of conformity upon request for high-precision applications.
-
Is this adapter compatible with 75-ohm video systems? No. The Atlantic Radio BNC Male to SMA Female Adapter is a 50-ohm RF component. Connecting it to 75-ohm video equipment can cause signal reflections and potential hardware damage.
Warranty
1-year manufacturer's warranty.
