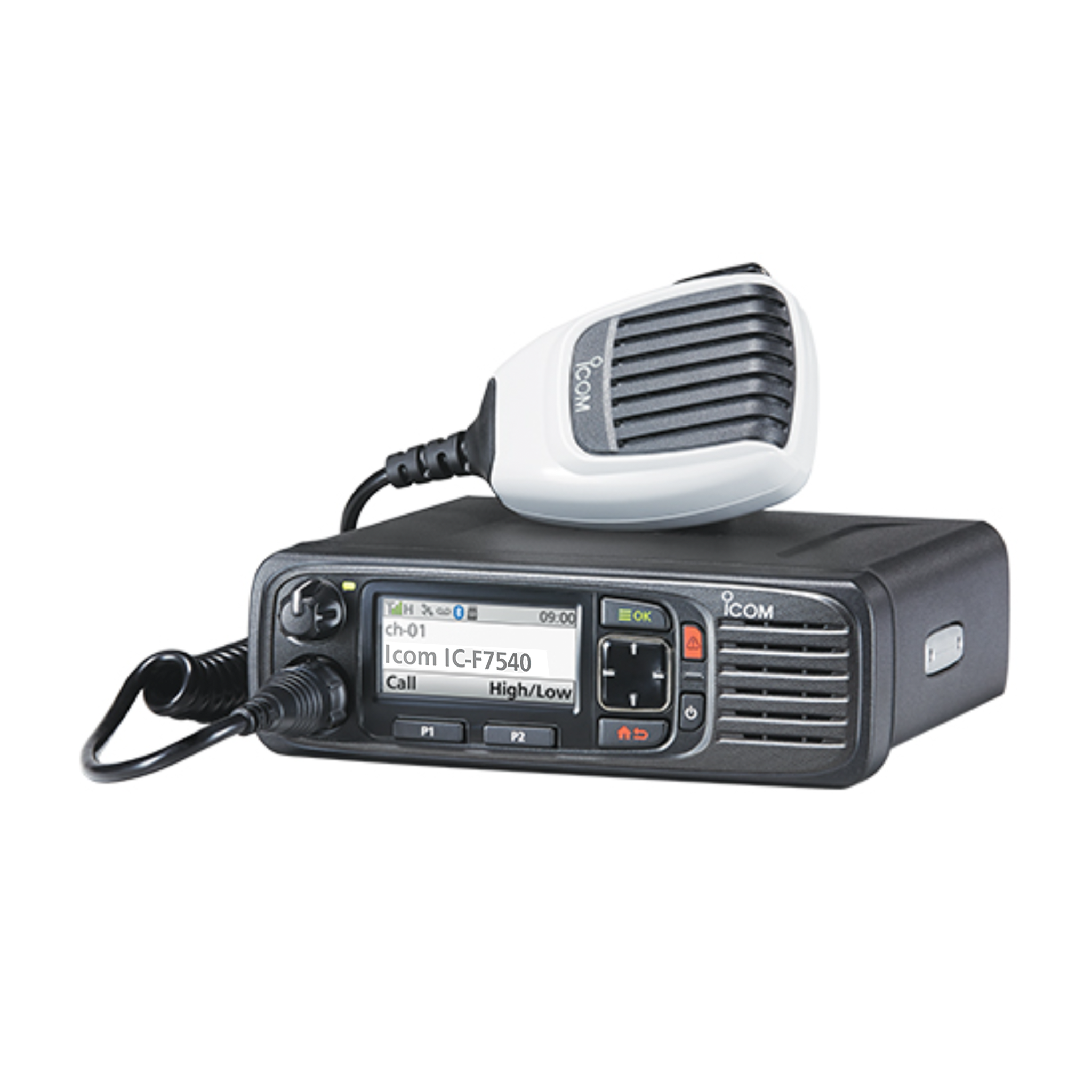

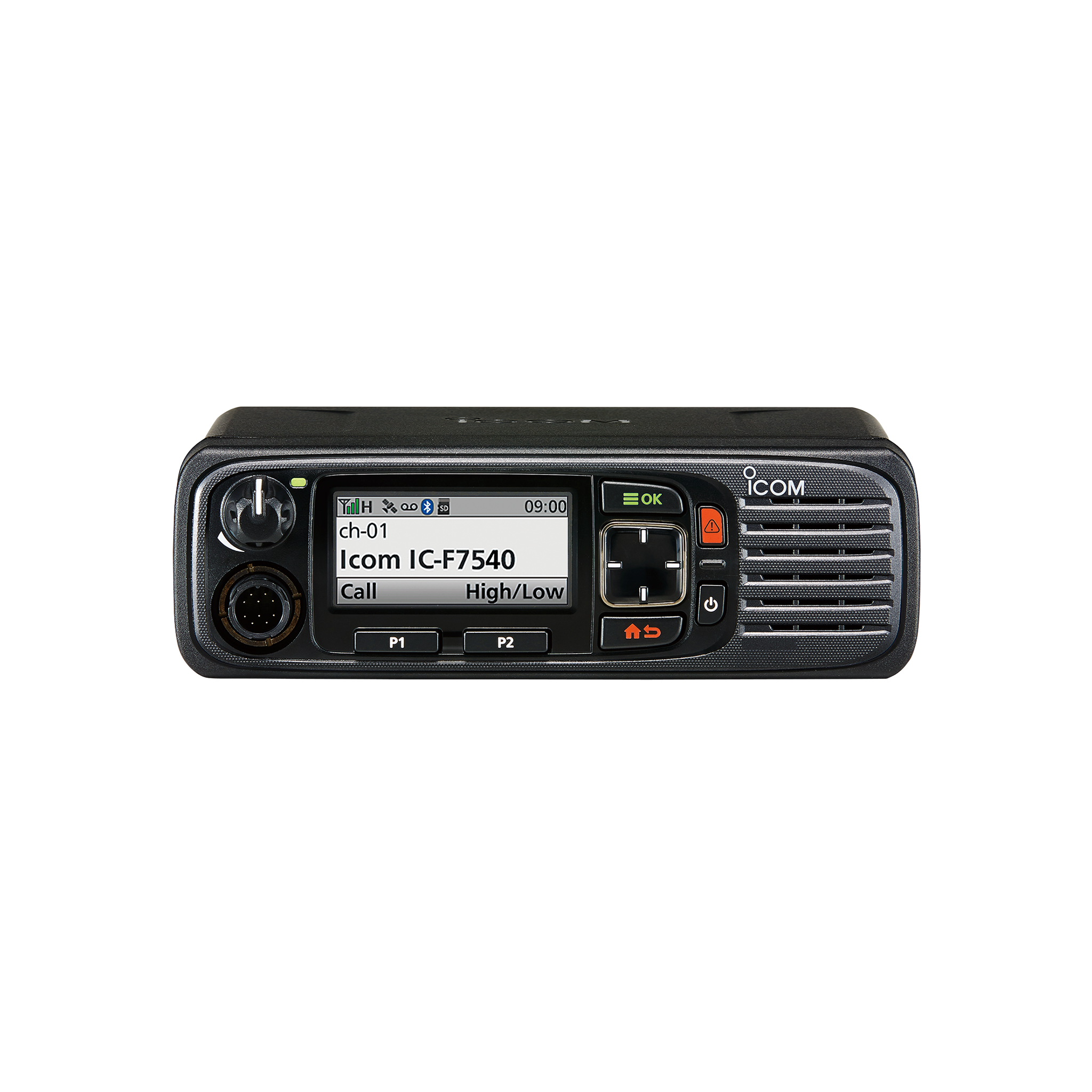

The Icom F7540 is a next-generation P25 mobile two-way radio, designed to support the ever-advancing P25 standard for both public service and public safety organizations. Operating on the 700/800MHz frequency bands, this radio offers a high visibility color LCD, an improved user interface, and loud, clear audio, all within a rugged, compact form factor that passes MIL-STD-810 G specifications.
The Icom F7540 series is compatible with both analog and digital functions and can be upgraded to P25 Phase 1 and Phase 2 trunking with a license key. It includes a built-in Bluetooth®, Voice Recorder, and standard GPS. With dozens of new features including Radio Stun/Kill/Revive, Lone Worker function, and Power ON password, this radio captures the essentials while offering expanded or upgraded services without burdening the user with unnecessary features. The kit includes the radio, an HM220 hand microphone, a DC power cable, a mounting bracket, and a microphone hanger.
Key Features
-
700/800MHz Frequency Bands: Operates within these dedicated frequency bands for public service and public safety.
-
1024 Channels / 128 Zones: Offers extensive channel capacity for organizing communication groups.
-
P25 Phase 1 Conventional & Trunking: Capable of P25 Phase 1 conventional, and can be upgraded to trunking and Phase 2 trunking with license keys.
-
45 Watts Power Output: Delivers high power for extended communication range.
-
Built-in Bluetooth®: Provides wireless connectivity for audio, data, and radio programming, including third-party headsets.
-
Standard GPS: Includes an integrated GPS for real-time location tracking and enhanced situational awareness.
-
High Visibility Color LCD: Offers an intuitive user interface with Day and Night mode display settings for clear readability in various lighting conditions.
-
Voice Recording/Playback: Records and plays back incoming/outgoing calls to a microSD card (up to 500 hours with a 32 GB card).
-
MIL-STD-810 G and IP55 Ratings: Tested to military environmental standards, water jet resistant, and dust protected for rugged reliability.
-
Voice/Audio Functions: Features TX/RX active noise canceller, TX/RX audio equalizer, and a loud speaker for clear, intelligible audio.
-
Enhanced Safety Functions: Includes Lone Worker, Power OFF emergency, and a dedicated Emergency button for user safety.
-
Security Features: Offers Power ON password, Radio Stun/Kill/Revive, and optional FIPS 140-2 compliant AES encryption unit with a license key.
-
Scan Functions: Features Priority scan, Talkgroup scan, and Voting scan (with license key) for automatically selecting the optimal repeater site.
-
Tactical Group: Temporarily reconfigures user groups for flexible communication.
-
D-SUB Connector: Programmable D-SUB connector for external PTT, channel, and other controls.
-
Kit Includes: HM220 hand microphone, DC power cable, mounting bracket kit, and a microphone hanger.
Benefits
-
Superior Communication Range and Clarity: High power output and advanced audio functions ensure clear, long-distance communication in critical situations.
-
Enhanced Safety and Accountability: Built-in GPS, Lone Worker, and emergency features provide crucial tools for user safety and location tracking.
-
Rugged Reliability: MIL-STD-810 G and IP55 ratings guarantee durable performance in harsh, demanding environments.
-
Flexible System Upgrades: Can be upgraded to P25 trunking modes with license keys, allowing the radio to grow with your communication needs.
-
User-Friendly Experience: High-visibility color LCD and intuitive user interface simplify operation, even in challenging conditions.
-
Versatile Connectivity: Bluetooth, USB, and D-SUB connectors support a wide range of accessories and configurations.
More Resources
Warranty
3-year manufacturer's warranty
