Description
High-Output Audio for Vehicle-Based Communication

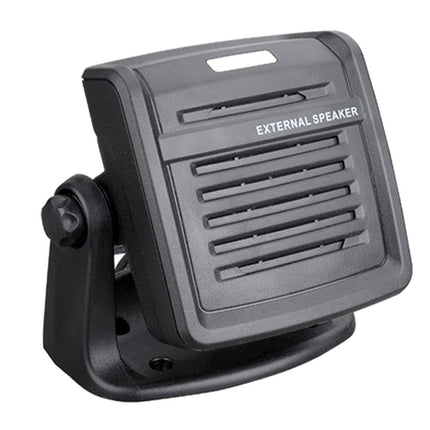

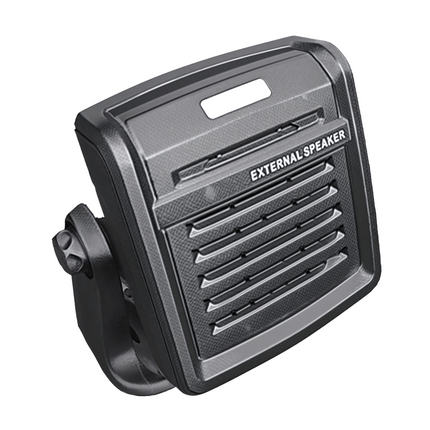

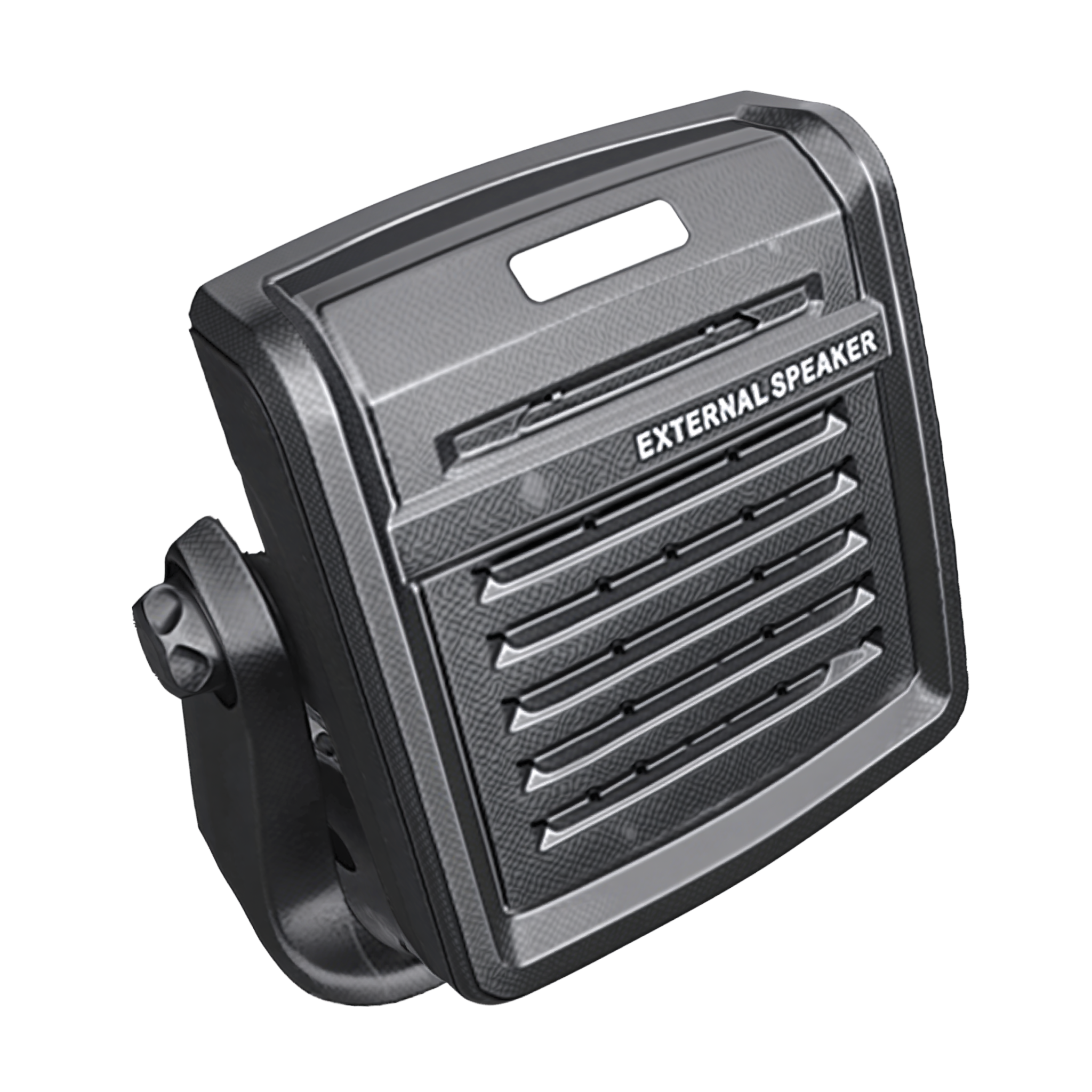

The Hytera SM09S1 is a professional-grade external amplified speaker designed to deliver powerful, crystal-clear audio in demanding vehicle environments. Engineered to overcome high ambient cabin noise, this speaker provides a substantial 15W output (20W max), ensuring that critical radio transmissions and emergency alerts are never missed. Whether installed in a logistics truck, public safety vehicle, or industrial transport, the SM09S1 is the ideal solution for users who find standard radio speakers insufficient for clear communication.
Built with a rugged, impact-resistant housing, the SM09S1 is specifically optimized for fixed installations within vehicle cabins. It features a secure 3.5mm single-pin connection and is a core component of Hytera’s professional car installation kits. With its flexible mounting bracket and 6-foot cable, this speaker can be easily positioned on dashboards, overhead consoles, or vertical pillars to provide the best possible audio projection for the operator.
Key Features & Benefits
-
High-Output Amplified Sound: Delivers 15W of rated power to cut through engine noise, wind, and heavy machinery interference.
-
Optimized for Vehicle Kits: Designed specifically to integrate with Hytera's professional car installation kits for seamless mobile operation.
-

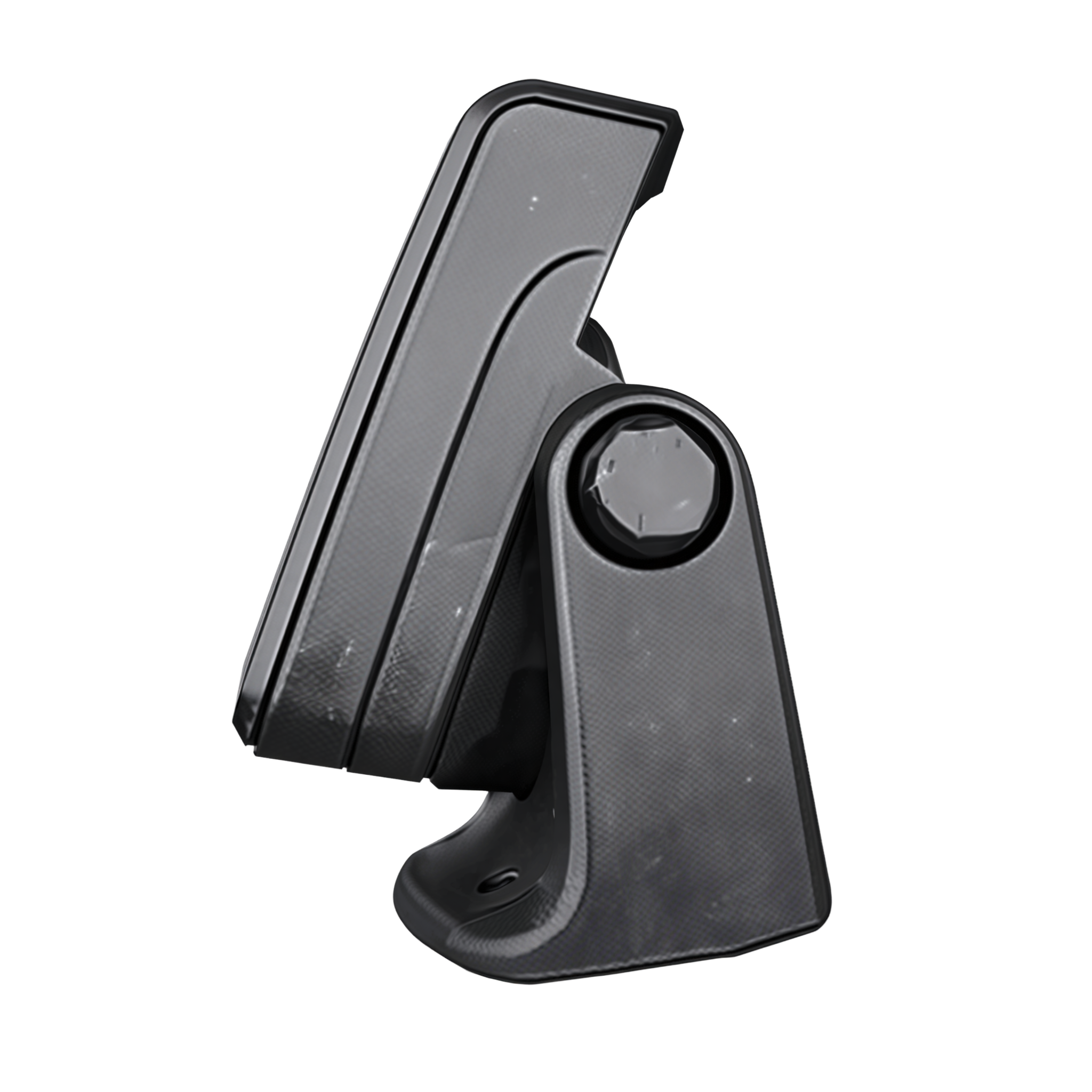

Flexible Mounting: Includes an adjustable bracket that supports secure attachment to both horizontal and vertical surfaces.
-
Intelligent Audio Path: Pairs with DMR mobile radios via the POA117 cable assembly, supporting integrated visor mic configurations.
-
Rugged Durability: Wide operating temperature range (-22ºF to 158ºF) ensures reliable performance in extreme weather conditions.
-
Distortion-Free Clarity: Features a specialized frequency response tuned for human voice intelligibility, reducing listener fatigue.
Technical Specifications
| Feature |
Specification |
| Speaker Power |
15 W (Rated) / 20 W (Max) |
| Speaker Impedance |
8 Ω ±15% @ 500 Hz |
| Frequency Response |
83 ±3 dB @ 1 kHz (1 W/1 m) |
| Connector Type |
3.5 mm Single-Pin Jack |
| Cable Length |
6 Feet (approx. 1.8 m) |
| Dimensions |
6.1” x 3.6” x 5.5” |
| Weight |
30.7 oz |
| Operating Temp |
-22ºF to 158ºF |
Installation Kit Compatibility
The SM09S1 is specifically designed for use with the following Hytera Vehicle Kits:
|
|
|
|
| CK02 |
CK02-E |
CK03 |
CK03-E |
| CK05 |
CK10 |
|
|
Radio Compatibility
The following radios are compatible with the SM09S1 when utilized with their respective vehicle installation kits:
|
|
|
|
| PNC380S |
PD702i |
PD752i |
PD782i |
| X1ei |
X1pi |
|
|
Recommended Accessories
- Hytera Professional Car Kit for PNC380S (
CK10)
- Hytera Vehicle Installation Kit for PD7 Series (
CK03
, CK03-S, CK03-E)
- Hytera Visor Microphone (POA77)
- Hytera Connection Cable for Visor Mic/Speaker (POA117)
Frequently Asked Questions
Does this speaker require a separate power source? The SM09S1 draws power through the connection to the Hytera car kit or mobile radio interface. When used with compatible CK kits, no additional external power wiring is required for the speaker itself.
Is the speaker waterproof? The SM09S1 is designed for interior in-cabin use. While it is built with robust materials, it is not rated for exposure to direct rain or high-pressure washing.
Warranty
1-year manufacturer's warranty.
The Hytera SM09S1 is an external amplified speaker. It is typically used along with car kits as an accessory as well as in tandem with the SM16A3 microphone. This car kits that this speaker is compatible with are CK03, CK03-S, CK03-E, CK02, CK02-E, CK05, and CK10.
SM09S1 RADIO COMPATIBILITY
- PNC380S
- PD702i
- PD752i
- Pd782i
- X1ei
- X1pi
WARRRANTY
*1-year manufacturer's warranty.
