Description
Tram Browning 1486
High Performance UHF Fiberglass Base Antenna - Tunable, 6.5dB Gain

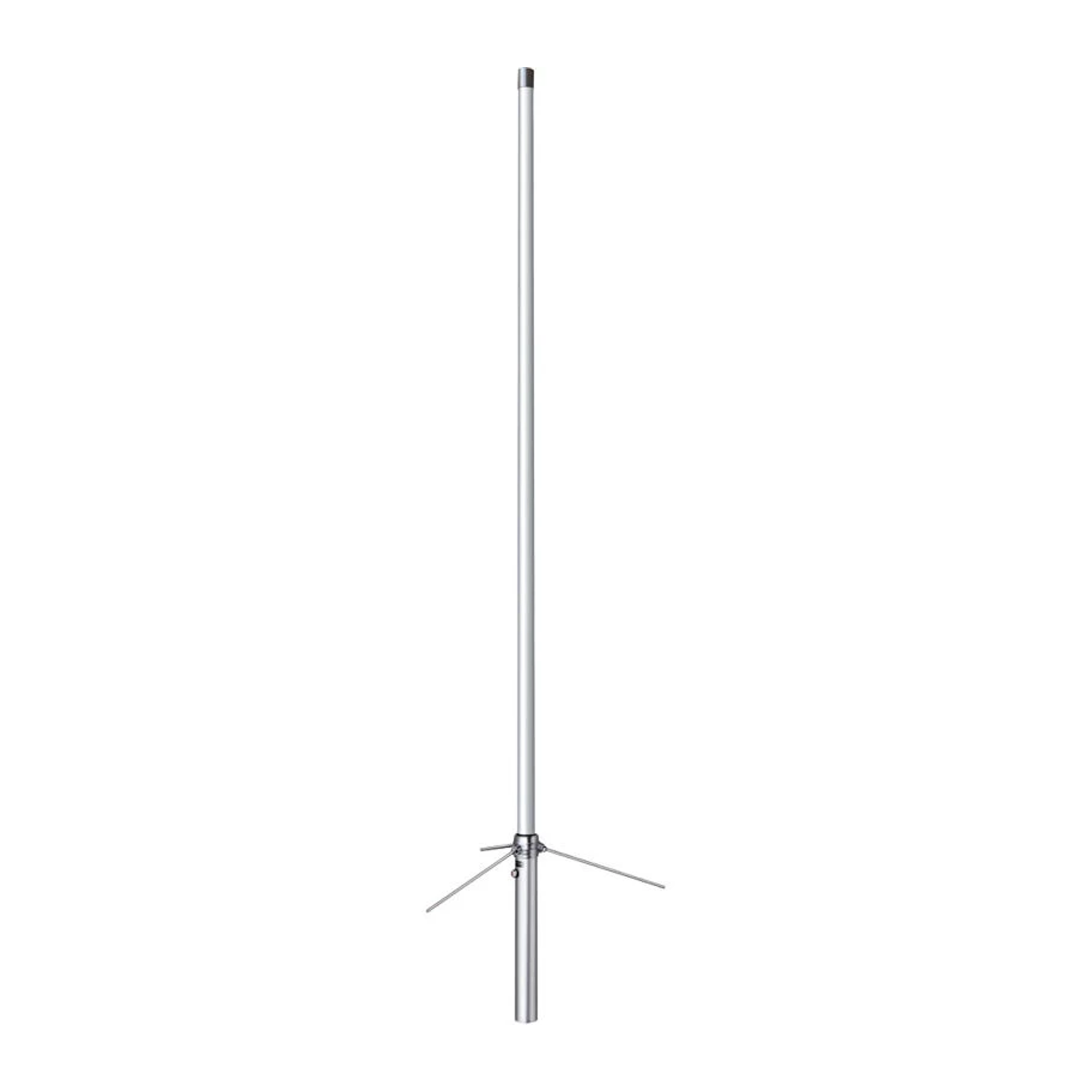

The Tram Browning 1486 is a high-performance UHF fiberglass base station/repeater antenna with a power rating of 200 watts. This single-section, 5/8 wave antenna stands 5' 7" tall and is tunable across the 406-512 MHz frequency range using the included cutting chart. Rated for maximum winds of 120 mph, it's ideal for GMRS, Amateur, or Commercial use.
Key Features
-
Wide UHF Range (406-512 MHz): Tunable across the UHF band for flexible frequency operation.
-
High Gain (6.5 dBd): Provides enhanced signal strength and extended communication range.
-
Durable Fiberglass Construction: Single-section, 5/8 wave design with hermetically sealed radiator and coil for all-weather performance.
-
Lightning Protection: DC ground construction allows static dissipation for low noise ratio and maximum lightning protection.
-
Direct Termination: SO-239 (UHF Female) connector for easy and secure connection.
-

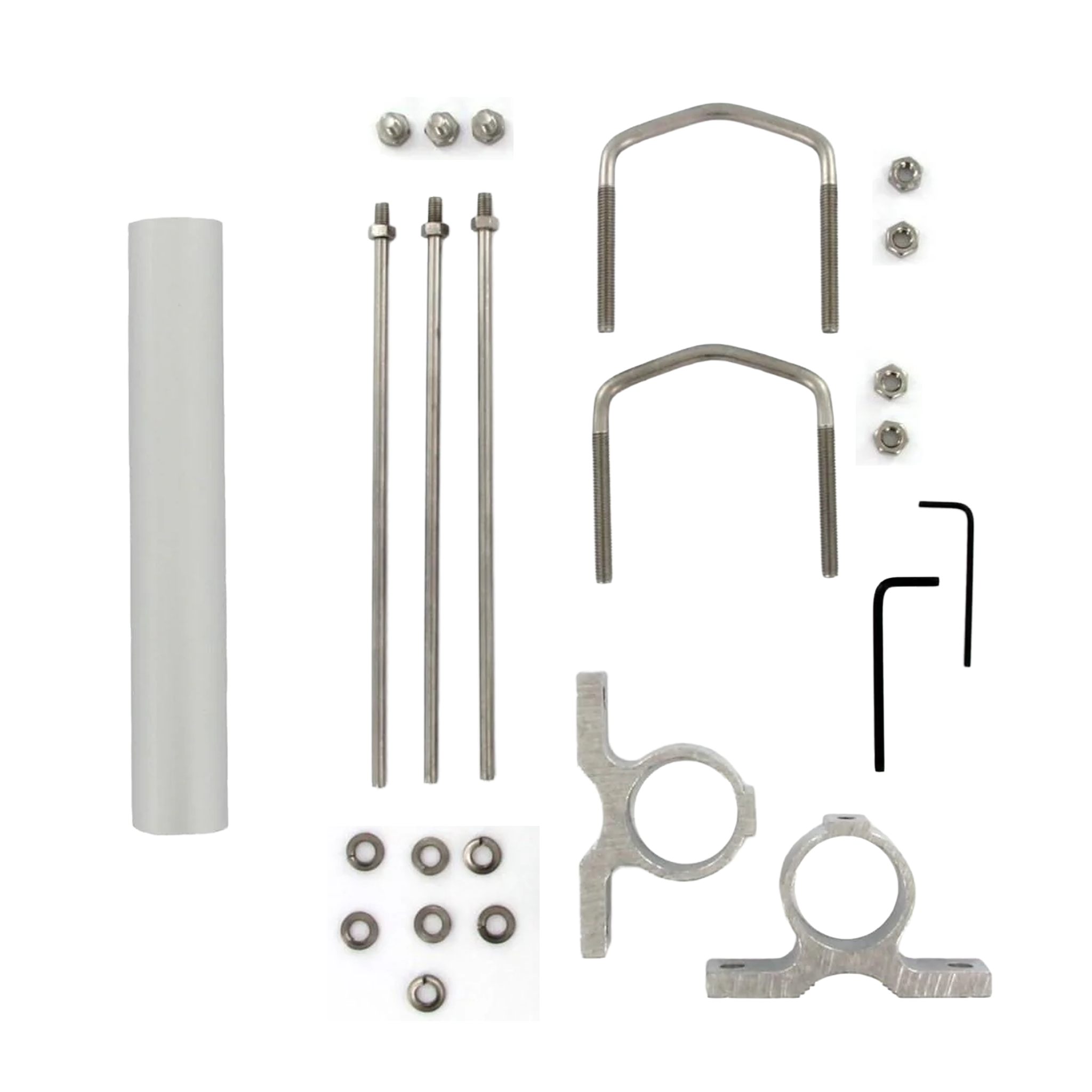

Includes Mounting Hardware: Comes with necessary hardware for mast installation.
Compatibility
Designed for base station/repeater applications. Requires a mast diameter of 1 3/16" to 2 7/16" (30-62mm).
Benefits
-
Optimized Performance: Can be custom-tuned to your specific operating frequency.
-
Extended Range: High gain ensures greater communication coverage.
-
Durable and Weatherproof: Fiberglass construction protects against the elements for long-lasting use.
-
Reliable Signal: DC ground design minimizes static and enhances signal clarity.
Warranty
1-year manufacturer's warranty
