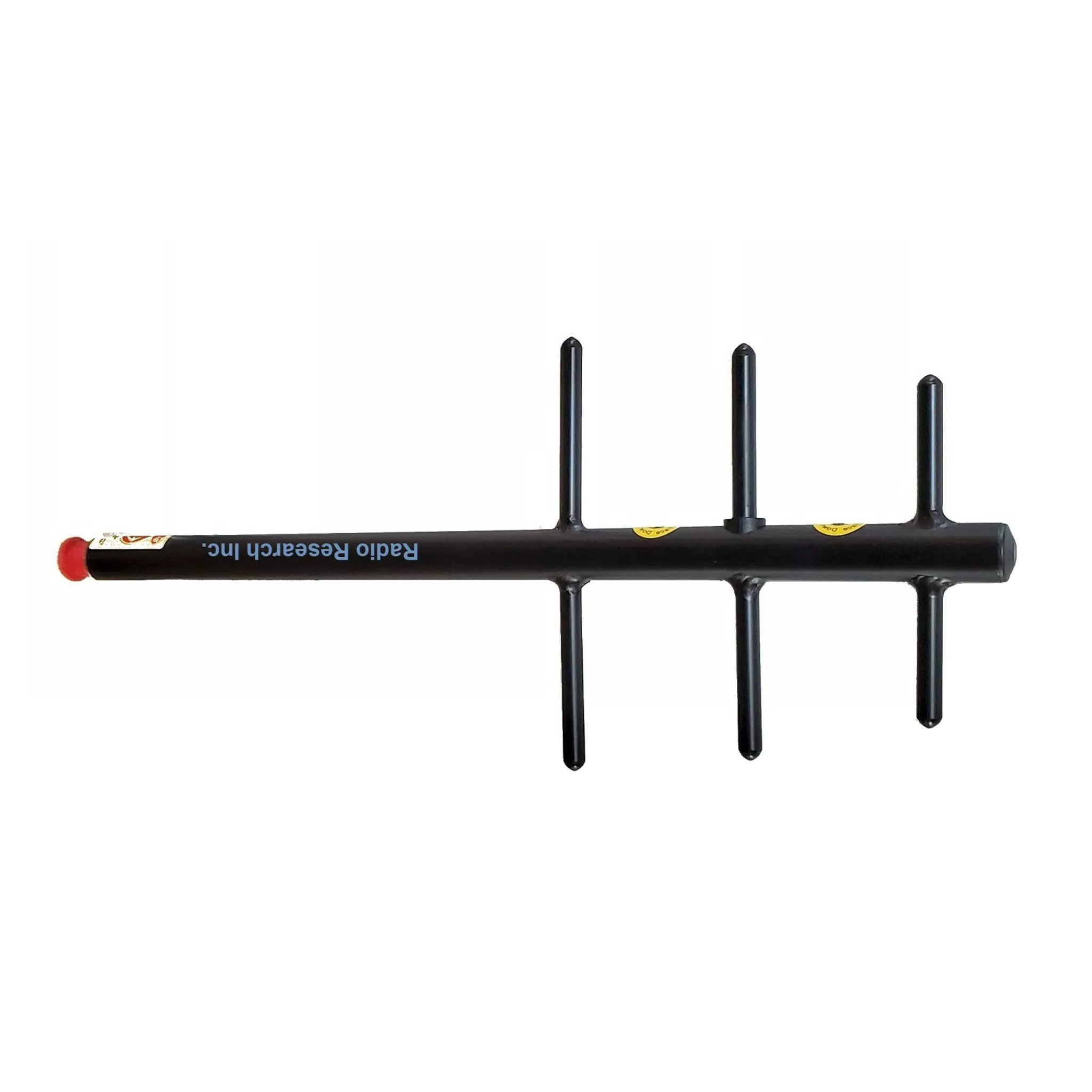

Tram Browning BR-6383-B
Yagi Directional Base Radio Antenna - 806-896 MHz, 6dBd Gain
The Browning BR-6383-B is an 800 MHz Yagi Antenna. It operates in the 806-896 MHz frequency range (No Tuning Necessary) and offers 6 dBd gain. This antenna is designed to handle up to 85 watts and features an N Female connector for coax cable. It comes with mounting brackets and hardware.
Key Features
-
Antenna Type: Yagi - Designed for directional communication, focusing signal transmission and reception in a specific direction.
-
Frequency Range: 806-896 MHz (No Tuning Necessary) - Operates within this specific UHF band without requiring manual tuning.
-
Gain: 6 dBd - Provides a moderate level of signal amplification, increasing communication range and signal clarity.
-
Elements: 3 - Number of radiating elements, influencing the antenna's directivity and gain.
-
Color/Finish: Black - Provides a standard and often preferred aesthetic appearance.
-
Maximum Input Power (Watts): 85 watts - The maximum power the antenna can handle without damage or distortion.
-
Bandwidth >1.5 VSWR: 90 MHz - The range of frequencies over which the antenna's voltage standing wave ratio (VSWR) remains within acceptable limits.
-
Direct Termination: N Female - A standard RF connector type for connecting coaxial cable.
-
Weight: 1 lbs 12 oz - The physical weight of the antenna.
-
Mount Hdw. Incl.: Yes - Indicates that mounting hardware is included for convenient installation.
-
Rated Wind Velocity (RWV, MPH): 110 MPH - The maximum wind speed the antenna is designed to withstand.
Benefits
-
Directional Communication: Yagi design for focused signal transmission and reception.
-
Wide Bandwidth: 90 MHz bandwidth for versatile use.
-
Complete Installation: Includes mounting brackets and hardware.
-
Durable Construction: Designed for reliable performance.
Warranty
1-year manufacturer's warranty
