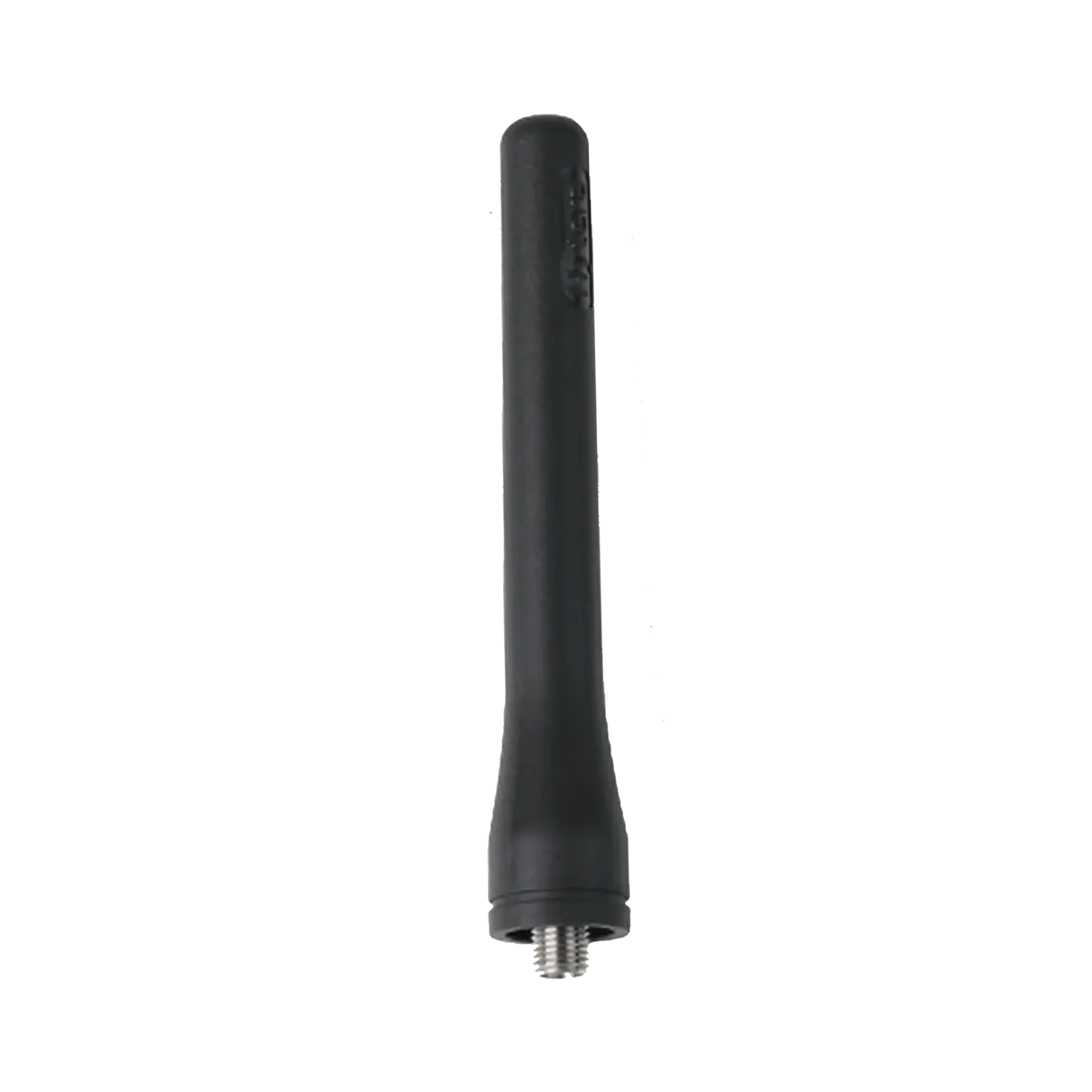

Hytera AN0873H07
UHF (806-941MHz / 1575MHz) Stubby Antenna
Durable Short-Profile Helical Antenna with GPS Integration
The Hytera AN0873H07 is a high-performance, short-profile antenna solution designed for high-tier digital portables operating in the 800MHz and 900MHz bands. Measuring just 9cm in length, this "stubby" helical antenna features a durable brass core that provides reliable signal propagation while remaining non-obtrusive. The Hytera AN0873H07 is specifically engineered for professional users who wear their radios on a belt or tactical vest, as its compact height prevents the antenna from snagging on clothing or equipment during physical activity.
Beyond standard RF communication, the Hytera AN0873H07 is a dual-function component that includes a specialized 1575MHz core for GPS and GLONASS satellite reception. This integration allows for precise location-based services and "man-down" safety tracking without the need for a secondary antenna. Manufactured to strict RoHS compliance standards, the Hytera AN0873H07 ensures high-integrity electrical performance and long-term durability in demanding industrial and public safety environments.
Key Features & Benefits
-
Dual-Band Performance: Optimized for the 806-941MHz UHF spectrum while providing a secondary path for 1575MHz GPS/GLONASS signals.
-
Low-Profile Helical Design: At only 9cm, the stubby architecture provides maximum comfort for belt-worn radios without sacrificing essential range.
-
Durable Brass Core: Features a high-quality helical brass internal structure for superior flexibility and resistance to mechanical fatigue.
-
Integrated GPS Support: Facilitates real-time location tracking and situational awareness for dispatch and commander monitoring.
-
SMA Connector Compatibility: Features a precision-engineered SMA interface for a secure, water-resistant fit to Hytera professional series radios.
-
Non-Obtrusive Form Factor: Ideal for covert operations, hospitality, or any environment where a standard whip antenna is too long or cumbersome.
Specifications
| Feature |
Specification |
| Frequency Range |
806-941MHz / 1575MHz |
| Connector Type |
SMA |
| GPS/GLONASS |
Supported |
| Dimensions |
9cm |
| Core Material |
Helical Brass |
| Compliance |
RoHS |
Compatibility
|
|
|
|
| PD702i |
PD752i |
PD782i |
PD982i |
Recommended Accessories
- Hytera Remote Speaker Microphone (SM18N2)
- Hytera Single Unit Rapid Charger (CH10A07)
Frequently Asked Questions
Will this antenna work on a standard 400-470MHz UHF radio? No. The AN0873H07 is specifically tuned for the 800MHz and 900MHz bands. Using this on a lower-frequency UHF radio will result in extremely poor performance and may damage the radio's transmitter.
Does the shorter length affect my range? While stubby antennas are more convenient to wear, they generally provide slightly less range than a full-length whip. However, the high-quality brass core in the AN0873H07 is designed to minimize this loss within the 806-941MHz range.
Is this antenna waterproof? When properly tightened onto the radio's SMA connector, the antenna maintains the environmental integrity of the radio; however, always ensure the connector O-ring on your radio is intact.
Warranty
1-year manufacturer's warranty.
