Description

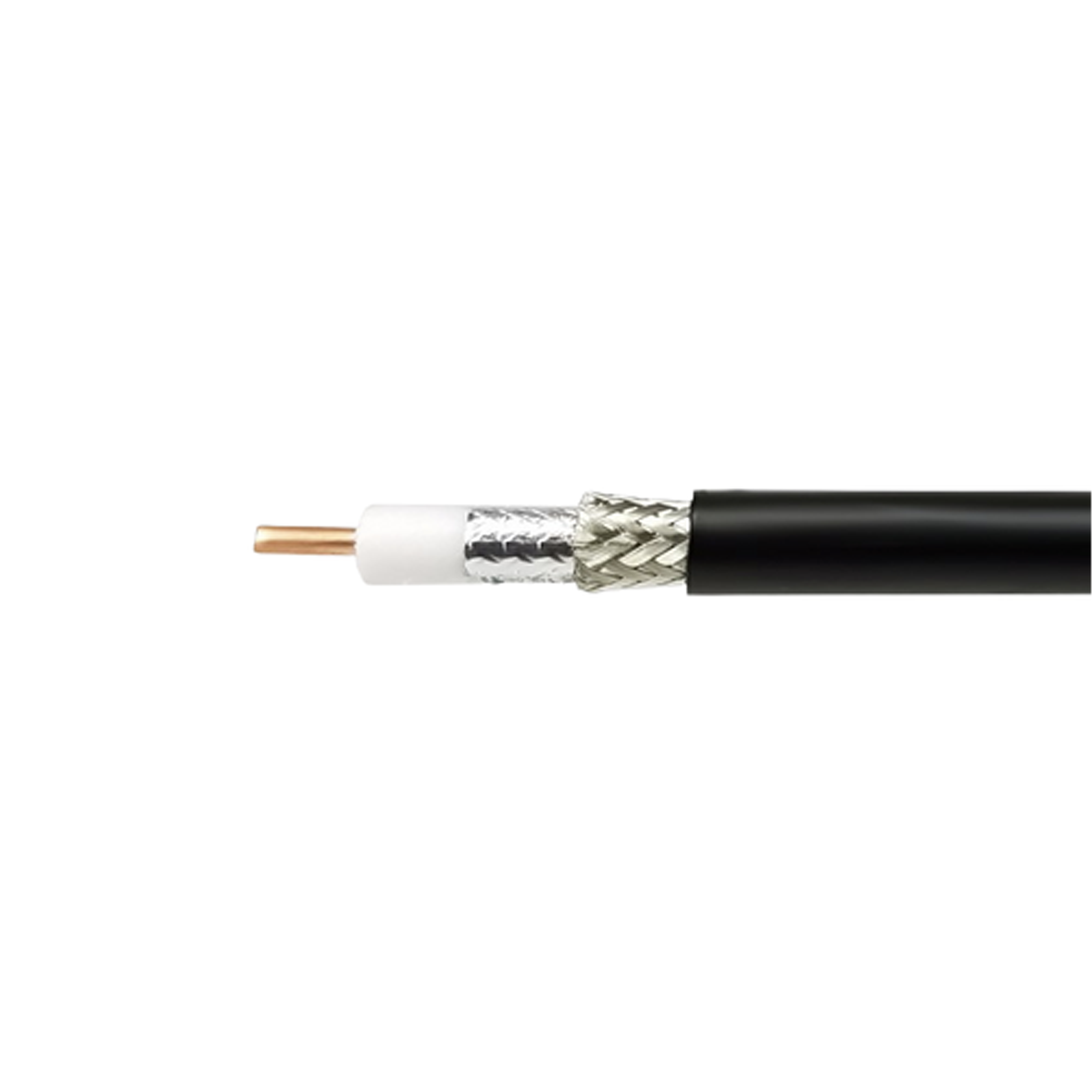

Atlantic Radio ARC400
50 Ohm Low Loss Coaxial Cable
The Atlantic Radio ARC400 is a high-performance 50 Ohm coaxial cable specifically designed for connecting repeaters to antennas in demanding two-way radio applications. This cable offers excellent electrical performance, durability, and flexibility to ensure optimal signal transmission and reception. It is engineered to provide outstanding signal quality with minimal signal loss, making it ideal for systems requiring reliable and efficient transmission.
Constructed with an outer diameter of 10.29 mm (0.405"), the ARC400 provides superior bending and handling characteristics compared to air-dielectric and corrugated hard-liner cables. This UV-resistant polyethylene-jacketed cable is designed for 20 years of outdoor service.
ARC400 50 Ohm Low Loss Flexible Coaxial Cable is a substitute to LMR400.
* LMR™ is a trademark of Times Microwave Systems.
Key Features
-
Superior Performance: Provides low loss and high attenuation to minimize signal degradation, ensuring clear and reliable communication.
-
Compact yet Strong: Constructed with a 10.29 mm diameter and an impedance level of 50 Ohm.
-
Durable Construction: Built with a polyethylene outer jacket to withstand harsh weather conditions and long-term use, ensuring a long lifespan.
-
Flexible Design: Easy to install and route in various configurations with a minimum bending radius of 25.4 mm.
-
Wide Range of Applications: Compatible with a variety of two-way radio systems, including mobile, base station, and portable applications.
Technical Specifications
-
Characteristic Impedance: 50 Ohm
-
Velocity Ratio: Greater than 85%
-
Capacitance: 78 pF/m
-
Operating Temperature: -40 to +85 degrees Celsius
-
Peak Power Rating: 16.00 kW
-
Center Conductor: Solid Copper-Clad Aluminum (2.74 mm)
Benefits
-
Optimal Signal Integrity: Features a dual-shielding design with bonded aluminum foil and tinned copper braid for a screening factor greater than 90 dB.
-
Weatherproof Reliability: The double-sealed, thick-wall polyethylene jacket provides maximum protection against environmental wear.
-
High-Efficiency Transmission: Low DC resistance ensures that the maximum amount of power reaches the antenna.
More Resources
ARC400 Manual
Warranty
1-year manufacturer's warranty
