Description
Diagnostic Bench Testing Kit for Mobile Fleet Radios
Execute flawless mobile radio calibrations with a high-fidelity shielded alignment tool.

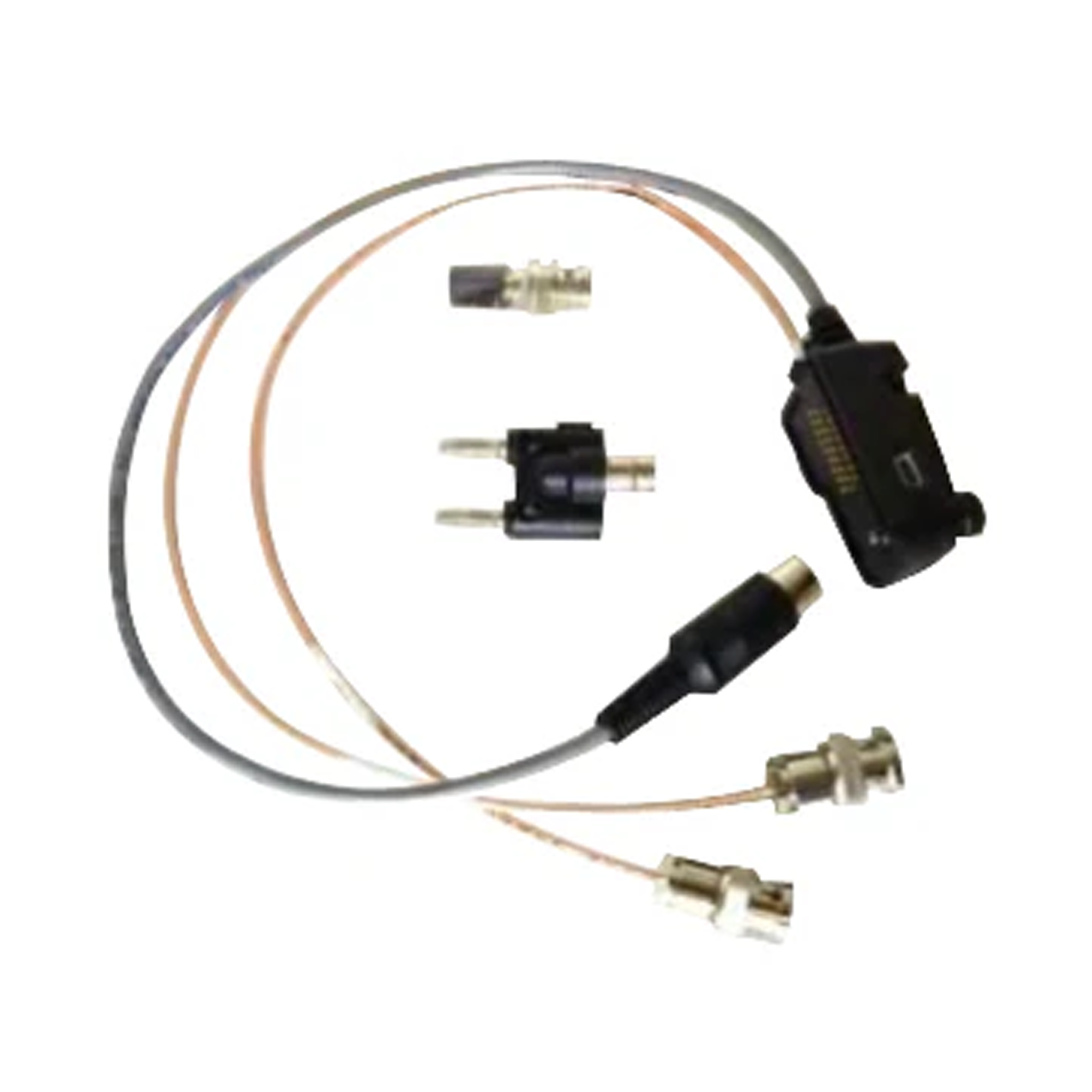

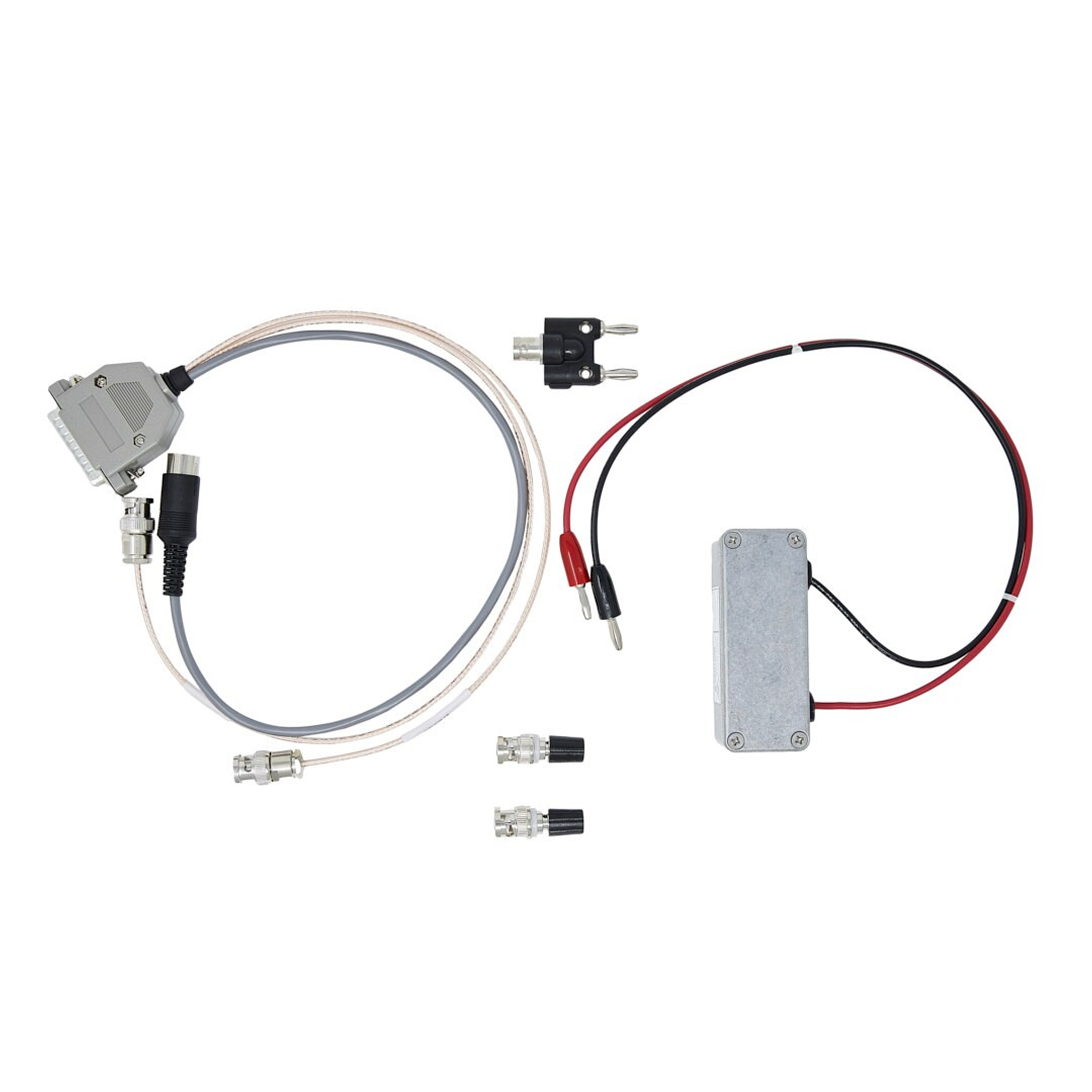

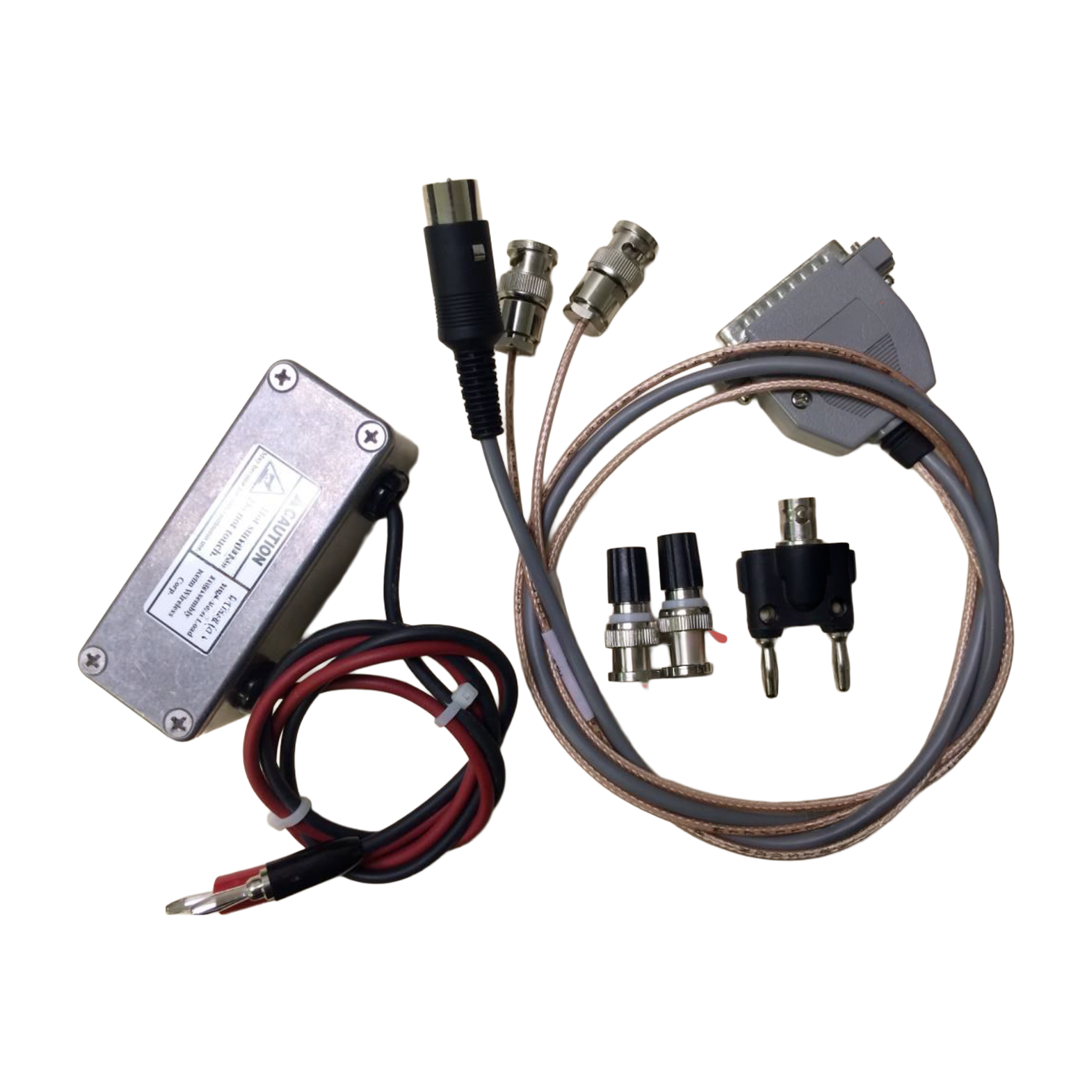

The Bendix King KAA0609 is a high-grade radio diagnostics tool engineered for professional bench service centers. This genuine Bendix King KAA0609 Test Cable Kit for KNG-M Series Radios establishes a secure hardware bridge between advanced RF communications analyzers and your mobile transceivers. Technicians utilize this multi-conductor testing assembly to check transmitter power, evaluate receiver sensitivity, and perform critical factory alignment cycles.
Built to withstand repetitive testing environments, the Bendix King KAA0609 helps maintain accurate diagnostic metrics on communication hardware fleets. It addresses calibration drift by providing low-loss, shielded paths that eliminate RF signal variances during benchmarking. Fleet technicians must know that the KAA0609 requires specialized testing instruments, power configurations, and internal tuning utility software to completely optimize the attached transceivers.
Key Features & Benefits
-
Shielded Signal Processing: The Bendix King KAA0609 Test Cable Kit for KNG-M Series Radios isolates line noise and interference during high-wattage mobile radio bench tracking.
-
Factory Alignment Matching: Precision-built to interface perfectly with multi-pin front connections without risking mechanical socket degradation.
-
Heavy-Duty Strain Relief: Constructed using commercial-grade molded sleeves to prevent internal wire breakage under continuous service station manipulation.
-
Low-Loss Configuration: Promotes accurate impedance match parameters for highly repeatable transmitter and receiver test results.
-
Streamlined Diagnostics: Reduces multi-device bench layout complexities by integrating essential power, RF, and data paths into an orderly interface harness.
Specifications
| Attribute |
Details |
| Brand |
Bendix King |
| Model/SKU |
KAA0609 |
| Product Type |
Test Cable Kit |
| Application |
Diagnostics, Calibration, and Alignment |
| Compatibility Type |
Genuine OEM Accessory |
Compatibility
|
|
|
|
| KNG-M150 |
KNG-M400 |
KNG-M500 |
KNG-M800 |
Frequently Asked Questions
What is the primary purpose of the Bendix King KAA0609 test harness?
The Bendix King KAA0609 passes concurrent RF signals, power distributions, and tuning telemetry directly from a mobile transceiver to communications service instrumentation. It allows for advanced board-level tracking, transmitter calibration, and automated alignment routines that standard data links cannot perform.
Is specialized software required when using this diagnostic kit?
Yes, this component provides the physical wiring matrix needed for bench testing. To make internal adjustments, tune transceiver parameters, or update system firmware, the operator must use compatible factory programming utilities and proper RF measurement equipment.
Which mobile models will this physical interface kit support?
This apparatus is designed exclusively to fit the front-panel accessory connections found on the KNG-M150, KNG-M400, KNG-M500, and KNG-M800 digital lines. It will not attach to legacy platforms or handheld portable devices due to unique plug configuration requirements.
Warranty
1-year manufacturer's warranty.
