Description

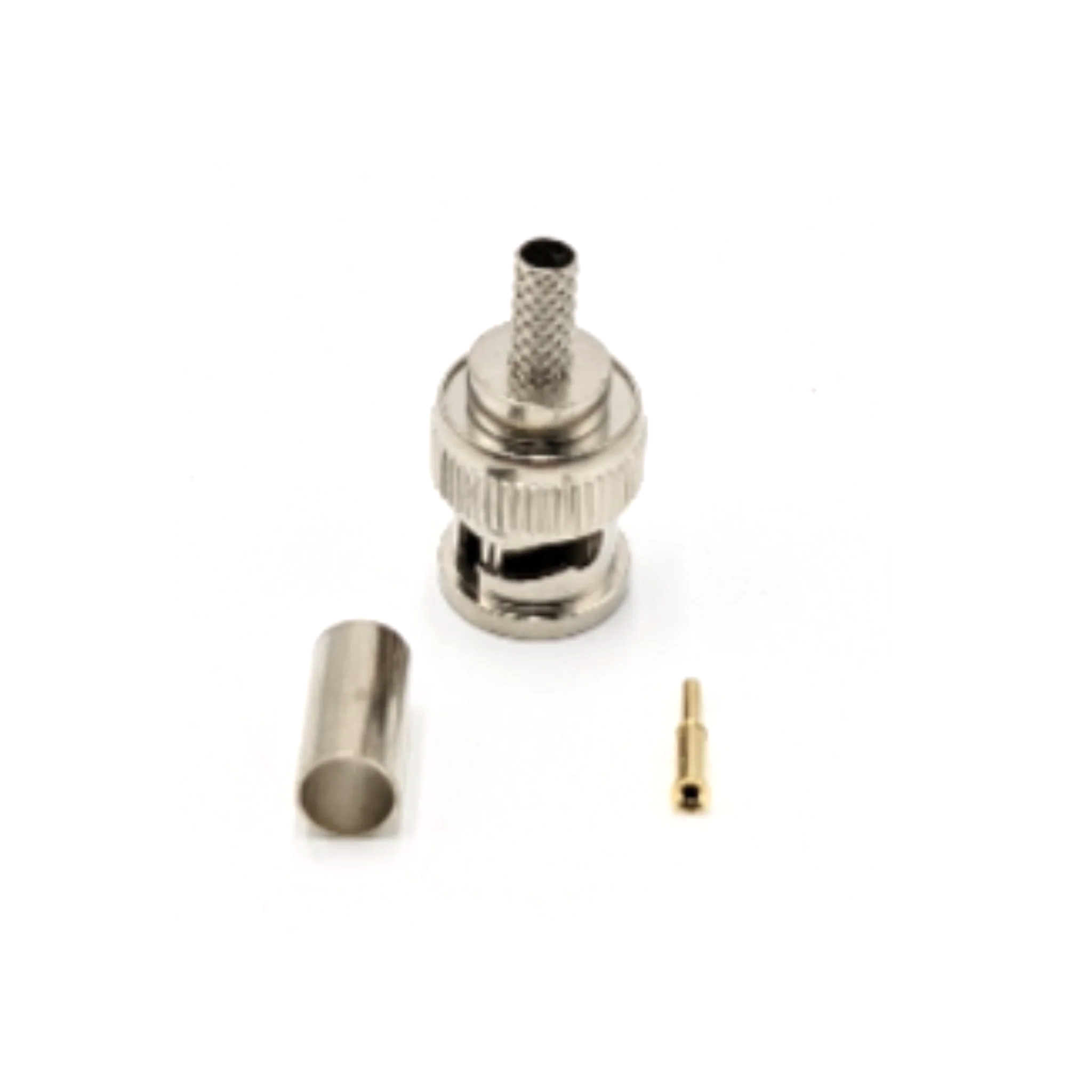

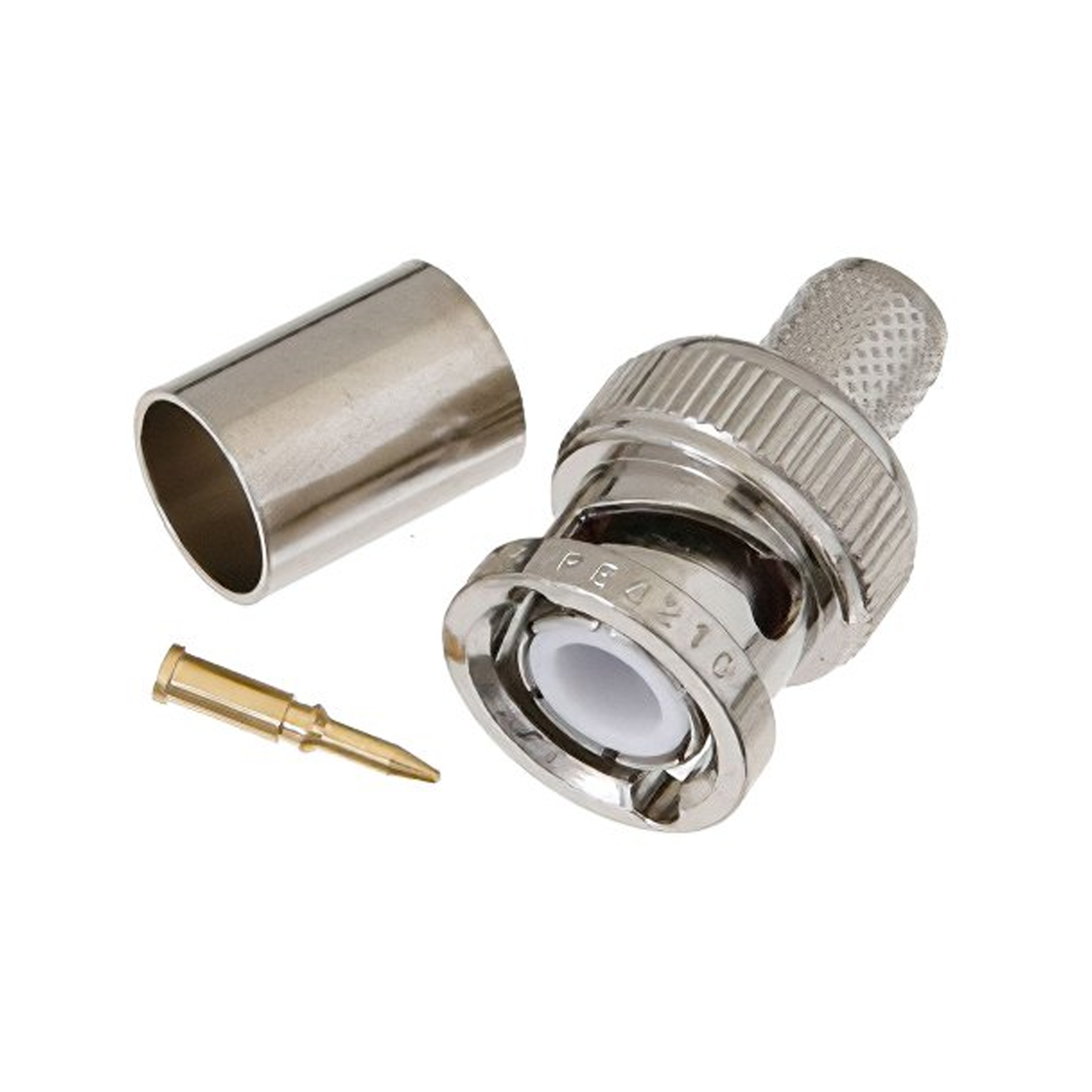

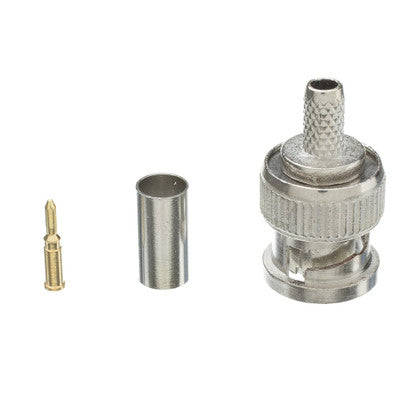

Atlantic Radio BNC-Male Connector
4 GHz BNC-Male Crimp Plug for RG-58 Coaxial Cable
The Atlantic Radio BNC-Male Connector is a professional-grade, 3-piece crimp plug designed for reliably terminating RG-58/U and comparable 50-Ohm coaxial cables. This connector is a fundamental component for creating high-quality, custom-length feedlines for antennas and radio equipment, guaranteeing a stable connection that maintains signal integrity.
Built for superior performance, this connector is rated for maximum frequencies up to 4 GHz, making it suitable for a wide range of RF applications including VHF, UHF, and even broadband systems. The Atlantic Radio BNC-Male Connector features a durable nickel-finished brass body and gold-plated center contact, which provides excellent conductivity and robust resistance to corrosion. Its secure bayonet coupling mechanism allows for quick, reliable connection and disconnection.
Key Features
-
High-Frequency Performance: Rated for reliable operation up to 4 GHz, ensuring excellent signal quality across UHF, VHF, and other demanding frequency applications.
-
Professional Crimp Termination: The 3-piece crimp plug design provides a permanent, secure, and low-loss termination for RG-58C/U, RG-141, and LMR195 cable types.
-
Superior Conductivity: Features a brass body with a nickel finish and gold-plated center contact, maximizing signal transfer efficiency and resisting corrosion.
-
Standard 50 Ohm Impedance: Ensures electrical compatibility with virtually all professional two-way radio equipment and antenna systems.
Compatibility
Benefits
-
Optimized Signal Integrity: The high-quality materials and secure crimp method minimize insertion loss and maximize signal performance.
-
Versatile Application: Its broad frequency rating and compatibility with multiple cable types make it a flexible choice for diverse radio setups.
-
Enhanced Durability: The robust brass construction and nickel finish provide a strong, long-lasting connector that withstands frequent mating cycles (rated for 500).
-
Quick, Secure Coupling: The BNC bayonet coupling mechanism allows for fast, one-quarter turn connection that locks securely in place.
Warranty
1-year manufacturer's warranty
