Description
Icom PS80
Desktop Power Supply Unit (120 VAC)
Professional Integrated Power Solution for Icom Aviation Transceivers

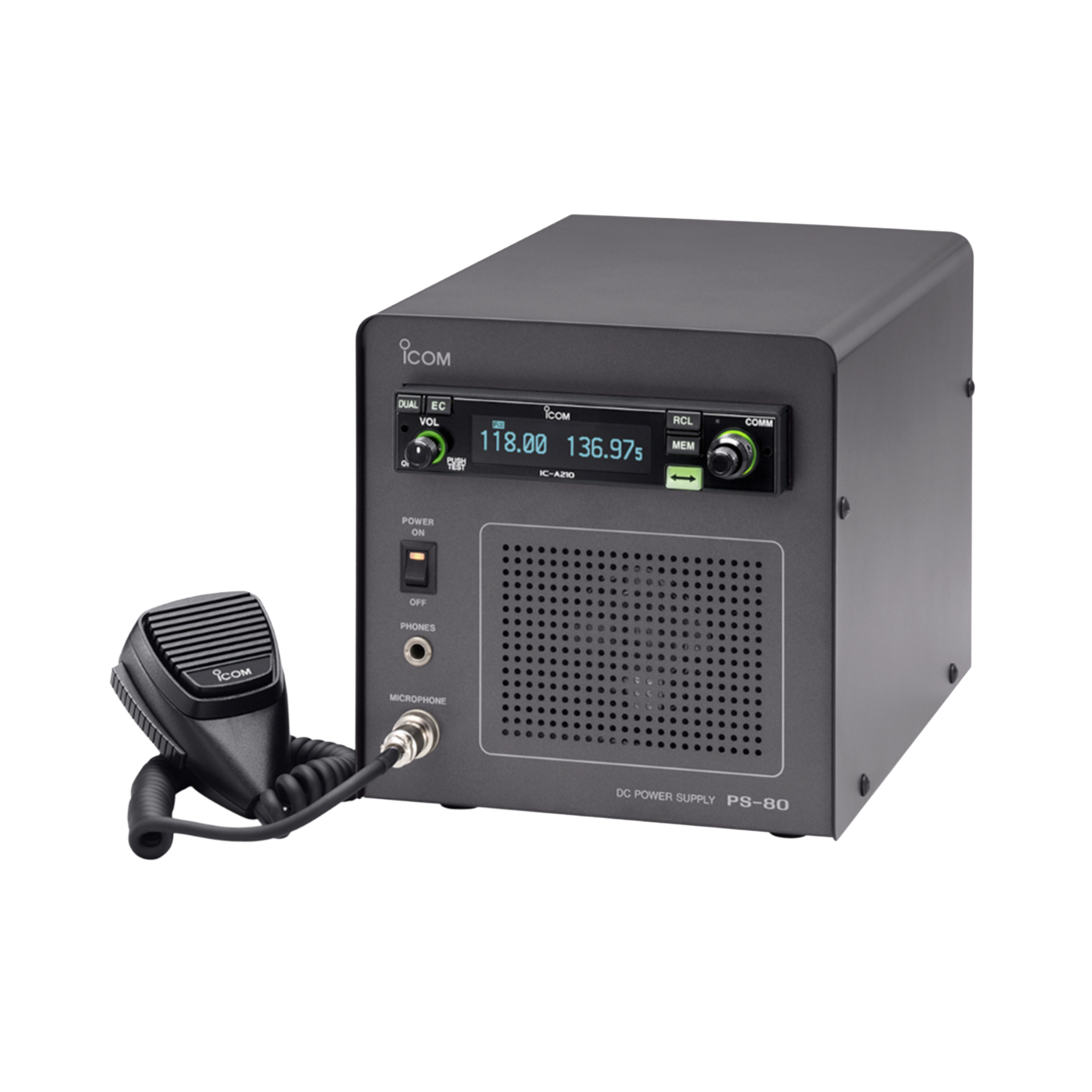

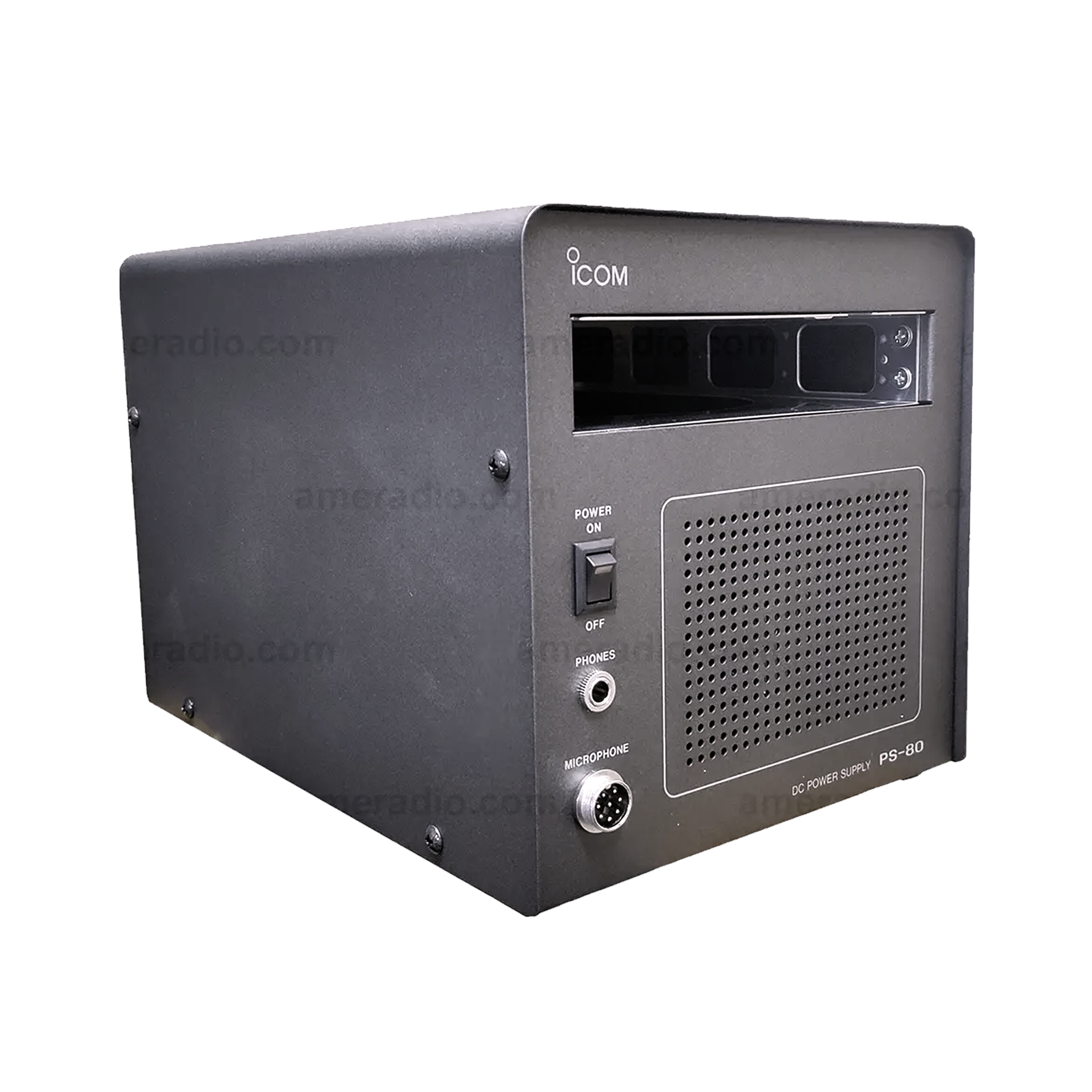

The Icom PS80 is a high-performance desktop power supply specifically engineered to convert Icom mobile aviation radios into professional ground-based stations. This integrated unit provides a stable 12.0 VDC power source from a standard 120 VAC (100V–240V compatible) input, ensuring that your avionics equipment operates with the consistent voltage required for high-wattage airband transmissions. Designed for airports, FBOs, and flight schools, the Icom PS80 allows for the seamless installation of a mobile transceiver directly into the power supply housing.
This comprehensive desktop kit is more than just a power converter; it is a complete base station conversion assembly. Depending on the version, the Icom PS80 typically includes the HM-176 hand microphone and the MBA-3 attachment adapter, providing all the necessary components for immediate stationary use. The rugged internal circuitry is rated for a maximum output current of 6 A, providing ample overhead for the Icom A220, A210, and A200 series radios during peak transmission cycles.
Constructed with a professional-grade steel chassis, the Icom PS80 is built to withstand the rigors of 24/7 flight operations centers. Its optimized thermal design ensures that the power supply and the installed radio remain cool during extended periods of monitoring. By utilizing the Icom PS80, operators can maintain mission-critical communications between ground crew and aircraft with the same reliability found in the cockpit.
Key Features & Benefits
-
Base Station Integration: Specifically designed to house and power Icom aviation mobile radios for desktop use.
-
Stable Power Delivery: Converts AC wall power to a clean 12 VDC / 6 A output, protecting sensitive avionics circuitry.
-
Complete Kit Components: Includes the HM-176 microphone and MBA-3 adapter for a "plug-and-play" setup.
-
Universal AC Input: Supports a wide input range of 100 V to 240 V AC, making it adaptable to various regional power grids.
-
Durable Desktop Chassis: Large, stable footprint (200 x 212 x 300 mm) provides a secure platform for heavy-duty radio operation.
-
Optimized for A220 Series: Precision-engineered for the latest Icom airband transceivers to ensure full RF performance.
Specifications
-
Brand: Icom
-
Part Number: PS80 (PS-80)
-
Input Voltage: 100 V - 240 V AC
-
Output Voltage: 12 V DC
-
Maximum Output Current: 6 A
-
Dimensions: 200 (W) × 212 (H) × 300 (D) mm
-
Weight: Approximately 4 kg
-
Included Accessories: HM-176 Microphone, MBA-3 Attachment Adapter
Compatibility
Frequently Asked Questions
-
Does the radio come included with the PS80? No, the Icom PS80 is the power supply and housing unit only. The A220 or other compatible transceivers must be purchased separately.
-
Is this power supply compatible with the 25kHz and 8.33kHz versions of the A220? Yes, the PS80 provides the standard power requirements for all versions of the A220 mobile radio.
-
What is the purpose of the MBA-3 adapter? The MBA-3 is the mechanical attachment adapter used to secure the radio unit into the PS80 desktop chassis.
Warranty
1-year manufacturer's warranty
