Description
Streamline your portable radio profile with a dual-function stubby antenna engineered for rugged field deployment.

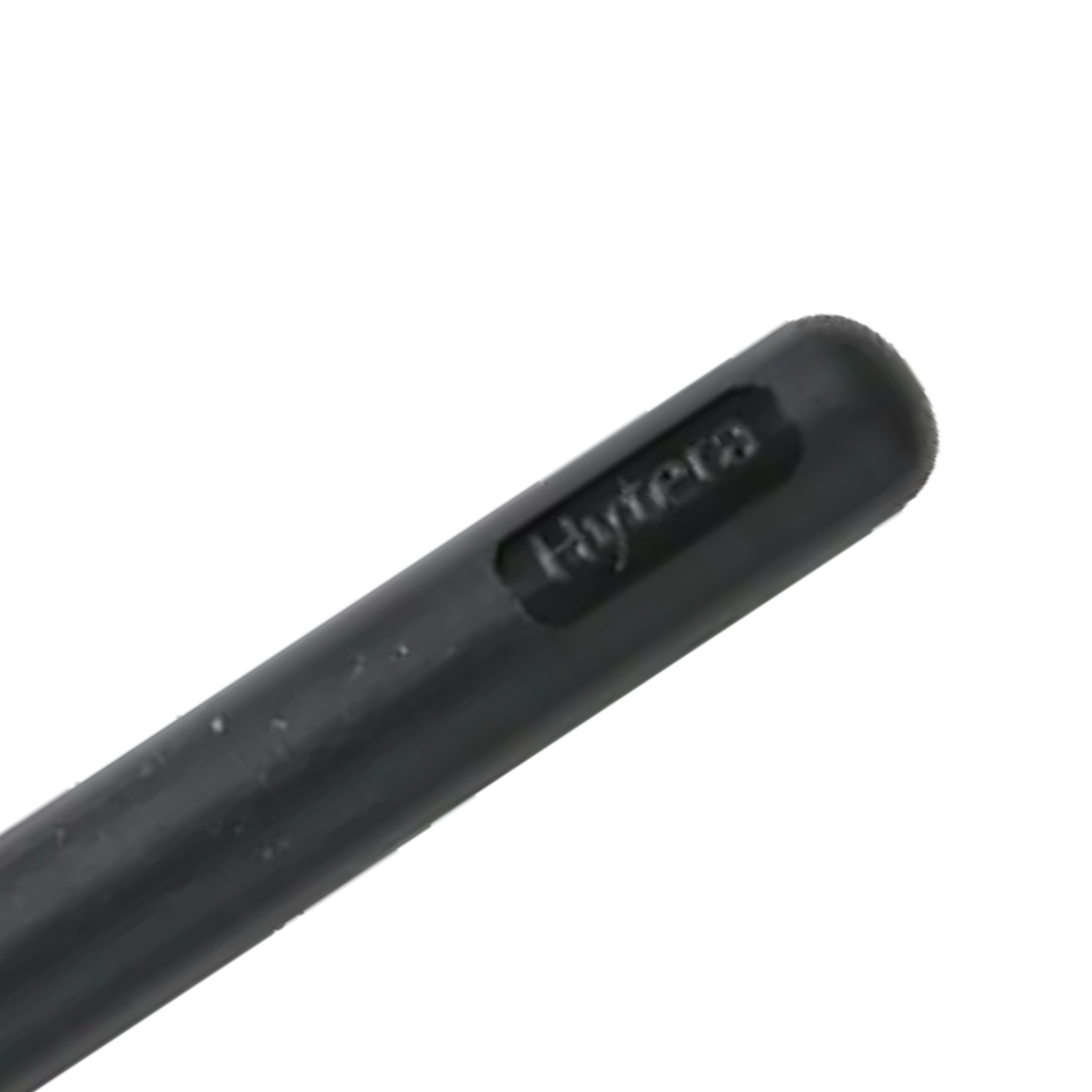

The Hytera AN0157H01 is a high-performance communication antenna designed to maximize mobility for active teams. Integrating the Hytera AN0157H01 VHF antenna for HP682 into your operations allows users to benefit from strong signal reception without the awkward length of standard whip antennas. Measuring 4.7 Inches long, this stubby component operates reliably within the 150-165MHz frequency band while concurrently supporting 1575MHz GPS signals for real-time location mapping.
Built specifically for handheld fleets in demanding environments like warehousing, logistics, and field security, this accessory utilizes a rugged helical core for optimal durability. The low-profile structure reduces the risk of snagging or breaking when the host radio is carried on a belt or holster. Choosing the genuine Hytera AN0157H01 ensures stable impedance matching and standard thread fitment, preventing common connection degradation issues found in third-party replacements.
Key Features & Benefits
-
Low-Profile Profile: The Hytera AN0157H01 VHF antenna for HP682 provides a compact 4.7 Inch footprint that significantly reduces snags while worn on a standard work belt.
-
Dual-Signal Support: Combines standard VHF radio frequency operations with dedicated 1575MHz GPS signal path routing for accurate asset tracking.
-
Helical Core Architecture: Engineered with a robust internal helical brass core to deliver long lasting durability across challenging industrial job sites.
-
Seamless Thread Fitment: Designed with a precise SMA-male connection interface to secure firmly onto compatible digital handheld radios.
-
Optimized Band Tuning: Formulated to operate efficiently within the 150-165MHz spectrum, preventing transmitter strain and optimizing voice clarity.
Specifications
| Attribute |
Details |
| Brand |
Hytera |
| Model/SKU |
AN0157H01 |
| Frequency Band Type |
VHF and GPS |
| Primary Frequency Spectrum |
150-165MHz |
| Satellite Frequency Spectrum |
1575MHz |
| Length Dimension |
4.7 Inches |
| Connection Type Interface |
SMA-Male |
| Internal Structure Design |
Helical Core |
Compatibility
Radios
What’s Included
| Description |
SKU/Model |
Status |
| VHF and GPS Stubby Helical Antenna |
AN0157H01 |
✅ Included |
| Portable Handheld DMR Transceiver |
HP682 |
❌ Sold Separately |
Recommended Accessories
Frequently Asked Questions
What specific radio models are compatible with this antenna option?
This model is built to perfectly match the chassis footprint and connector profile of the HP602 and HP682 series portable handheld devices.
Does this stubby configuration support full GPS location tracking?
Yes, it features dual band internal routing that covers both standard voice communication and the 1575MHz satellite signal required for automated fleet mapping.
What is the exact physical length of this accessory?
This low profile hardware component measures exactly 4.7 Inches in length, offering an ideal balance between signal performance and portable convenience.
Will this antenna work across UHF corporate channel groups?
No, this component is tuned solely for the VHF spectrum from 150 to 165MHz. Attempting to transmit on alternative bands will cause high standing wave ratios and potential hardware damage.
What connection type does the base configuration feature?
The base is designed with an industry standard SMA-male connector thread that allows it to securely screw down onto the host handheld top panel.
What standard manufacturer warranty applies to this replacement part?
This authentic factory hardware replacement includes a full single year backing plan to cover workmanship defects and operational performance issues.
Warranty
1-year manufacturer’s warranty.
