Description

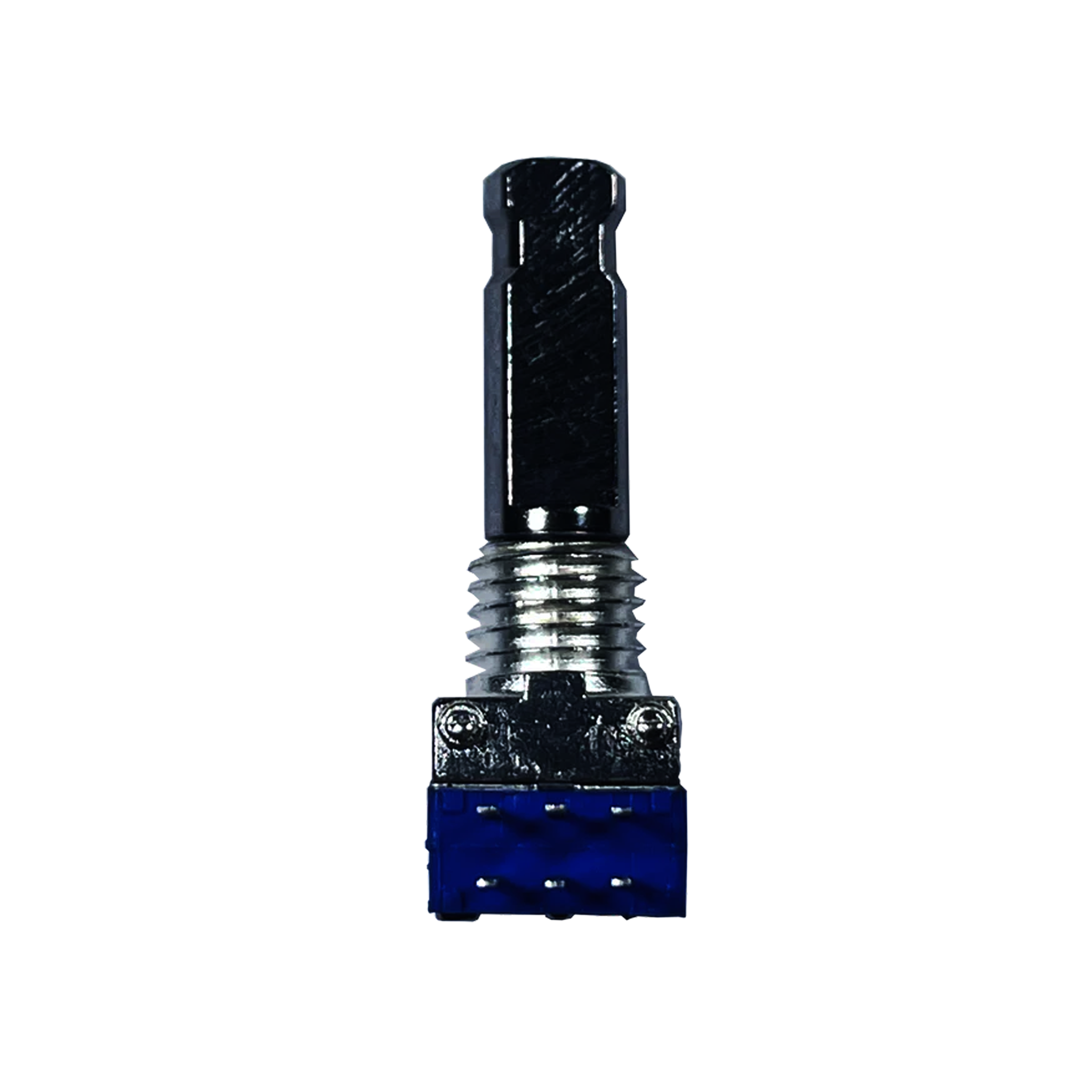

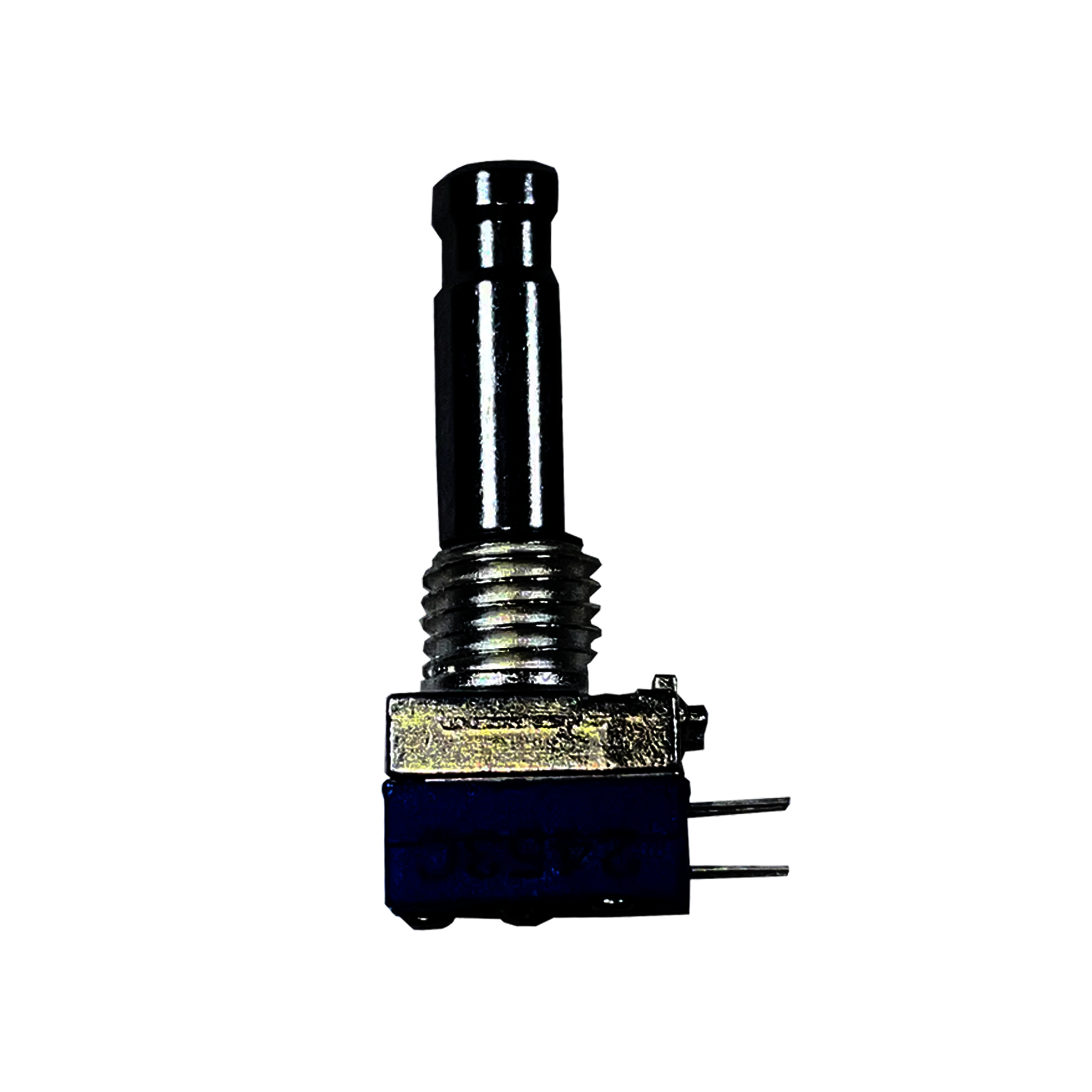

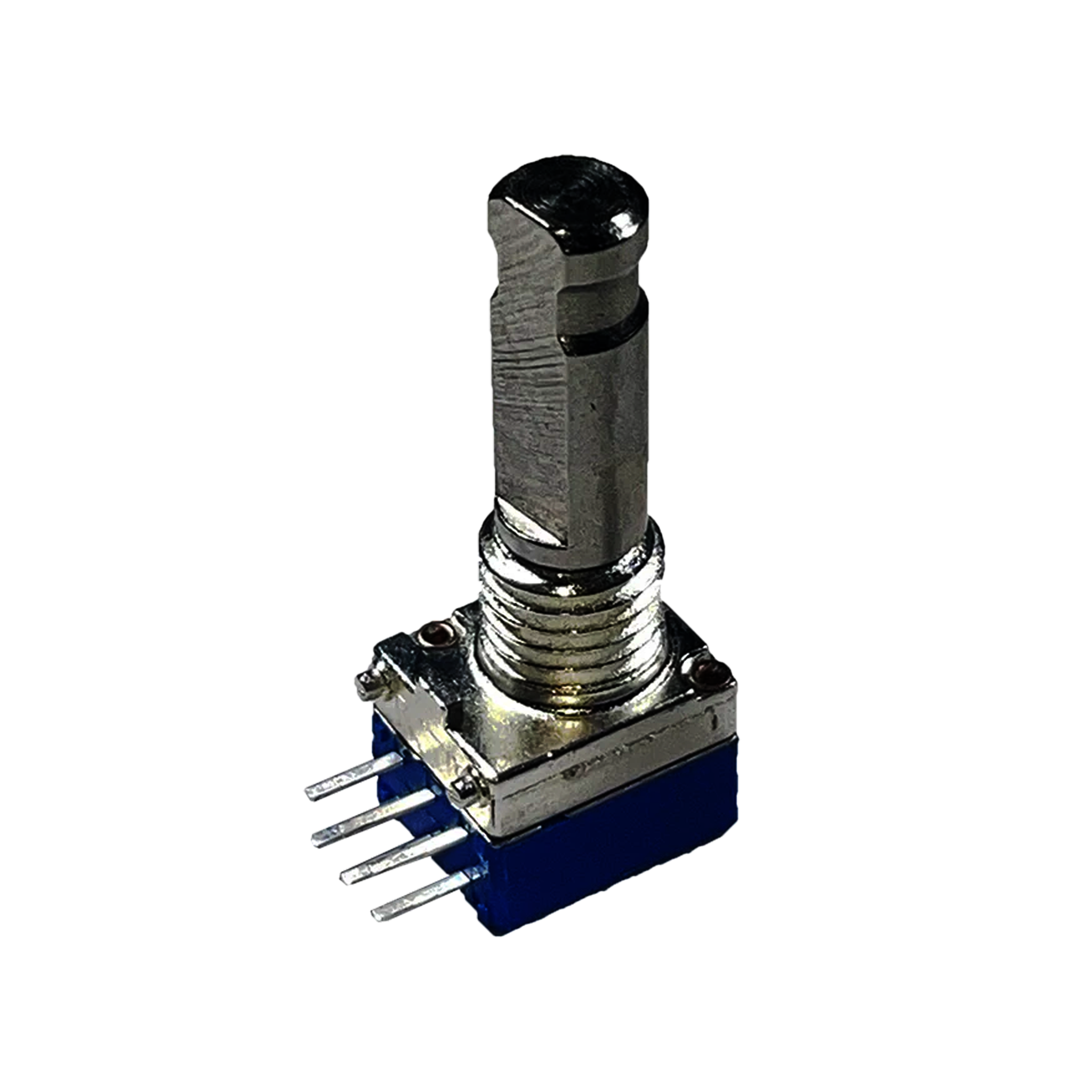

Hytera HYT-51010300000037
Channel Selector Rotary Encoder Switch (ED08C050)
Precision Internal Component for Hytera BD506 and PD606 Series Radios
The Hytera HYT-51010300000037 (also identified as 4399030000270) is a genuine factory-replacement rotary encoder switch designed for the professional repair of Hytera BD506 and PD606 handheld radios. As the primary channel selector interface, this high-precision component allows users to cycle through programmed communication channels with tactical feedback and accuracy. Engineered to meet the rigorous demands of industrial and public safety environments, this encoder ensures that channel transitions remain crisp and reliable over thousands of rotations.
This specific electronic component is the ED08C050-SP17.4S11.5-A16-1004 model, rated for low-power operation at 5VDC 1mA. It is built to maintain electrical integrity in extreme operational climates, featuring a wide temperature tolerance from -40°C to +85°C. Its compact physical profile (L24.2 x H9.4 x W7.8 mm) is precision-molded to align perfectly with the radio's top-panel control layout, ensuring that the external channel knob fits securely without play or slippage.
As an essential internal service part, the HYT-51010300000037 is manufactured under Hytera’s strict quality control standards to prevent "channel skipping" or signal bounce—common issues associated with non-genuine or worn components. Whether you are performing routine maintenance or a critical repair, utilizing this genuine OEM part is vital for restoring the "like-new" tactile feel and operational efficiency of your Hytera portable radio fleet.
Key Features & Benefits
-
Original OEM Reliability: Designed by Hytera specifically for the BD506 and PD606, ensuring 100% mechanical and electrical compatibility.
-
Tactile Precision: Provides clear, indexed detents for accurate channel selection in low-light or high-stress situations.
-
Extreme Temperature Resilience: Rated to perform in environments ranging from -40°C to +85°C, ideal for outdoor and industrial use.
-
Durable Construction: Built to withstand the physical torque and repetitive rotation of daily professional use.
-
Low-Power Optimization: Rated at 5VDC 1mA, maintaining the energy efficiency of the radio's logic board.
-
Perfect Fitment: Precision dimensions ensure the switch seats correctly on the PCB and aligns with the radio housing.
Specifications
-
Brand: Hytera
-
Part Number: HYT-51010300000037 / 4399030000270
-
Component Model: ED08C050-SP17.4S11.5-A16-1004
-
Electrical Rating: 5VDC / 1mA
-
Dimensions: 24.2mm (L) x 9.4mm (H) x 7.8mm (W)
-
Operating Temperature: -40°C to +85°C
-
Function: Channel Selection / Rotary Encoding
Compatibility
|
|
|
|
| BD506 |
PD606 |
BD502i
|
BD552i
|
What's Included
- Hytera HYT-51010300000037 Rotary Encoder Switch
Frequently Asked Questions
-
Does this part require soldering? Yes, this is an internal electronic component that must be soldered directly to the radio's printed circuit board (PCB).
-
Can this be used for the PD662 or PD682? This specific part number is verified for the BD506 and PD606; please check your service manual to confirm compatibility with other PD6 series models.
-
What causes this part to fail? Typically, failure is caused by heavy physical impact to the top knob or excessive ingress of fine grit and dust over several years of use.
Warranty
Standard manufacturer's warranty for electronic service components.
