Description
Powerful 15W Audio for High-Noise Vehicle Environments

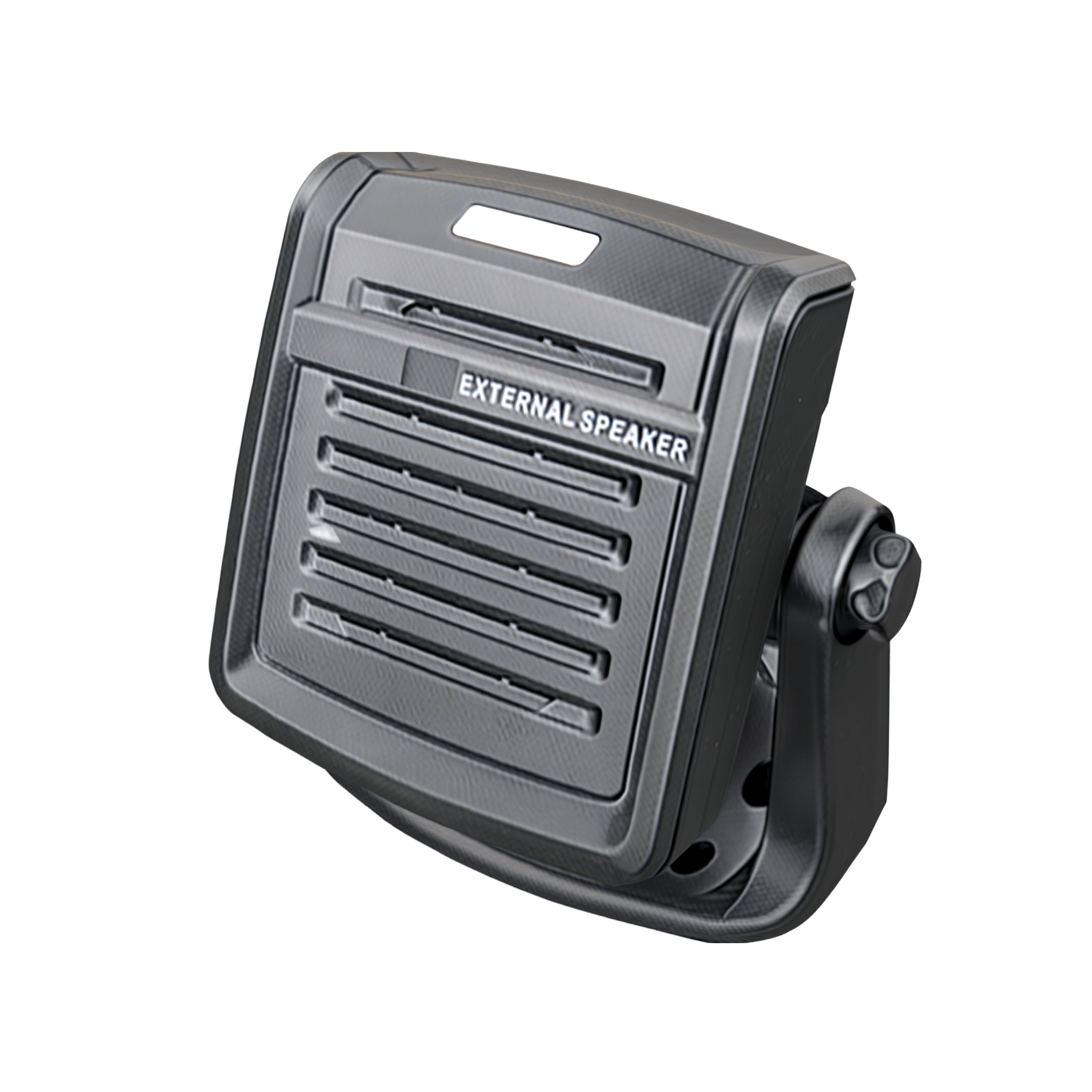

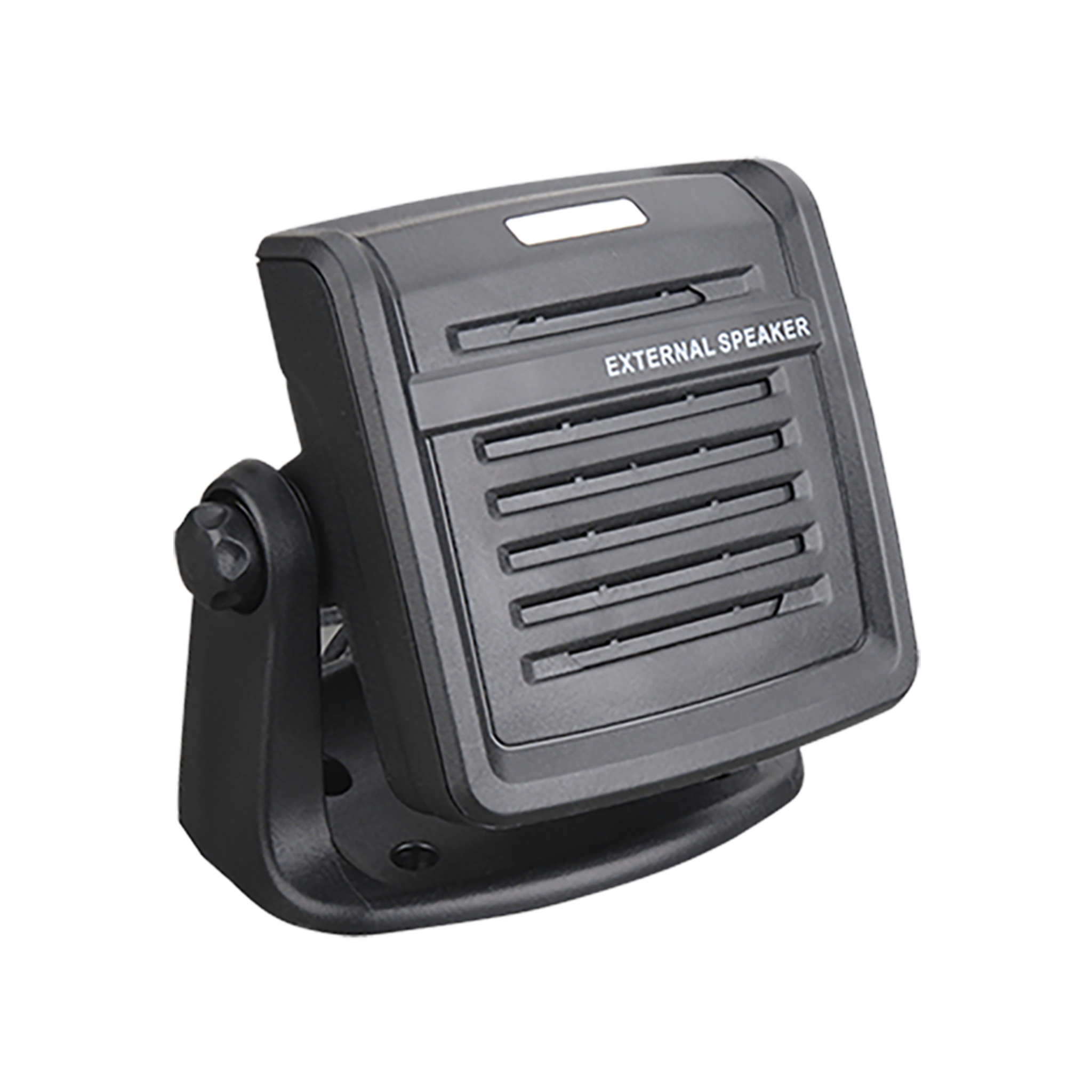

The Hytera SM09S2 is a heavy-duty external speaker designed to deliver high-volume, crystal-clear audio in environments where standard radio speakers are insufficient. Engineered for mobile installations, this speaker features a robust 15-watt rated output (20-watt max) that effectively cuts through loud engine noise, heavy machinery, and high-traffic ambient sounds. Whether installed in an emergency vehicle, a construction truck, or a dispatch center, the SM09S2 ensures that every critical transmission is heard with superior clarity.
Note: The Hytera SM09S2 is a Special Order item. Please allow for additional lead time during fulfillment.
Designed for long-term durability, the speaker is housed in a rugged casing built to withstand extreme operating temperatures ranging from –30°C to 70°C. The unit includes a versatile adjustable mounting bracket and a 6-foot cable, allowing for secure attachment to both horizontal and vertical surfaces. With its specialized 3.5mm single-pin connector, the Hytera SM09S2 is the ideal solution for vehicle-based teams who require dependable, amplified communication in challenging acoustic conditions.
Key Features & Benefits
-
Amplified Audio Output: Delivers up to 15W of rated power to ensure loud and intelligible reception in high-decibel environments.
-
3.5mm Single-Pin Connectivity: Features a universal 3.5mm connector for seamless integration with mobile radio accessory ports.
-
Robust Environmental Resilience: Built to perform in extreme cabin temperatures, ensuring reliability from –30°C to 70°C.
-
Versatile Mounting Bracket: Includes an adjustable steel bracket for precision positioning on dashboards, bulkheads, or overhead consoles.
-
6-Foot Extended Cable: Provides ample length for clean, professional routing behind vehicle panels and trim.
-
Distortion-Free Clarity: Optimized frequency response ensures voice transmissions remain understandable even at maximum volume levels.
Specifications
| Feature |
Specification |
| Rated Power |
15 W |
| Maximum Power |
20 W |
| Impedance |
8 Ω ±15% @ 500 Hz |
| Connector |
3.5 mm Single Pin |
| Dimensions |
155.6 x 92.5 x 140.2 mm |
| Weight |
Approx. 774 g |
| Operating Temp |
–30°C to 70°C |
| Warranty |
1-Year Manufacturer's Warranty |
Compatibility
|
|
|
|
| HM652 |
HM682 |
HM782 |
MD652i |
| MD782i |
TM600 |
TM610 |
TM628H |
Recommended Accessories
- Hytera Mobile Radio Accessory Cable (POA117)
- Hytera Visor-Mounted Microphone (POA77)
- Hytera DMR Mobile Radio (HM782)
- Hytera Remote Mount Control Head Cable (PWC10)
Frequently Asked Questions
Do I need an adapter to use this with my HM-series radio? While the speaker features a 3.5mm jack, most DMR mobile radios require the POA117 cable assembly to bridge the speaker and visor microphone to the radio's accessory port.
Is this speaker waterproof? The SM09S2 does not have an IP rating and is designed for internal cabin use. It should be protected from direct exposure to rain or high-pressure spray.
Can I mount this on the ceiling of my truck? Yes. The included adjustable bracket is designed to support the weight of the speaker in both upright and inverted (ceiling) mounting positions.
Warranty
1-year manufacturer's warranty.
