Description
High-Power Aviation Radio Communications and Navigation
Professional-Grade Avionics Handheld with Expanded Six-Watt Broadcast Output

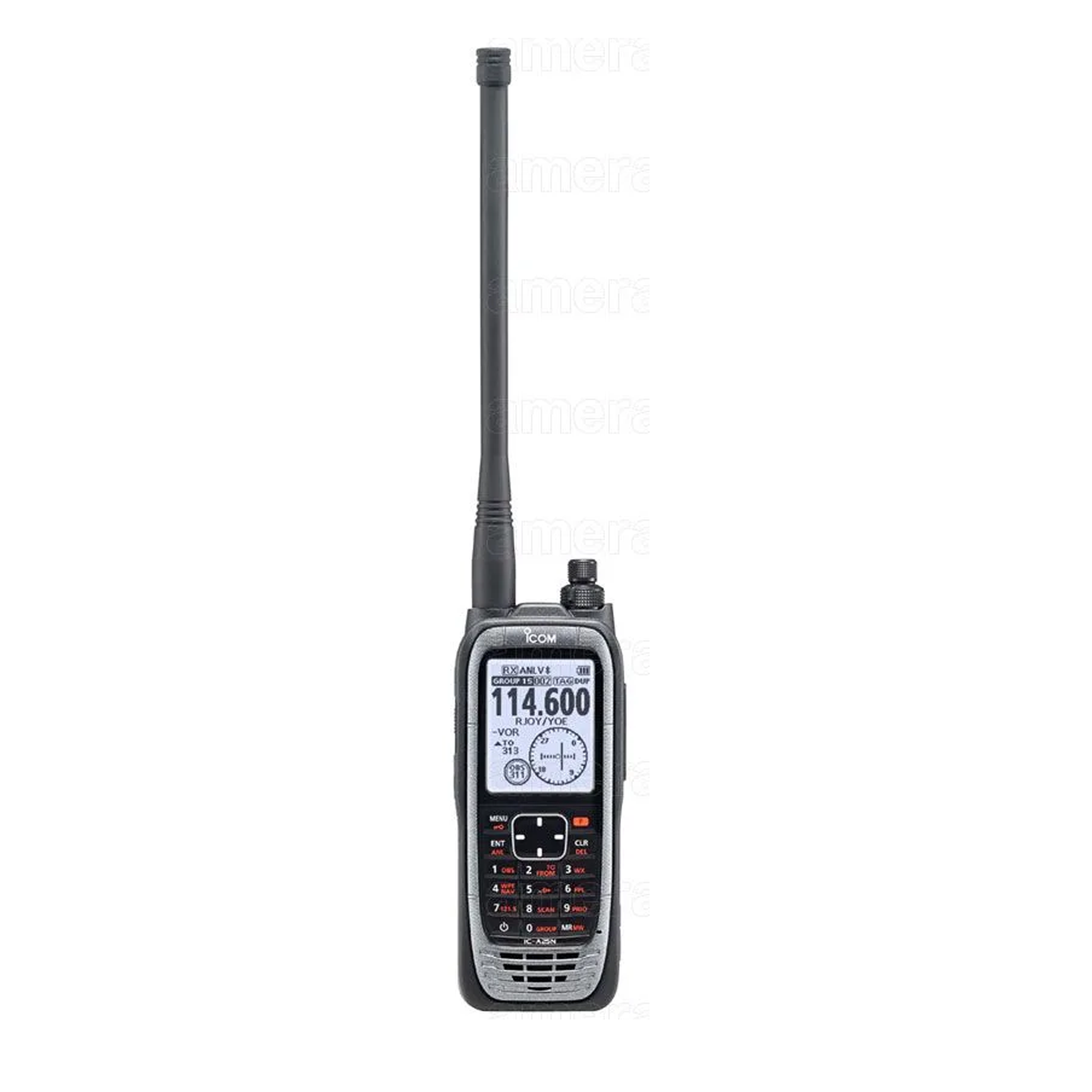

The Icom A25 series sets a premium standard for pilot and ground crew communication, delivering a robust six watts of radio frequency transmission power to extend your operational range across the airband spectrum. Engineered to facilitate crystal-clear message delivery under challenging flight conditions, this high-performance handheld transceiver combines intuitive modern programming with high-level hardware protections. Available in two distinct configurations, flight teams can select either the communications-focused model or the premium navigational layout to match their specific airborne mission profiles.
The base A25C variant offers robust, streamlined voice communication capabilities engineered for airport ground support, flight schools, and general aviation operations demanding an ultra-reliable backup radio line. For pilots requiring enhanced situational awareness in the cockpit, the premium A25N model adds integrated wireless synchronization, localized satellite positioning tools, and comprehensive VOR navigational routing interfaces. Both units utilize a wide, highly viewable layout that remains perfectly legible under direct sunlight, minimizing operator distraction during critical phases of flight.
Housed inside a rugged, weather-insulated chassis rated to strict dust and moisture protection metrics, this aviation tool is built to handle extreme thermal shifts and cockpit turbulence seamlessly. An intelligent high-capacity battery tracking system prints detailed remaining energy metrics directly on screen, eliminating guesswork during extended cross-country flights. With integrated noise mitigation circuitry and easy access to standard emergency channels, this transceiver delivers professional peace of mind for aviators worldwide.
Choosing Your Version: A25C vs. A25N
-
A25C (Communications Only): This version is built strictly for dependable, high-power voice communication. It features full access to standard airband frequencies, emergency overrides, and memory storage. It is the perfect choice for airport ground support teams, flight schools, and aviators who already have dedicated panel-mounted navigation instruments and simply require an exceptional backup transceiver.
-

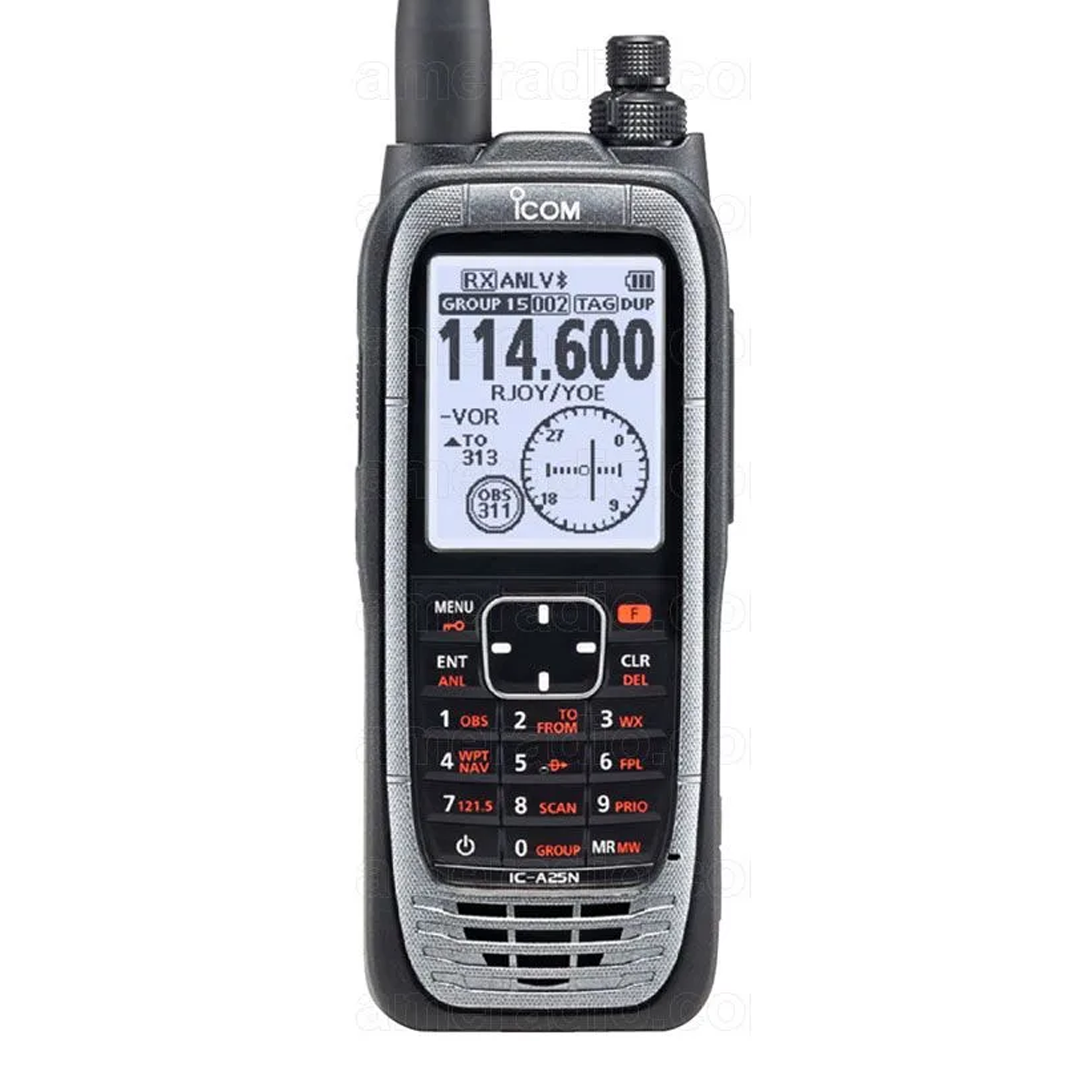

A25N (Navigation & Communications): This premium model includes every voice feature found on the COM version, while introducing an integrated navigation suite. It gives pilots standalone situational awareness by adding an internal GPS engine, wireless Bluetooth synchronization, automated near-station searches, and clear VOR radial navigation steering displays directly on the screen.
Key Features & Benefits
-
Class-Leading Airband Output: Provides six full watts of peak envelope power to capture reliable ground station connections across greater distances.
-
Dual-Version System Layout: Choose between the communication-focused A25C model or the navigation-enhanced A25N setup to align with your mission.
-
Expanded Navigation Suite (A25N Exclusive): Features built-in VOR radial steering guidance, waypoint tracking, and automatic near-station searches.
-
Intelligent Power Monitoring: High-visibility user interface displays precise battery health percentages to prevent unexpected power drops.
-
All-Weather Structural Seals: Certified to IP57 dust and water safety thresholds to guarantee survival if exposed to heavy downpours on open runways.
Specifications
| Attribute |
Details |
| Brand |
Icom |
| Model Variations |
A25C (COM) / A25N (NAV/COM) |
| Output Performance |
6 Watts (PEP) / 1.8 Watts (Carrier) |
| Display Window |
2.3-Inch High-Contrast Matrix |
| Weather Shielding |
IP57 Dust and Waterproofing |
| Frequency Increment |
8.33 kHz / 25 kHz Channel Spacing |
| Antenna Port Style |
Standard 50-Ohm BNC Connection |
What's Included
| Description |
Model / Type |
Status |
| Aviation Handheld Wireless Transceiver Unit |
A25C or A25N Mainframe |
✅ Included |
| Intelligent High-Capacity Li-ion Battery Pack |
BP-288 |
✅ Included |
| Drop-In Desktop Rapid Charger Cradle |
BC-224 |
✅ Included |
| Alternating Current Wall Charging Adapter |
BC-123SA |
✅ Included |
| High-Gain Flexible Airband BNC Antenna |
FA-B02AR |
✅ Included |
| Heavy-Duty Secure Clothing Tension Clip |
MB-133 |
✅ Included |
| Alkaline AA Emergency Battery Reserve Case |
BP-289 |
⚠️ Model Dependent |
| Twin-Plug Aviation Headset Link Adapter |
OPC-2379 |
⚠️ Model Dependent |
Recommended Accessories
-
Icom OPC2379 Headset Adapter Cable – A heavy-duty conversion cable that bridges standard twin-plug general aviation pilot headsets directly into the radio side panel for clear in-flight operations.
-
Icom BP289 Alkaline Battery Case – A critical backup accessory shell that accommodates six standard AA batteries to provide instantaneous secondary power during long-haul transport.
Frequently Asked Questions
What is the exact difference between the A25C and A25N variants?
The A25C is optimized strictly for voice communication tasks. The premium A25N incorporates a voice system alongside advanced navigation tools, including an internal satellite receiver, VOR radial calculation displays, and a wireless module to pair with flight planning mobile applications.
Can I use standard aviation headsets with this handheld radio?
Yes, you can bridge this unit to professional flight headsets by utilizing the specialized side panel adapter cable. This architecture routes audio cleanly to your headset speakers while permitting the use of standard boom microphones.
What does the integrated "Flip-Flop" feature accomplish?
This convenient software tool stores your most recently accessed operating frequencies automatically. Pushing the dedicated recall key allows you to toggle back and forth between tower, dispatch, or ground frequencies instantly without manual re-typing.
Is it safe to leave this aviation transceiver out in a heavy rainstorm?
Yes, the housing is constructed using precision rubber gaskets that meet IP57 weatherization guidelines. It can withstand full submersion in up to one meter of water for thirty minutes, making it highly dependable for runway ground operations.
How does the automatic noise limiter help during flight?
The internal filtering software actively clamps down on continuous high-frequency electrical humming and background engine noise. This process cleans up weak incoming audio signals so pilot communications remain intelligible over cabin environments.
Warranty
2-year manufacturer's warranty on the main transceiver assembly.
