Description

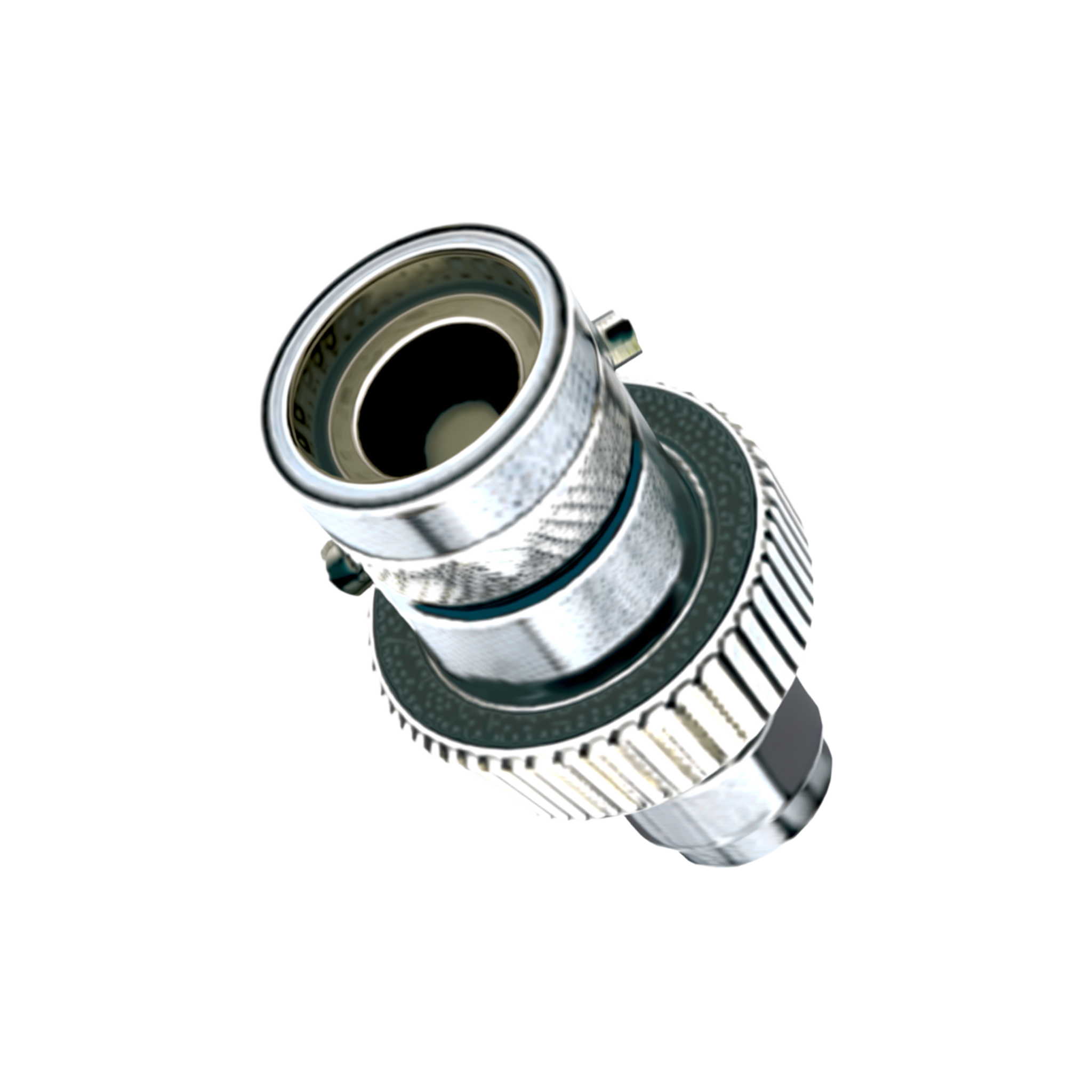

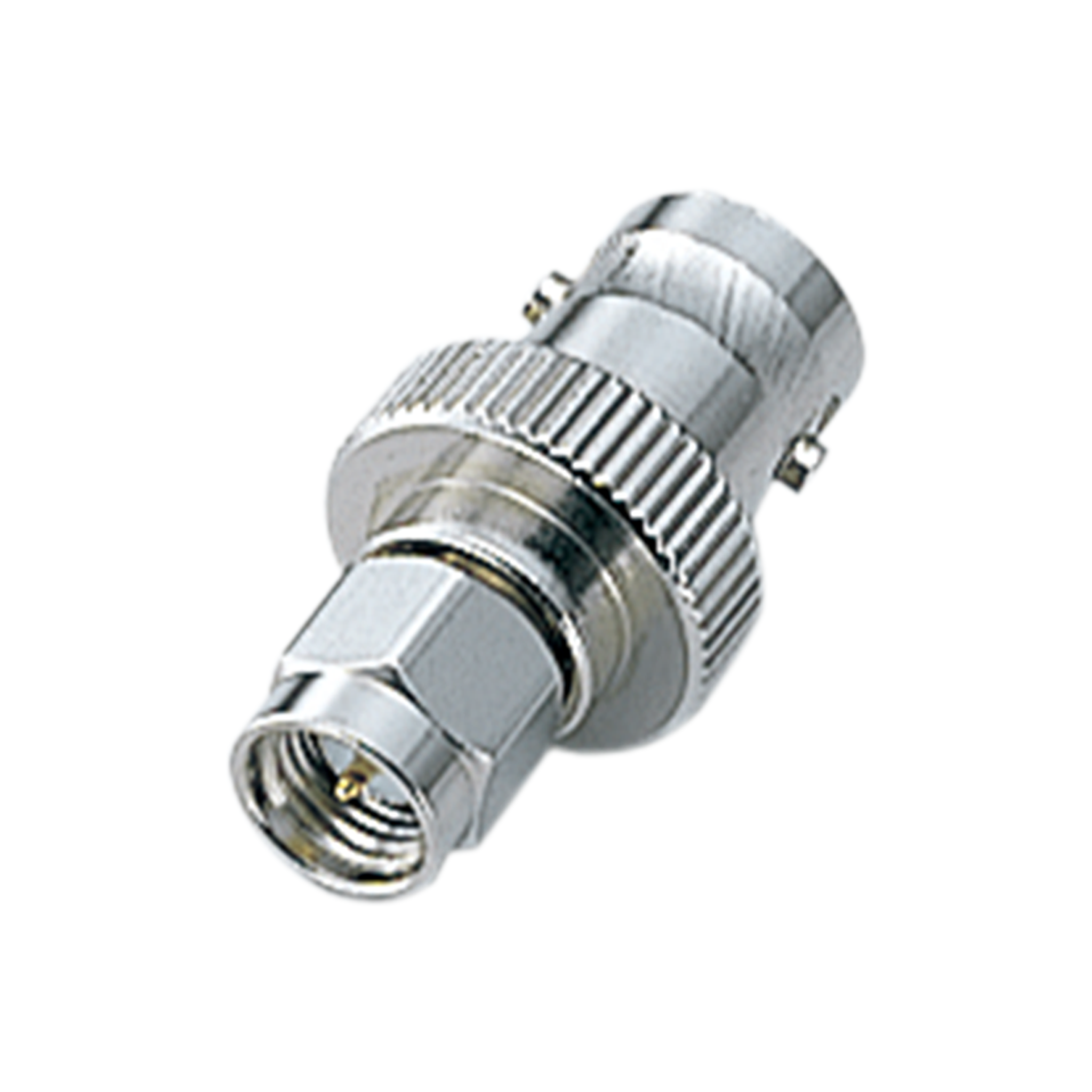

Icom AD92SMA
Antenna Connector Adapter
Professional BNC-Female to SMA-Male RF Interface
The Icom AD92SMA is a high-precision RF adapter designed to expand the antenna versatility of professional handheld transceivers and receivers. This essential component converts a standard SMA-Female radio port into a BNC-Female interface, allowing operators to quickly connect and disconnect a wide variety of external antennas, test equipment, or base station cables. By utilizing the Icom AD92SMA, users can bypass the limitations of fixed SMA antennas and leverage the rapid-locking convenience of BNC-Male connectors for improved signal range and operational flexibility.
Engineered for low signal loss and high mechanical durability, the Icom AD92SMA features a knurled SMA-Male base for a secure, finger-tight fit onto the radio chassis. The adapter is constructed from high-grade nickel-plated brass with gold-plated center contacts to ensure maximum electrical conductivity and resistance to oxidation. This accessory is particularly critical for marine, amateur, and receiver enthusiasts who need to switch between portable rubber duck antennas and high-gain mobile or stationary antennas while in the field.
Key Features & Benefits
-
Universal BNC Compatibility: Converts the radio port to a BNC-Female interface, making it compatible with any standard BNC-Male antenna or patch cable.
-
Low Signal Attenuation: Engineered for high-frequency RF applications to ensure minimal loss across VHF, UHF, and wideband scanning spectrums.
-
Gold-Plated Center Contacts: Ensures superior electrical path integrity and prevents signal degradation over thousands of connection cycles.
-
Knurled Grip Base: Designed with a textured surface to allow for easy installation and removal without the need for specialized tools.
-
Industrial Grade Construction: Built with nickel-plated brass to withstand the mechanical stress of heavy external antennas and tactical use.
-
Quick-Disconnect Convenience: Enables the rapid "twist-lock" functionality of BNC connectors, significantly reducing setup time for field-deployed stations.
Specifications
| Feature |
Specification |
| Connector A |
SMA-Male |
| Connector B |
BNC-Female |
| Body Material |
Nickel-Plated Brass |
| Contact Plating |
Gold |
| Impedance |
50 Ohm |
| Adapter Type |
RF Coaxial Adapter |
Compatibility
|
|
|
|
| ID50A |
ID52A |
R6 |
M73 |
| IP730D |
IP740D |
V86 |
T10 |
| G86 |
51A |
RX7 |
T70A |
Frequently Asked Questions
Does this adapter affect my radio's waterproof rating? While the AD92SMA is precision-machined, adding any adapter between the radio and antenna can potentially create a path for moisture. For marine use with the IC-M73, ensure the connection is tight, but be aware it may bypass the factory IPX7 seal at the antenna base.
Can I leave this on the radio permanently? Yes. Many users keep the AD92SMA attached to their radio to protect the chassis-mounted SMA connector from wear and tear, as it is much easier to replace an adapter than a radio port.
Will this work for my scanner? Yes. If your scanner, like the IC-R6, has a standard SMA-Female connector, the AD92SMA will allow you to use any standard BNC-Male antenna.
Warranty
1-year manufacturer's warranty.
