Description

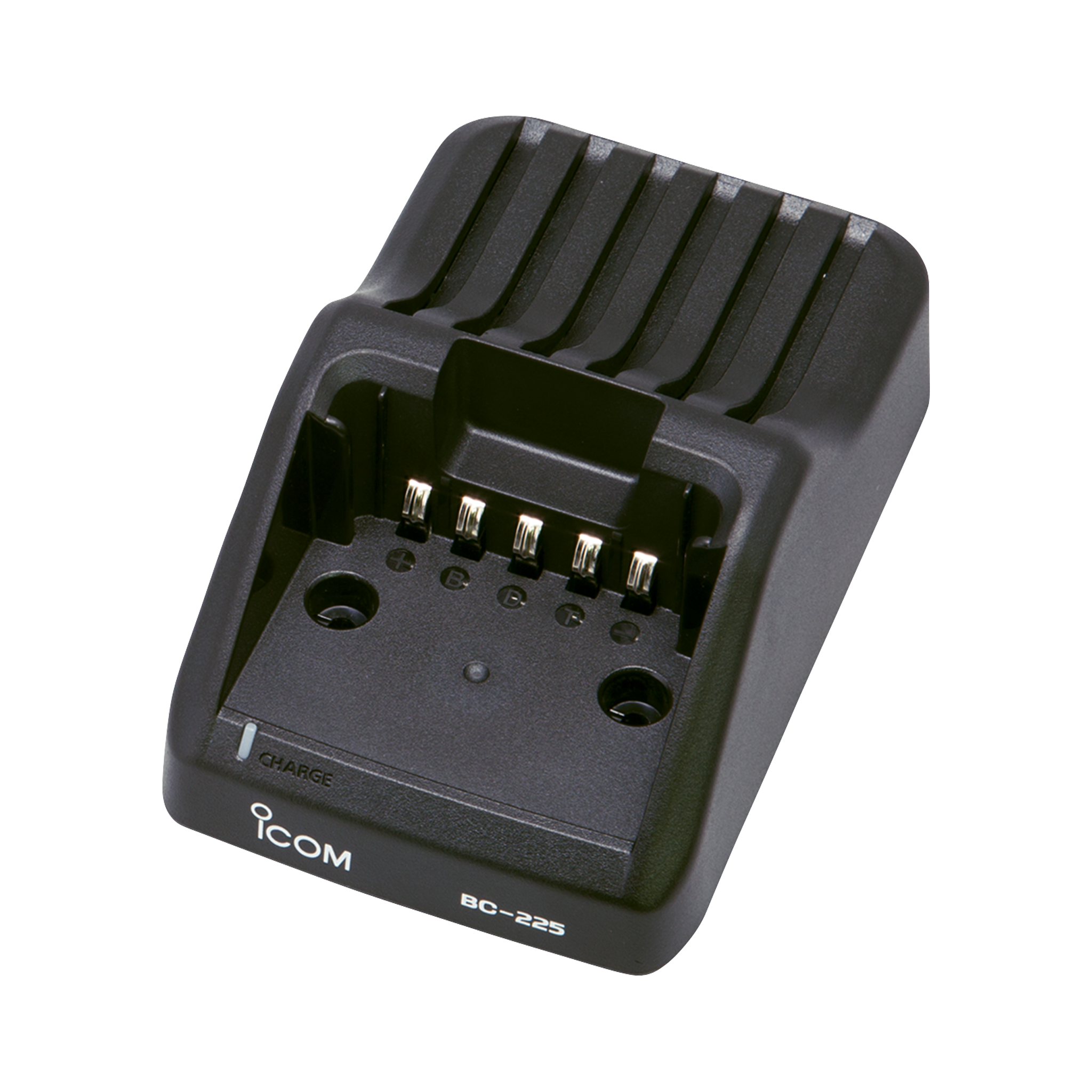

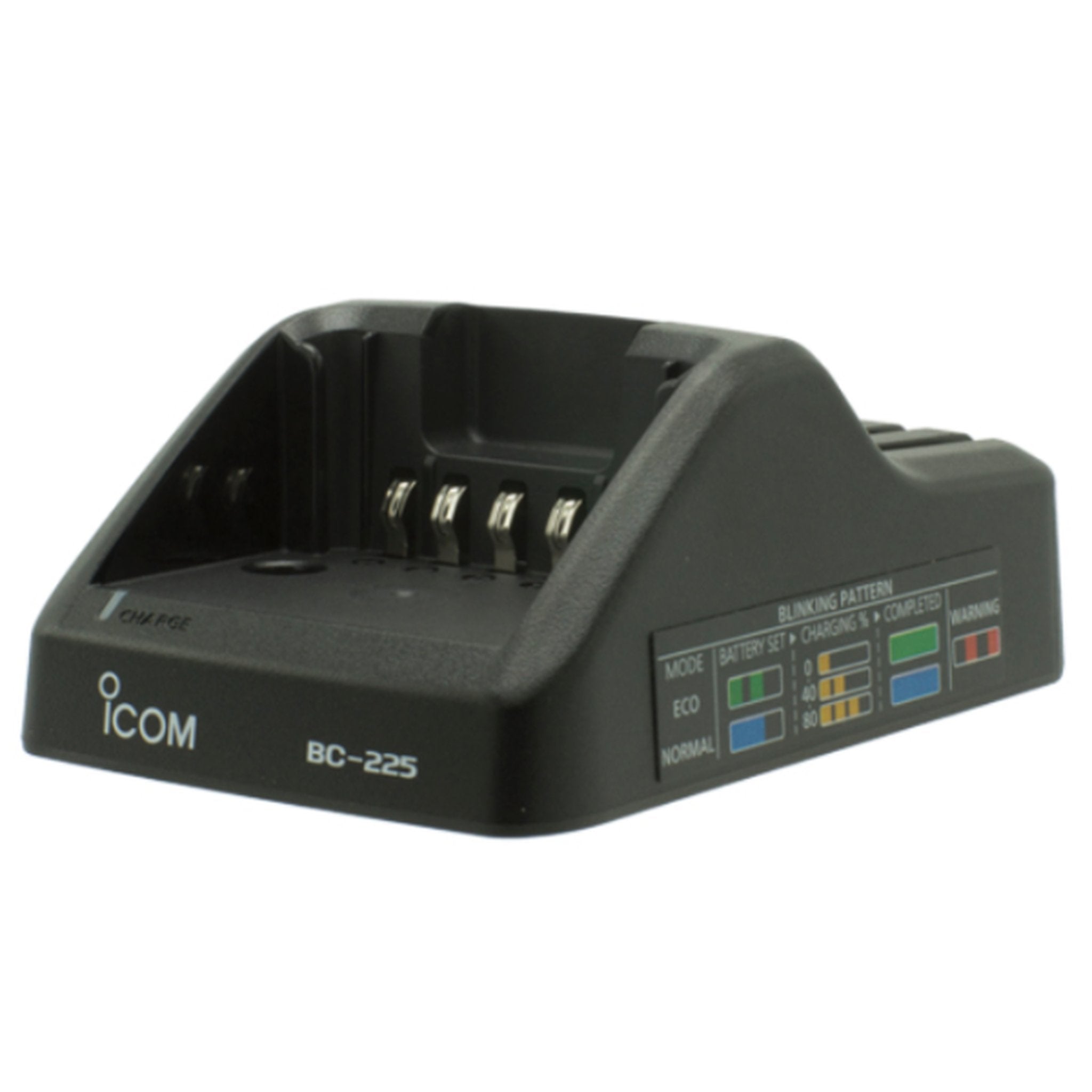

Icom BC225 Smart Rapid Charger
100–240V universal input, US plug, rapid Li-Ion charging for Icom F3400D, F4400D, F52D, F62D, M85, and F7 series portables.
The Icom BC225 is a genuine smart rapid charger designed to efficiently power Icom Li-Ion battery packs across a wide range of IDAS and marine portable radios. Operating on 100–240V with a standard US-style plug, the BC225 is ready for immediate use on North American power outlets and is compatible with international voltages for global deployments.
The BC225 charges the BP-283, BP-284, BP-290, and BP-294 Li-Ion battery packs at 1.0A, completing a full charge on the BP-290 in approximately 2.5 hours. An LED charge indicator provides clear visual feedback on charging status. When paired with the optional RS-BC225 Reader Software, the BC225 can display detailed battery health and cycle information for fleet battery management.
Key Features & Benefits
Smart Rapid Charging: Charges compatible Icom Li-Ion battery packs quickly and efficiently, minimizing radio downtime between shifts.
100–240V Universal Input: Compatible with standard US power outlets and international voltages — no voltage converter required for global use.
US-Style Plug: Ready for immediate use on North American power outlets.
LED Charge Indicator: Clear visual feedback on charging status at a glance.
Li-Ion Battery Compatibility: Charges BP-283, BP-284, BP-290, and BP-294 Icom battery packs.
RS-BC225 Software Support: Optional reader software enables detailed battery health monitoring and cycle tracking for fleet management.
Specifications
| Attribute |
Details |
| Brand |
Icom |
| Model / SKU |
BC225 |
| Product Type |
Smart Rapid Charger |
| Input Voltage |
100–240V AC |
| Plug Type |
US Style |
| Charge Current |
1.0A |
| Power Supply Voltage |
12.0–16.0V DC |
| Charging Time |
Approx. 2.5 hours (BP-290) |
| Operating Temperature |
+15°C to +40°C |
| Compatible Batteries |
BP-283, BP-284, BP-290, BP-294 |
| Country of Origin |
Japan |
Compatibility
What's Included
| Description |
SKU/Model |
Status |
| Smart Rapid Charger |
BC225 |
Included |
| Compatible Li-Ion Battery Pack |
BP-283 / BP-284 / BP-290 / BP-294 |
Sold Separately |
| RS-BC225 Reader Software |
RS-BC225 |
Sold Separately |
Recommended Accessories
Compatible Radios
Icom F3400D & F4400D Series Digital Two-Way Radios — Primary compatible IDAS portables for the BC225 charger.
Icom F52D / F62D Series IDAS Digital Portable Two-Way Radios — Compatible IDAS portables for the BC225 charger.
Icom F7010 / F7020 / F7040 P25 Public Safety Handheld Radios — Compatible P25 public safety portables for the BC225 charger.
Icom M85 Marine Handheld Radio — Compatible marine portable for the BC225 charger.
Frequently Asked Questions
Which Icom battery packs does the BC225 charge?
The BC225 is compatible with the Icom BP-283, BP-284, BP-290, and BP-294 Li-Ion battery packs. These batteries are used across the F3400D, F4400D, F52D, F62D, M85, and F7 series portable radios.
How long does the BC225 take to charge a battery?
The BC225 charges the BP-290 battery pack in approximately 2.5 hours at 1.0A. Charging times may vary slightly depending on the battery pack model and its current state of charge.
Can the BC225 be used outside the United States?
Yes. The BC225 accepts 100–240V AC input, making it compatible with international power voltages. However, it ships with a US-style plug, so a plug adapter may be required for use in other countries.
What is the RS-BC225 Reader Software and do I need it?
The RS-BC225 is optional software that, when connected to the BC225, displays detailed battery health information including charge cycles and capacity data. It is useful for fleet managers who need to track battery condition across multiple radios. It is not required for standard charging operation.
Warranty
1-year manufacturer’s warranty.
