Description
Modular and Scalable Power Management Solution

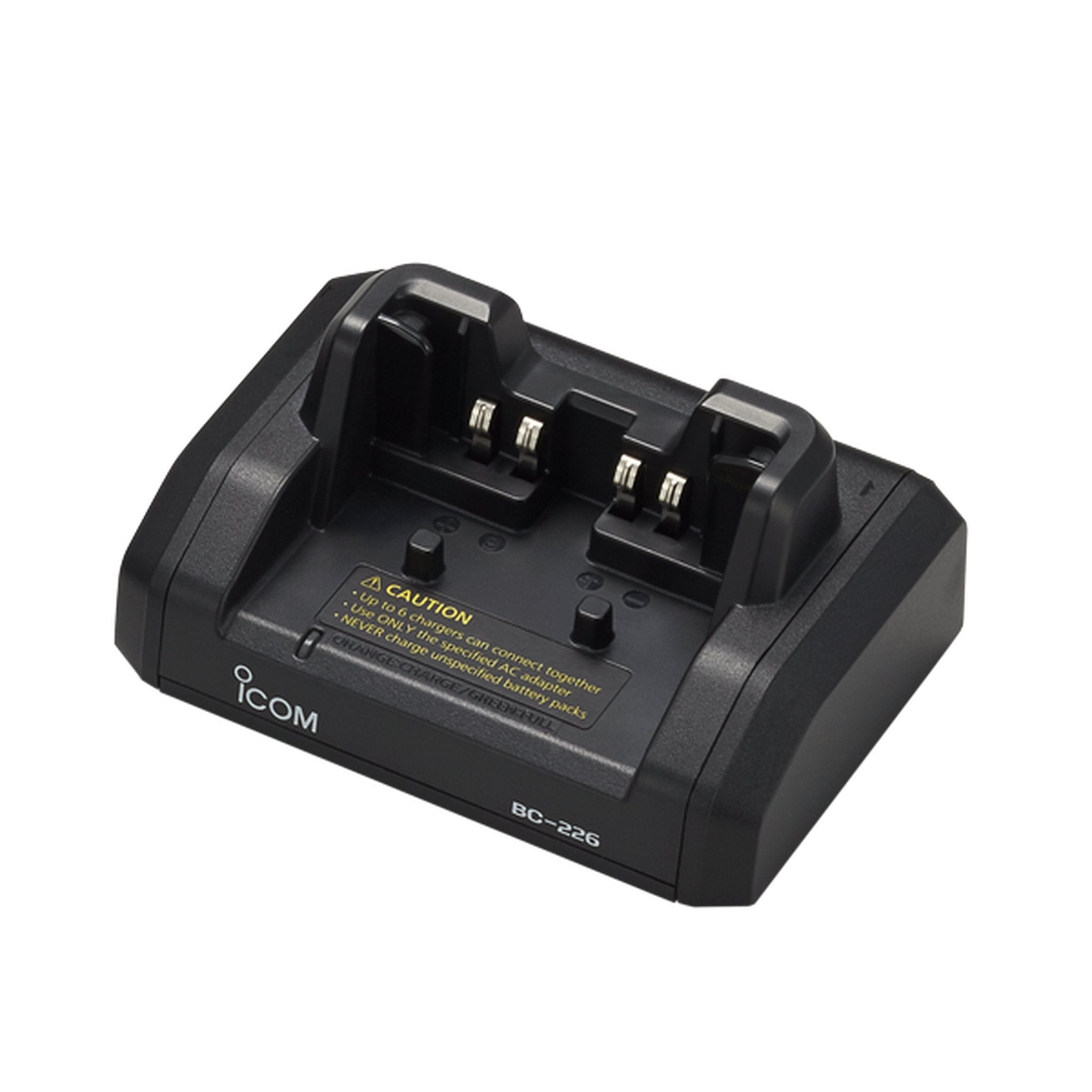

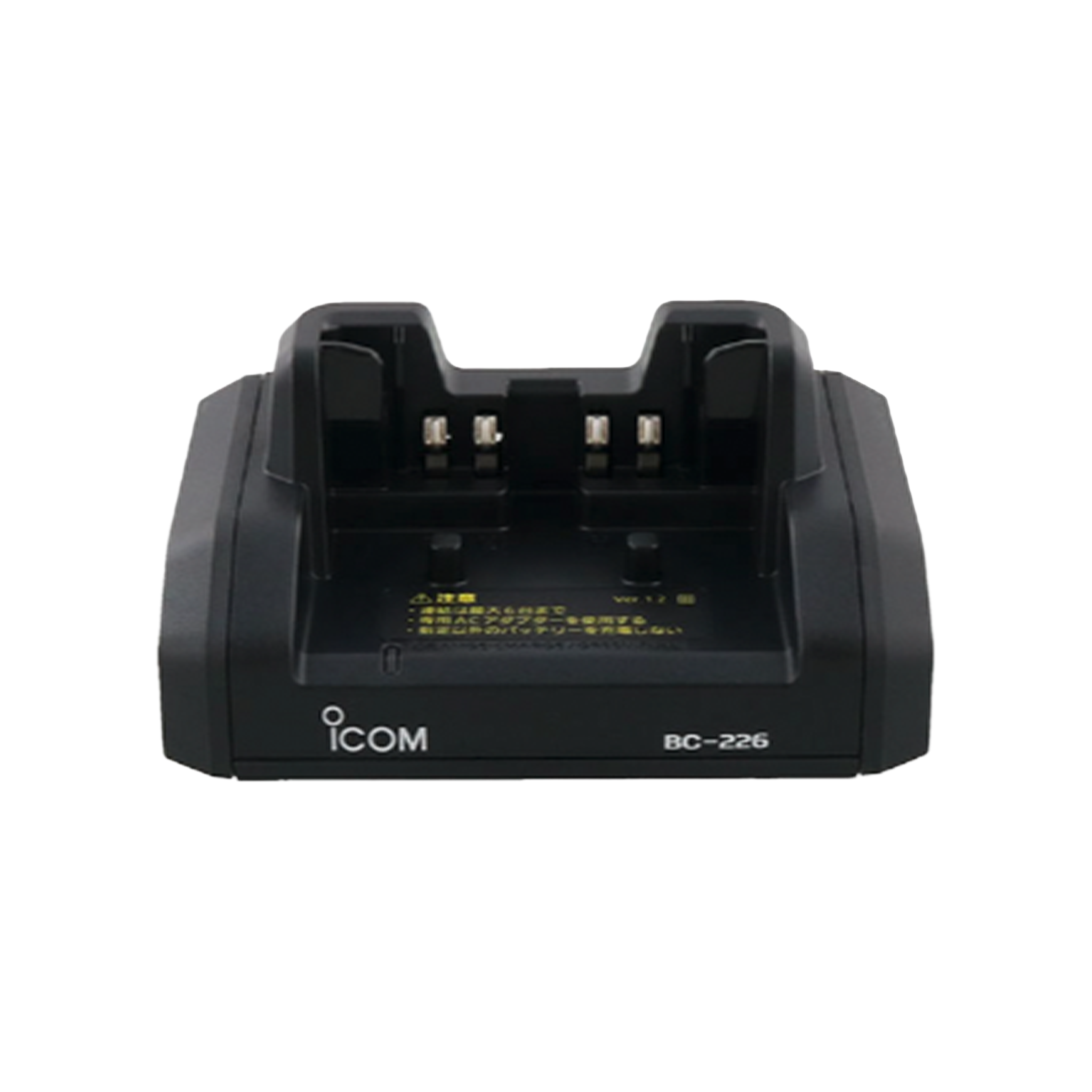

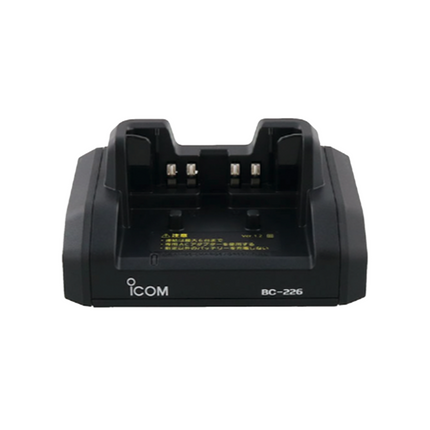

The Icom BC226 is an innovative, connectable rapid charger designed to provide a flexible and scalable power management solution for professional radio fleets. Unlike traditional fixed multi-unit chargers, the Icom BC226 features a modular "daisy-chain" design that allows users to link up to six individual charging pods together into a single, sturdy multi-charger station. This versatility makes it the ideal choice for growing organizations, allowing you to start with a single unit and expand your charging capacity as your radio fleet increases.
Engineered for efficiency, the Icom BC226 delivers a high-speed charge to high-capacity Lithium-Ion battery packs, including the BP283, BP284, BP290, BP294, and BP303. Each pod is equipped with a clear LED charge indicator to provide real-time status updates at a glance. By simply sliding off the side panels and slotting the units together via integrated pin connectors, you can create a streamlined charging hub that reduces cable clutter and optimizes your workspace.
Key Features & Benefits
-

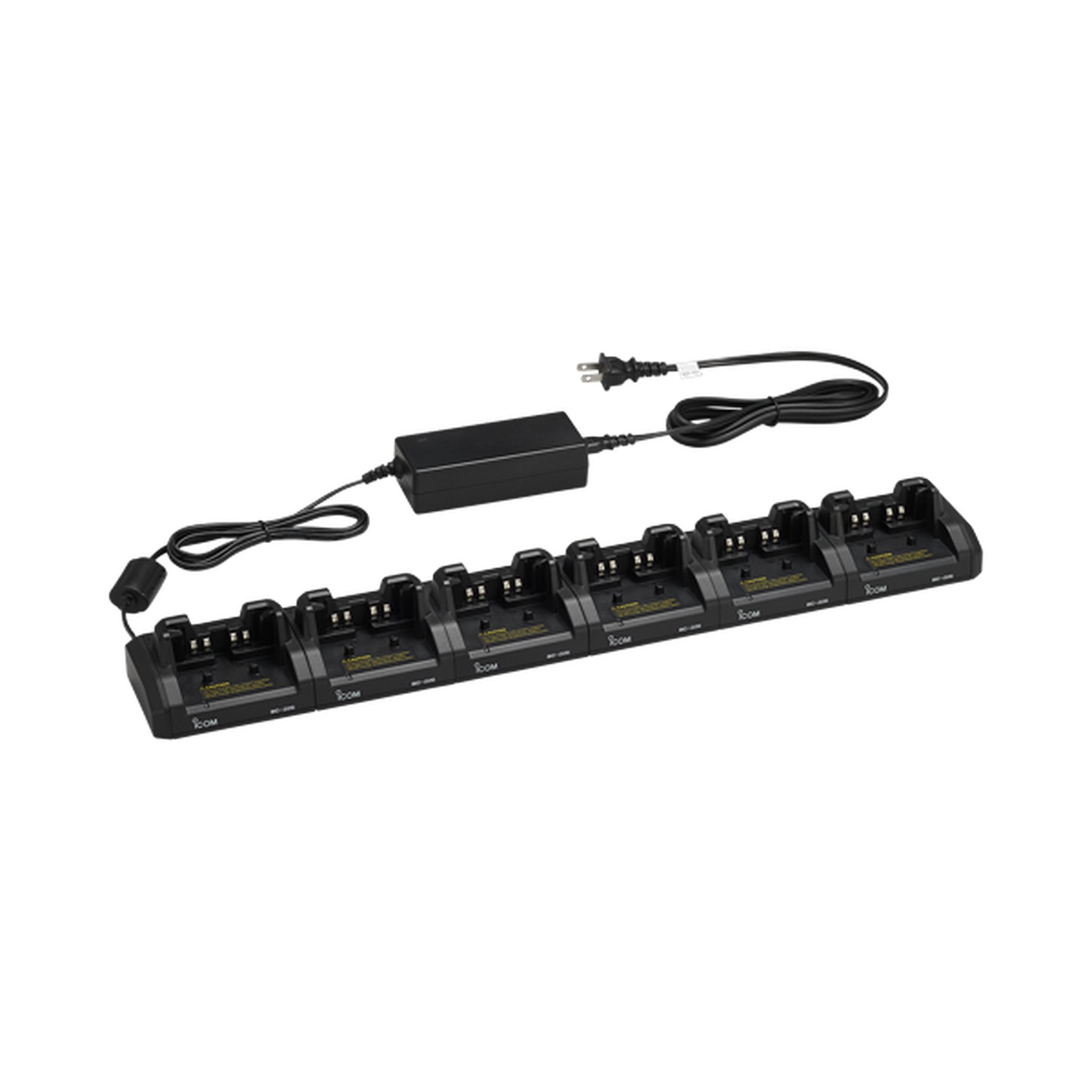

Scalable Modular Design: Connect up to six BC226 pods together to create a custom 2, 3, 4, 5, or 6-way multi-charger.
-
Rapid Charge Capability: Specifically tuned to charge a BP290 Lithium-Ion battery in approximately 2.7 hours.
-
Smart LED Indicators: Features a dedicated LED system that provides immediate visual confirmation of the charging status for each battery.
-
Flexible Power Options: Supports single-unit use with the BC123S adapter or multi-unit configurations with the high-output BC228 adapter.
-
Compact Workspace Efficiency: A full 6-unit chain measures just 21 3/8 inches in length, providing a powerful charging station with a minimal desktop footprint.
-
Universal Li-Ion Support: Compatible with a wide range of modern Icom battery packs across land mobile, IP, and marine platforms.
Specifications
| Feature |
Specification |
| Charger Type |
Connectable Rapid Desktop |
| Charge Current |
840 mA |
| Max Units Linked |
6 Pods |
| Power Supply |
12.0 – 16.0 V DC |
| Protection |
10.5-Hour Overcharge Timer |
| Charging Time |
~2.7 Hours (BP290) |
Compatibility
|
|
|
|
| F3400D |
F4400D |
F52D |
F52DUL |
| F62D |
F62DUL |
IPM60 |
M85 |
| M83E |
M85UL |
IP730D |
IP740D |
Recommended Accessories
- Icom AC Adapter for Single-Unit Use (
BC123S)
- Icom AC Adapter for 2–6 Unit Connections (
BC228)
- Icom High-Capacity Li-Ion Battery (BP290)
- Icom 3350mAh High-Capacity Battery (BP303)
- Icom VHF/UHF Digital Portable Radio (F52D)
Frequently Asked Questions
Does the BC226 include an AC adapter? No. The BC226 is the charging pod only. You must purchase the BC123S for a single charger or the BC228 power supply if you plan to link two or more units.
How do the chargers connect to each other? Each pod features removable side panels and internal pin connectors. You simply slide the sides off and slot the chargers together to create a secure, electrical connection across the chain.
Can I charge different battery models simultaneously? Yes. As long as the batteries are from the compatible list (BP283, BP284, BP290, BP294, BP303), you can charge mixed packs in the same connected chain.
Warranty
1-year manufacturer's warranty.
