Description
Remote-Mount Digital Mobile Radio with Commandmic Interface
Flexible Power-over-Ethernet remote mounting for modern vehicle and fixed-station installations.

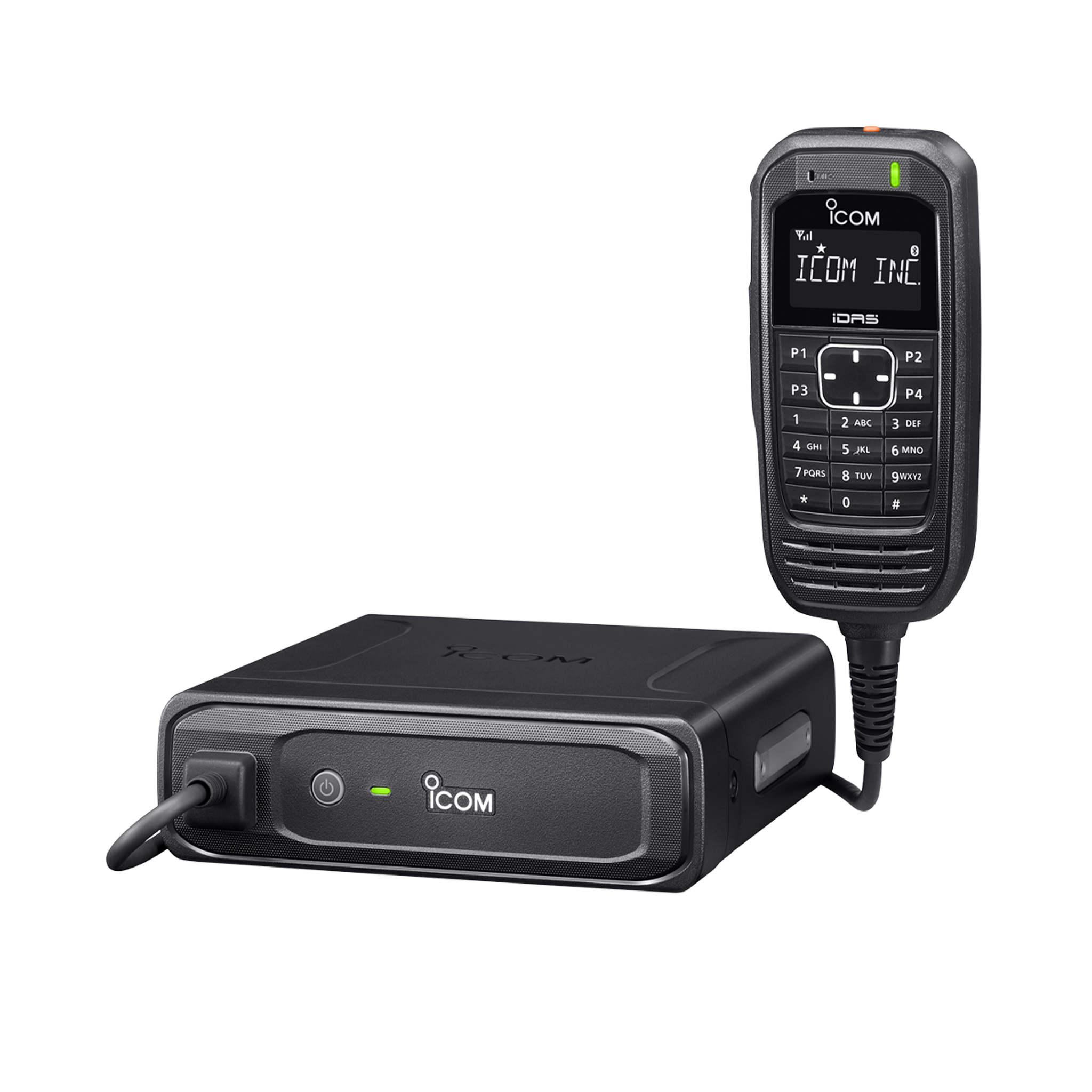

The Icom F5330D / F6330D Series represents an innovative approach to mobile radio design, separating the main RF transceiving chassis from the operational control interface. This compact Icom F5330D / F6330D Series IDAS Mobile Two-Way Radio connects its black box RF unit to a handheld Commandmic using standard Power-over-Ethernet (PoE) technology. Deploying the Icom F5330D / F6330D Series allows installers to place the main RF chassis close to antenna mounting points or concealed within vehicle compartments, extending control up to 328 feet (100 meters) using inexpensive Cat 5e cabling.
Engineered for emergency services, public works fleets, transit authorities, and commercial utility operators, this radio combines NXDN IDAS digital performance with legacy analog FM compatibility. Operating at 50W on VHF (F5330D) and 45W on UHF (F6330D), the system delivers strong broadcast power while keeping cab control surfaces clean and minimalist. The Commandmic features a high-contrast black background display, a 1.7W front speaker for clear audio projection, and intuitive navigation keys built to withstand demanding physical environments.
Key Features & Benefits
-
PoE Remote Mount Architecture: Connects the Commandmic to the main black-box RF transceiver using standard Ethernet cabling, supporting remote installations up to 328 feet (100 meters).
-
Dual-Mode NXDN Digital & Analog: Operates seamlessly across IDAS NXDN digital conventional/trunking channels and traditional analog FM systems.
-
High-Power RF Output: Delivers 50 Watts on VHF (F5330D) and 45 Watts on UHF (F6330D) to ensure reliable signal reach over broad geographical territories.
-
Commandmic Control Head: Equipped with a high-contrast LCD screen and a loud 1.7W built-in speaker for crisp voice reception in noisy environments.
-
Over-the-Air Alias (OAA): Displays caller identification names directly on the screen without requiring complex manual programming updates.
-
MIL-STD 810 G & IPX4 Durability: Built to withstand heavy vibration, shock, and temperature shifts, with IPX4 splash resistance protecting the Commandmic.
Specifications
| Attribute |
Details |
| Brand |
Icom |
| Series |
F5330D / F6330D Series |
| Signaling Mode |
IDAS Digital (NXDN) & Analog FM |
| Number of Channels |
128 Channels (8 Zones) |
| Output Power |
50W (VHF) / 45W (UHF) |
| Audio Output |
1.7W (Commandmic) / 4.2W (External SP) |
| Environmental Rating |
MIL-STD 810 G / IPX4 (Commandmic) |
Model Variations
| Model |
Key Difference |
Compatibility |
| F5330D |
VHF Band (136–174 MHz), 50W Output, Remote Mount Commandmic |
Icom IDAS Mobile Series |
| F6330D |
UHF Band (400–520 MHz), 45W Output, Remote Mount Commandmic |
Icom IDAS Mobile Series |
What's Included
| Description |
SKU/Model |
Status |

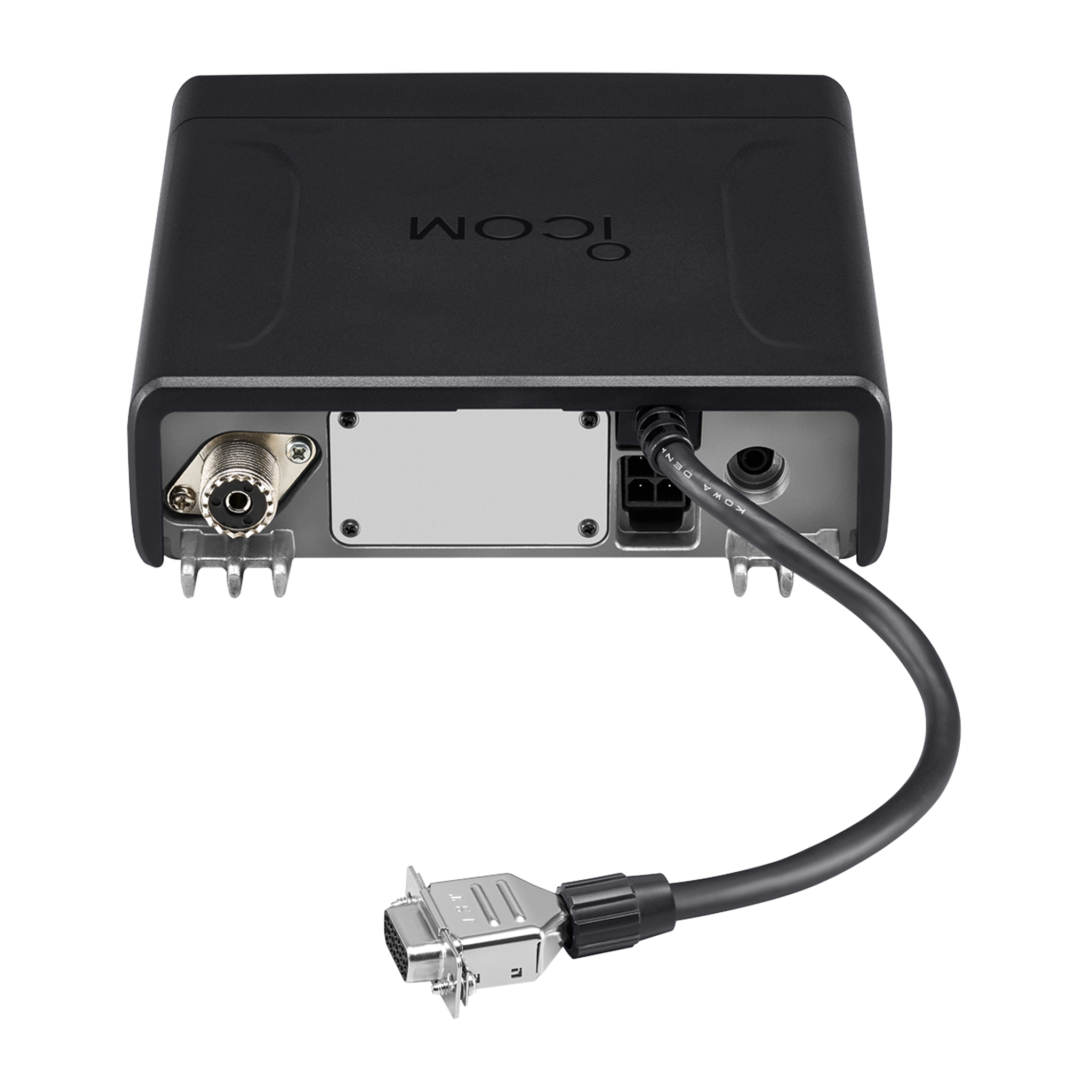

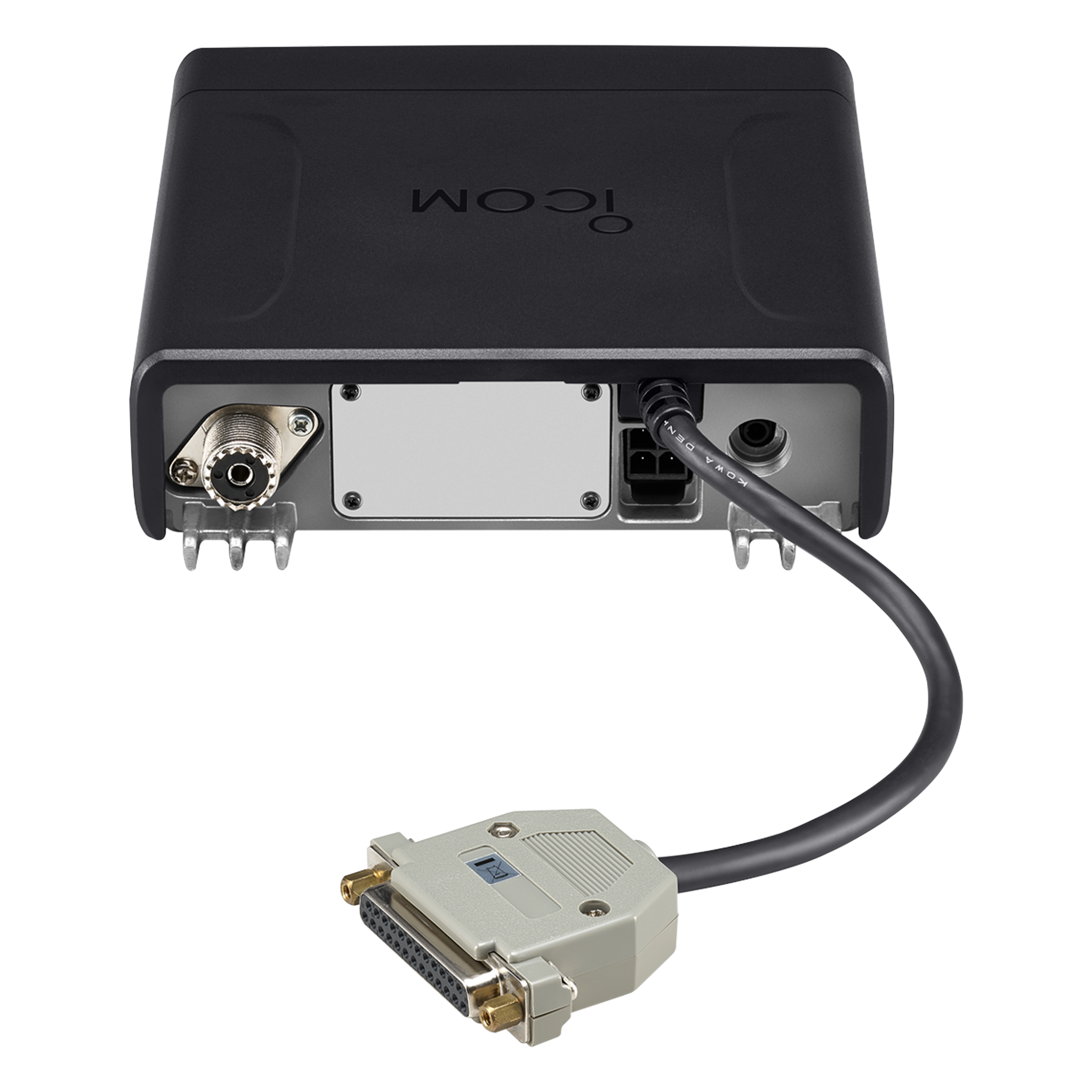

| Black Box Main Transceiver Unit |
F5330D / F6330D |
Included |
| Commandmic Remote Controller |
HM-243 |
Included |
| Ethernet Connection Cable (20.3 ft / 6.2 m) |
OPC-2489 |
Included |
| DC Power Cable |
OPC-2478 |
Included |
| Mobile Mounting Bracket Kit |
- |
Included |
| Microphone Hanger |
- |
Included |
Recommended Accessories
External Speakers
Accessory Cables & Gateways
More Resources
Frequently Asked Questions
How does the remote mount Ethernet cabling work on the F5330D / F6330D?
The main RF chassis connects to the Commandmic remote head via a standard Cat 5e Ethernet cable. Using Power-over-Ethernet (PoE) principles, power and data travel over the same cable up to 100 meters (328 feet).
What is the frequency difference between the F5330D and F6330D models?
The F5330D covers VHF commercial frequencies (136–174 MHz) at 50 Watts, while the F6330D covers wideband UHF frequencies (400–520 MHz) at 45 Watts.
Can the F5330D / F6330D operate on analog radio channels?
Yes, the series supports dual-mode operation, allowing you to run digital IDAS (NXDN) protocols alongside standard analog FM channels with CTCSS, DTCS, and 2-Tone / 5-Tone signaling.
What display features are provided on the Commandmic?

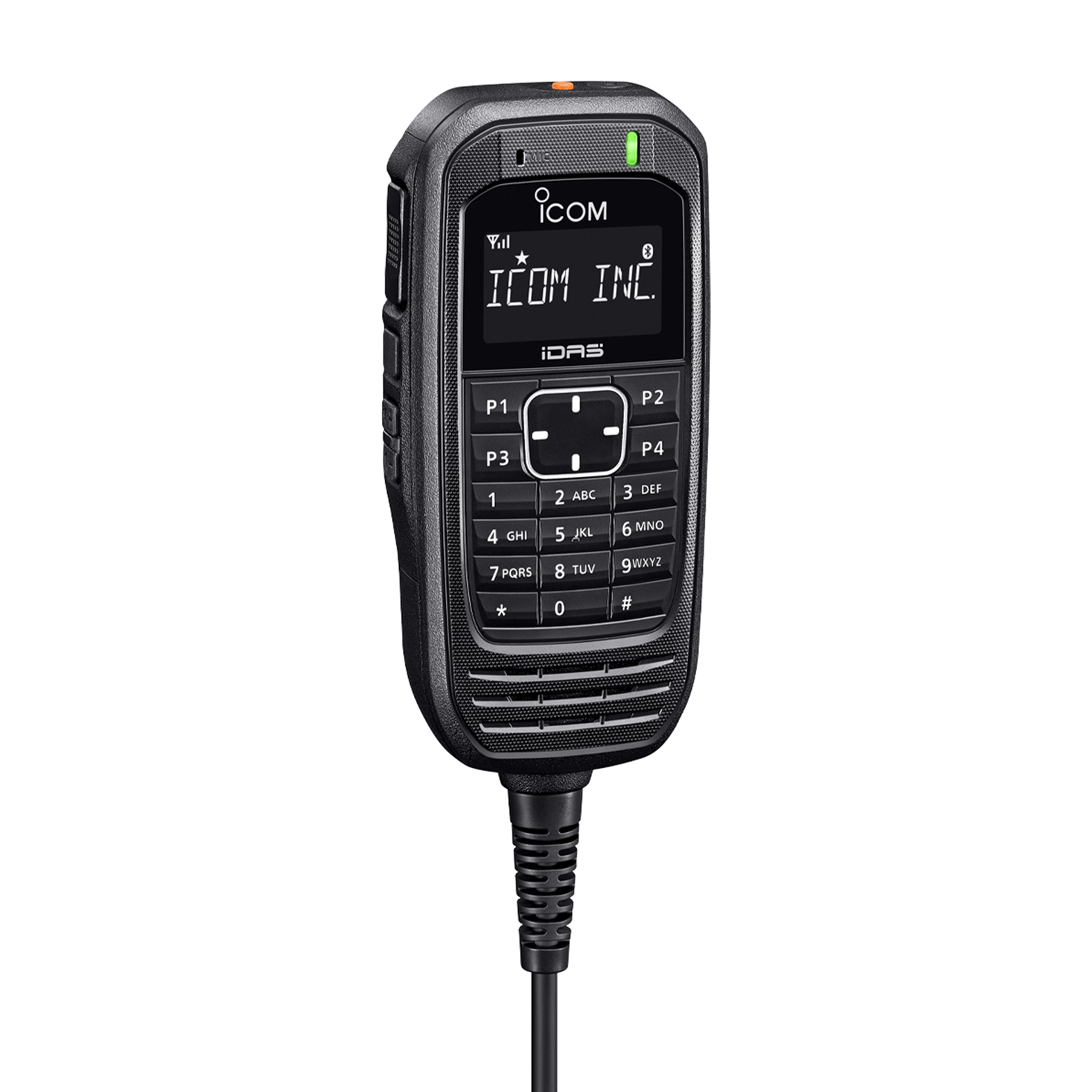

The Commandmic features a high-contrast black background LCD display that provides clear visibility in both bright sunlight and dark vehicle interiors, showing channel names, zone status, and Over-the-Air Aliasing (caller ID).
Is the Commandmic water resistant?
Yes, the Commandmic remote controller is rated to IPX4 standards for water splash resistance, protecting it against rain or accidental splashes inside the vehicle cab.
How many channels and zones does the radio support?
The radio accommodates up to 128 channels organized across 8 customizable zones for easy channel group navigation.
Warranty
2-year manufacturer's warranty and 1-year for accessories.
