Description
Wideband Tunable UHF Antenna for Portable Two-Way Radios
Fine-tune your frequency resonance and maximize signal propagation across critical communication channels.

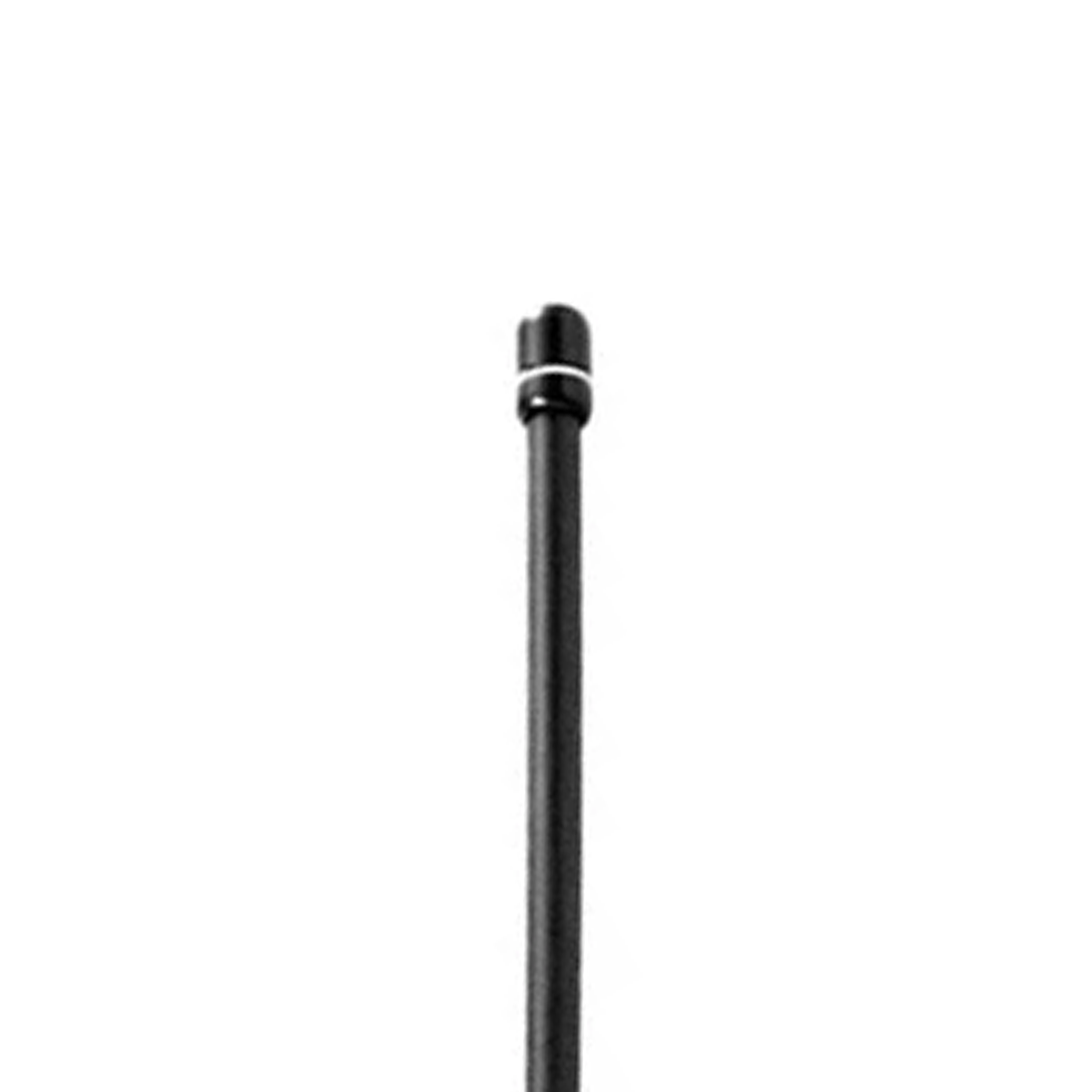

The Icom FA-SC61UC is a genuine original equipment manufacturer (OEM) cut-type UHF antenna engineered to deliver highly optimized, custom-tuned frequency performance. Integrating the Icom FA-SC61UC UHF Antenna for F62D into your portable fleet loadout gives technical managers the flexibility to precisely tune a single antenna asset to an exact operational frequency. Shipped at a factory baseline length, this wideband whip spans a comprehensive spectrum coverage split from 380 to 520 MHz and is engineered to be physically trimmed down by an RF technician to eliminate performance drops on your specific system channels.
Fabricated from a high-durability, impact-resistant rubberized compound, the flexible whip structure effortlessly absorbs physical stress, impacts, and bends during tactical operations without snapping or fracturing away from the housing bezel. Outfitted with a premium threaded screw connector, this Icom FA-SC61UC model creates a perfectly flush, weather-resistant mechanical seal when mounted onto compatible transceivers. Cutting the antenna down to your licensed frequency using the factory tuning dimensions significantly optimizes the Voltage Standing Wave Ratio (VSWR), maximizing transmitter power efficiency and ensuring clear voice delivery.
Key Features & Benefits
-
Custom Cut Precision: Designed to be physically trimmed down using a specialized chart to focus maximum antenna gain on your exact operational frequency.
-
Extended UHF Bandwidth: Provides extensive technical versatility with an adjustable frequency split scaling across the 380 MHz to 520 MHz spectrum.
-
Rugged Flexible Whip: Built using an advanced, non-permeable polymer jacket that withstands heavy compression and rough field environments.
-
Flush-Sealing Connector: Features the exact layout required for the premium Icom FA-SC61UC UHF Antenna for F62D line to reinforce structural integrity and block water or dust ingress at the radio bezel.
-
Maximizes Wattage Efficiency: Correctly trimming the antenna drops power reflection, protecting internal radio components from thermal feedback damage.
Specifications
| Attribute |
Details |
| Brand |
Icom |
| Model/SKU |
FA-SC61UC |
| Antenna Class |
Wideband User-Tunable Cut Antenna |
| Frequency Coverage Split |
UHF Bands (380–520 MHz) |
| Connector Style |
Threaded Screw-Type Stud |
| Factory Length Uncut |
190 mm / 7.5 Inches |
| Outer Shield Compound |
Heavy-Duty Impact-Resistant Rubber |
Compatibility
|
|
|
|
| F2000 |
F2100 |
F62D |
F62DUL |
| IP740D |
|
|
|
What’s Included
| Description |
SKU/Model |
Status |
| Icom 380-520MHz Uncut Flexible UHF Rubber Antenna |
FA-SC61UC |
✅ Included |
| Factory Frequency Trimming Dimension Measurement Chart |
Trim-Guide |
✅ Included |
| Submersible Digital Handheld Commercial Radio Body |
F62D |
❌ Sold Separately |
Recommended Accessories
Frequently Asked Questions
Why does this antenna require physical cutting before deployment?
As a specialized cut-type antenna, it is designed to achieve peak performance when structurally matched to your specific channels. Trimming the flexible whip down using the provided dimension matrix minimizes power loss and brings your SWR down to optimal levels.
Can I use this antenna straight out of the box without cutting it?
While it will pass a signal at its default length, operating it uncut on higher UHF frequencies can cause high SWR and reflected power feedback. This reduces your overall range and can overheat your radio's transmitter over time.
Does this antenna feature a standard SMA or BNC connector?

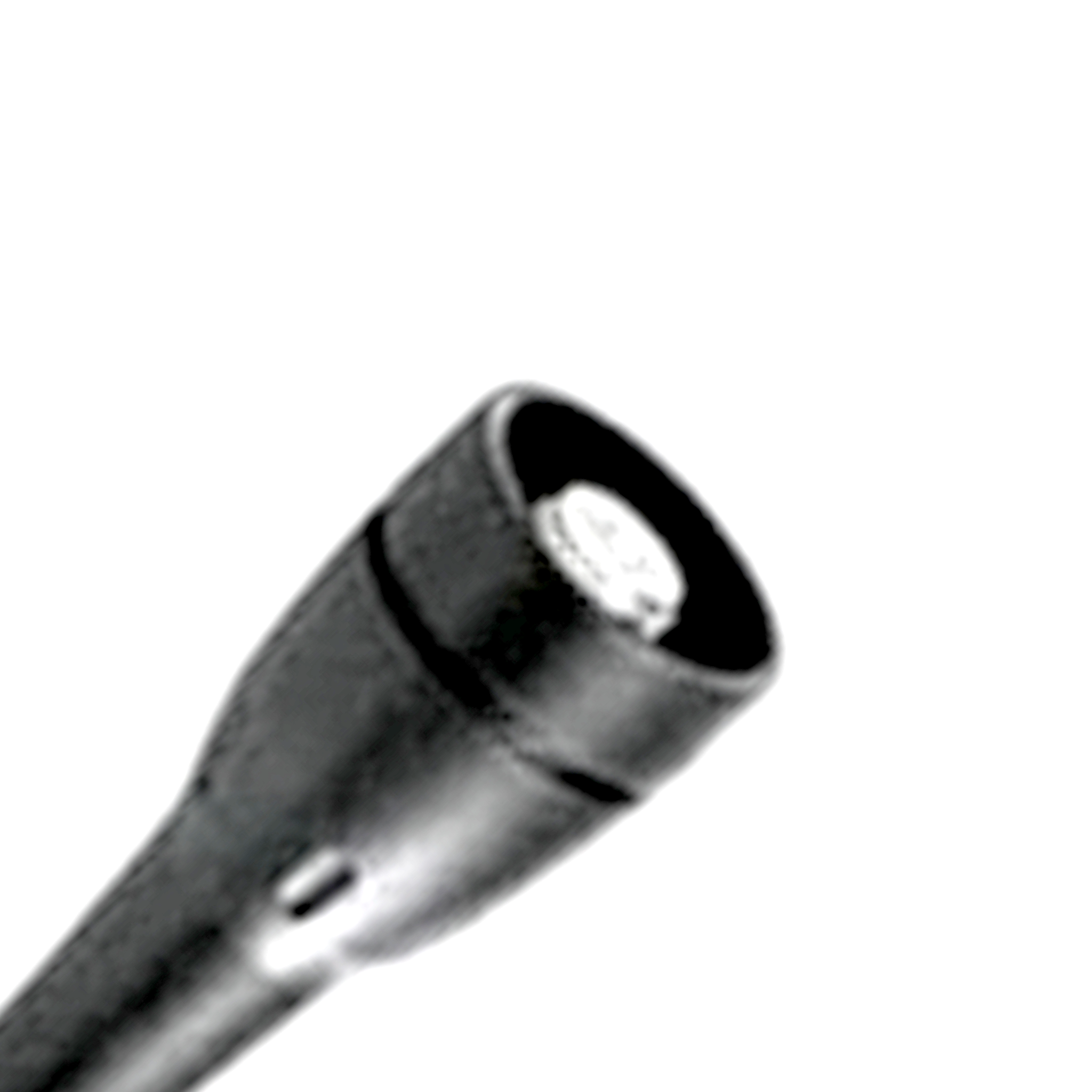

No, this authentic accessory utilizes Icom's proprietary flush-mount threaded screw connection stud, which is engineered to seal tightly into the custom antenna sockets of specific Icom portable radios.
What happens if the antenna is accidentally cut too short?
If the rubber whip is cut shorter than the specified length for your active frequency, it will degrade performance and cannot be extended. A new uncut antenna must be used to ensure safe transmission.
Does mounting this antenna preserve my radio's waterproof rating?
Yes. The base of the rubber housing features a flush-sealing flange that compresses against the top bezel of the radio, maintaining a secure environmental barrier against rain and dust when fully tightened.
What baseline warranty coverage applies to this equipment accessory?
This genuine commercial original equipment manufacturer component is protected by Icom's standard parts and accessories warranty against unexpected structural material failures or build anomalies.
Warranty
1-year manufacturer’s warranty.
