Description
Standard-Length Flexible VHF Antenna with J-Type Connector
Low-Profile Wideband Communications
Equip your Icom portable transceiver with a heavy-duty flexible antenna engineered for optimal VHF signal propagation.

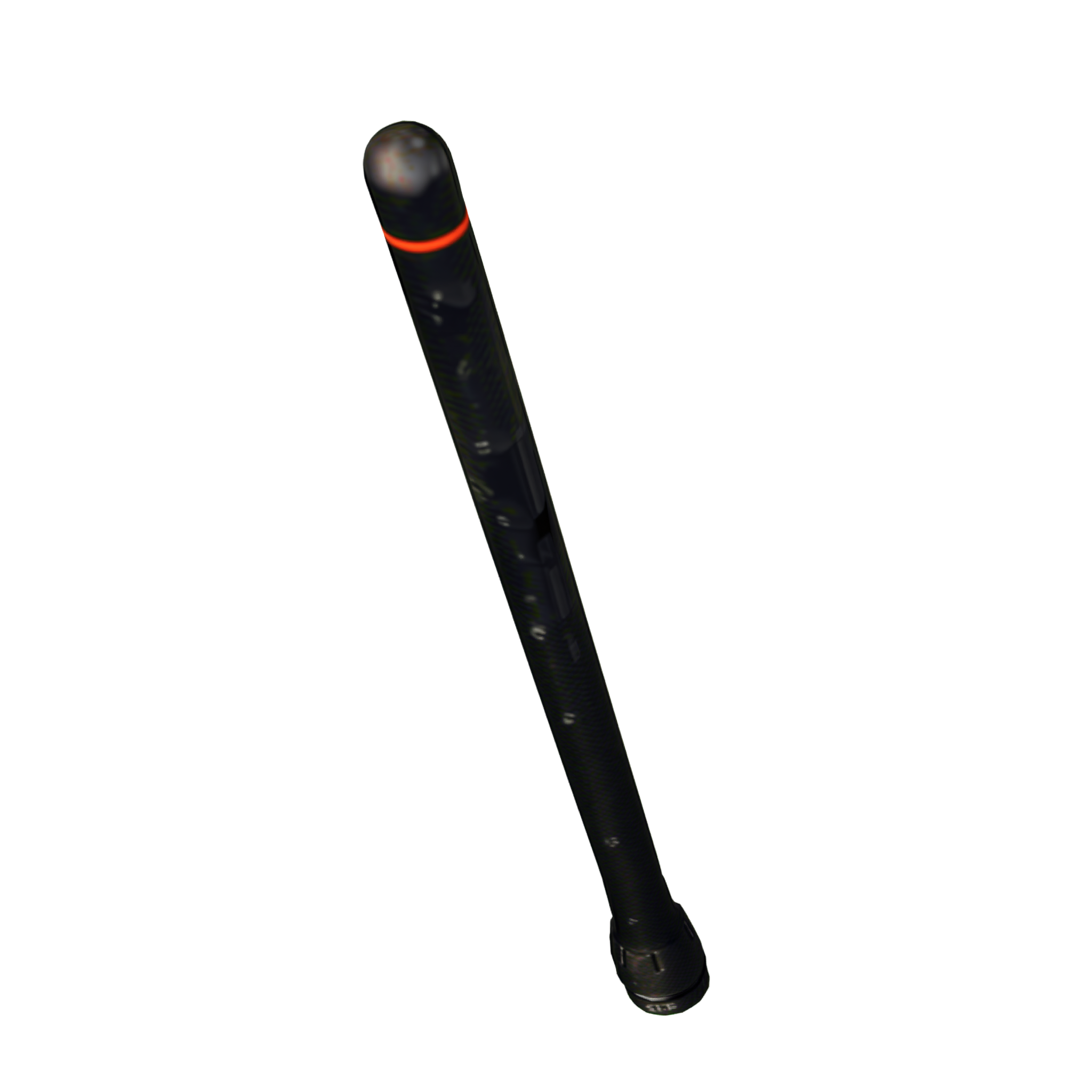

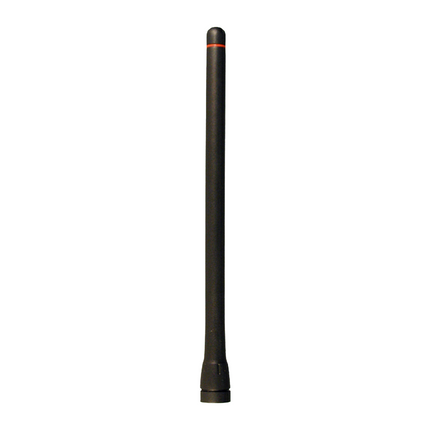

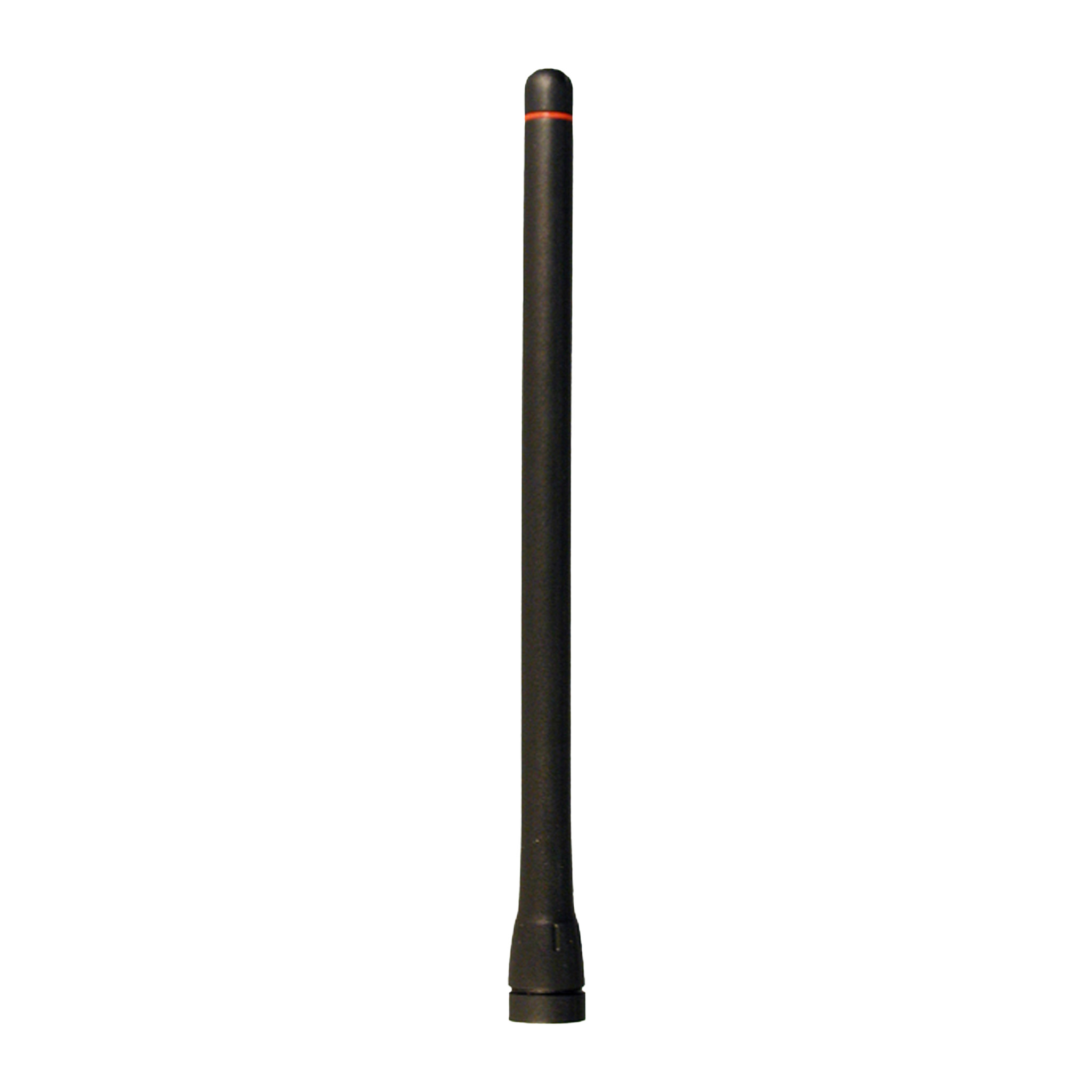

The Icom FASC55V VHF Antenna is a high-performance, standard-length flexible antenna designed specifically for the 146–174 MHz VHF frequency range. Engineered for versatility and durability, this antenna features the specialized J-type (thread-less) connector common to Icom’s extensive line of professional land mobile and marine radios. The FASC55V is factory-tuned to provide an optimal balance between transmission gain and reception sensitivity, making it an excellent choice for public safety, industrial, and maritime operators who require consistent wideband performance.
Constructed from a high-flexibility rubber compound with a rugged internal helical core, this antenna is built to withstand the intense physical demands of daily field use. Its highly flexible nature allows it to bend and completely recover without breaking or fatiguing, which is essential for users who wear their radios on duty belts, shoulder epaulets, or inside tactical vests. As a genuine OEM accessory, it ensures a secure, weather-resistant fit that maintains the environmental sealing integrity of your portable radio while delivering clear signal path clarity.
Key Features & Benefits
-
Optimized VHF Tuning: The Icom FASC55V VHF Antenna is precisely resonant within the 146–174 MHz band for maximum signal efficiency and extended communication range.
-
J-Type Threadless Connector: Features a heavy-duty push-and-twist style connector interface to establish a secure and stable electrical connection with compatible radio bodies.
-
Superior Material Flexibility: The rubberized outer shell protects the internal helical brass core from structural fatigue and snapping during high-intensity physical activity.
-
Extended Signal Reach: Standard length architecture provides superior transmission gain compared to stubby variants, making it ideal for rural or coastal deployments.
-
Genuine OEM Reliability: Specifically engineered to meet the exact electrical tolerances and impedance requirements of Icom's land mobile and marine platforms.
Specifications
| Attribute |
Details |
| Brand |
Icom |
| Model/SKU |
FASC55V |
| Product Type |
VHF Flexible Antenna |
| Frequency Range |
146–174 MHz |
| Connector Type |
J-Type |
| Antenna Style |
Standard Flexible |
| Length |
~165 mm |
| Core Material |
Helical Core |
| Color |
Black |
Compatibility
|
|
|
|
| F1000 |
F1000D |
F1000S |
F1000T |
| F1100 |
F1100D |
F1100DS |
F1100DT |
| F2000 |
F2000D |
F3001 |
F3002 |
| F3003 |
F3011 |
F3021 |
F3022 |
| F3023 |
F3026 |
F3032 |
F3033 |
| F3036 |
F3101D |
F3102D |
F3103D |
| F3201 |
F3201DEX |
F3202DEX |
F3210DF |
| F3230DS |
F3230DT |
F3360DF |
F3360DT |
| F3161 |
F3161S |
F3161T |
F3162DS |
| F3162DT |
F3163 |
F3261DF |
F3261DT |
| F3262DT |
F52D |
F11 |
F11S |
| F12 |
F12S |
F14 |
F14S |
| F15 |
F15S |
F16 |
F3 |
| F3S |
F3GS |
F3GT |
F30 |
| F30GS |
F30GT |
F33GS |
F33GT |
| F34GS |
F34GT |
F70 |
F70S |
| F70T |
F70DS |
F70DT |
IP730D |
| V88 |
M32 |
M3A |
|
Recommended Accessories
- Icom F1100D VHF IDAS Digital Portable Radio (
F1100D) — High-performing, rugged VHF transceiver optimized to interface perfectly with this antenna platform.
- Icom F52D Compact VHF Digital Portable Radio (
F52D) — Ultra-compact commercial radio configuration supporting secure J-type push-and-twist attachments.
- Icom High-Capacity Li-Ion Battery (
BP280) — High-output rechargeable 2250mAh cell supplying sustained multi-shift power delivery.
- Icom Rapid Desktop Charger (
BC213) — Dedicated single-unit drop-in base for automated rapid current conditioning.
- Icom BC219N Rapid Single-Unit Desktop Charger (BC219N) — High-performance rapid rate charging cradle engineered for high-capacity cells used in the F52D portable series.
- Icom BP-232WP Waterproof Li-Ion Battery (BP-232WP) — Heavy-duty IP67 dust and water-resistant 2300mAh power supply tailored to fit F3230 radio systems.
More Resources
Frequently Asked Questions
Is this antenna compatible with the Icom F2000 series?
While the F2000 series often operates primarily on UHF bands, it does share the exact physical J-type connector interface. However, the FASC55V is specifically a VHF antenna, meaning you should only pair it with your device if your exact radio is a confirmed VHF model variation.
How can I verify that my FASC55V is a genuine OEM Icom part?
Authentic Icom antennas are manufactured with precision-molded connector bases, heavy-gauge strain reliefs, and premium weather-sealing compound rings. Deploying non-genuine or aftermarket components can lead to poor signal propagation and may permanently damage your transceiver's power amplifier stage.
What is the primary operational difference between this model and a stubby antenna?
This standard flexible antenna features an elongated structural layout that delivers significantly higher signal transmission gain and enhanced reception sensitivity over distance compared to a stubby option, which makes it ideal for rural, expansive, or coastal settings.
Warranty
1-year manufacturer's warranty.
