Icom FASC58V
VHF (150-174MHz) Flexible Antenna
High-Performance Screw-Type Marine and Land Mobile Communication Solution

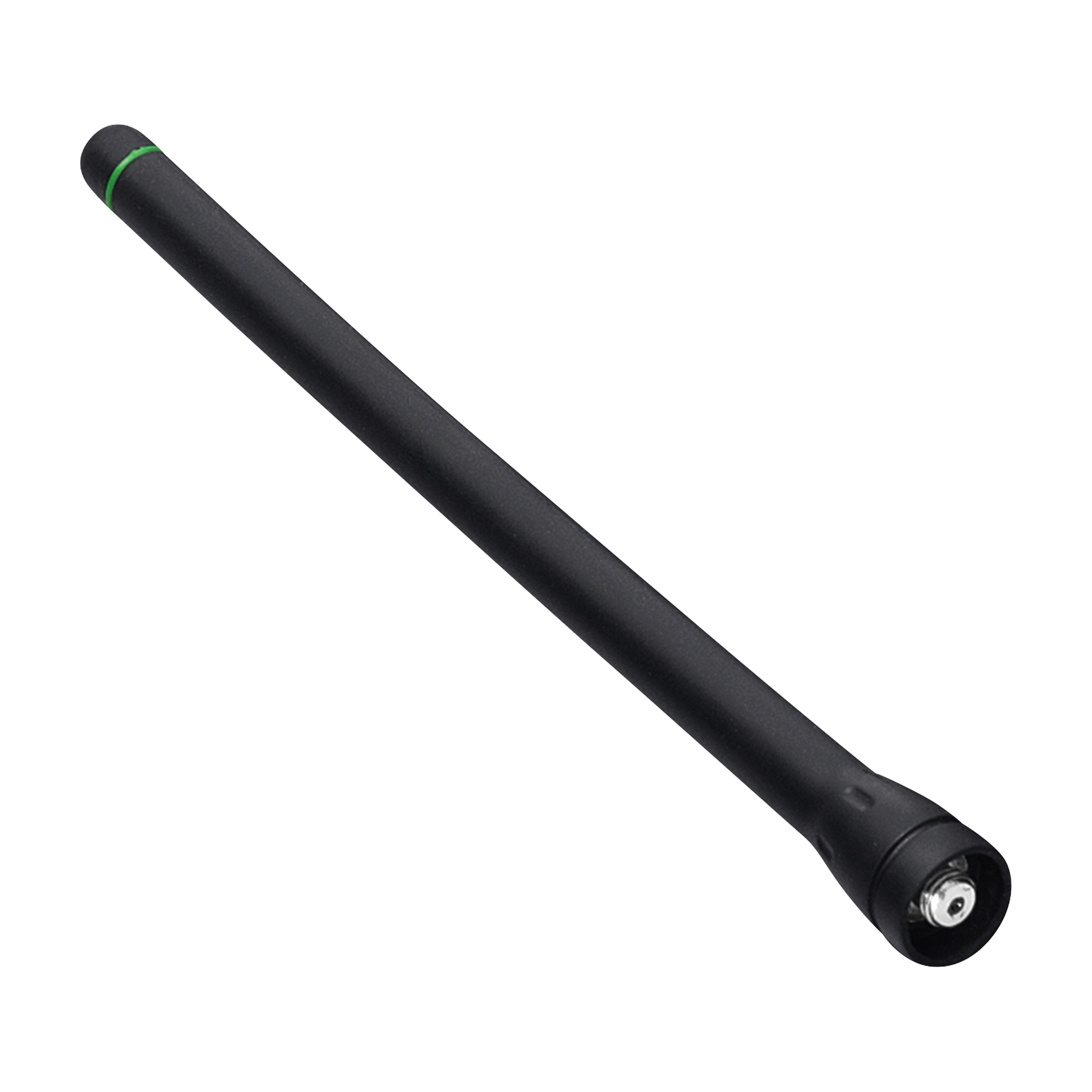

The Icom FASC58V is a professional-grade VHF flexible antenna specifically engineered for high-reliability maritime and land mobile communications. Operating within the 150-174 MHz frequency range, this antenna is designed to provide optimal signal resonance for Icom’s premier M-series handheld radios. The Icom FASC58V features a 163 mm (6.375 inch) thin metal rod construction, meticulously wound with a precision wire helix. This internal loading coil effectively increases the electrical length of the antenna, significantly boosting performance and gain at the lower end of the VHF spectrum where critical marine channels reside.

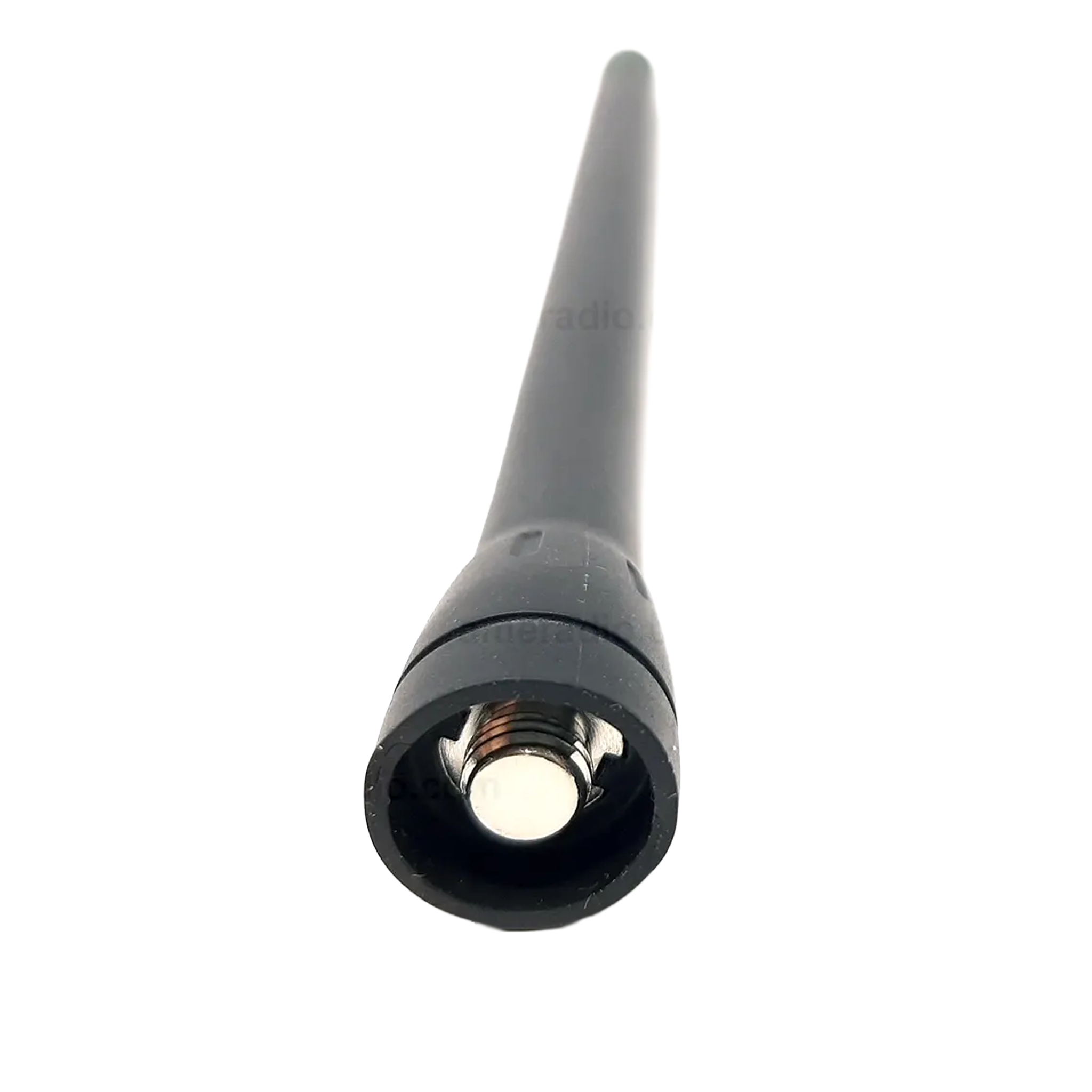

Built to withstand the harsh conditions of saltwater environments and industrial job sites, the Icom FASC58V utilizes a robust MXI screw-type connector. This threaded interface ensures a watertight, vibration-resistant bond with the radio chassis, maintaining electrical integrity even under heavy physical duress. Its flexible design allows the antenna to bend and recover without permanent deformation, reducing the risk of connector damage when the radio is worn on a belt.
By utilizing the genuine Icom FASC58V, operators ensure their equipment meets factory-tuned specifications for Voltage Standing Wave Ratio (VSWR), protecting the radio's internal power amplifier from damage caused by signal reflection. Whether deployed for professional maritime safety or land-based coordination, this antenna is the definitive choice for clear, extended-range VHF communication.
Key Features & Benefits
-
Optimized VHF Coverage: Tuned for the 150-174 MHz band, providing superior performance for marine and commercial VHF frequencies.
-
Helical Loading Coil: The internal wire-wound design improves electrical efficiency, offering better range than standard non-loaded antennas.
-
Flexible Durability: The Icom FASC58V is designed to flex and move with the user, preventing breakage and enhancing all-day comfort.
-
MXI Screw-Type Connector: Provides a secure, threaded connection that minimizes signal loss and prevents accidental detachment.
-
Weather-Resistant Build: Engineered for the rigors of marine use, featuring a rugged overmold that resists UV rays and saltwater corrosion.
-
Compact Profile: At 163 mm in length, it offers a balanced footprint that provides excellent gain without being excessively obtrusive.
Specifications
-
Brand: Icom
-
Part Number: FASC58V
-
Frequency Range: 150–174 MHz
-
Connector Type: MXI (Screw-type)
-
Length: 163 mm (6.375 inches)
-
Antenna Type: Flexible Helical Whip
-
Color: Black
Compatibility
|
|
|
|
| M23 |
M24 |
M33 |
M34 |
| M35 |
M36 |
M85 |
M85E |
| M85UL |
|
|
|
Recommended Accessories
- High-Capacity Li-Ion Battery (BP290)
- Rapid Desktop Charger (BC227)
- Waterproof Speaker Microphone (HM222)
What's Included
- Icom FASC58V VHF Flexible Antenna
Frequently Asked Questions
-
Is this antenna waterproof? While the antenna itself is weather-resistant, the waterproof integrity depends on the gasket seal between the Icom FASC58V and the radio.
-
Can I use this for the 400 MHz UHF band? No, the Icom FASC58V is strictly a VHF antenna. Using it on a UHF radio can cause permanent damage to the transmitter.
-
How do I install the antenna? Simply align the MXI screw-type threads and rotate clockwise until the antenna is finger-tight against the radio body.
Warranty
1-year manufacturer's warranty
