Description

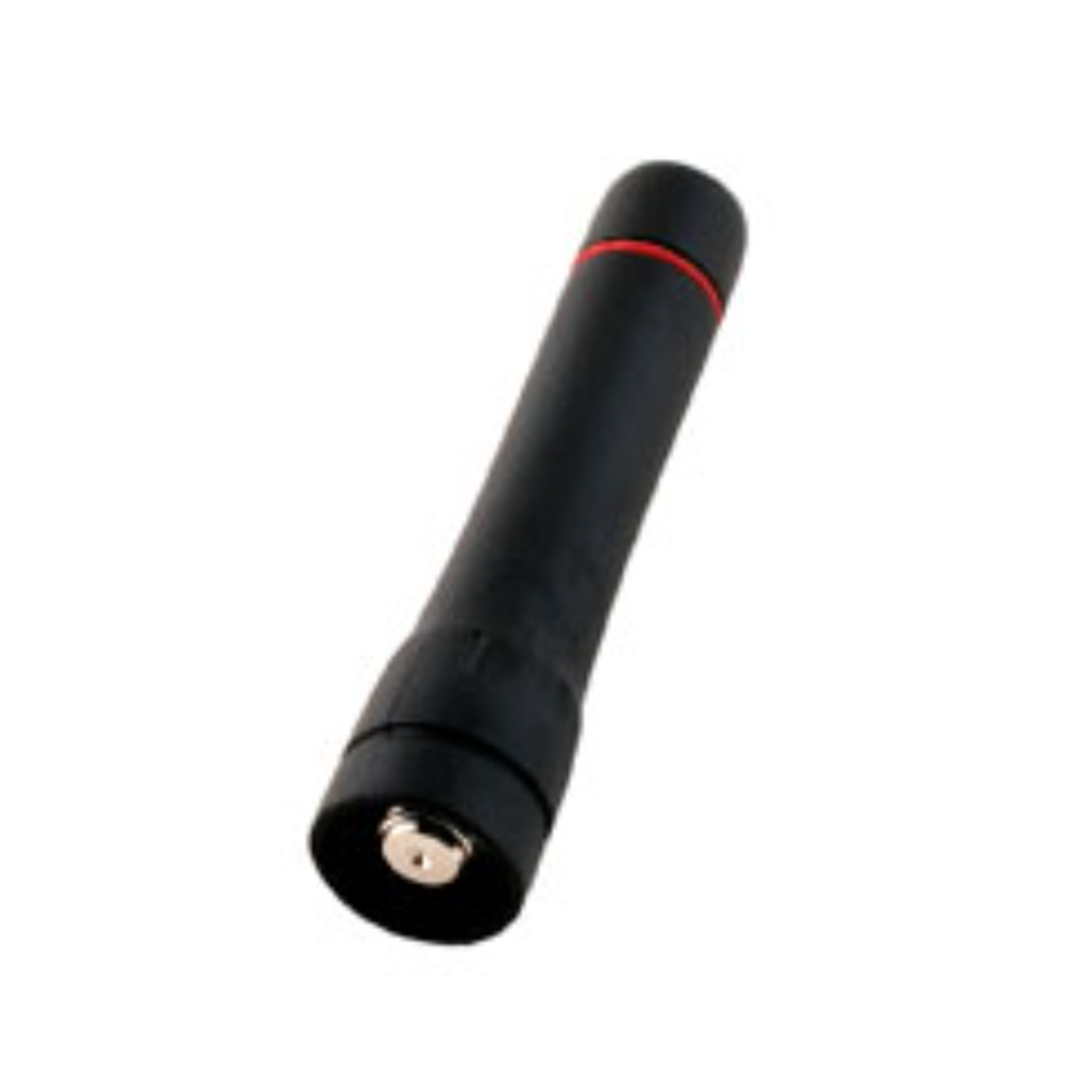

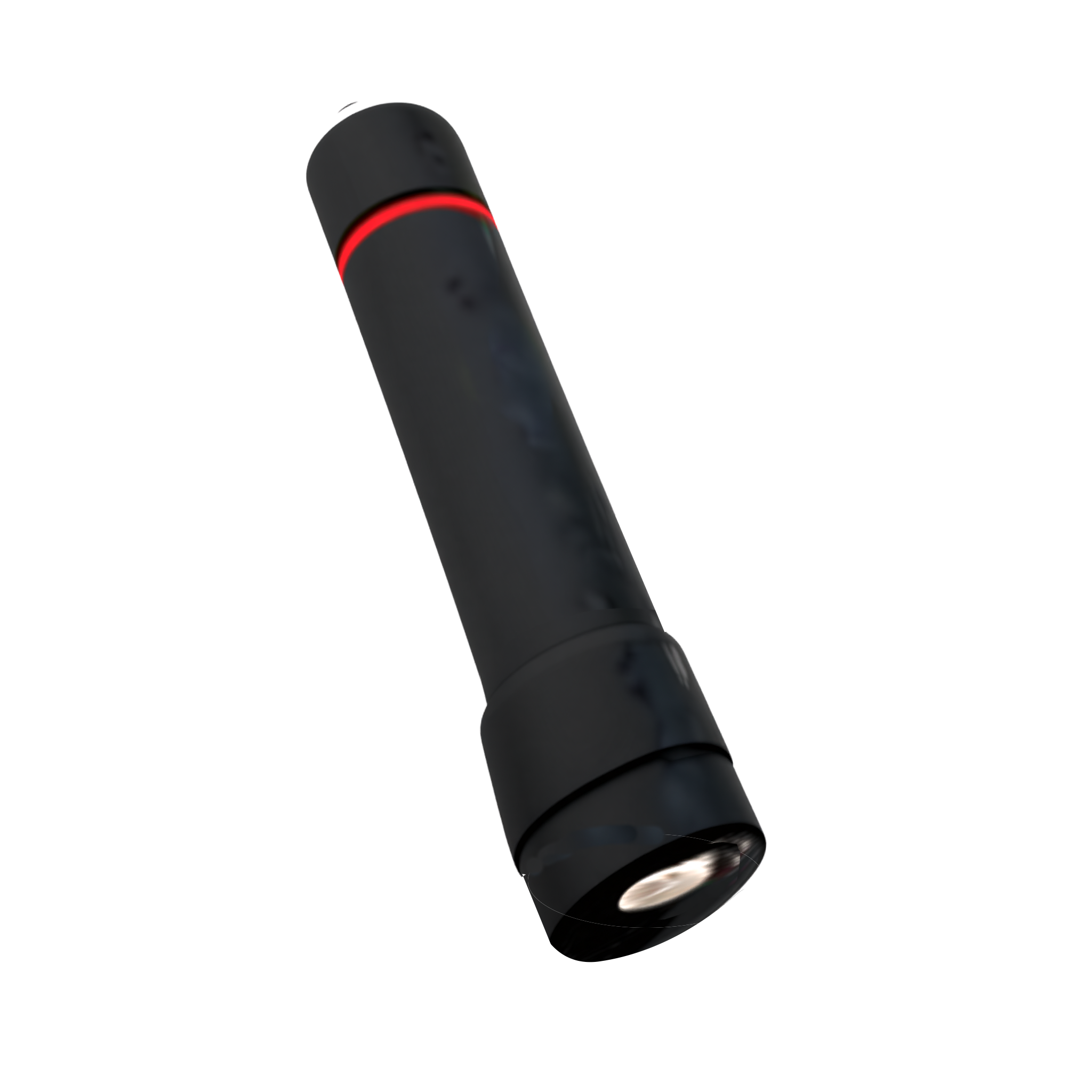

Icom FASC73US
450–470 MHz Stubby Antenna
Compact, High-Durability UHF Communication Solution
The Icom FASC73US is a professional-grade stubby antenna designed for operators who require a low-profile communication setup without sacrificing durability. Tuned specifically for the 450–470 MHz UHF frequency range, this antenna is the ideal choice for security personnel, warehouse staff, and hospitality teams who find standard-length antennas cumbersome. At just 60 mm in length, the Icom FASC73US significantly reduces the risk of the antenna snagging on clothing or equipment while the radio is worn on a belt or in a tactical vest.
Built for the most demanding environments, the Icom FASC73US carries a full IPX7 waterproof rating, meaning it can be submerged in up to 1 meter of water for 30 minutes. This makes it a perfect match for Icom’s ruggedized handheld series, ensuring your signal remains clear in heavy rain or maritime conditions. Featuring a reliable J-type screw connector, this antenna provides a secure, vibration-resistant attachment to the radio chassis, maintaining optimal RF performance in a compact form factor.
Key Features & Benefits
-
Low-Profile "Stubby" Design: Measuring only 60 mm, this antenna provides a sleek, unobtrusive profile that prevents snagging and improves user comfort.
-
IPX7 Waterproof Protection: Ruggedized construction allows for full submersion, ensuring consistent performance in extreme weather or hazardous environments.
-
Optimized UHF Performance: Precision-tuned for the 450–470 MHz band, delivering reliable signal integrity for high-tier digital and analog transceivers.
-
J-Type Screw Connector: Features a durable threaded connection that ensures a stable electrical bond and resists loosening during rigorous physical activity.
-
Industrial Build Quality: Encased in a high-flexibility, impact-resistant polymer to prevent snapping or cracking under mechanical stress.
-
Seamless Compatibility: Designed to fit a wide array of Icom’s modern digital portables, from the F2100 series to the elite F62D.
Specifications
| Feature |
Specification |
| Frequency Range |
450–470 MHz |
| Antenna Type |
Stubby (Low Profile) |
| Connector Type |
J-Type (Screw-type) |
| Length |
60 mm |
| Waterproof Rating |
IPX7 |
| Band |
UHF |
Compatibility
|
|
|
|
| F2000 |
F2100DH |
F2100DL |
F62D |
| F62DUL |
IP740D |
F52D |
F1100D |
| F2100D |
IP730D |
|
|
Recommended Accessories
- Icom UHF Digital Portable Radio (F62D)
- Icom High-Capacity Li-Ion Battery (BP290)
- Icom Waterproof Speaker Microphone (HM222H)
Frequently Asked Questions
Will this antenna reduce my range? Because of its shorter physical length, a stubby antenna may have slightly less range than a full-length "whip" antenna in fringe signal areas. However, for most on-site and repeater-based communications, the difference is negligible.
Does it fit the older F4001 series? Yes, as long as the radio uses the standard J-type screw connector. However, it is specifically optimized for the newer F2100 and F62D digital series.
Is it safe to use in the rain? Absolutely. The FASC73US is IPX7 rated, so it is fully sealed against dust and heavy water exposure.
Warranty
1-year manufacturer's warranty.
