Description
Icom IASDUP50CY
Internal Duplexer Assembly Kit
Seamless Single-Antenna Integration for CY Series Repeaters
The Icom IASDUP50CY is a specialized internal duplexer assembly kit designed to enhance the efficiency and footprint of Icom CY series repeaters. This kit allows the CY5300 and CY6300 to operate using a single antenna for both transmitting and receiving signals, eliminating the need for two separate antennas or an externally mounted duplexer. By integrating the duplexer internally, system administrators can maintain a professional, compact setup that is ideal for space-constrained rack environments or mobile command centers.
Engineered for high-performance RF isolation, the Icom IASDUP50CY ensures that the powerful transmit signal does not interfere with the sensitive receiver. The kit is comprehensive, including high-quality RF jumpers terminated with precision N-male connectors and all necessary mounting screws for a secure factory-style installation. This assembly is a vital component for those looking to simplify their RF signal path while maximizing the coverage and reliability of their digital or analog repeater system.
Key Features & Benefits
-
Single Antenna Operation: Enables the repeater to transmit and receive through a single antenna port, reducing installation complexity and antenna site costs.
-
Internal Mounting: Designed to fit perfectly within the CY series chassis, protecting the duplexer and jumpers from external damage or interference.
-

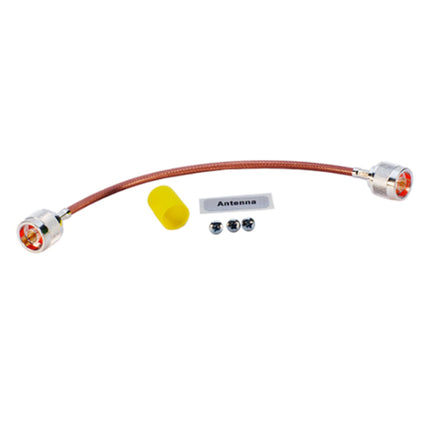

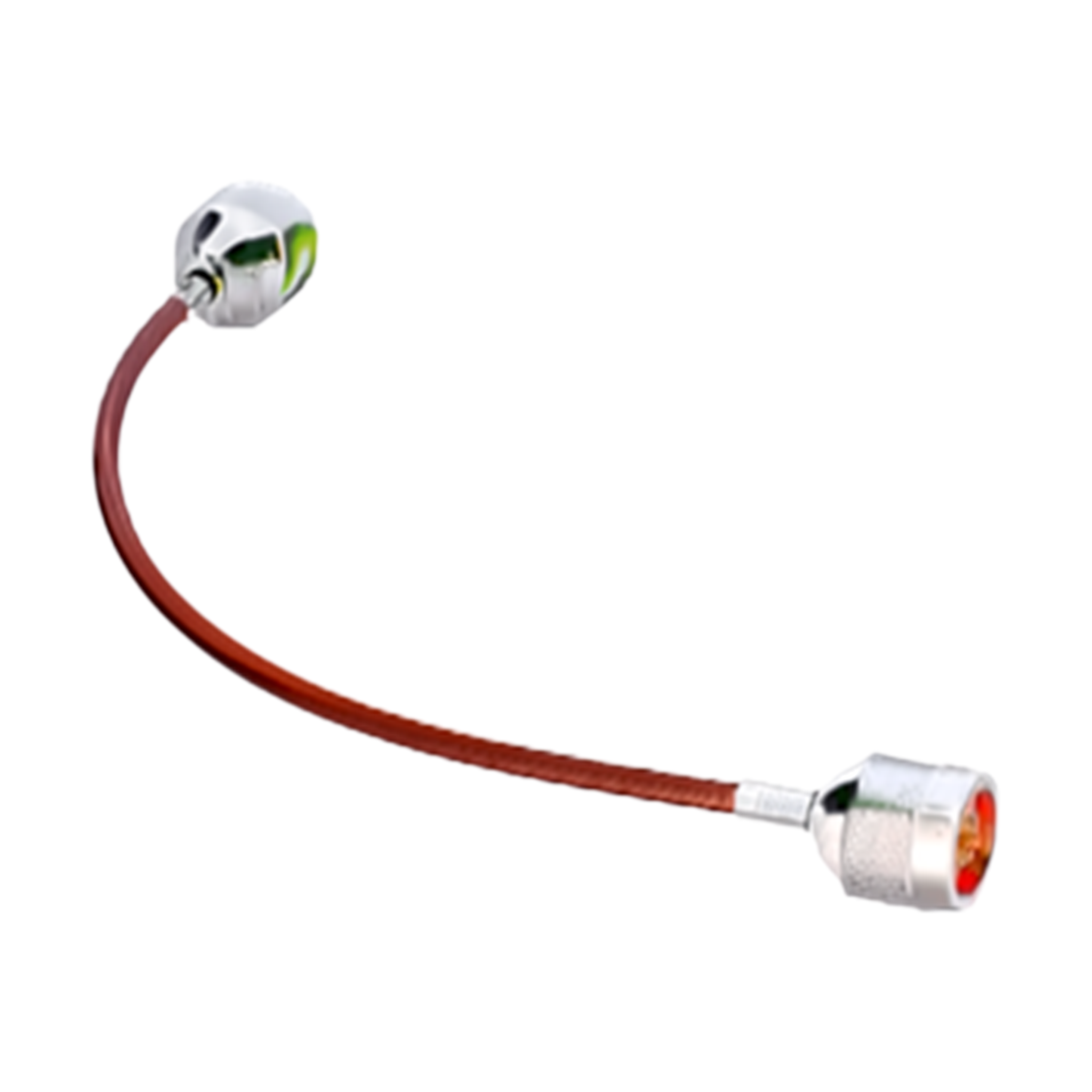

High-Quality RF Jumpers: Includes heavy-duty coaxial jumpers with N-male connectors to ensure a low-loss, high-retention signal path.
-
Optimized Isolation: Provides the necessary frequency separation to prevent receiver desensitization during high-power transmissions.
-
Complete Installation Kit: Comes supplied with all required hardware and screws, ensuring a straightforward and secure assembly process.
Specifications
-
Brand: Icom
-
Model Number: IASDUP50CY
-
Compatible Connectors: N-Male
-
Components Included: Duplexer bracket, RF jumpers, and mounting hardware
-
Application: Internal Repeater Integration
Compatibility
What's Included
| Description |
SKU |
Status |
| Internal Duplexer Bracket |
N/A |
✅ Included |
| RF Jumpers (N-Male) |
N/A |
✅ Included |
| Mounting Screws |
N/A |
✅ Included |
Recommended Accessories
| Description |
SKU |
| Icom VHF Digital Repeater |
CY5300 |
| Icom UHF Digital Repeater |
CY6300 |
| Icom DC Distribution Panel |
IASDP1001 |
| High-Gain Base Station Antenna |
F-ANT-UHF |
Frequently Asked Questions
-
Is the duplexer pre-tuned? This kit typically refers to the assembly hardware and jumpers. The duplexer itself usually requires professional tuning to your specific TX and RX frequencies before final installation.
-
Does this kit support 50-watt operation? Yes, the Icom IASDUP50CY is designed to handle the power output levels associated with the CY5300 and CY6300 repeater series.
-
Can I install this myself? While the kit includes the hardware, it is recommended that a qualified RF technician performs the installation to ensure the duplexer is tuned and the SWR is verified.
Warranty
1-year manufacturer's warranty.
