Description

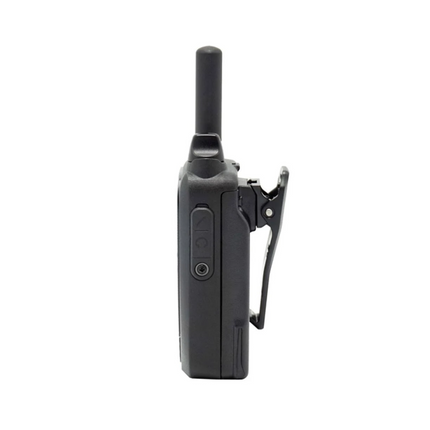

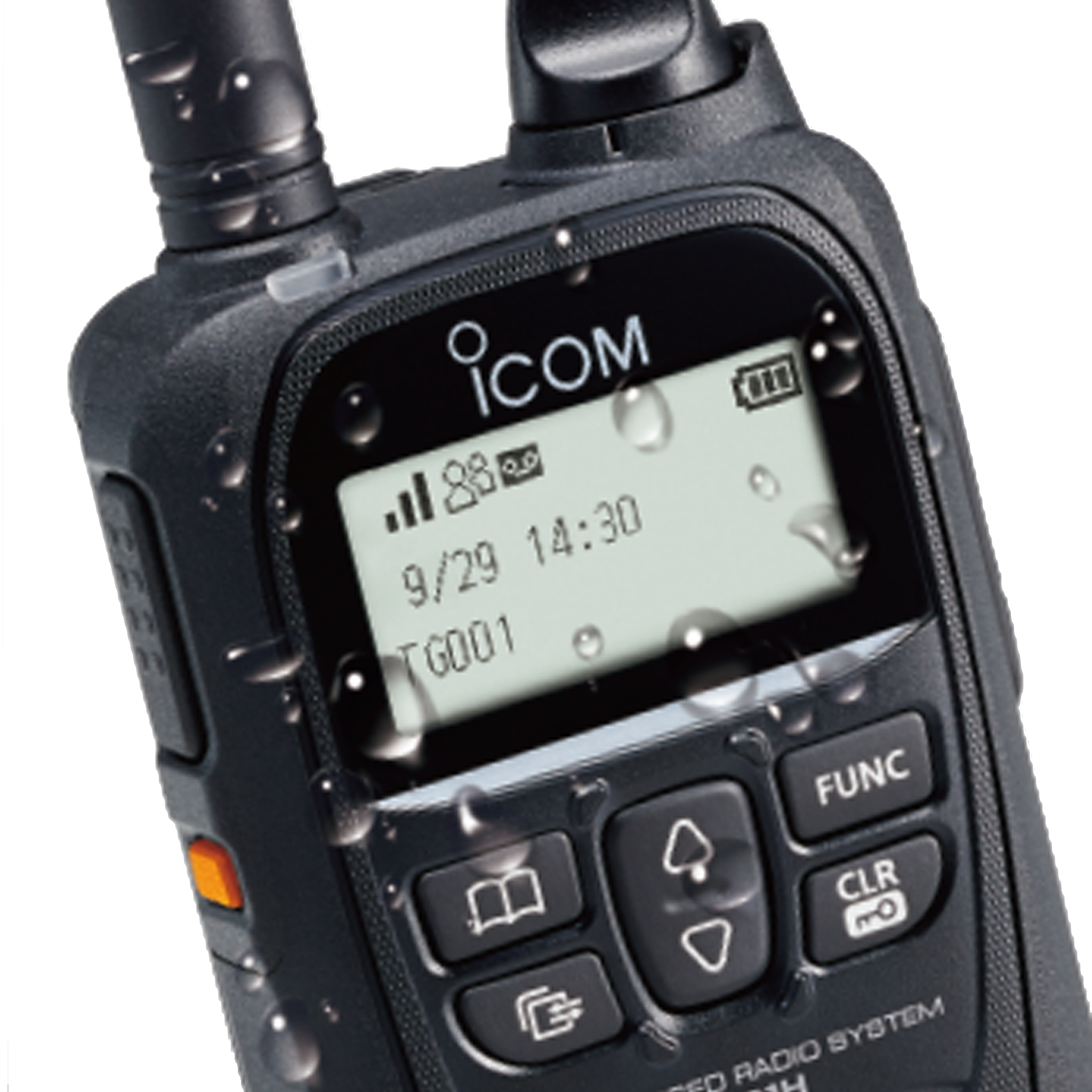

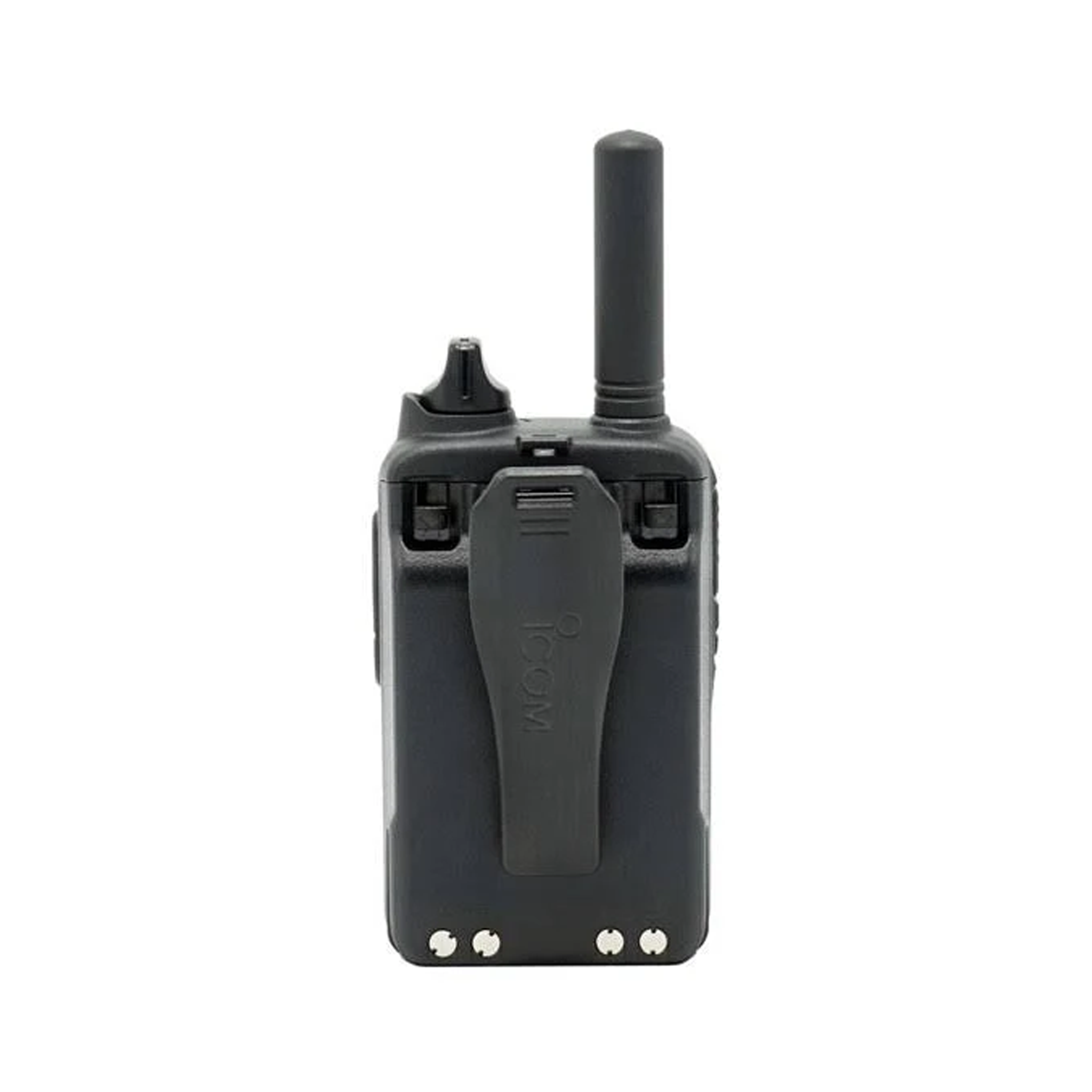

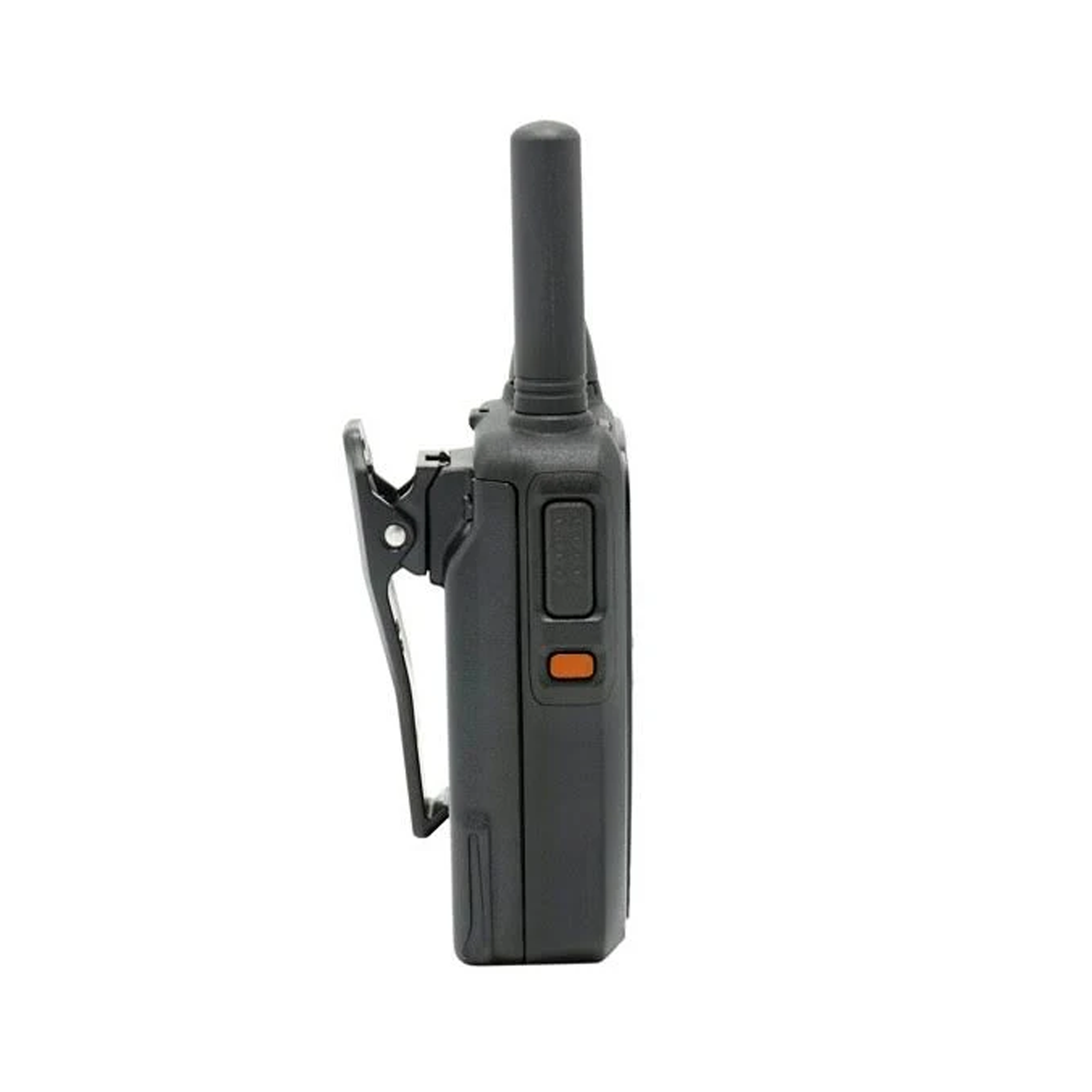

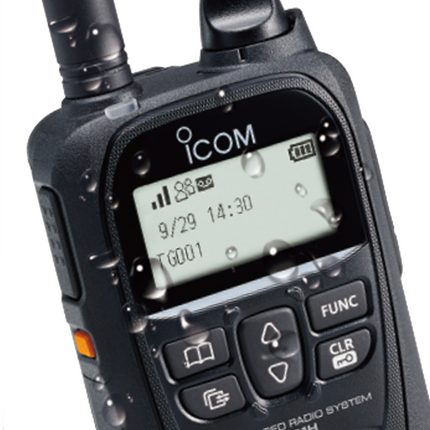

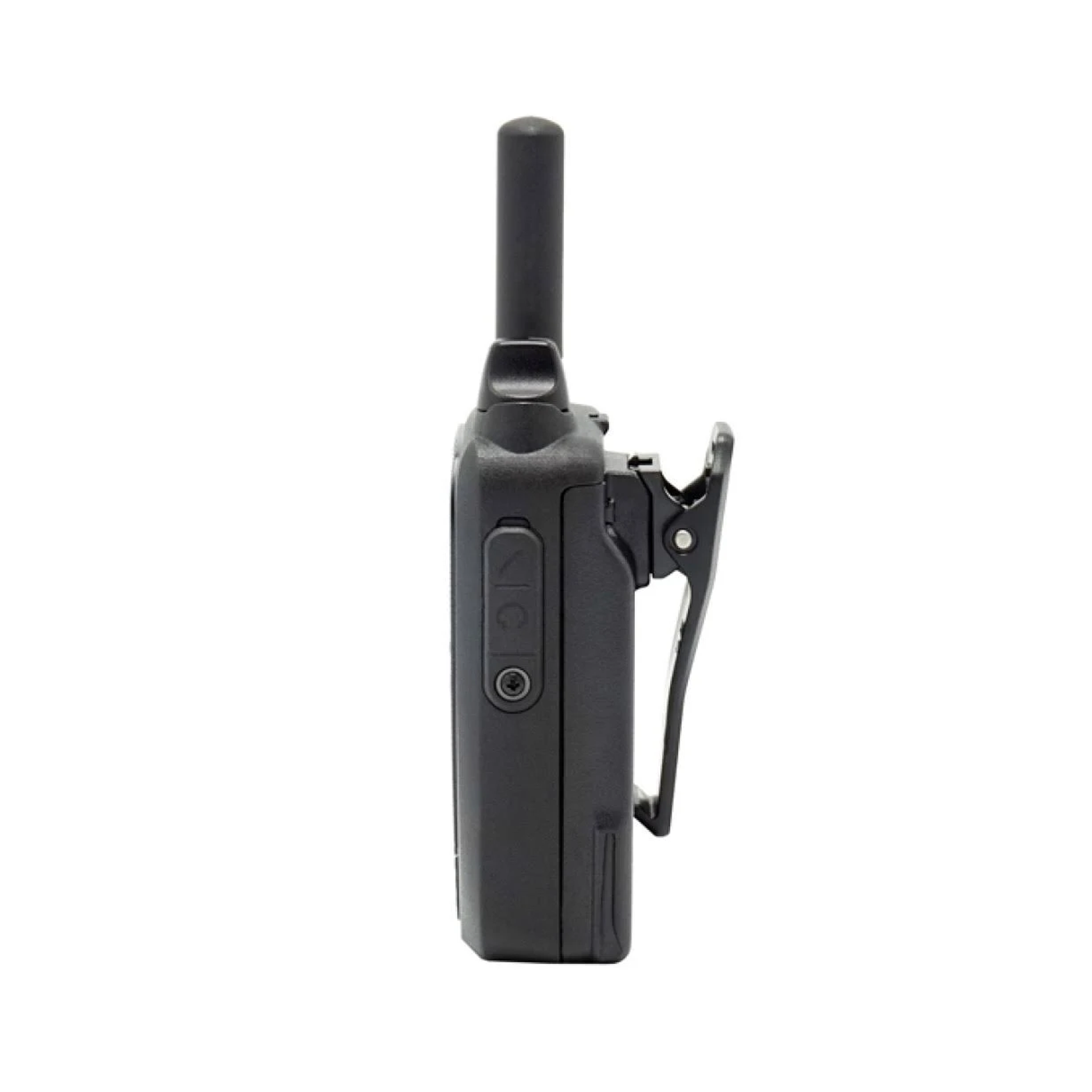

Icom IP501H Compact Portable LTE Network Radio for PTT
Wide-area PTT communication over existing LTE (4G) and 3G networks. Full-duplex, IP67, Bluetooth, GPS, and emergency functions in a compact 240g body.
The Icom IP501H is a compact portable radio that provides wide-area, instantaneous PTT communication using existing LTE (4G) and 3G cellular networks — no dedicated repeaters or private IP network required. Individual calls, group calls, and all calls can be made the same way as a conventional two-way radio. At 59 × 95 × 32mm and 240g, the IP501H is discreet and durable with an IP67 rating for dust-tight and waterproof integrity.
Key Features & Benefits
Instant Wide-Area Coverage: Communicates over existing LTE (4G) and 3G networks — no dedicated repeaters or private IP network required, reducing the cost of building and maintaining a wide-area radio network.
Full-Duplex (Simultaneous Talk/Listen): Enables smooth, telephone-style conversations where multiple users can talk and receive at the same time — no waiting for a channel to clear.
Multiple User Communication: Multiple users in call groups can initiate calls instantaneously, removing the need to wait for an available channel.
IP67 Dust-Tight & Waterproof: Withstands submersion to 1 meter for up to 30 minutes — suitable for outdoor work and environments prone to moisture.
Built-in Bluetooth® & GPS: Wireless accessory connectivity and integrated location tracking. GPS position data can be obtained from the IP501H transceiver (GPS mapping software required).
Optional BC-218 Charger Cradle with Bluetooth®: When used with the optional BC-218 charger cradle and HM-215 speaker-microphone, calls can be made via the microphone while charging. The Bluetooth® function also enables wireless use of the speaker-microphone when the IP501H is not in the cradle.*
Emergency Button, Lone Worker & Man Down: Built-in safety functions for critical situations.
Priority Interrupt Calling: In group calls with three or more users, break into an ongoing call to transmit an urgent message.
G.726 Vocoder: High-quality, clear audio for all communications (32 kbps).
500-Entry Address Book: Stores individual, group, talkgroup, multiplex talkgroup, and telephone contacts.
Text Message Reception: Receive text messages and transmit preprogrammed messages.
Voice Message Recording: Records incoming voice messages for later playback.
Vibration Alert: Notifies of incoming calls via vibration — ideal for noisy or quiet environments.
Compact & Lightweight: 59 × 95 × 32mm body weighing just 240g (with BP-272 battery and antenna) for discreet, portable use.
Flexible Interoperability: With a VE-PG4 gateway, the IP501H interconnects with IP phones, analog transceivers, IDAS™ digital transceivers, and IP100H wireless LAN network systems.
* Bluetooth® function with BC-218 may not be available in some countries. Please confirm the regulations in your country before use.
Specifications
| Attribute |
Details |
| Brand |
Icom |
| Model / SKU |
IP501H |
| Product Type |
Portable LTE Network Radio (PTT over Cellular) |
| Network Bands (USA) |
LTE B2, B4, B5, B17 / W-CDMA B2, B5 |
| Network Bands (Export) |
LTE B1, B3, B7, B8, B20 / W-CDMA B1, B8 |
| Communication Mode |
Full-Duplex (Simultaneous Talk/Listen) |
| Vocoder |
G.726 (32 kbps) |
| Ingress Protection |
IP67 (Dust-Tight, 1m submersion for 30 min) |
| MIL-STD |
MIL-STD-810-C, -D, -E, -F equivalent |
| Bluetooth |
Yes (Built-in) |
| GPS |
Yes (Built-in) |
| Address Book Capacity |
500 entries (Individual, Group, Talkgroup, Telephone) |
| Dimensions |
59 × 95 × 32 mm (2.3 × 3.7 × 1.3 in) with BP-272 |
| Weight |
240g / 8.5 oz (with BP-272 and antenna) |
| Operating Duty Cycle |
5:5:90 |
| Country of Origin |
Japan |
What’s Included
Optional Accessories
Batteries
Chargers
Speaker-Microphones
| Description |
SKU/Model |
| Speaker-Microphone for BC-218 |
HM-215 |
Cables
Mounting
| Description |
SKU/Model |
| Bracket Adaptor for BC-218 |
MBA-7 |
| Mounting Base |
MBF-1 |
Frequently Asked Questions
Does the IP501H require a SIM card?
Yes. The IP501H operates over LTE (4G) and 3G cellular networks and requires an active SIM card with a data plan. It does not operate on traditional radio frequencies.
Can the IP501H communicate with traditional two-way radios?
Yes, with additional infrastructure. The IP501H can interconnect with Icom IDAS™ and IP100H radio systems via a VE-PG4 gateway, enabling cross-system communication between LTE and conventional radio users.
Is the IP501H waterproof?
Yes. The IP501H carries an IP67 rating, meaning it is dust-tight and can withstand submersion in up to 1 meter of water for up to 30 minutes.
What is the difference between PTT over cellular and a traditional two-way radio?
Traditional two-way radios operate on licensed radio frequencies with a limited range determined by antenna height and terrain. The IP501H operates over cellular LTE networks, providing nationwide coverage wherever cellular service is available — with no repeater infrastructure required.
Resources
Icom IP501H Specifications Sheet (PDF)
Warranty
2-year manufacturer’s warranty on the radio. 1-year on accessories.
