Description
Aviation Mobile Antenna with Magnetic Mount
Secure Non-Permanent Vehicle Mount Connectivity
Deploy a high-strength magnetic mount solution for immediate ground support aviation communications.

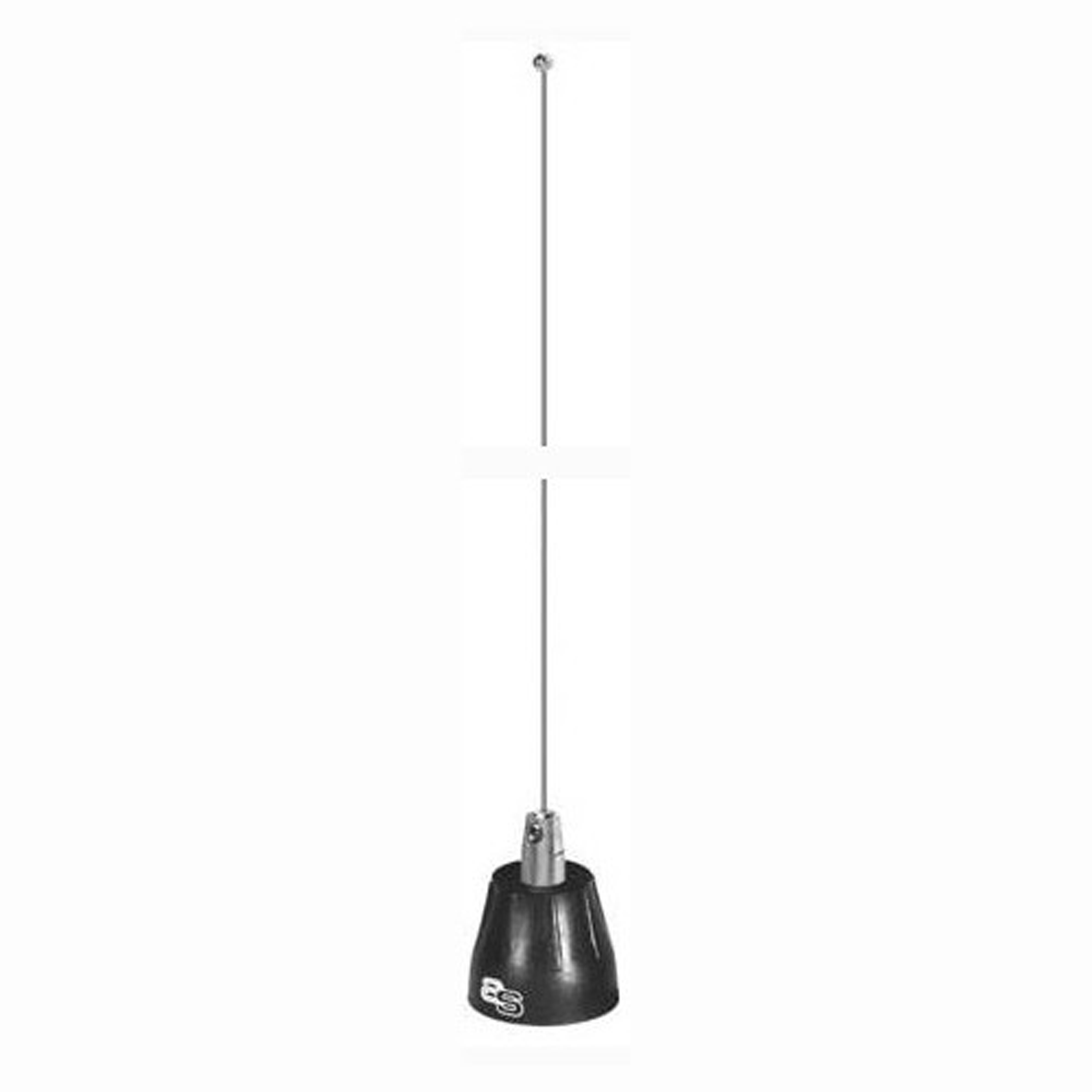

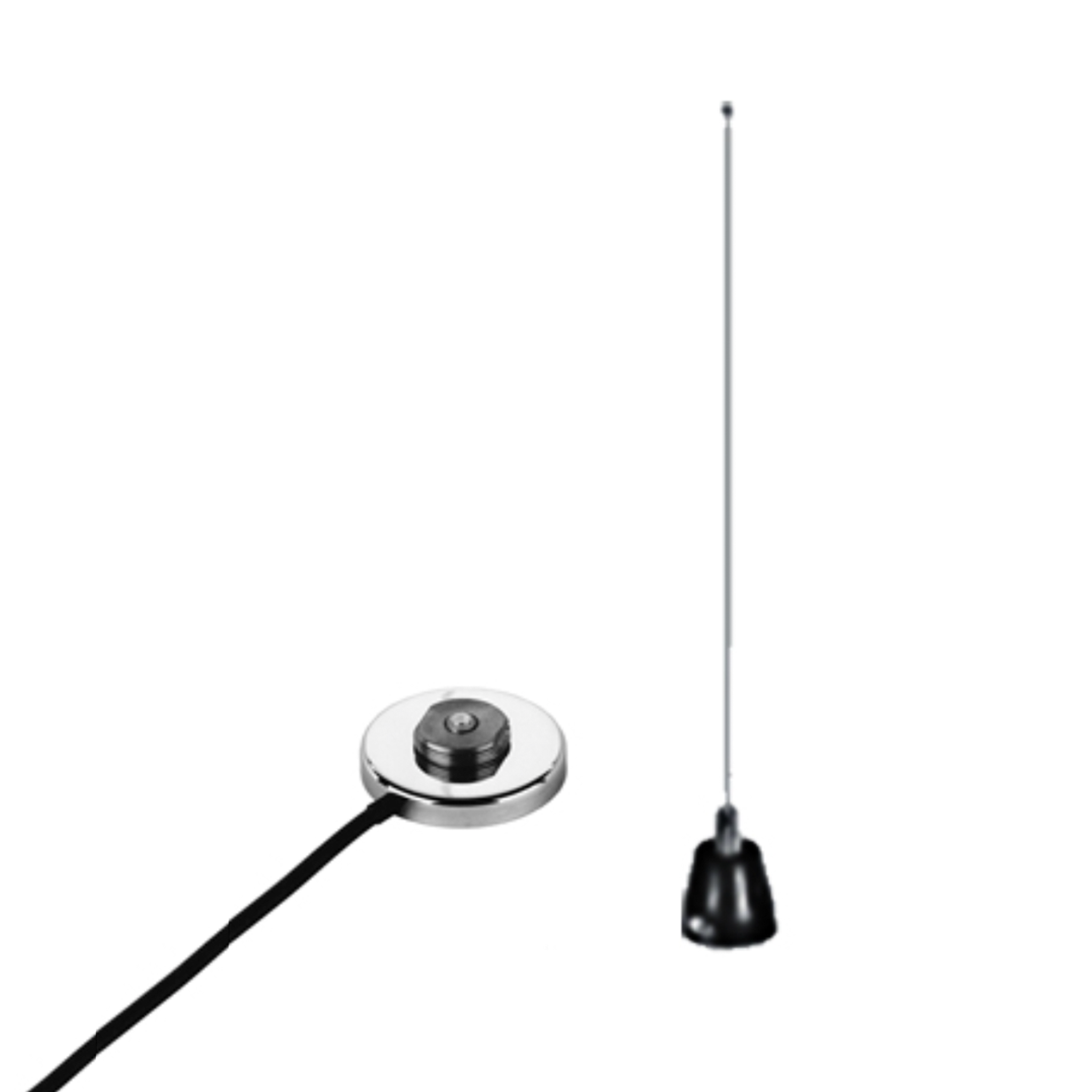

The genuine Icom K220A MAG is a professional-grade Icom K220A MAG Aviation Mobile Antenna for Icom IC-A220 engineered to provide superior range and clarity for vehicle-mounted airband transceivers. Attaching the Icom K220A MAG to your vehicle assets establishes an immediate local communication path without the necessity of permanent drilling or custom chassis modification. This premium external whip assembly utilizes a high-gain configuration to significantly extend your transmission footprint compared to standard portable antennas operated inside a cab.
Perfect for airport operations managers, ground support vehicle drivers, and emergency response teams, the Icom K220A MAG resolves the tactical problem of setting up temporary or rapid-deployment communications. Featuring a heavy-duty chrome base with a 55lb pull strength, this hardware remains anchored to flat metal panels even at high runway wind speeds. Buyers must note that while the physical element covers a wide 108 to 512 MHz spectrum, it is a single-band field-tunable antenna; for aviation use, it must be cut strictly to the VHF airband range to prevent severe voltage mismatch. Ensure both the vehicle roof and the magnetic pad are clean before application to avoid micro-abrasion paint scratches.
The Icom K220A MAG arrives pre-equipped with 12 feet of low-loss RG-58A/U coaxial cable terminated with a high-retention PL-259 male connector block for immediate connection to your mobile deck. Because the framework incorporates a standard NMO-style mounting interface, operators can easily unscrew and remove the 30 Inch stainless steel whip element when entering clearance-restricted spaces or automated fleet washes. Proper installation requires a technician to trim the flexible steel rod according to the included tuning chart to guarantee an optimal voltage standing wave ratio (VSWR) on your specific frequency slot. System mapping parameters can be cross-examined on `www.atlanticradiocorp.com` to verify fleet hardware integration.
Key Features & Benefits
-
Optimized Airband Placement: Engineered to maximize performance as an Icom K220A MAG Aviation Mobile Antenna for Icom IC-A220 setup when custom cut to frequency.
-
High-Strength Magnetic Base: The 2 3/8 Inch chrome base provides a robust 55lb pull strength for secure, drill-free installation on any flat metal surface.
-
Field-Tunable Stainless Whip: Features a 30-inch element that can be cut to length using the included matrix to optimize efficiency across the wide tuning spectrum.
-
Plug-and-Play Coaxial Line: Includes 12 feet of premium RG-58A/U cable pre-terminated with a standard PL-259 UHF male plug for immediate transceiver link-up.
-
Rugged NMO Mount Interface: Employs a standardized NMO connection platform that makes the radiating whip easily removable for quick storage transitions.
Specifications
| Attribute |
Details |
| Brand |
Icom |
| Model/SKU |
Icom K220A MAG (K220A MAG) |
| Product Type |
Aviation Mobile Antenna |
| Frequency Band |
VHF (108-512MHz Tunable) |
| Frequency Range |
108–512 MHz (Field Tunable) |
| Connector Type |
PL-259 (UHF Male) |
| Interface Type |
NMO |
| Cable Type |
RG-58A/U (12 Feet) |
| Mounting Style |
Magnetic Mount (2 3/8 Inch Base) |
| Pull Strength |
55 lbs |
| Dimensions |
30 Inch Whip Length |
| Color |
Chrome and Silver |
Compatibility
What's Included
| Description |
SKU/Model |
Status |
| 30 Inch Tunable Stainless Steel Whip |
K220A-WHIP |
✅ Included |
| Magnetic 2 3/8 Inch NMO Mount Base |
K220A-MAG-BASE |
✅ Included |
| 12-Foot RG-58A/U Coaxial Cable Line |
Integrated |
✅ Included |
| PL-259 UHF Male Connection Terminal |
Integrated |
✅ Included |
| Mobile Airband Transceiver Unit |
— |
❌ Sold Separately |
Recommended Accessories
- Icom A220 VHF Air Band Mobile Transceiver (A220) — The primary vehicle-mounted mobile radio that natively links with this magnetic PL-259 antenna kit.
- Icom SP35 External Speaker (
SP35) — A 5-watt high-output compact speaker designed to provide crisp audio inside loud vehicle cabs.
- Icom PS80 Desktop Power Supply Unit (
PS80) — A heavy-duty cabinet power converter to operate vehicle mobile radios as a fixed base station desktop unit.
- Icom HM216 Hand Microphone (
HM216) — A rugged commercial hand microphone with clear modulation and a comfortable push-to-talk build.
More Resources
Frequently Asked Questions
Do I need to tune the antenna prior to operational deployment?
Yes, this mobile antenna assembly is delivered as a broad-spectrum field-tunable component. For proper operation on the aviation band, the stainless steel whip must be trimmed according to the included cutting matrix to minimize power reflection and secure an optimal low SWR.
Will the high-strength magnetic base damage my vehicle paint?
The magnetic footprint is engineered to remain perfectly stable during transit to prevent shifting or scratching. To ensure complete protection against surface micro-abrasions, make sure both the vehicle roof panel and the chrome base are clean and free of dust before mounting.
Can I utilize this antenna framework for active UHF frequencies?
Yes, the antenna element is physically capable of being cut and optimized up to 512 MHz. However, because it is a single-band field-tunable element, once it is cut to a specific UHF or public safety channel it will no longer function on the VHF aviation spectrum.
Warranty
1-year manufacturer's warranty.
