Description

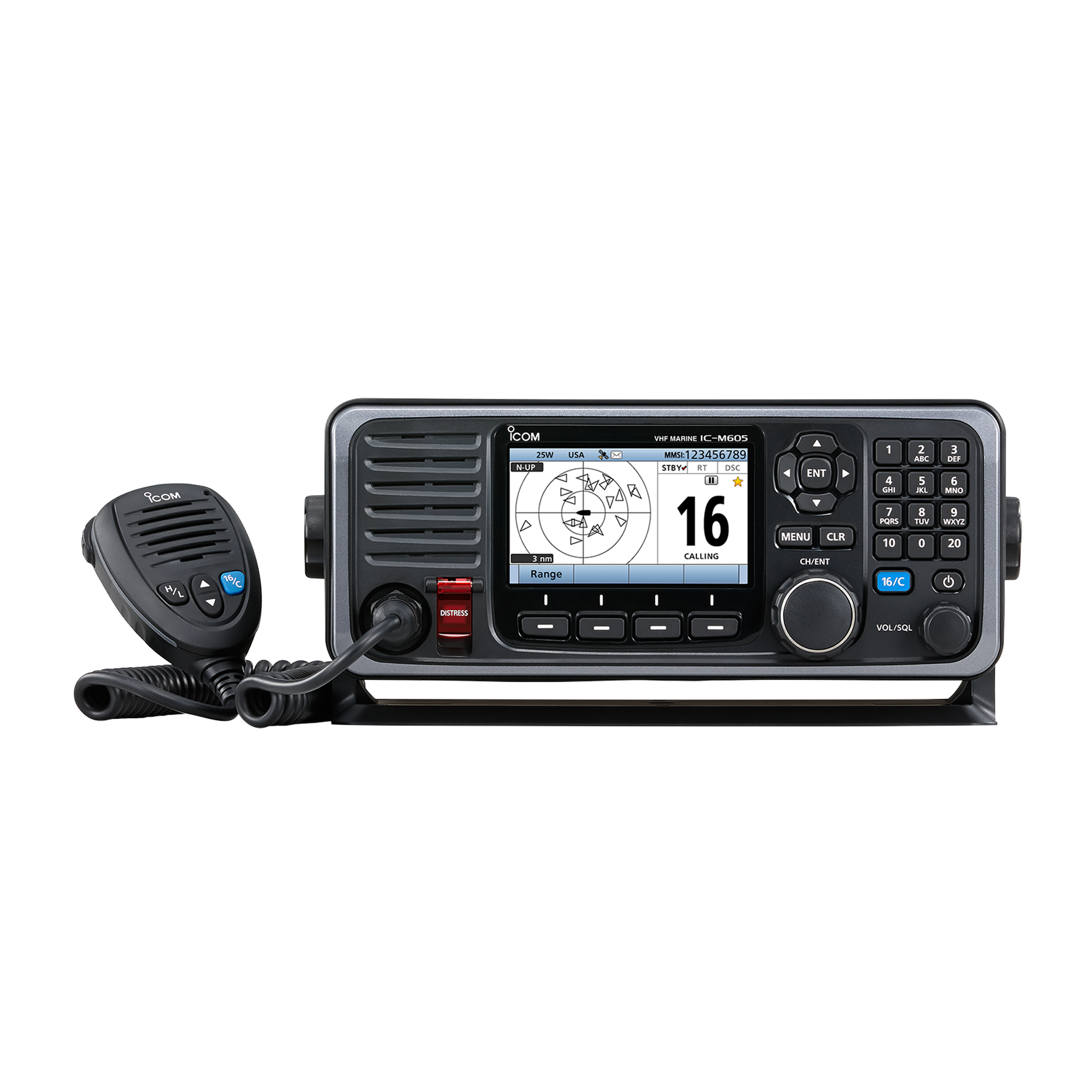

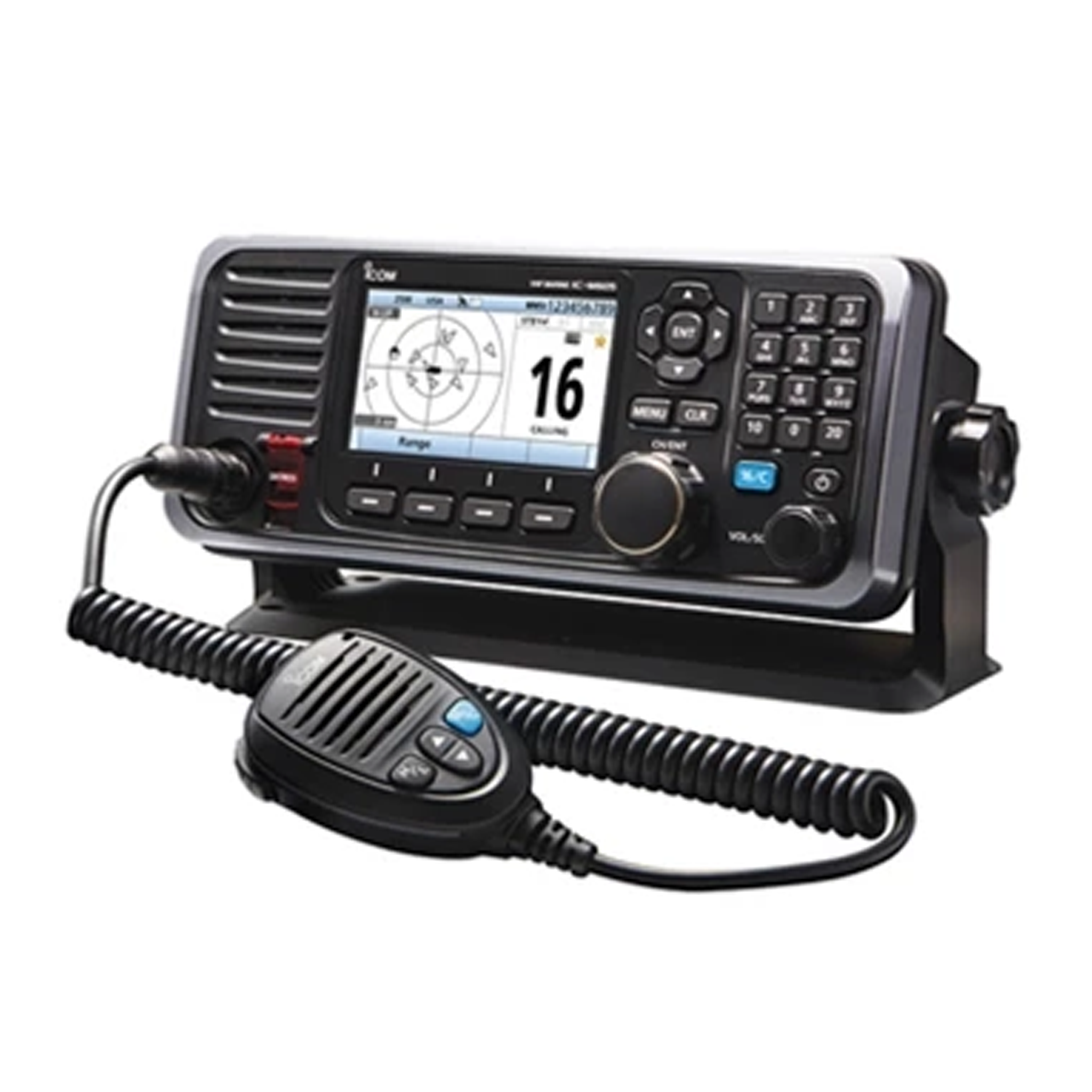

Icom M605 VHF Fixed Mount Marine Radio
Full-featured fixed-mount VHF marine transceiver with 4.3-inch color TFT LCD, Active Noise Cancelling, 30W hailer, NMEA 2000 connectivity, and optional integrated AIS receiver.
The Icom M605 is a versatile VHF fixed-mount marine transceiver offering class-leading receiver performance, system flexibility, and an intuitive user interface. Available in two variants — the M605 31 USA (standard, rear mic connector) and the M605 41 USA (with integrated AIS receiver) — the M605 is designed to serve as the communication hub of any vessel.
A large, bright 4.3-inch color TFT LCD with a near-180-degree viewing angle and night mode ensures visibility in all lighting conditions. Active Noise Cancelling digitally removes background noise from both transmitted and received audio, and the waterproof paper speaker cone delivers loud, clear audio. Up to three RC-M600 Command Head™ and/or HM-195 series CommandMic™ controllers can be connected simultaneously, providing communication access from multiple helm positions.
Key Features & Benefits
4.3-Inch Color TFT LCD: Class-leading display with wide viewing angle, high resolution, and night mode for clear visibility in all conditions.
Active Noise Cancelling: Digitally removes background noise from both transmitted and received audio for clear communication in noisy maritime environments.
Up to Three Controller Stations: Supports up to three RC-M600 Command Head™ and/or HM-195 CommandMic™ stations for operation from anywhere on the vessel, with intercom function between stations.
Integrated AIS Receiver (M605 41 USA): Displays real-time vessel traffic information for enhanced situational awareness and collision avoidance.
30W Two-Way Hailer & Automatic Foghorn: When connected to an optional horn speaker, enables two-way hailing and automatic foghorn patterns.
Class-Leading Receiver Performance: Over 80 dB selectivity and IMD for reliable reception of weak signals in congested marine environments.
Last Call Voice Recording: Automatically saves up to two minutes of the last incoming call for replay.
NMEA 2000® & NMEA 0183®-HS Connectivity: Enables GNSS, AIS, and DSC data exchange with other marine electronics.
IPX8 Submersible: Withstands submersion up to 1 meter for 60 minutes.
AquaQuake™: Clears water from the speaker cone to restore audio performance after water exposure.
Private Conversation: 32-tone secure conversation with optional UT-112.
Included Accessories: HM-205RB speaker microphone, mounting bracket, and installation hardware.
Specifications
| Attribute |
Details |
| Brand |
Icom |
| Models |
M605 31 USA (Standard), M605 41 USA (with AIS) |
| Product Type |
VHF Fixed-Mount Marine Transceiver |
| Display |
4.3-inch Color TFT LCD |
| Noise Cancelling |
Active Noise Cancelling (ANC) |
| Hailer Output |
30W |
| Controller Stations |
Up to 3 (RC-M600 / HM-195 series) |
| AIS |
Integrated Receiver (M605 41 USA only) |
| Connectivity |
NMEA 2000®, NMEA 0183®-HS |
| Waterproof Rating |
IPX8 (1m / 60 min) |
| Country of Origin |
Japan |
Recommended Accessories
More Resources
Warranty
3-year manufacturer’s warranty.
