Icom RSMGR1
Remote System Manager Software
Real-Time Monitoring and Diagnostic Suite for IDAS MultiTrunk
The Icom RSMGR1 is a powerful system management solution designed to provide network administrators with comprehensive remote oversight of IDAS MultiTrunk networks. This software suite allows for the centralized monitoring of all repeaters within a system, providing real-time data on repeater health, traffic statistics, and connectivity status. By utilizing the Icom RSMGR1, organizations can proactively manage their communication infrastructure, identifying potential hardware issues such as PLL unlocks, voltage fluctuations, or high internal temperatures before they lead to system-wide downtime.
Beyond hardware diagnostics, the Icom RSMGR1 serves as a robust logging and analytical tool, capturing detailed communication, registration, and traffic logs that can be filtered by User ID, call type, or site code. The software features an intuitive "Map Window" for visual site layouts and a "Mesh Ping Status" tool to verify multi-site connectivity across the entire network. Supplied on a USB flash drive that acts as a hardware protection key, the Icom RSMGR1 is the essential management interface for maintaining peak operational efficiency in complex digital trunking environments.
Advanced Network Oversight for IDAS Digital Trunking Systems
Key Features & Benefits
-
Comprehensive Repeater Diagnostics: Monitor critical health metrics including TX/RX PLL status, power supply voltage, internal temperature, and fan operation.
-
Automated E-mail Alerts: Instantly notifies administrators via e-mail the moment an alarm or system disconnection occurs, enabling rapid response times.
-

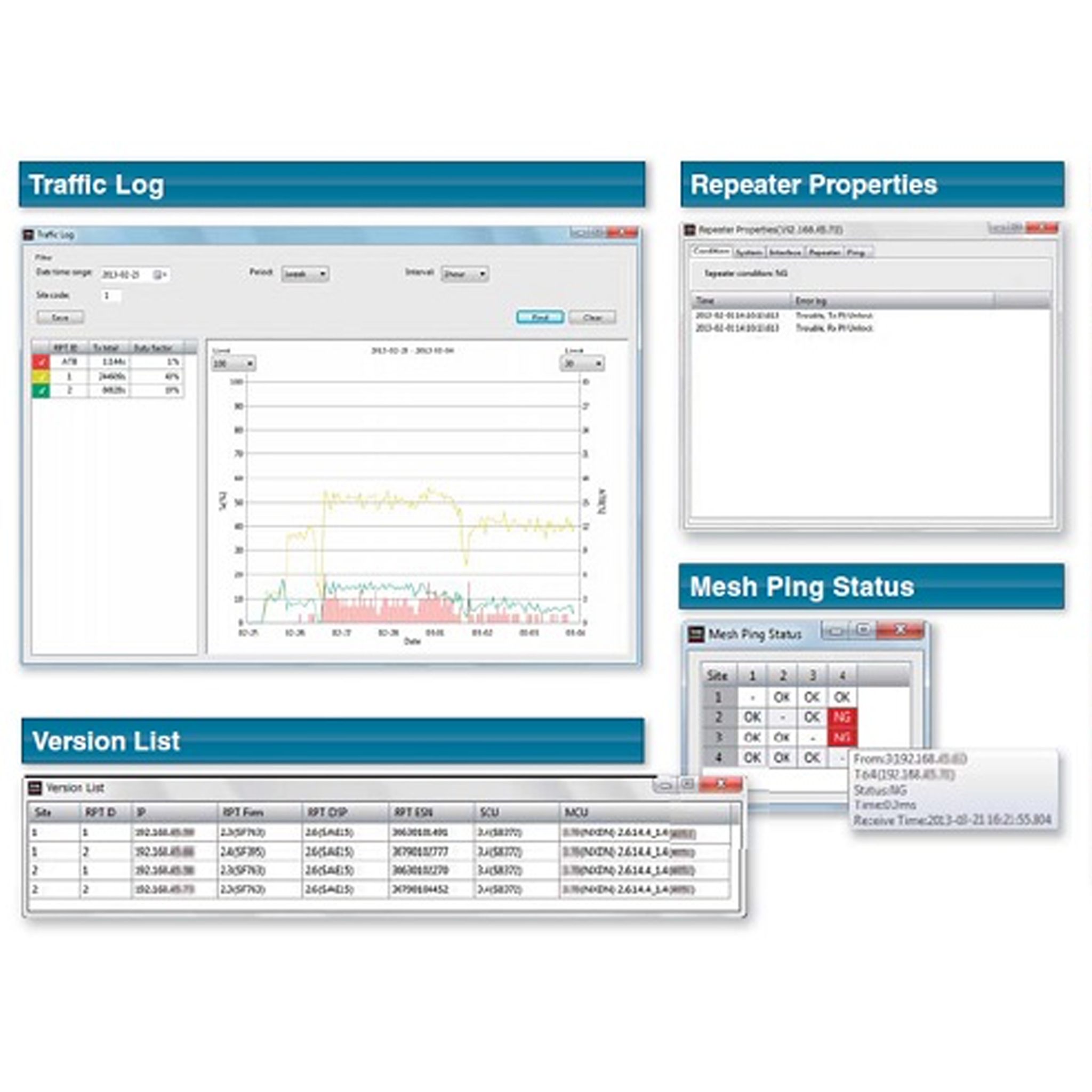

Detailed Traffic Logging: Records and filters registration, communication, and search logs by date, site code, or user ID for advanced system auditing.
-
Mesh Ping Connectivity Testing: Sends ping commands across all site combinations to visually confirm network stability and link integrity.
-
Visual Map Interface: Allows administrators to overlay repeater site icons onto custom map images or network diagrams for intuitive geographic monitoring.
-
VPN Router Integration: Supports monitoring of the SR-VPN1 VPN router via Syslog, providing a unified view of both radio and network hardware.
-
Hardware Key Protection: Supplied on a secure USB flash drive, ensuring the software license remains protected and portable for authorized workstations.
Specifications
| Feature |
Specification |
| Operating System |
Windows 10, 8.1, 7 SP1, or Server 2012/2008 |
| Minimum RAM |
2 GB or higher |
| Hard Disk Space |
500 GB minimum (for log retention) |
| Network Speed |
100 Mbps or faster (Fixed IP required) |
| Interface |
USB 2.0 (for Hardware Key) |
| System Requirement |
UC-FR5000 MCU Revision 4.00 or later |
Compatibility
|
|
|
|
| FR5000 |
FR6000 |
FR5300 |
FR6300 |
| UC-FR5000 |
SR-VPN1 |
CY5300 |
CY6300 |
Recommended Accessories
- Icom RoIP Gateway (VEPG4)
- Icom IDAS MultiTrunk Repeater (FR5300)
Frequently Asked Questions
Does this software require a dedicated PC? Yes. For continuous monitoring and log retention, it is highly recommended to install the Icom RSMGR1 on a dedicated server or workstation with a fixed IP address and 100Mbps LAN connection.
Can I monitor my system from home? If your network is configured with a secure VPN (such as via the SR-VPN1), you can access the RSMGR1 interface remotely to check system status and logs.
What happens if I lose the USB drive? The USB drive serves as the hardware license key. The software will not function without it, so it should be kept securely attached to the management terminal.
Warranty
1-year manufacturer's warranty on the software media and hardware key No returns or refunds. This software package does not include support.
