Description
Global Satellite Push-to-Talk (S-PTT) Handheld Transceiver
Genuine Icom MIL-STD-810G and IP67 waterproof satellite PTT radio delivering pole-to-pole global voice communication over a Low Earth Orbit satellite network.

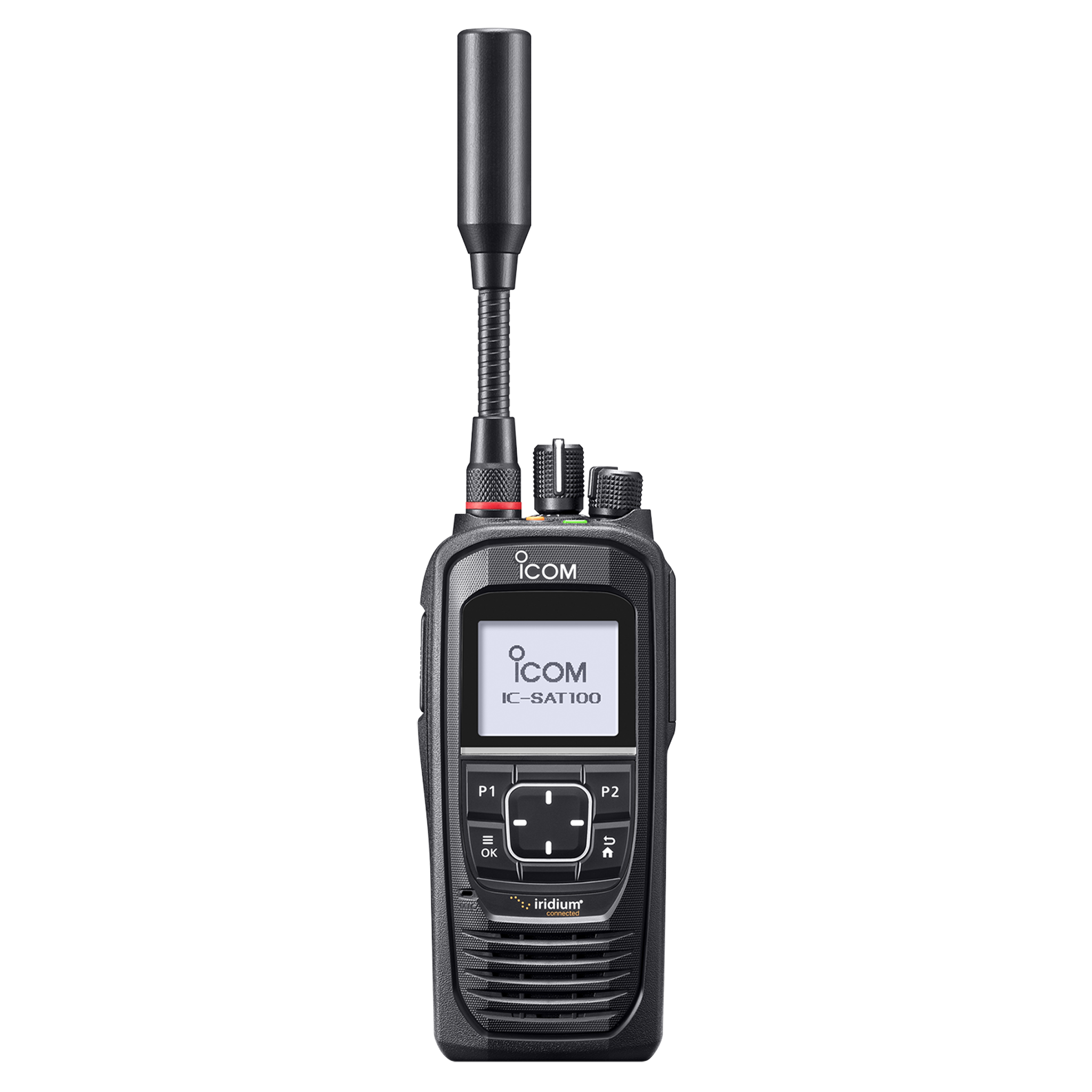

The Icom IC-SAT100 (catalog part SAT100 / IC-SAT100) is an authentic original equipment manufacturer (OEM) satellite Push-to-Talk (S-PTT) portable transceiver engineered for real-time global fleet dispatch. Designed for disaster relief agencies, humanitarian missions, defense contractors, remote exploration teams, and maritime operations, this handheld transceiver communicates directly over a Low Earth Orbit (LEO) satellite constellation (1616.0 MHz to 1626.5 MHz). It provides instantaneous, one-to-many group voice communications anywhere on Earth—including polar regions—completely independent of landline infrastructure, cellular towers, or terrestrial repeaters.
Engineered to endure the harshest field conditions, the Icom IC-SAT100 carries an IP67 waterproof and dust-tight rating (capable of surviving full water immersion down to one meter for 30 minutes) and meets rigorous US Military Standard MIL-STD-810G durability benchmarks. It features a high-output internal audio amplifier delivering 1500 mW of clear, intelligible audio to pierce through background engine and environmental noise, supported by Icom's AquaQuake water-draining technology. Security is ensured through integrated AES 256-bit voice and Short Data Message (SDM) encryption. The radio also includes built-in Bluetooth for wireless headsets, an integrated GPS receiver for coordinate telemetry, micro-USB charging, and a dedicated orange emergency duress key. Operating in full compliance with commercial FCC Licensing standards, the IC-SAT100 provides dependable lifeline communications when standard networks fail.
Important Ordering Note: The Icom IC-SAT100 operates on a commercial satellite communications network and requires Icom training certification in order to purchase and activate. Contact your Icom representative or our sales team for certification verification, airtime service agreement details, and network provisioning.
Key Features & Benefits
-
Pole-to-Pole Global Coverage: Utilizes a cross-linked constellation of Low Earth Orbit (LEO) satellites to deliver real-time voice coverage across 100% of the globe.
-
Instantaneous One-to-Many Group Dispatch: Transmits instantly to every radio assigned within your satellite talkgroup at the press of the PTT button, eliminating dialing lag.
-
IP67 Waterproof & MIL-STD-810G Durability: Hermetically sealed against dust and water immersion up to 1 meter for 30 minutes, with operating stability from -30°C to +60°C.
-
Loud 1500 mW Audio with AquaQuake: Powerful internal speaker ensures voice intelligibility in loud environments, while AquaQuake vibrates pooled water away from the speaker grille.
-
AES 256-Bit Voice & Data Encryption: Protects mission-critical dispatch calls and text data messages against interception and eavesdropping.
-
Integrated Bluetooth & GPS Telemetry: On-board Bluetooth enables hands-free wireless headset operation, while the GPS receiver displays and shares real-time location data.
-
Top-Mounted Emergency Alert Key: High-visibility orange button instantly broadcasts priority emergency alerts across pre-programmed talkgroups.
Specifications
| Attribute |
Details |
| Brand |
Icom |
| Model / SKU |
IC-SAT100 / SAT100 |
| Product Type |
Satellite Push-to-Talk (S-PTT) Handheld Transceiver |
| Satellite Network Architecture |
Low Earth Orbit (LEO) Satellite Constellation |
| Operating Frequency Range |
1616.0 MHz to 1626.5 MHz |
| Ingress Protection Rating |
IP67 (Dust-Tight & Submersible to 1m for 30 min) / IP55 / IP54 |
| Military Standard Compliance |
MIL-STD-810-C, -D, -E, -F, -G |
| Internal Audio Output Power |
1500 mW Typical (into 8 Ω load at 5% distortion) |
| External Audio Output Power |
1000 mW Typical (into 8 Ω load at 5% distortion) |
| Voice & Data Encryption |
AES 256-Bit Standard |
| Wireless Connectivity |
Built-in Bluetooth 4.2 |
| Antenna RF Interface |
Standard SMA-Female Connector (Removable Antenna) |
| Operating Temperature Range |
-30°C to +60°C (-22°F to +140°F) |
| Battery Runtime |
Approx. 14.5 Hours with BP-300 (5:5:90 Standard Duty Cycle) |
| Dimensions (W x H x D) |
2.3 x 5.3 x 1.3 in (57.8 x 135.0 x 32.8 mm, without projections) |
| Weight |
Approx. 12.7 oz (360 g) with BP-300 battery and antenna |
Compatibility
Interoperable Satellite Platforms & RoIP Network Gateways
Compatible OEM Batteries, Chargers & Antennas
What’s Included
| Description |
SKU/Model |
Status |
| Icom Satellite PTT Handheld Transceiver |
SAT100 |
Included |
| Icom 7.2V / 2200 mAh Li-Ion Rechargeable Battery Pack |
BP-300 |
Included |
| Icom Desktop Rapid Charger Cradle Base |
BC-241 |
Included |
| Icom AC Wall Power Adapter |
BC-242 |
Included |
| Icom Flexible Satellite Whip Antenna |
FA-S102U |
Included |
| Icom Heavy-Duty Spring-Loaded Belt Clip |
MBB-5 |
Included |
Recommended Accessories
Vehicle Docks & External Antennas
Audio Peripherals & Gateway Interconnect
More Resources
Frequently Asked Questions
Why is training certification required to purchase the IC-SAT100?
The Icom IC-SAT100 operates directly on a commercial satellite network, which requires specialized account provisioning, talkgroup configuration, and regional regulatory compliance. Icom mandates dealer and customer training certification to ensure operators understand airtime management, talkgroup geographic coverage boundaries, and proper antenna alignment protocols.
How does Satellite PTT differ from a standard satellite phone?
Standard satellite phones operate like cellular phones, dialing one number at a time and requiring call setup time. Satellite PTT (S-PTT) functions like a traditional two-way radio: pressing the Push-to-Talk button instantly opens a channel to all radios assigned to your designated satellite talkgroup across the globe simultaneously, with zero dialing delay.
Does the IC-SAT100 require an active airtime subscription?
Yes. Operating the IC-SAT100 requires an active satellite PTT service plan and talkgroup subscription. Talkgroups can be configured with specific geographic coverage areas (Small, Medium, Large, or Global) depending on your operational footprint.
Can the IC-SAT100 communicate with conventional land mobile radios?
Yes. When paired with the optional Icom VE-PG4 RoIP Gateway, the IC-SAT100 can bridge satellite talkgroups directly into local VHF/UHF analog networks, IDAS digital systems, LTE transceivers, and corporate SIP telephone networks.
Can I use this radio inside a vehicle or building?
Because satellite signals operate via line-of-sight and cannot reliably penetrate vehicle metal roofs or concrete structures, in-vehicle or indoor use requires an external antenna. Pairing the IC-SAT100 with the optional AH-40 external antenna or the BC-247 docking station allows seamless operation from inside cars, trucks, or operations centers.
Warranty
1-year manufacturer’s replacement warranty.
