Description
Secure Voice Hardware Encryption Solution
Protect mission-critical public safety communications with certified hardware encryption.

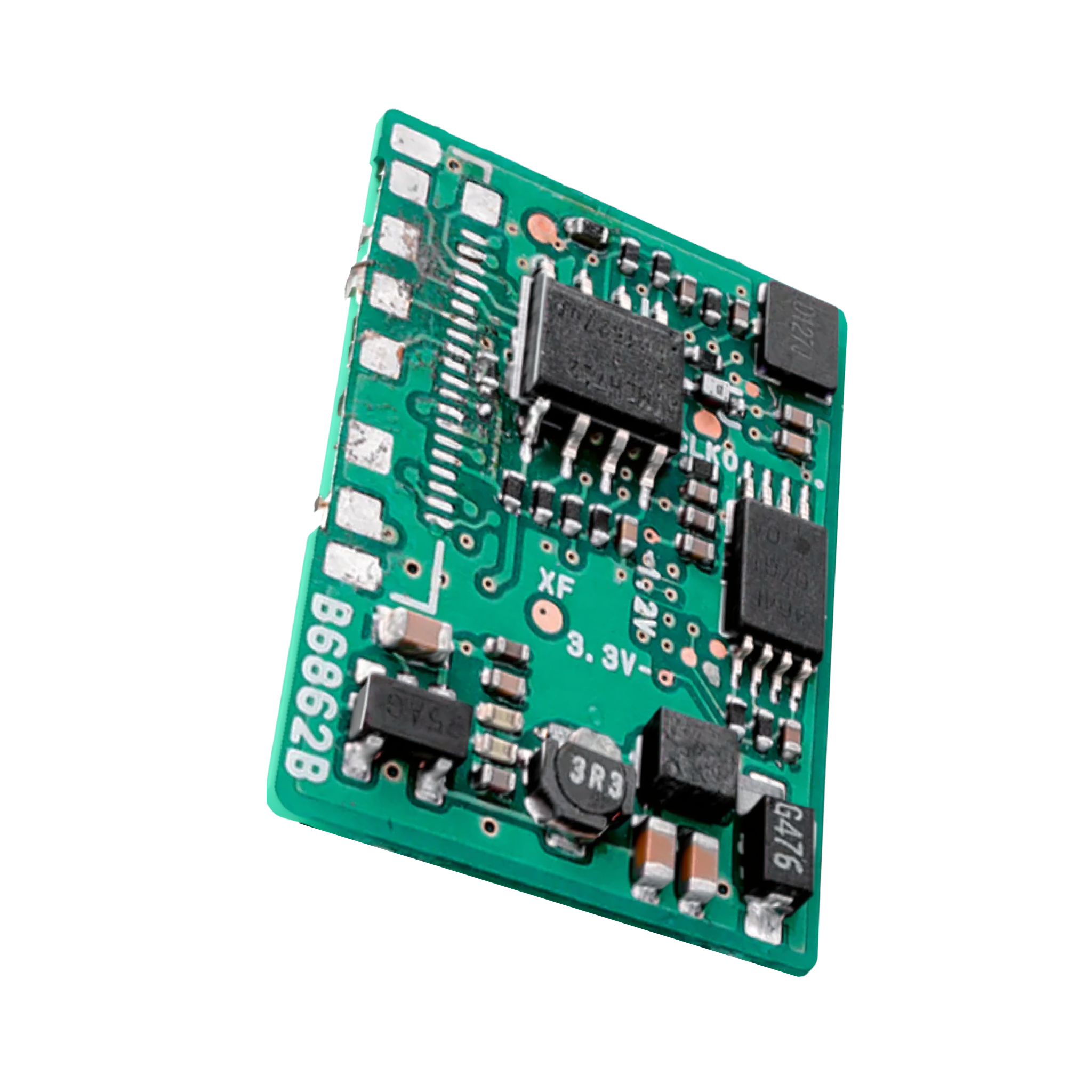

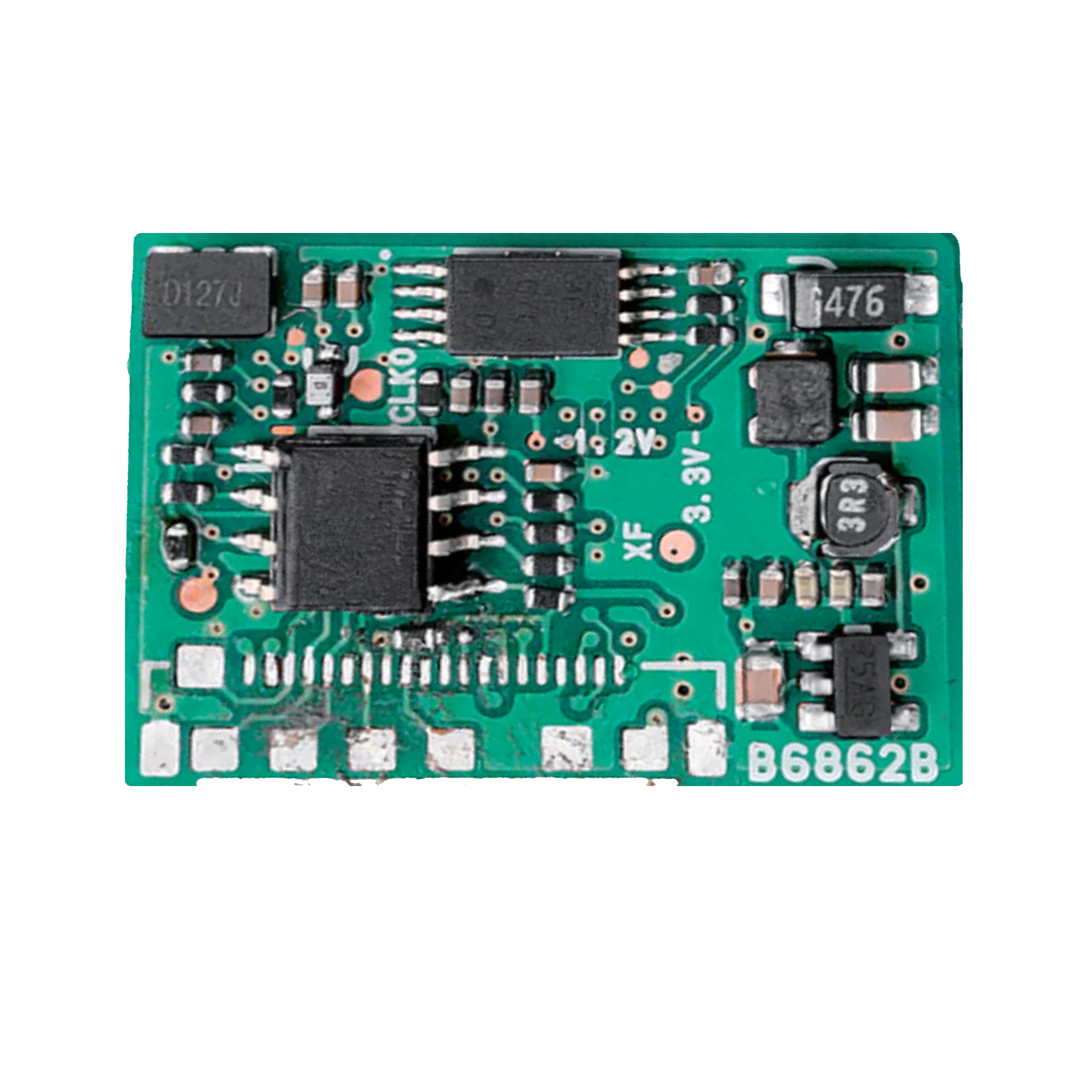

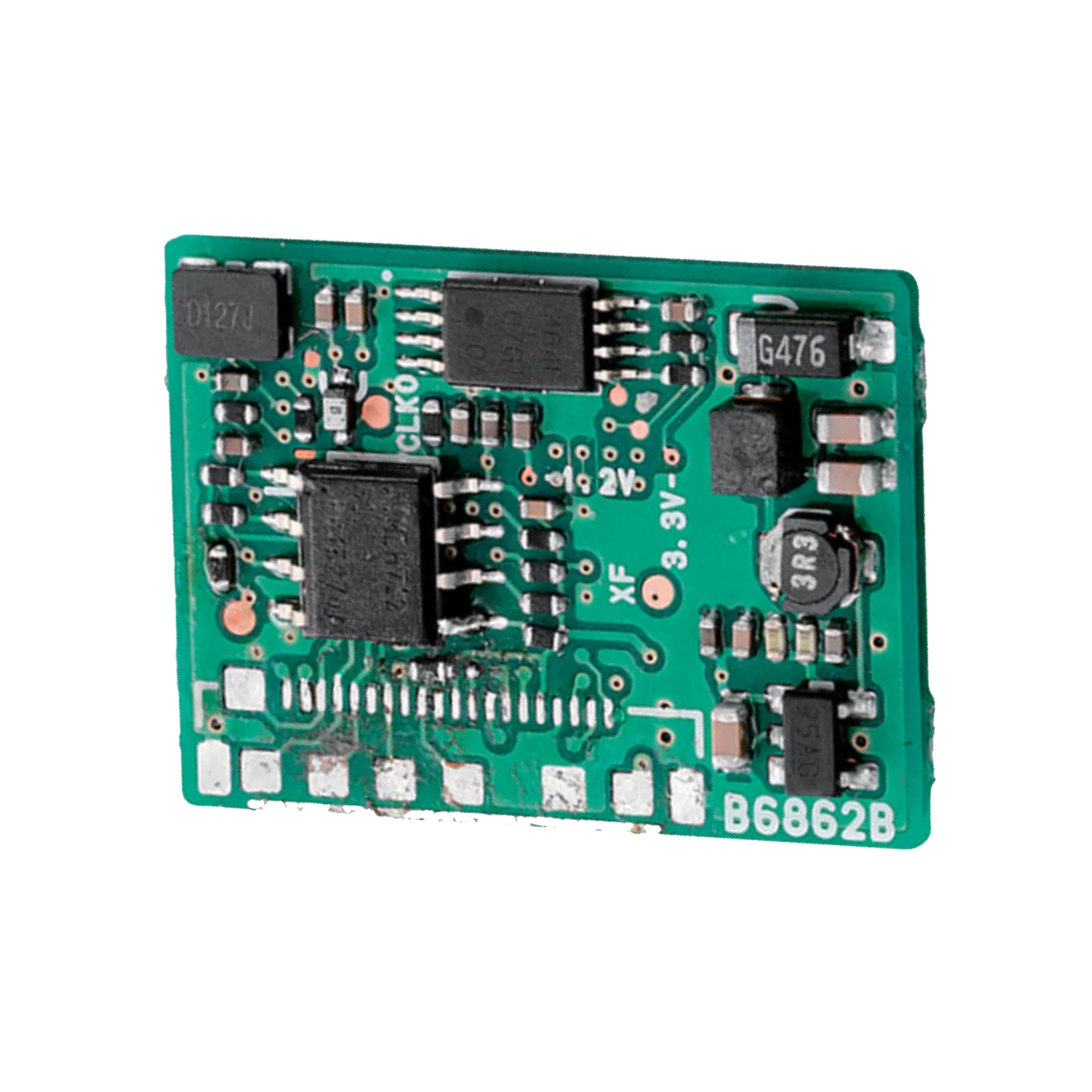

The Icom UT125 is an official hardware encryption module designed to safeguard high-security voice and data transmissions across APCO P25 radio networks. This high-integrity Icom UT125 Series Hardware Encryption Board for P25 Radios embeds directly inside compatible transceivers to prevent eavesdropping and unauthorized signal interception. Installing the Icom UT125 ensures full compliance with federal security mandates while maintaining crystal-clear voice clarity during tactical operations.
Engineered for law enforcement agencies, federal task forces, emergency first responders, and municipal public safety teams, the UT125 series provides Over-The-Air Rekeying (OTAR) compliance for seamless remote key management. Available in multiple hardware configurations—including standard AES/DES modes and FIPS 140-2 validated modules—the UT125 series scales across both legacy and modern P25 handheld and mobile radio fleets.
Key Features & Benefits
-
Hardware Encryption Security: The Icom UT125 Series Hardware Encryption Board for P25 Radios provides physical circuit-level encryption to safeguard voice channels against eavesdropping.
-
FIPS 140-2 Validation: FIPS-designated variants meet stringent federal information processing standards required for government and defense deployments.
-
OTAR Compliance: Fully supports Over-The-Air Rekeying protocols to allow network administrators to update encryption keys remotely across distributed radio fleets.
-
Seamless Internal Fitment: Mounts cleanly inside the radio's option board slot without altering the external physical dimensions or IP water-resistance rating.
-
Flexible Algorithm Support: Offers advanced AES (Advanced Encryption Standard) and DES (Data Encryption Standard) algorithms to align with agency security protocols.
Specifications
| Attribute |
Details |
| Brand |
Icom |
| Series |
UT125 / UT-125 |
| Accessory Type |
Internal Hardware Encryption Board |
| Encryption Algorithms |
AES / DES / FIPS 140-2 (Variant Dependent) |
| Rekeying Support |
OTAR (Over-The-Air Rekeying) Compliant |
Model Variations
| Model |
Key Difference |
Compatibility |
| UT125 FIPS |
FIPS 140-2 AES Encryption Board with OTAR Compliance |
F9011 / F9511 Series |
| UT125 01 |
AES / DES Encryption Board with OTAR Compliance |
F9011 / F9511 Series |
| UT125 FIPS-2 |
FIPS 140-2 Encryption Board (Requires ISL-P25AES License Key) |
F7010 / F7020 / F7040 / F7510 / F7520 / F7540 Series |
Compatibility
Recommended Accessories
Compatible Radios
Licensing & Software Keys
-
Icom ISL-P25AES License Key – Required software activation license key to enable AES encryption functionality on UT125 FIPS-2 hardware installations.
More Resources
Frequently Asked Questions
What is the primary difference between the UT125 FIPS and the UT125 01?
The UT125 FIPS is validated to FIPS 140-2 standards for government AES security requirements, whereas the UT125 01 provides standard AES and DES encryption algorithms for general P25 operations.
Does the UT125 FIPS-2 require a separate license key to activate AES?
Yes, the UT125 FIPS-2 module requires the Icom ISL-P25AES software license key to unlock full AES encryption functionality on F7010, F7020, F7040, F7510, F7520, and F7540 series radios.
What is OTAR and why is it important for the UT125 series?
OTAR (Over-The-Air Rekeying) allows system administrators to securely rekey or manage encryption keys across an entire radio fleet over the air, eliminating the need to physically program each device manually.
Can I install the UT125 encryption board myself?
While the board installs into an internal option slot, installation and Key Variable Loader (KVL) provisioning by an authorized Icom technician or qualified radio programmer is strongly recommended.
Which encryption board variant should I buy for an F7020 radio?
For the Icom F7020 series (as well as F7010, F7040, F7510, F7520, and F7540), you must select the UT125 FIPS-2 variant along with the ISL-P25AES license key.
Will installing the encryption board affect my radio's IP water resistance rating?
No, as long as the radio chassis is properly opened and resealed according to factory service guidelines using intact internal gasket seals.
Warranty
1-year manufacturer's warranty.
