Description
Mobile Antenna Mounting Kit
Heavy-duty 3/4-inch through-hole NMO vehicle antenna mount and cable assembly for Motorola mobile radios.

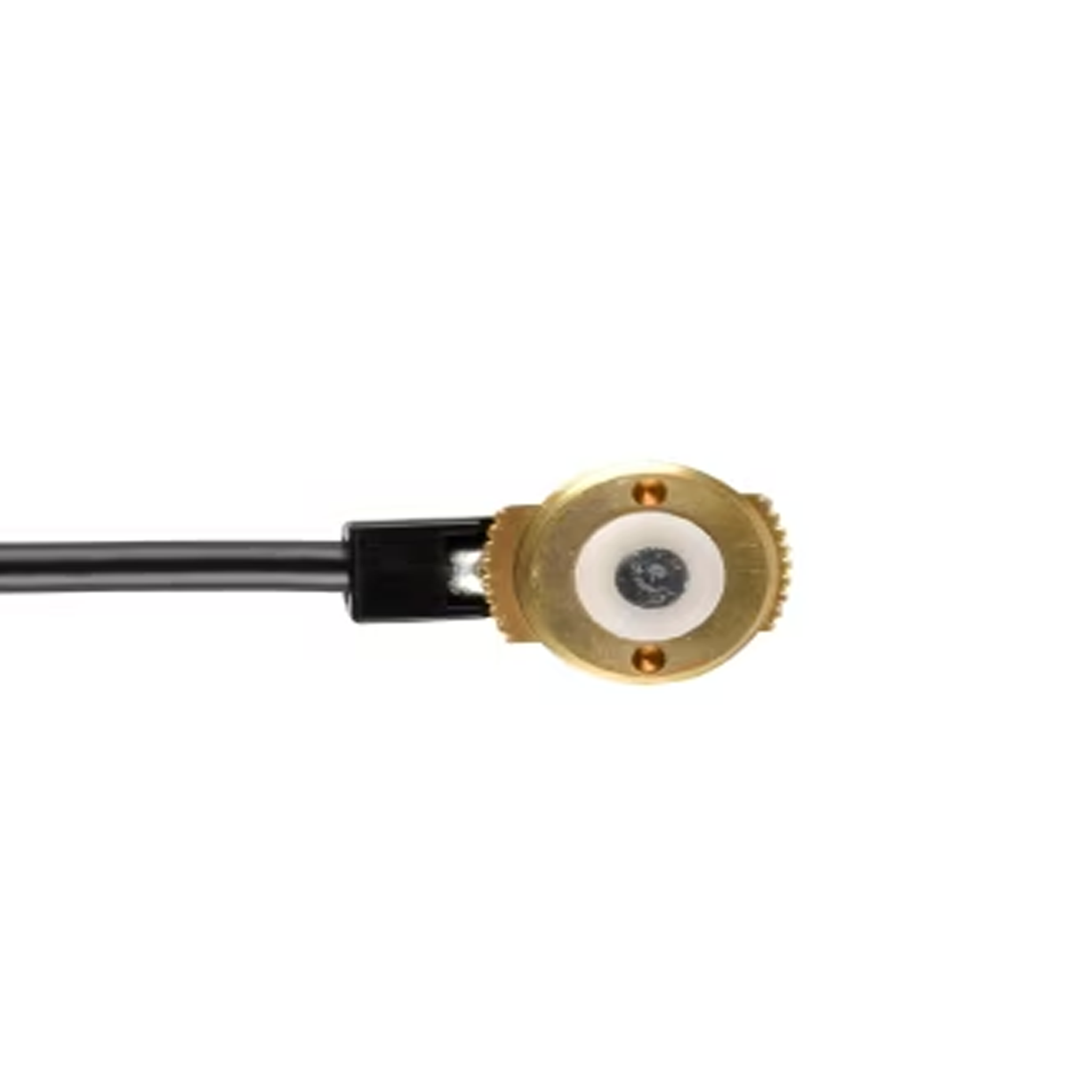

The Motorola 0180300B02 is a genuine OEM through-hole antenna mounting kit engineered to secure external vehicular antennas to fleet vehicles, utility trucks, and public safety command units. The Motorola 0180300B02 is the updated version of the Motorola 0180300B01. Designed for permanent roof or trunk deck installations, this 3/4-inch NMO (New Motorola) mount provides a weather-tight mechanical seal and optimal ground-plane connection required for maximum radio frequency performance.

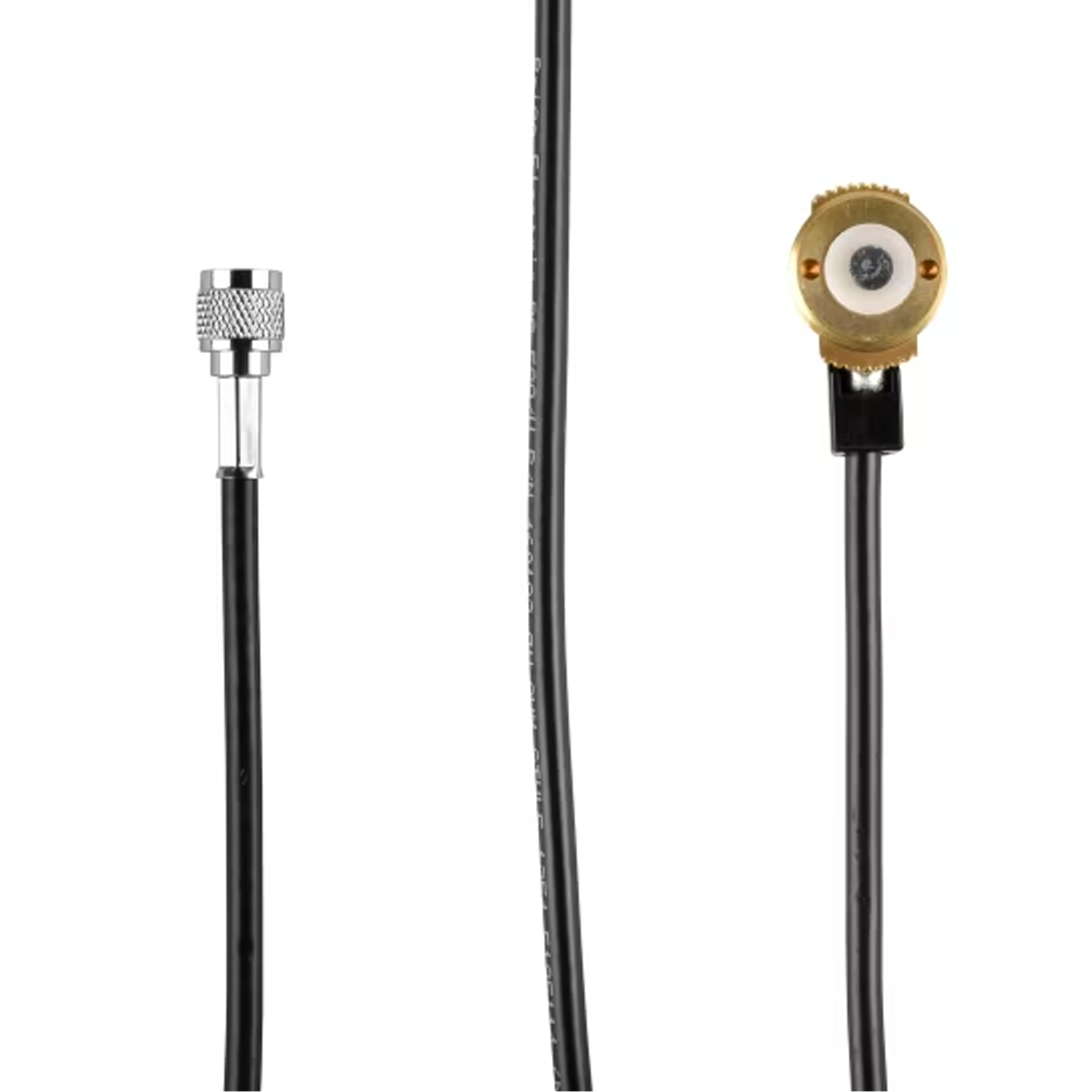

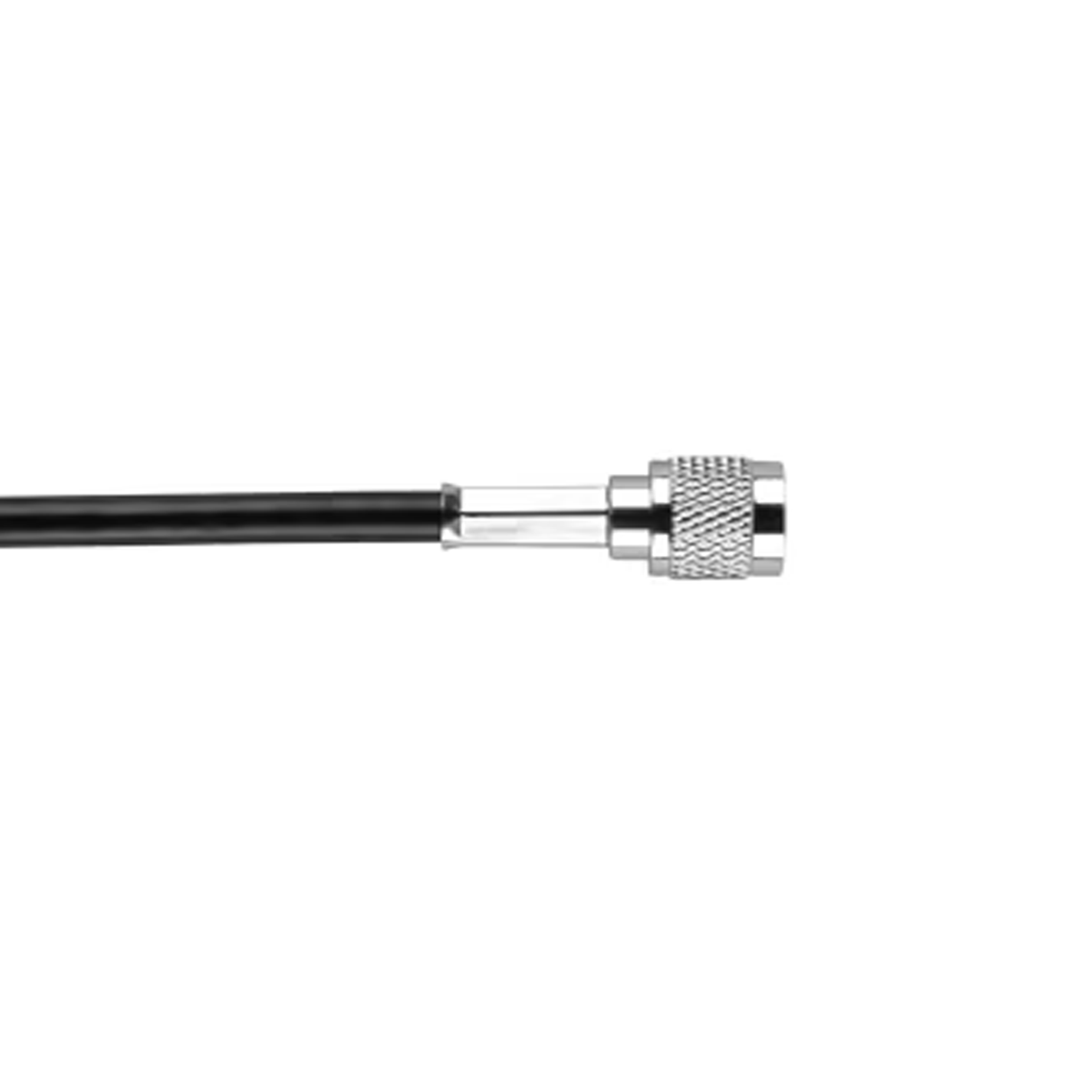

Featuring a 14-foot low-loss coaxial cable, the Motorola 0180300B02 allows clean cable routing from roof mounting points down to under-dash or trunk-mounted transceivers. By establishing a direct, ground-plane-connected antenna seat through the vehicle's body, the Motorola 0180300B02 minimizes insertion loss and RF interference across APX, MOTOTRBO XPR, and legacy CDM series mobile installations.
Key Features & Benefits
-
Permanent 3/4-Inch Through-Hole Design: Mounts securely through sheet metal roofs or trunk lids to provide an ideal ground plane.
-
14-Foot Coaxial Cable: Generous cable length allows seamless routing behind vehicle interior panels to the radio chassis.
-
Weather-Tight Seals: Premium brass threading and rubber O-rings prevent moisture and dust intrusion into the vehicle cabin.
-
Universal NMO Interface: Accommodates standard 3/4-inch NMO mobile antennas across VHF, UHF, 700/800 MHz, and GPS frequency bands.
-
Motorola 0180300B02 Revision Update: The Motorola 0180300B02 is the updated version of the Motorola 0180300B01.
Specifications
| Attribute |
Details |
| Brand |
Motorola Solutions |
| Model/SKU |
0180300B02 (Replaces 0180300B01) |
| Product Type |
Vehicle Antenna Mounting Kit |
| Mount Type |
3/4-Inch Through-Hole NMO Mount |
| Cable Length |
14 Feet |
| Cable Type |
Low-Loss Coaxial Cable |
| Installation Style |
Permanent Vehicle Sheet Metal Mount |
Compatibility
APX Series Mobile Radios
MOTOTRBO XPR Series Mobile Radios
|
|
|
|
| XPR4300 |
XPR4350 |
XPR4500 |
XPR4550 |
| XPR4580 |
XPR5550 |
|
|
CDM & Commercial Series Mobile Radios
|
|
|
|
| CDM750 |
CDM1250 |
CDM1550 |
CDM1550 LS |
| CDM1550 LS+ |
CM200 |
CM300 |
GM300 |
| M1225 |
PM1500 |
PM400 |
|
Recommended Accessories
Mobile Antennas
Microphones & Hardware
More Resources
Frequently Asked Questions
What is the primary function of the Motorola 0180300B02?
The Motorola 0180300B02 is a permanent 3/4-inch through-hole NMO antenna mount and coaxial cable assembly used to install external mobile antennas on vehicles.
Is the Motorola 0180300B02 the same as the 0180300B01?
Yes, the Motorola 0180300B02 is the updated version of the Motorola 0180300B01. Both part numbers refer to the same 3/4-inch NMO antenna mounting kit.
How long is the coaxial cable included with the Motorola 0180300B02?
The Motorola 0180300B02 kit includes a 14-foot low-loss coaxial cable for running from the roof or trunk mount to the mobile radio location.
What hole size is required to install the Motorola 0180300B02?
The Motorola 0180300B02 requires a standard 3/4-inch hole drilled through the vehicle's sheet metal roof or trunk lid.
Is the Motorola 0180300B02 compatible with MOTOTRBO XPR mobile radios?
Yes, the Motorola 0180300B02 is compatible with MOTOTRBO XPR 4300, XPR 4350, XPR 4500, XPR 4550, XPR 4580, and XPR 5550 mobile transceivers as well as APX and CDM series radios.
Is the Motorola 0180300B02 an authentic Motorola product?
Yes, the Motorola 0180300B02 is a genuine original equipment manufacturer accessory produced directly by Motorola Solutions.
Warranty
1-year manufacturer's warranty.
