Genuine OEM Side Audio Accessory Jack Replacement Connector
Authentic Motorola dual-port mono and stereo 2-pin audio accessory jack socket engineered for CP200, CP150, PR400, and CP200XLS portable transceivers.

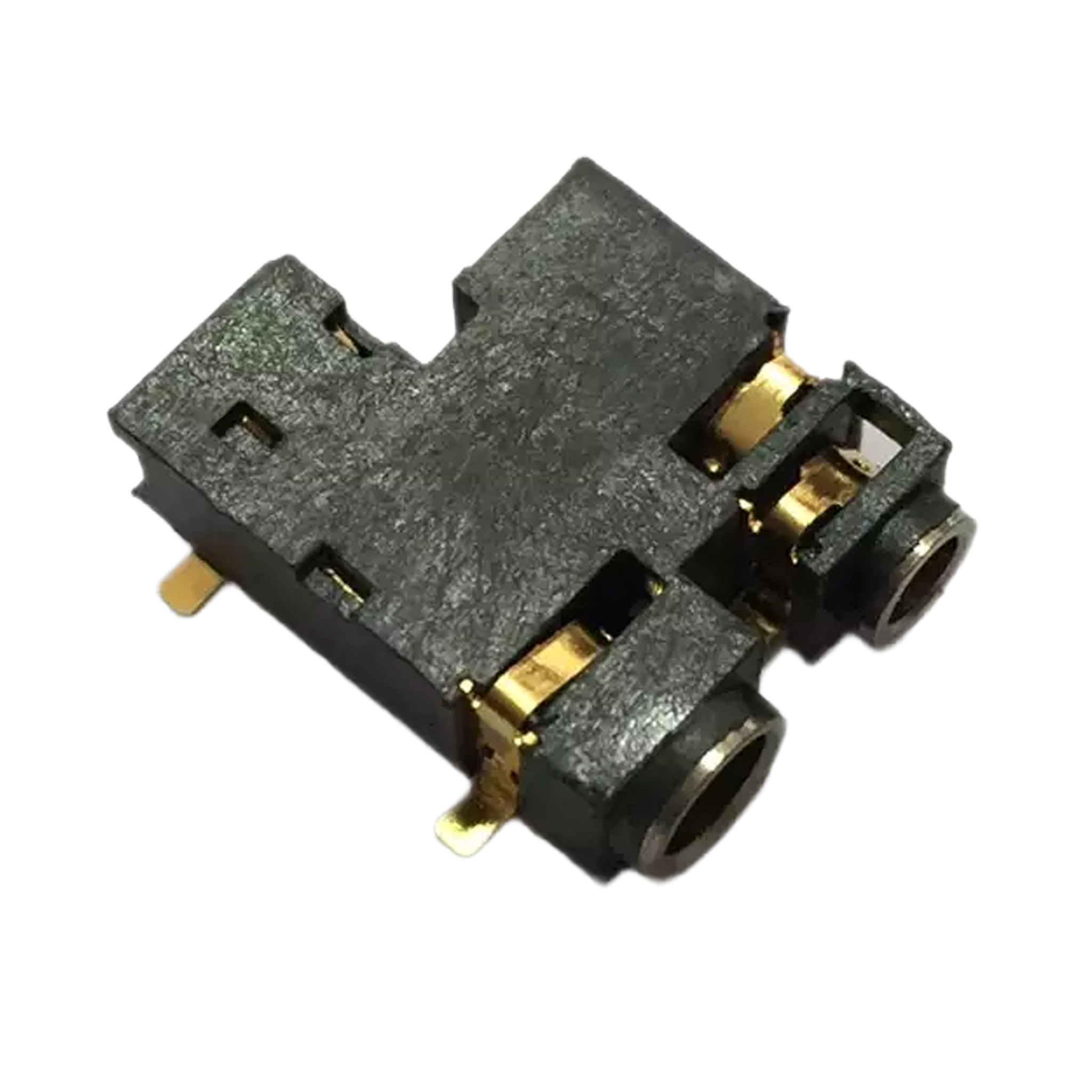

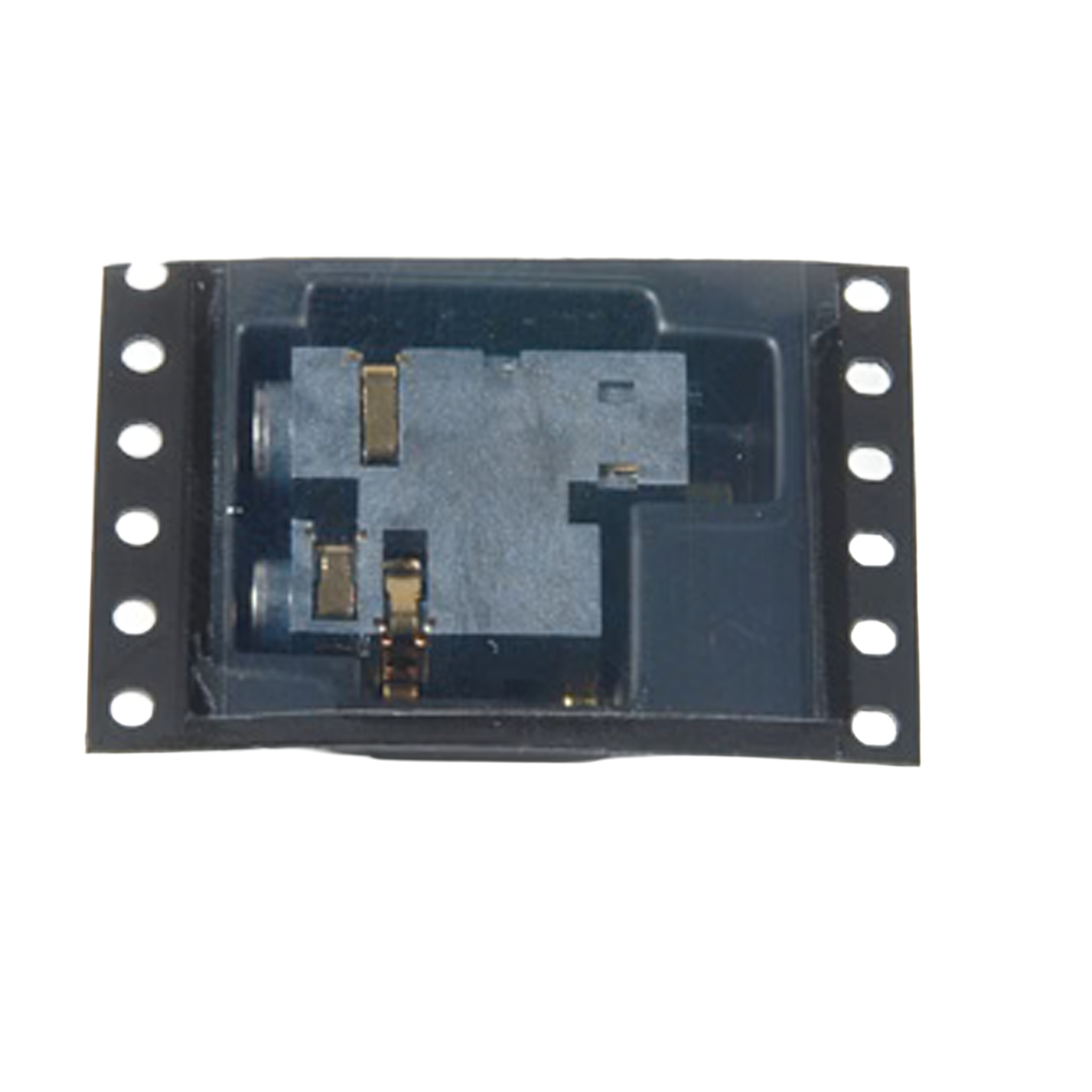

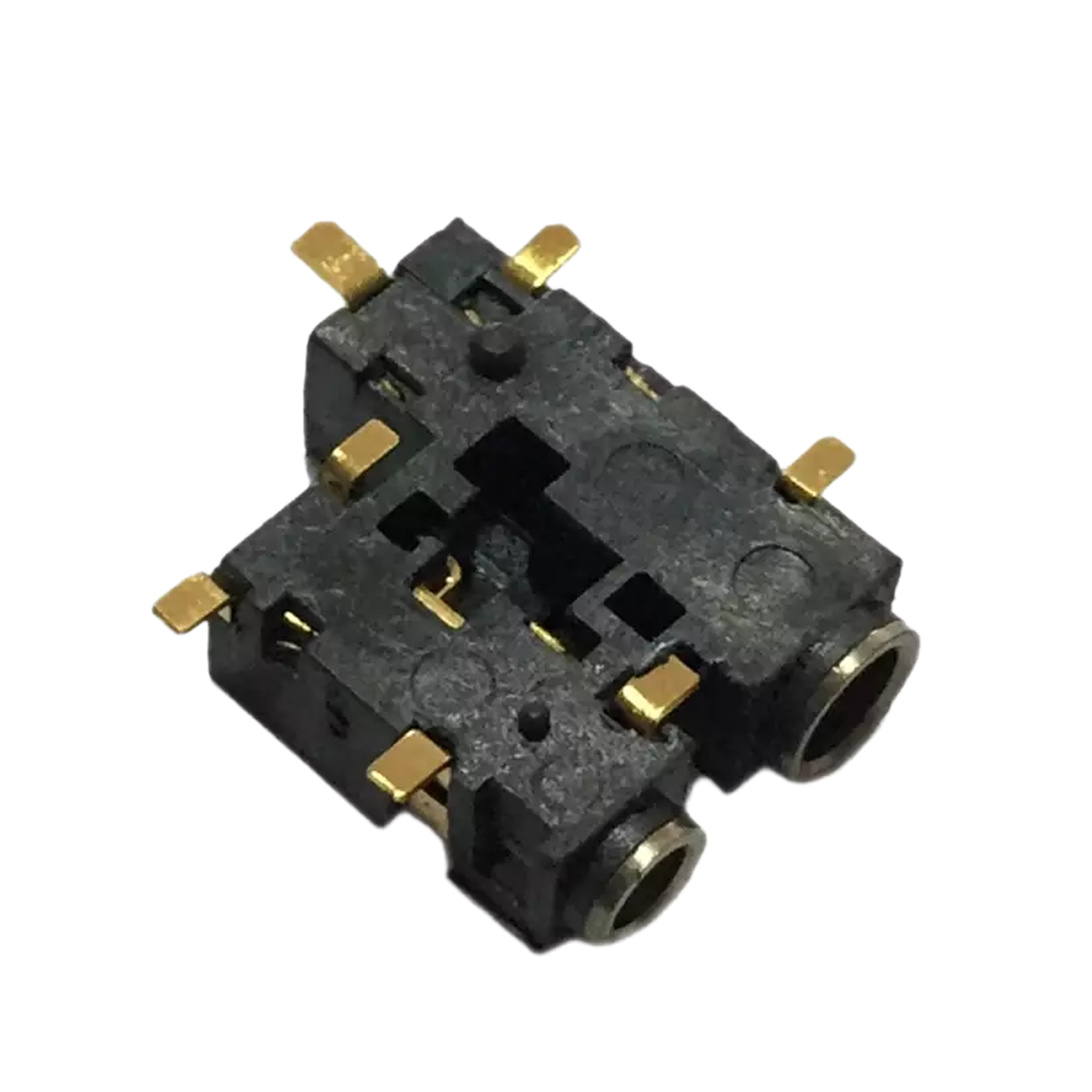

The Motorola 0980683Z03 (catalog part 0980683Z03) is an authentic original equipment manufacturer (OEM) internal replacement audio accessory connector designed for commercial Motorola portable two-way radios. Engineered as a board-level hardware component, this 2-pin dual-port jack assembly incorporates both 3.5mm mono speaker and 2.5mm stereo microphone ports to re-establish physical and electrical connectivity between the transceiver PCB and external audio accessories—such as remote speaker microphones, surveillance kits, earpieces, and programming adapters.
Manufactured to strict Motorola Solutions factory tolerances, the Motorola 0980683Z03 features high-durability internal phosphor bronze contact leaves with gold-flashed plating to ensure consistent, low-resistance electrical signal transfer over thousands of connection cycles. It provides a direct replacement for damaged, loose, or oxidized factory audio jacks caused by lateral cable strain, drops, or repetitive field use. Operating in accordance with commercial FCC Licensing radio maintenance standards, this authentic OEM connector resolves crackling audio, intermittent Push-To-Talk signaling, and loose plug retention across legacy CP and PR series transceivers including the CP150, CP200, CP200XLS, EP450, and PR400.
Key Features & Benefits
-
Authentic OEM Replacement: Manufactured directly by Motorola Solutions to guarantee exact PCB footprint alignment, pin pitch, and factory electrical specs.
-
Dual-Port 2-Pin Interface: Features standard 3.5mm mono and 2.5mm stereo receptacle ports to support commercial remote speaker microphones and headsets.
-
Restores Clear Two-Way Audio: Eliminates audio cutouts, crackling, and failed PTT transmissions caused by worn internal spring contacts.
-
Corrosion-Resistant Gold Contacts: Plated internal spring contacts maintain maximum electrical conductivity and resist oxidation from humid job site conditions.
-
Reinforced Thermoplastic Housing: High-temperature molded polymer shell withstands lateral torque and mechanical strain from attached coiled audio cables.
-
Direct Through-Hole Solder Terminals: Heavy-duty through-hole mounting pins facilitate clean desoldering and replacement during bench-level circuit board servicing.
Specifications
| Attribute |
Details |
| Brand |
Motorola Solutions |
| Model / SKU |
0980683Z03 / 0980683 |
| Part Type |
Standard Audio Accessory Jack Connector (Mono & Stereo) |
| Audio Port Style |
Motorola Standard 2-Pin (3.5 mm Speaker / 2.5 mm Mic) |
| Mounting Architecture |
PCB Solder Mount (Through-Hole) |
| Housing Material |
High-Temp Engineered Thermoplastic |
| Contact Material |
Gold-Plated Phosphor Bronze Alloy |
| Operating Temperature |
-30°C to +60°C (-22°F to +140°F) |
| Color Finish |
Black Housing with Metallic Solder Terminals |
Compatibility
Compatible Motorola Portable Two-Way Radios
|
|
|
|
| CP200XLS |
ELP |
PR400 |
CP150 |
| CP200 |
EP450 |
|
|
Recommended Accessories
Batteries & Charging Hardware
Audio Accessories & Replacement Hardware
More Resources
Frequently Asked Questions
What does the "Z03" suffix at the end of part number 0980683Z03 mean?
The "Z03" suffix designates the latest official manufacturing revision from Motorola Solutions. 0980683Z03 represents the newest production version of the base part number 0980683 (replacing earlier revisions 0980683Z01 and 0980683Z02), featuring upgraded internal contact plating and reinforced housing durability while maintaining exact pin compatibility.
Does installing the Motorola 0980683Z03 require soldering?
Yes. The 0980683Z03 is a board-level internal component that solders directly onto the radio's printed circuit board (PCB). Installation requires electronic soldering equipment, desoldering braid or a desoldering pump to remove the damaged connector, and bench-level technical assembly skills.
What issues indicate that my CP200 audio jack needs replacement?
Common signs include external speaker microphones not keying the radio, audio cutting out when the accessory cable moves, crackling sound in earpieces, or accessory plugs fitting loosely in the side port due to worn internal spring leaves.
Is this part compatible with the CP200d?
While both radios use a 2-pin accessory footprint, the digital CP200d typically utilizes the CN001016A03 or 09012141001 jack assembly depending on the chassis revision. The 0980683Z03 is designed specifically for legacy CP200, CP150, CP200XLS, EP450, and PR400 chassis boards.
Does this connector include the external rubber side cover?
No. The 0980683Z03 includes only the internal PCB-mount connector jack assembly. The exterior rubber dust cover is a separate exterior cosmetic part.
Warranty
1-year manufacturer’s replacement warranty.
