Description
Original Equipment Manufacturer High-Precision Housing Disassembly Maintenance Tool
Streamline bench repairs and safely detach external control knobs without causing cosmetic or structural frame damage.

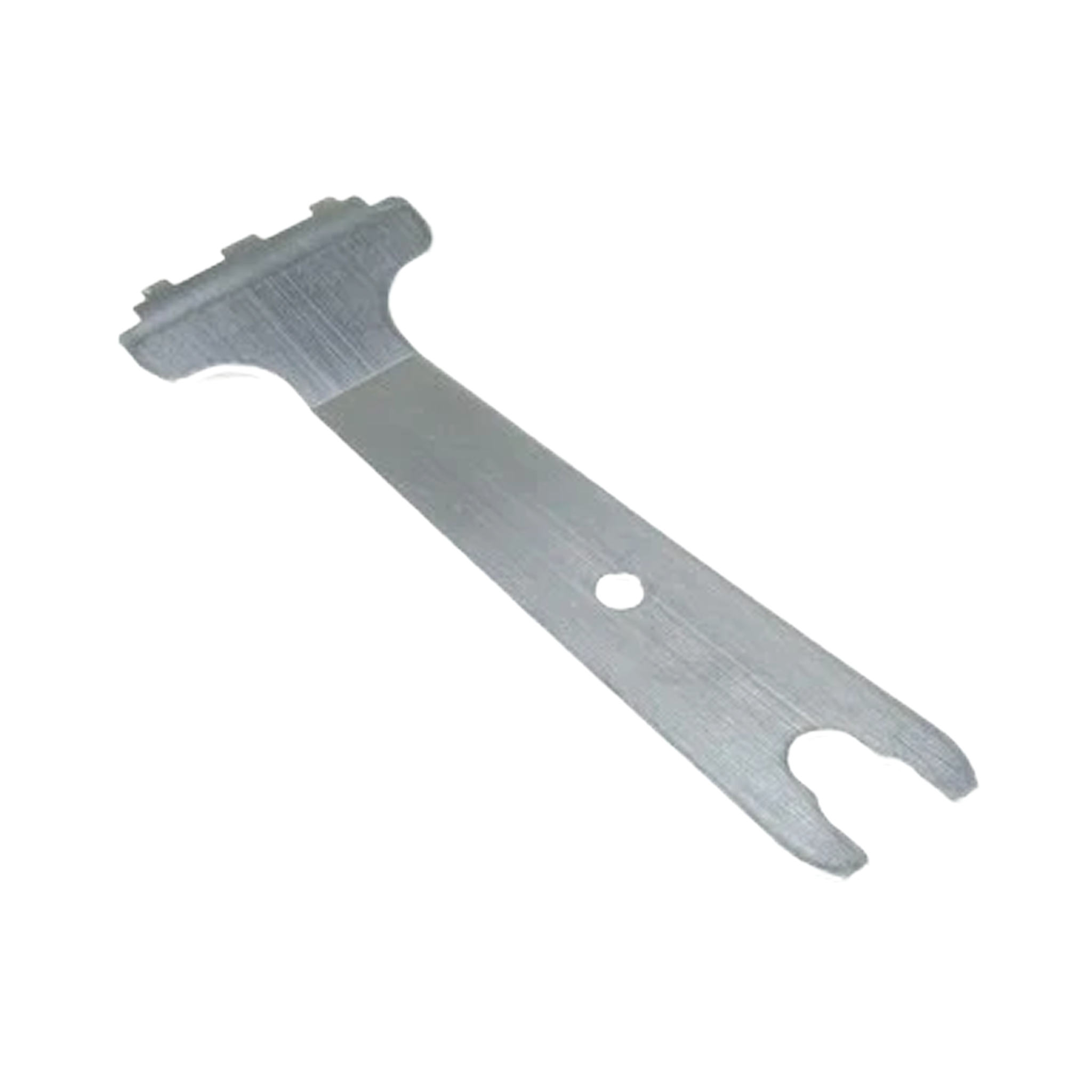

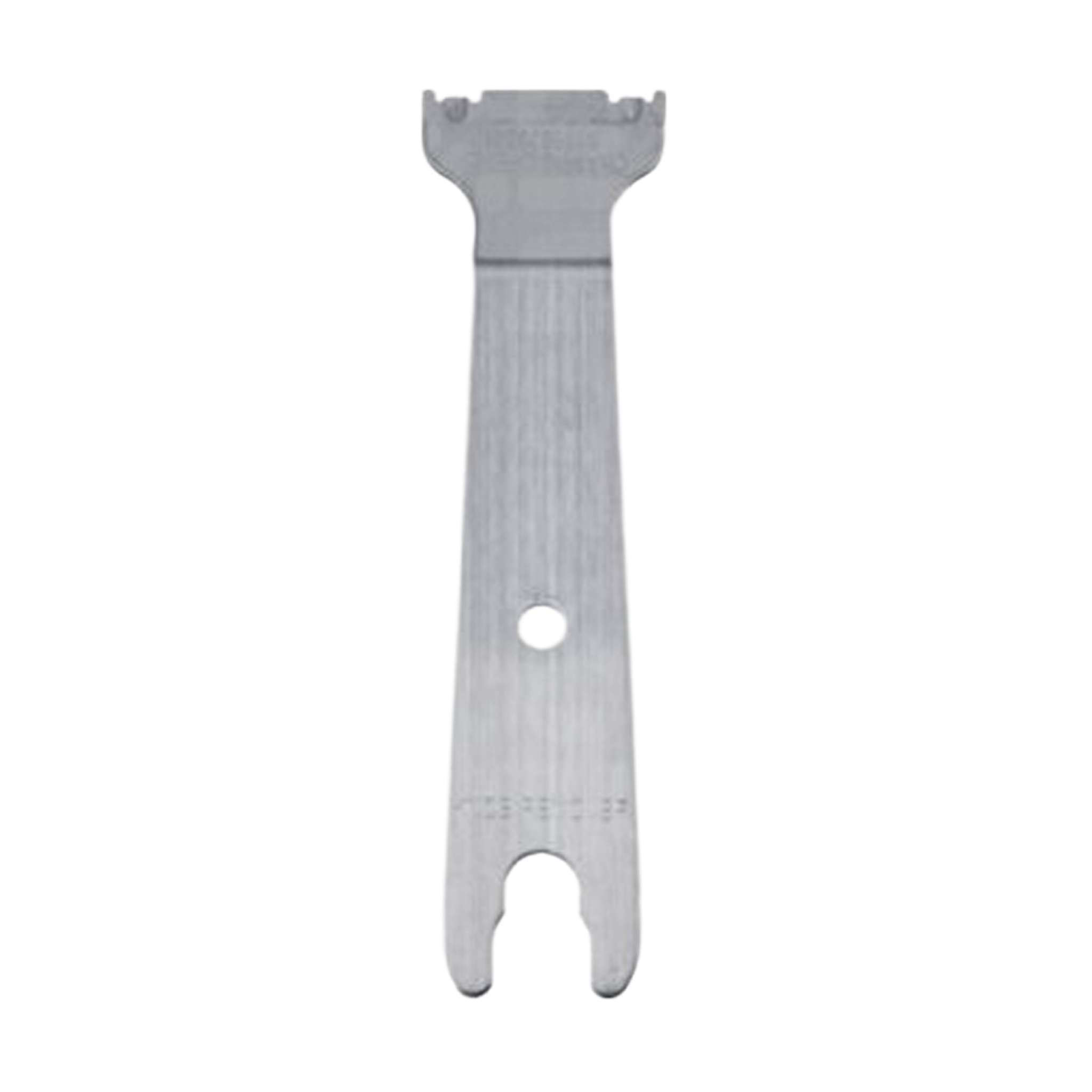

Technical Workshop Notice: The Motorola 6680702Z01 is a specialized, factory-authorized mechanical depot tool. It is specifically documented inside official Motorola component service manuals to execute flawless chassis separation and control hardware extractions across legacy Commercial and Waris portable transceiver lines.
The Motorola 6680702Z01 is a professional-grade bench technician tool engineered to simplify two-way radio maintenance, housing upgrades, and interior board repairs. Integrating this precision Motorola 6680702Z01 tool into your service shop or corporate depot setup eliminates the dangerous practice of prying open sensitive housings with flathead screwdrivers or generic metal pocket knives. Custom-molded to leverage safe, uniform pressure points along the radio's perimeter, this accessory separates the inner cast metal chassis plate from its external polycarbonate plastic front shell smoothly and cleanly.
In addition to acting as a seamless housing wedge, this versatile dismantling tool features integrated leverage cutouts designed specifically to extract tightly seated volume pots and channel selection knobs. By distributing physical lifting tension equally underneath the base of the control knob plastic rings, it prevents broken selector shafts, warped gaskets, or scratched top-panel labels. Fabricated from a heavy-duty, reinforced material compound, this essential maintenance block withstands continuous bench stress without bowing, preserving crisp edge contours for long-term fleet servicing.
Key Features & Benefits
-
Safe Chassis Disassembly: Custom-wedged edges separate outer shells from internal frameworks without cracking plastic tabs, gouging gaskets, or piercing delicate internal flex ribbons.
-
Integrated Control Knob Lifter: Features specialized low-profile slot tracks that slide safely under selection knobs to pull them from their internal metal control shafts without bending.
-
Service Manual Compliant: Matches the precise factory tool specifications mandatory for executing depot-level teardowns across legacy industrial radio nodes.
-
High-Strength Material Matrix: Formulated from a rigid, wear-resistant compound that handles high manual leverage torque without chipping or scratching fine radio components.
-
Anti-Slip Ergonomic Silhouette: Formed with a flat, easily gripped structural shape that gives radio technicians optimal manual stabilization control during tight separation tasks.
Specifications
| Attribute |
Details |
| Brand |
Motorola Solutions |
| Part Number / SKU |
6680702Z01 |
| Alternative Component Code |
6680702Z01-OEM |
| Tool Classification |
Knob Removal & Chassis Opener Wedge |
| Target Equipment Framework |
Waris Portable & Commercial Series |
| Primary Compound Structure |
High-Strength Industrial Polymer Matrix |
| Primary Service Purpose |
Safe Shell Separation & Switch Maintenance |
Compatibility
|
|
|
|
| Waris Portable Series |
HT750 |
HT1250 |
HT1250LS |
| HT1550XLS |
EX500 |
EX600 |
EX600XLS |
| PR860 |
MTX850 |
MTX8250 |
MTX950 |
| GP328 |
GP338 |
GP340 |
GP380 |
Frequently Asked Questions
Will using this tool completely prevent cosmetic damage to my radio housings?
Yes, when used according to official service guidelines. Unlike standard improvised shop hand-tools like screwdrivers or pliers, the Motorola 6680702Z01 is perfectly contoured to distribute manual prying pressure flatly along the casing, bypassing structural pressure points.
Can this tool be used on modern APX or MOTOTRBO series portable radios?
This specific tool layout is physically optimized to service legacy Commercial and Waris portable platforms (such as the HT750, HT1250, EX500, and GP-series). Modern series like the APX6000 or XPR7550 generally utilize alternative chassis opening profiles.
Is this an authentic Motorola product or a generic 3D-printed replica?
This is a 100% genuine original equipment manufacturer (OEM) part produced directly by Motorola Solutions. It guarantees perfect physical depth tolerances and heavy-duty compound density that cheap replica prints cannot replicate.
How does the tool lift the channel knobs without breaking the fragile internal pot shafts?
The tool features a specialized low-profile slot that slides flatly beneath the bottom rim of the control knob. When you apply vertical leverage, it pushes evenly from both sides of the shaft simultaneously, keeping the metal internal post perfectly straight.
Does this mechanical opener plate require any extra bench accessories to operate?
No. The tool is a completely independent, standalone manual accessory piece. It requires no extra specialized technical power modules or mounting frames to complete standard radio casing splits.
What type of hardware coverage protects this workshop tool accessory?
This authentic original equipment repair tool arrives backed by a standard 1-year factory warranty framework to guarantee long-term material integrity against early fractures under standard bench conditions.
Warranty
1-year manufacturer’s warranty.
