Description
Seamless 900 MHz Integration for Curve, DLR, and DTR Series

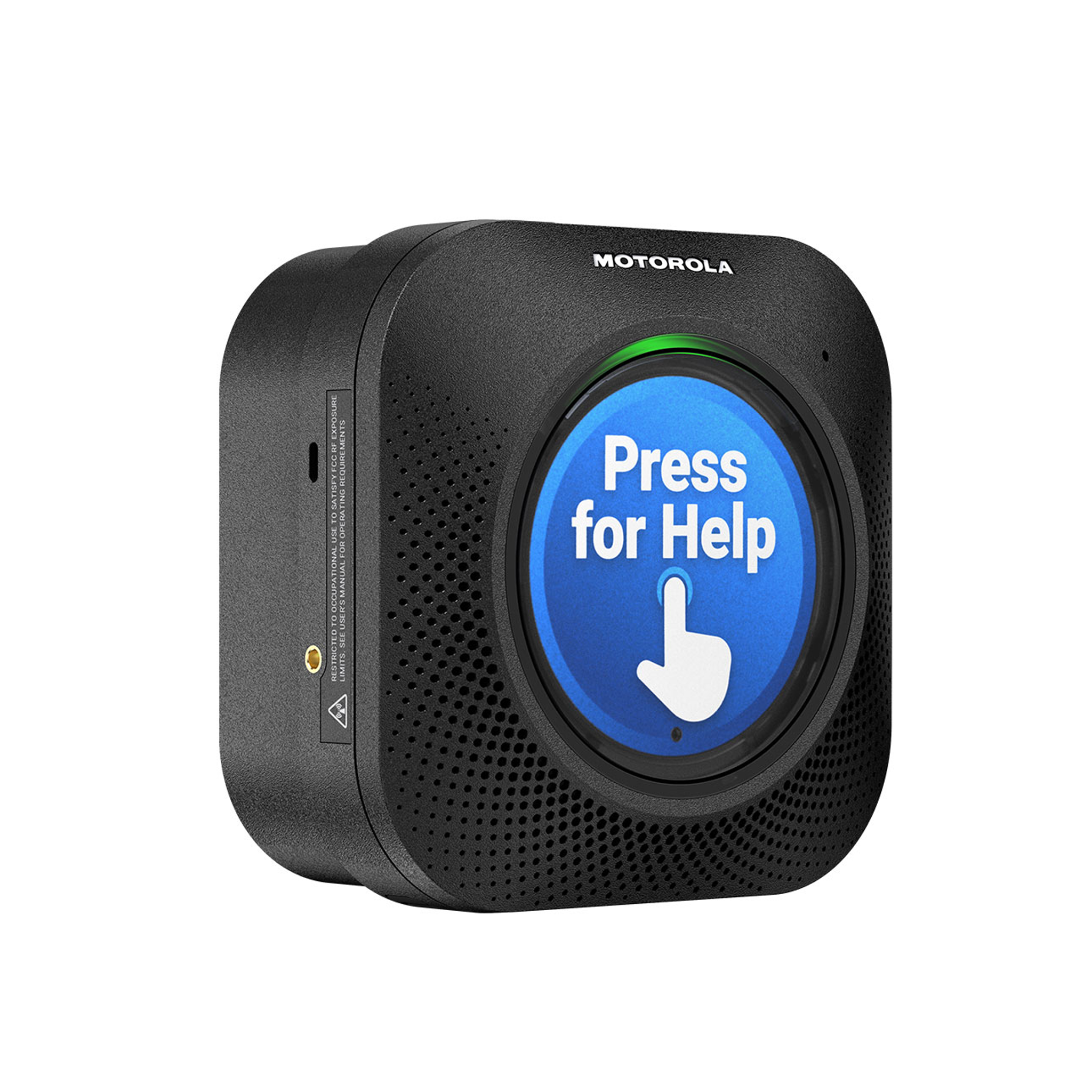

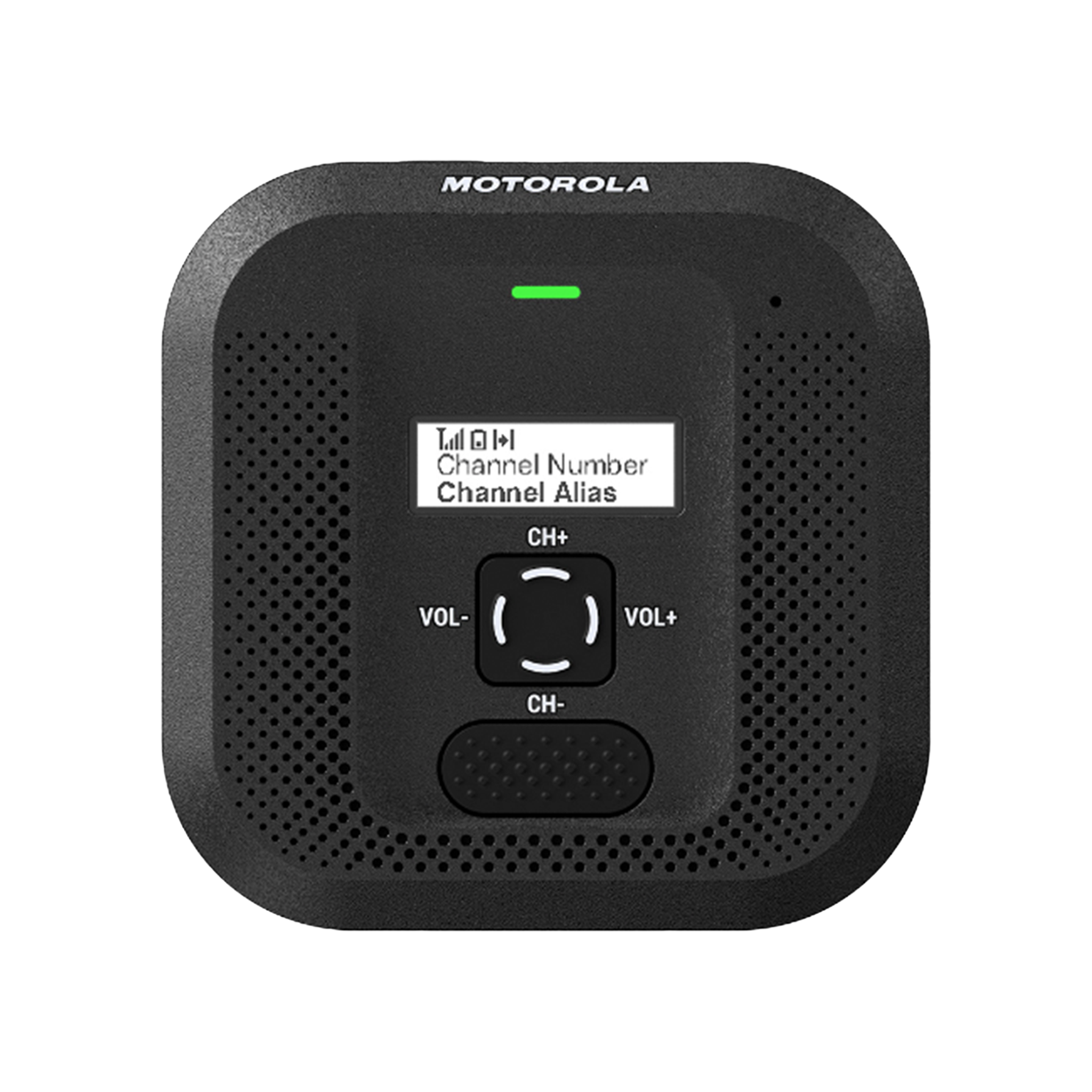

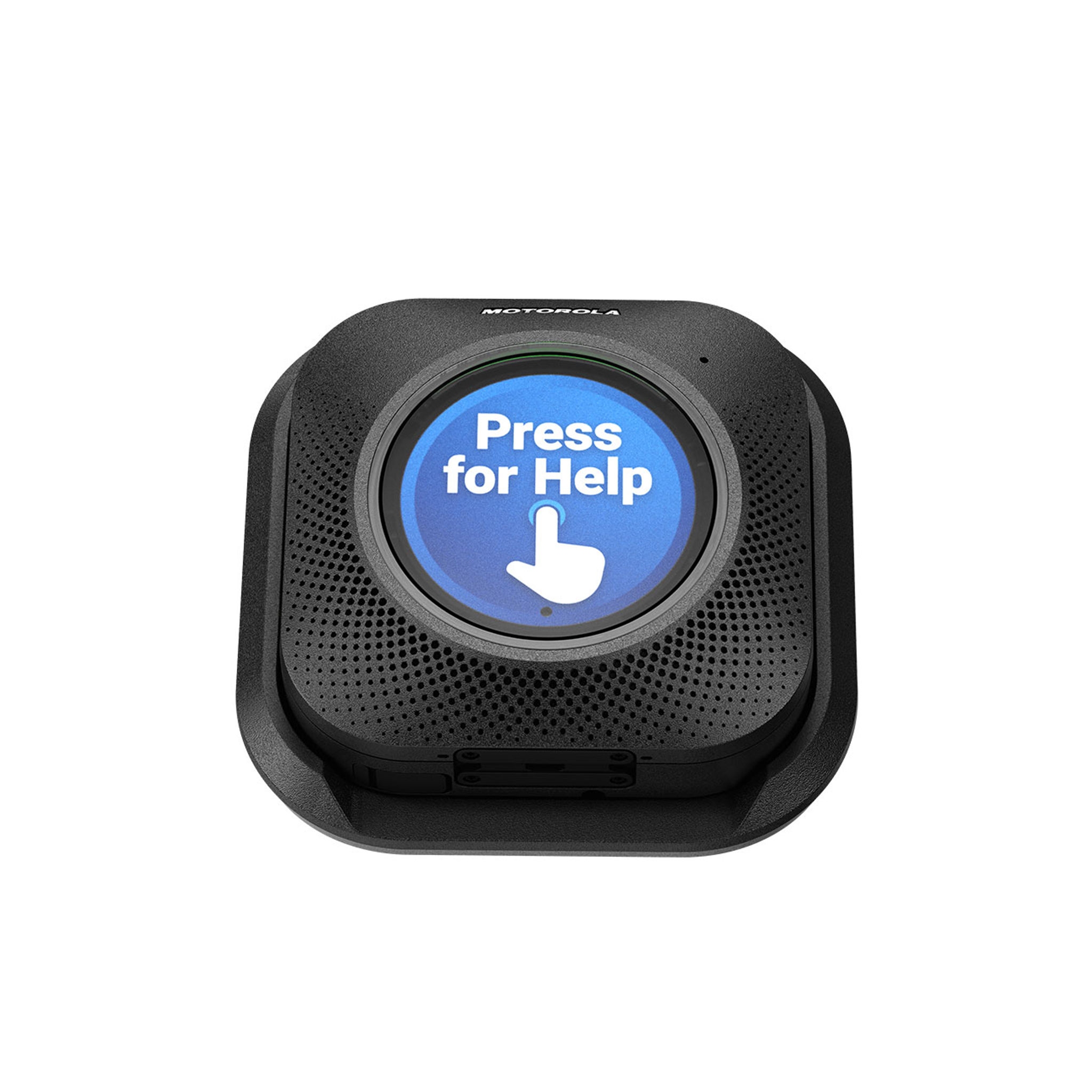

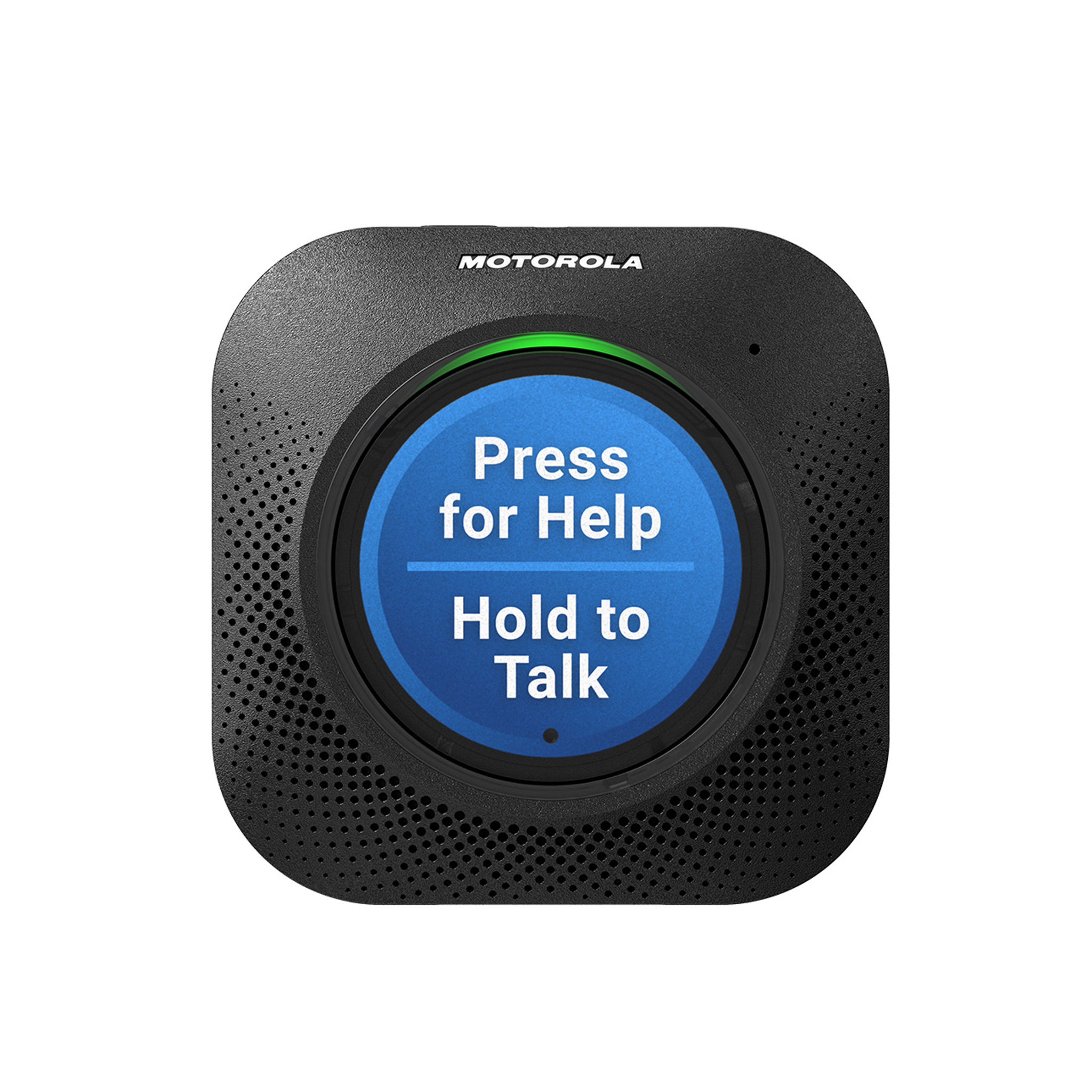

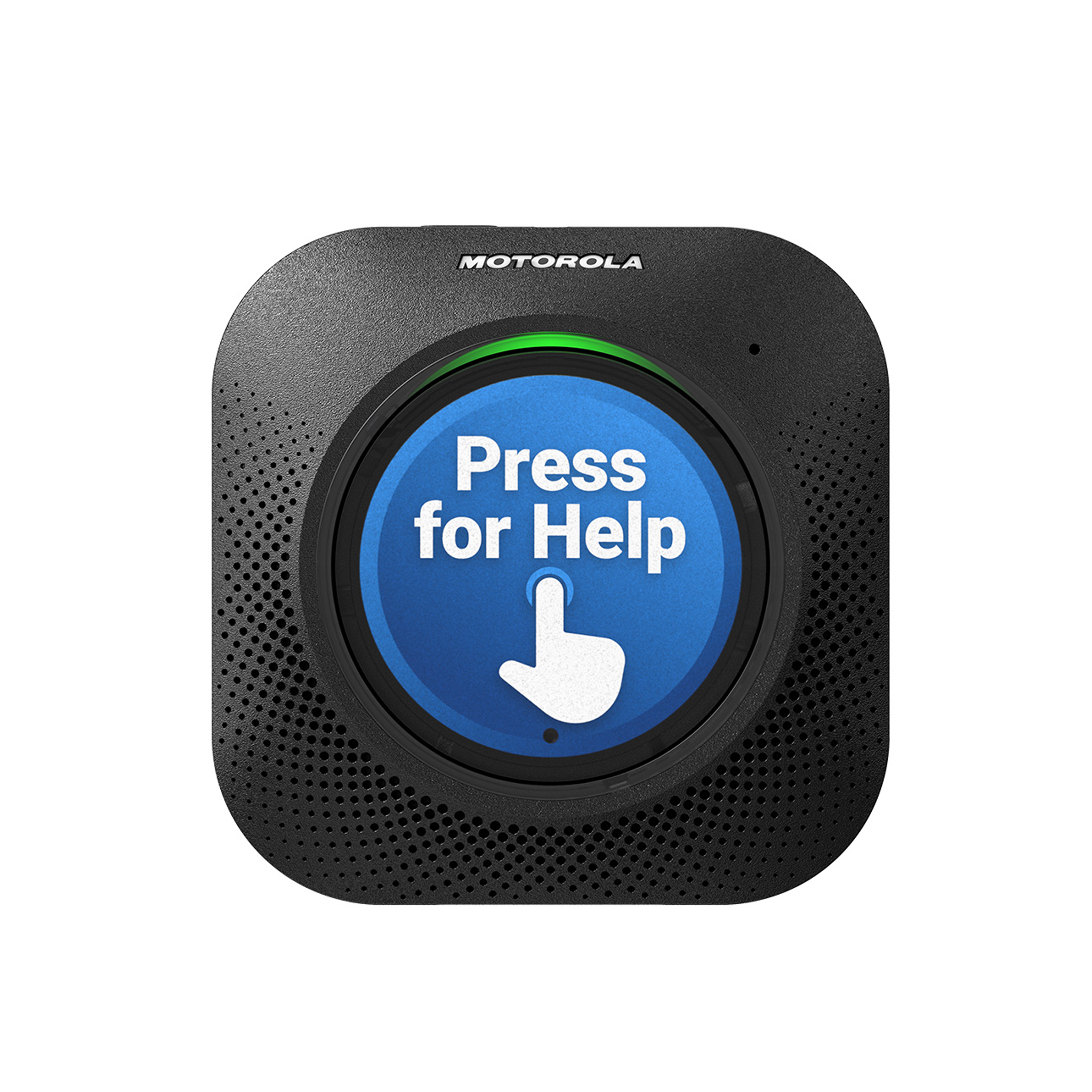

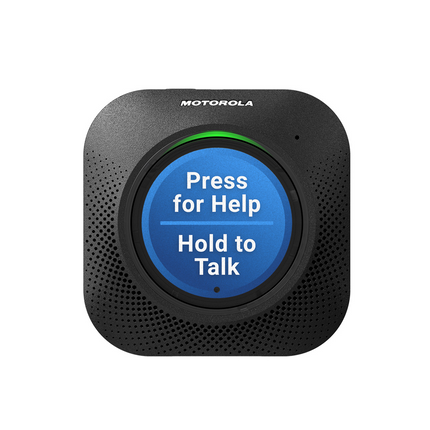

The Motorola CB900D Series is a versatile digital communication solution designed to bridge the gap between stationary service points and mobile personnel. Operating on the license-free 900 MHz ISM band, this device seamlessly integrates with your existing Motorola Curve, DLR, and DTR series radio fleets. This listing offers two distinct configurations to meet your installation needs: a Desktop Base Station package featuring a dedicated power supply for continuous use, and a Digital Call Box package optimized for battery-powered or custom-wired deployments.
Built to withstand demanding environments, the CB900D features an IP54 weather-proof rating and tamper-proof locking plates. It offers highly customizable voice messages to provide clear, actionable directives to your team without the need for disruptive overhead paging. Whether used by personnel or a customer seeking assistance, a simple button press ensures an instant, discreet alert to your team, enabling immediate action across retail, hospitality, and distribution facilities.
Available Variants
-

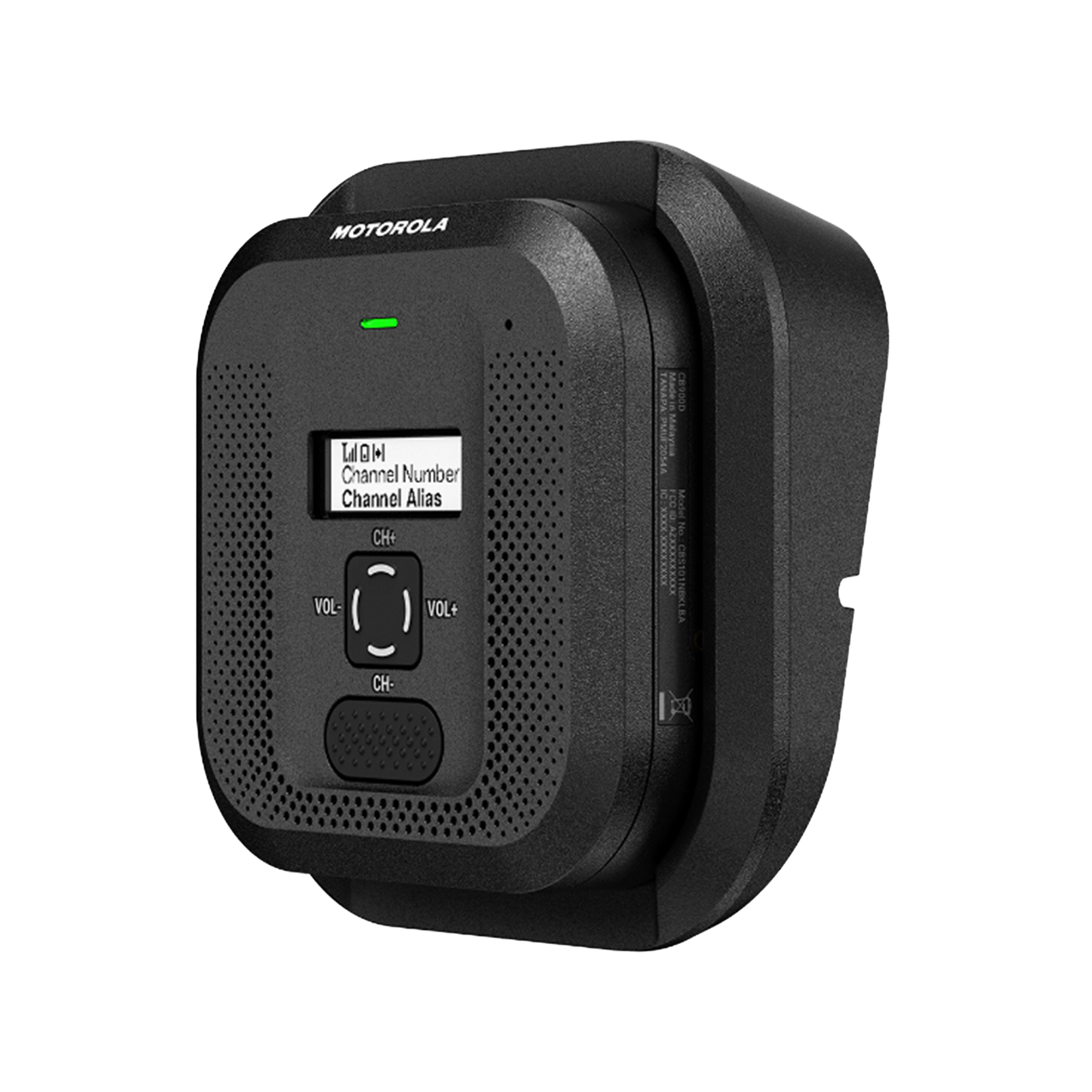

Desktop Base Station (CB900-D-DE): Includes the PKG-1902-928 MHz digital unit and a USB Wall Charger for non-stop, direct-power operation.
-
Digital Call Box (CB900-D-CB): Includes the PKG-1902-928 MHz digital unit only. This version is ideal for battery-powered wireless placement (Wall Charger Sold Separately).
Key Features & Benefits
-
Universal 900 MHz Compatibility: Works out of the box with Motorola Curve, DLR1020, DLR1060, DTR600, and DTR700 digital radios.
-
Multi-Mode Functionality: Easily configured as a One-Way Call Box, Two-Way Call Box, or a Desktop Base Station.
-
Customizable Voice Messages: Supports tailored audio alerts to provide specific location or task information to radio users.
-
Rugged IP54 Design: Water and dust resistant, ensuring reliable performance in outdoor docking areas or high-traffic retail floors.
-
Long-Life Battery Performance: Engineered for up to 1-year of battery life for wireless installations.
-
Security & Customization: Features tamper-proof front plate locks and support for custom graphic paper signage.
Specifications
| Feature |
Specification |
| Frequency Range |
900 MHz ISM Band (Digital) |
| IP Rating |
IP54 (Dust and Water Resistant) |
| Operating Modes |
One Way, Two Way, Base Station |
| Security |
Tamper Proof Front Plate Locks |
| Battery Life |
Up to 1 Year |
| Warranty |
1-Year Manufacturer's Warranty |
Compatibility
|
|
|
|
| Curve |
DLR1020 |
DLR1060 |
DTR600 |
| DTR700 |
DTR410 |
DTR550 |
|
Frequently Asked Questions
Which variant should I choose? If you plan to plug the device into a wall outlet for constant power, choose the CB900-D-DE. If you need to mount it wirelessly where power isn't available, choose the CB900-D-CB.
Does this require an FCC license to operate? No. The CB900D operates on the 900 MHz ISM band, which is license-free for business use in the United States and Canada.
Can I use this for two-way communication? Yes. The CB900D can be configured by administrators to operate in either one-way alert mode or two-way voice communication mode.
More Resources
Warranty
1-year manufacturer's warranty.
