Description
1W 900MHz License-Free Digital Smart Hub
Advanced 900 MHz digital smart hub uniting Wi-Fi call buttons, voice assistants, and digital two-way radio fleets.

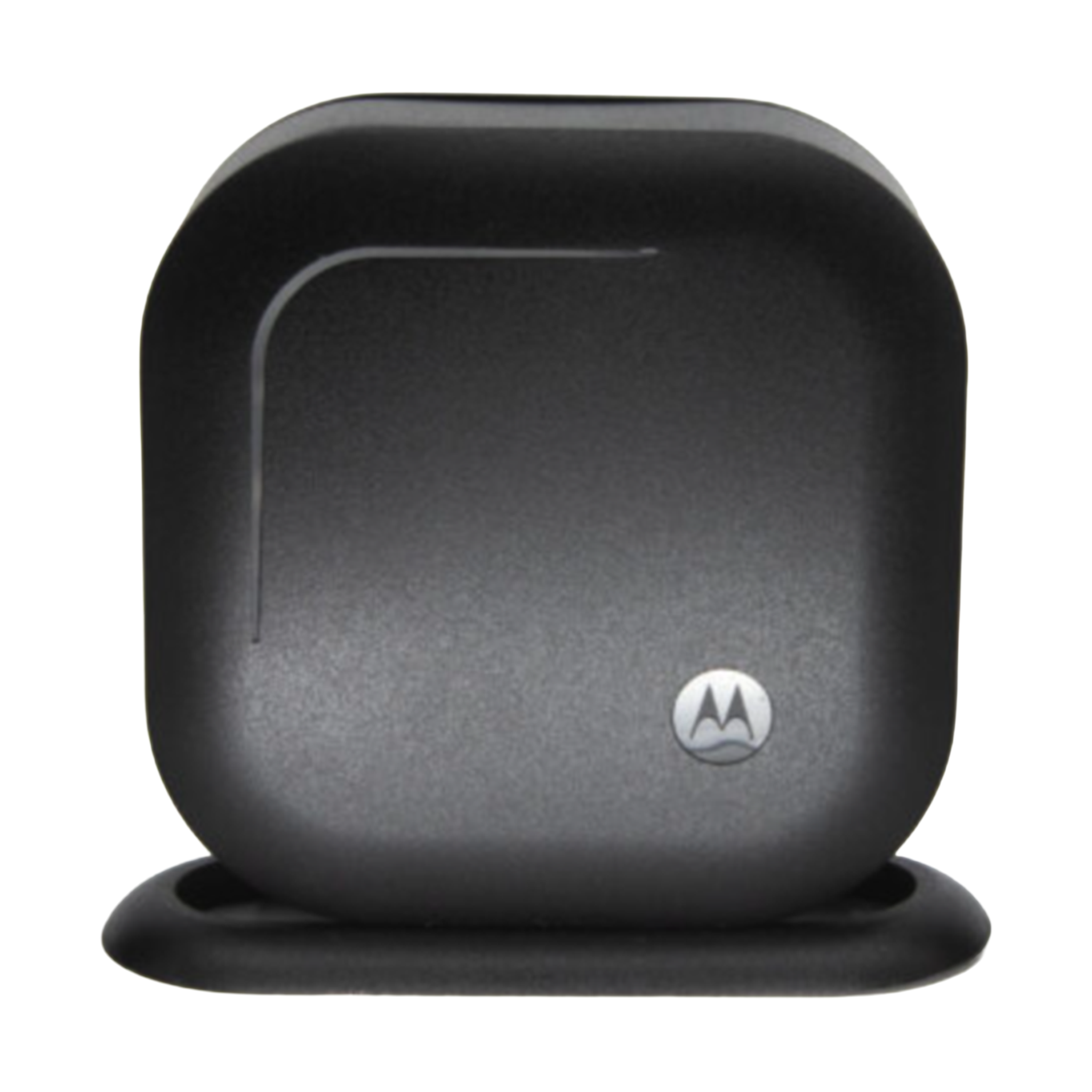

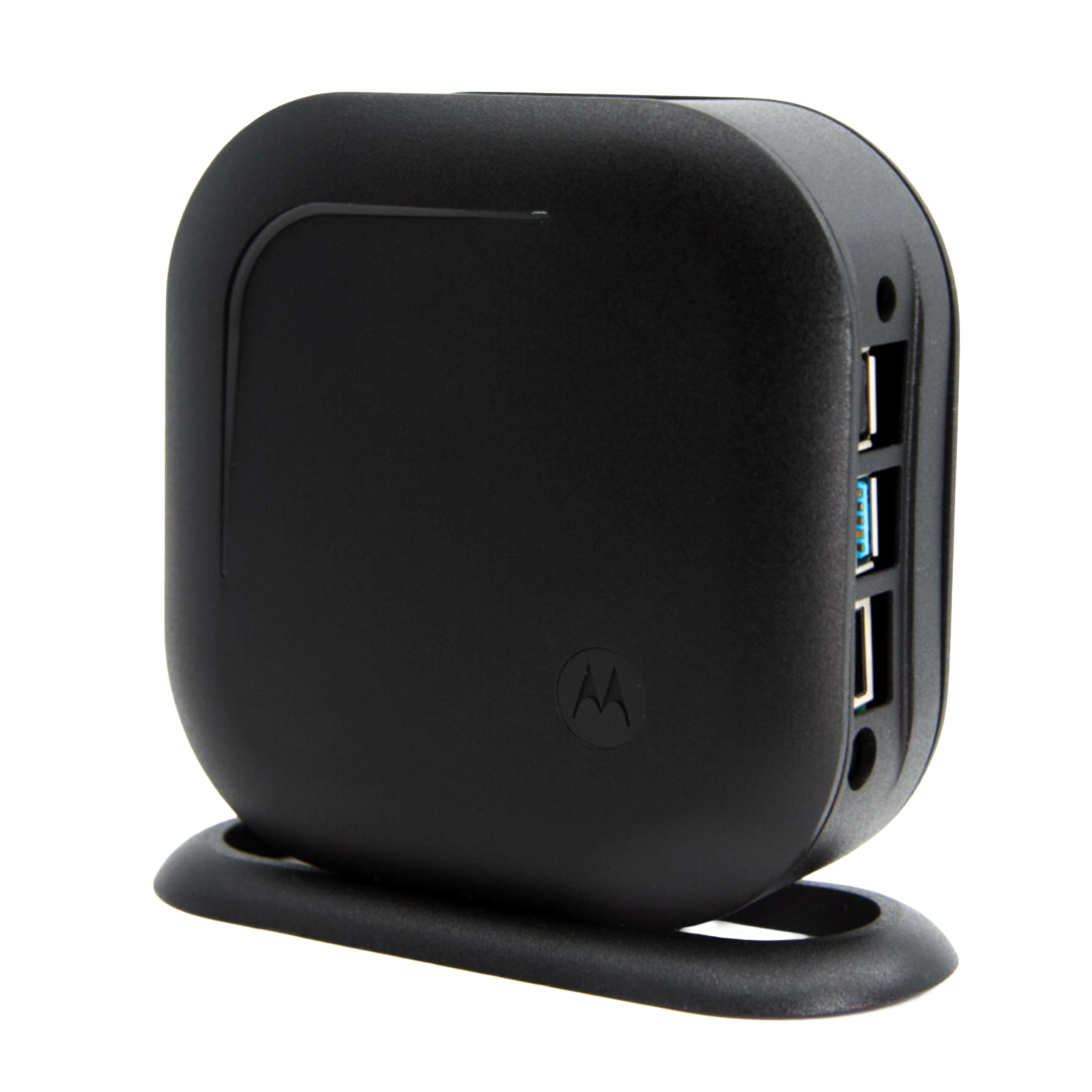

The Motorola DH300 900MHz Digital Smart Hub is a central communications gateway designed to bridge land mobile radio (LMR) networks with advanced Wi-Fi functionality. Built for retail stores, hospitality venues, medical facilities, and commercial operations, this 1-Watt digital hub connects directly to your local area network via Ethernet to enable enhanced cloud-connected features across your radio fleet.
Operating on the license-free 900 MHz ISM frequency hopping spread spectrum (FHSS) band regulated by FCC Licensing standards, the Motorola DH300 provides up to 350,000 square feet or 20 floors of extended coverage. When paired with compatible 900 MHz digital radios—such as Curve DLR110, DLR series, and DTR series models—and Wi-Fi call buttons, the hub unlocks advanced automated voice commands, private calling, automated stock lookups, and over-the-air firmware updates on DMR Association aligned digital networks.
Key Features & Benefits
-
1W 900MHz FHSS Operation: License-free 900 MHz frequency-hopping transmission delivers interference-free communication covering up to 350,000 sq. ft.
-
Wi-Fi & LMR Integration: Plugs directly into your modem to seamlessly connect two-way radios with network call buttons and cloud portals.
-
Virtual Voice Assistant Ready: Unlocks advanced voice commands such as private calling, group messaging, stock lookup, and price checks.
-
Wireless Fleet Management: Enables over-the-air profile cloning, remote radio configurations, and usage analytics.
-
Multi-Channel Capacity: Supports up to 10 digital channels for flexible department and team communication routing.
-
Color LED Status Indicator: Front panel LED provides real-time operational status and network connectivity feedback.
Specifications
| Attribute |
Details |
| Brand |
Motorola Solutions |
| Model/SKU |
DH300 |
| Product Type |
900MHz Digital Smart Hub |
| Frequency Band |
900 MHz ISM Band (902–928 MHz FHSS) |
| RF Power Output |
1.0 Watt |
| Channels |
10 Channels |
| Coverage Area |
Up to 350,000 sq. ft. / 20 Floors |
| Network Connection |
RJ-45 Ethernet Port to Local Modem/Router |
| Power Supply |
100–245 VAC, 1.5A, 50–60Hz DC Adapter Included |
| Dimensions (With Base) |
5.03" H x 5.41" W x 2.14" D (128 x 137.5 x 54.5 mm) |
| Weight |
2.17 lbs (985 g) |
Compatibility
Compatible 900 MHz Digital Two-Way Radios
Compatible Wireless Call Buttons & Ecosystem Hardware
|
|
|
|
| CB400 Call Button |
CB401 Call Button |
Curve Portal Ecosystem |
|
What's Included
| Description |
SKU/Model |
Status |
| Motorola DH300 900MHz Digital Smart Hub |
DH300 |
Included |
| DC Power Adapter Unit |
Standard Power Supply |
Included |
| Desktop / Wall Mounting Base |
Pre-Attached Mounting Assembly |
Included |
Recommended Accessories
Compatible Digital Radios
Wi-Fi Call Buttons
- Motorola CB400 Wireless Call Button – Wall-mountable Wi-Fi call button for customer assistance and staff alerts.
- Motorola CB401 Glass Mount Wireless Call Button – Sleek glass-mount wireless call button for retail fitting rooms and counters.
More Resources
Frequently Asked Questions
What is the primary purpose of the Motorola DH300 smart hub?
The Motorola DH300 connects 900 MHz digital two-way radios to your local network and cloud services, enabling advanced features like Wi-Fi call button alerts, voice commands, and remote configuration.
Do I need an FCC license to operate the Motorola DH300 hub?
No, the Motorola DH300 operates on the license-free 900 MHz ISM frequency band (902–928 MHz FHSS), requiring no individual FCC license.
How far does the Motorola DH300 signal reach?
The 1.0-Watt transmitter in the Motorola DH300 covers up to 350,000 square feet or up to 20 floors in standard multi-story commercial buildings.
Which two-way radios work with the Motorola DH300 hub?
The Motorola DH300 is compatible with 900 MHz digital radio series including the Curve DLR110, DLR1020, DLR1060, and DTR700 series transceivers.
How is the Motorola DH300 connected to the network?
The hub plugs directly into your local modem or router via a standard RJ-45 Ethernet cable to communicate with cloud management portals.
Is a subscription required for advanced voice features?
Basic LMR signal distribution functions without subscription, but advanced Wi-Fi features like stock lookups, price checks, and custom voice commands require access through the Curve portal subscription service.
Warranty
1-year manufacturer's warranty.
