Description
Genuine OEM Factory Order Option Antenna for MOTOTRBO SLR 1000
Motorola factory-configurable external whip antenna option (440–495 MHz) featuring direct N-male connector mounting for new SLR 1000 repeater builds.
IMPORTANT ORDERING REQUIREMENT: Motorola GA01594AA is a manufacturer factory order option code that must be ordered concurrently with a new Motorola MOTOTRBO SLR 1000 repeater. It represents the factory-installed UHF antenna selection during initial repeater provisioning and cannot be purchased as a standalone, standalone-fulfilled item under this part code. (If you already own an SLR 1000 and require a replacement or add-on antenna after purchase, order physical service part number HKAE4004A).
The Motorola GA01594AA (physical replacement part number HKAE4004A / base part HKAE4004) equips your new SLR 1000 repeater straight from the factory with a dedicated 440–495 MHz UHF external whip antenna (cataloged across 440–490 MHz). Selecting this option during your system order ensures the repeater arrives factory-matched and ready for immediate deployment in commercial, campus, and industrial wireless networks operating under commercial FCC Licensing regulations.

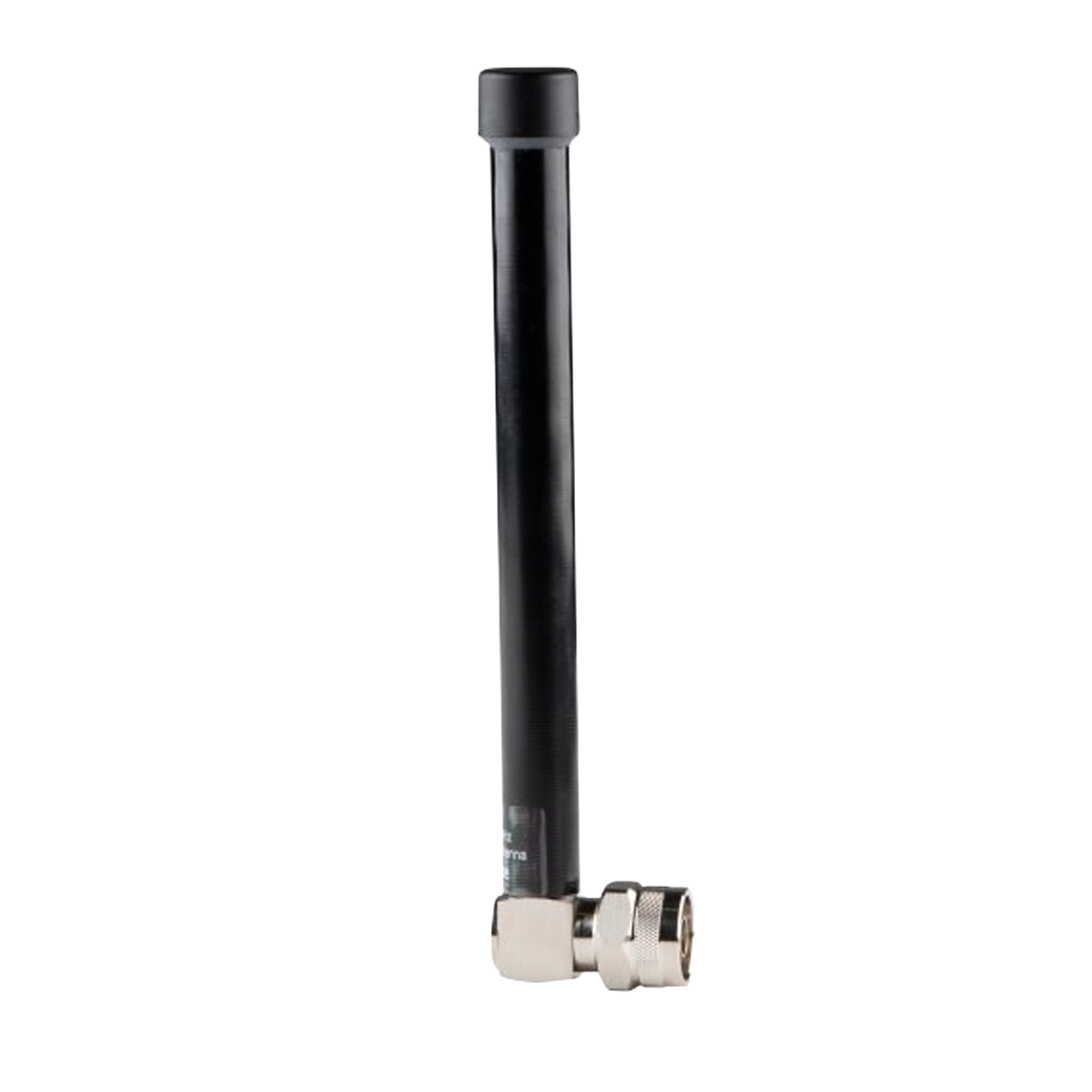

Measuring approximately 7.0 inches in height, this rugged helical whip antenna mounts directly onto the repeater’s exterior N-female RF port via an integrated Type N-Male connector. This direct-chassis design eliminates the clutter, insertion loss, and mounting complications of external coaxial jumper cables and mast brackets. Engineered with weather-sealed industrial materials to complement the SLR 1000’s IP65 water- and dust-resistant enclosure, the Motorola GA01594AA option provides reliable, turnkey RF coverage across multi-level structures, parking structures, and large outdoor yards.
Key Features & Benefits
-
Factory-Configured SLR 1000 Option: Built and provisioned as an official ordering option when configuring your new MOTOTRBO SLR 1000 repeater.
-
Direct N-Male Chassis Mount: Integrated Type N-Male connector fastens directly onto the repeater chassis, eliminating external coaxial jumper runs and brackets.
-
440–495 MHz UHF Frequency Matching: Factory-tuned for low VSWR and high-efficiency RF resonance across the commercial 440–495 MHz (440–490 MHz) spectrum.
-
Compact 7-Inch Footprint: Unobtrusive, low-profile form factor enables clean, compact installations on walls, poles, rafters, or rooftop stanchions.
-
Weatherproof IP65 Durability: Industrial-grade polymer sheathing protects the internal radiator against rain, moisture ingress, UV degradation, and environmental dust.
-
Turnkey Deployment: Pre-selected during system ordering so your repeater arrives complete with the correct antenna hardware out of the box.
Specifications
| Attribute |
Details |
| Brand |
Motorola Solutions |
| Ordering Option Number |
GA01594AA (Must Be Ordered with SLR 1000) |
| Physical Service Part Number |
HKAE4004A / HKAE4004 |
| Product Type |
External Mounted UHF Whip Antenna Option |
| Application |
Base Station & Digital Repeater Main Antenna |
| Frequency Band |
UHF |
| Frequency Range |
440–495 MHz (440–490 MHz) |
| Connector Interface |
Type N-Male (Direct Chassis Mount) |
| Antenna Height |
Approx. 7.0 in (177.8 mm) |
| Antenna Diameter |
Approx. 0.75 in (19.05 mm) |
| Integrated GPS |
No |
| Enclosure Rating Compatibility |
IP65 Weather-Sealed (Matches SLR 1000 Chassis) |
| Operating Temperature |
-30°C to +60°C (-22°F to +140°F) |
| Color Finish |
Matte Black Textured Polymer |
Compatibility
Compatible Motorola Repeater Systems
Recommended Accessories
Repeater Power & Programming Hardware
Compatible UHF Fleet Antennas & Audio
More Resources
Frequently Asked Questions
Can I buy the Motorola GA01594AA by itself without an SLR 1000?
No. GA01594AA is a manufacturer option code that must be added to your order when purchasing a new Motorola SLR 1000 repeater. If you already own an SLR 1000 and need to order this antenna as an individual standalone or replacement part, purchase physical part number HKAE4004A.
What is the relationship between GA01594AA and HKAE4004A?
They refer to the exact same physical antenna. GA01594AA is the factory configuration code selected at the time of system purchase, while HKAE4004A is the physical aftermarket replacement part number.
Does this antenna require coaxial jumper cables?
No. The antenna features an integrated N-male connector that threads directly into the repeater's exterior N-female RF port, creating a self-contained repeater assembly without the need for external transmission line runs.
What operating frequencies does this factory option cover?
This option covers the 440–495 MHz UHF spectrum (cataloged across 440–490 MHz). Ensure that your repeater's planned transmit and receive frequencies align within this band before selecting this option.
Can this antenna be used on portable handheld radios?
No. This antenna is engineered specifically for fixed repeater equipment and uses a heavy-duty commercial Type N connector. It will not mount onto portable transceivers.
Warranty
1-year manufacturer’s replacement warranty.
