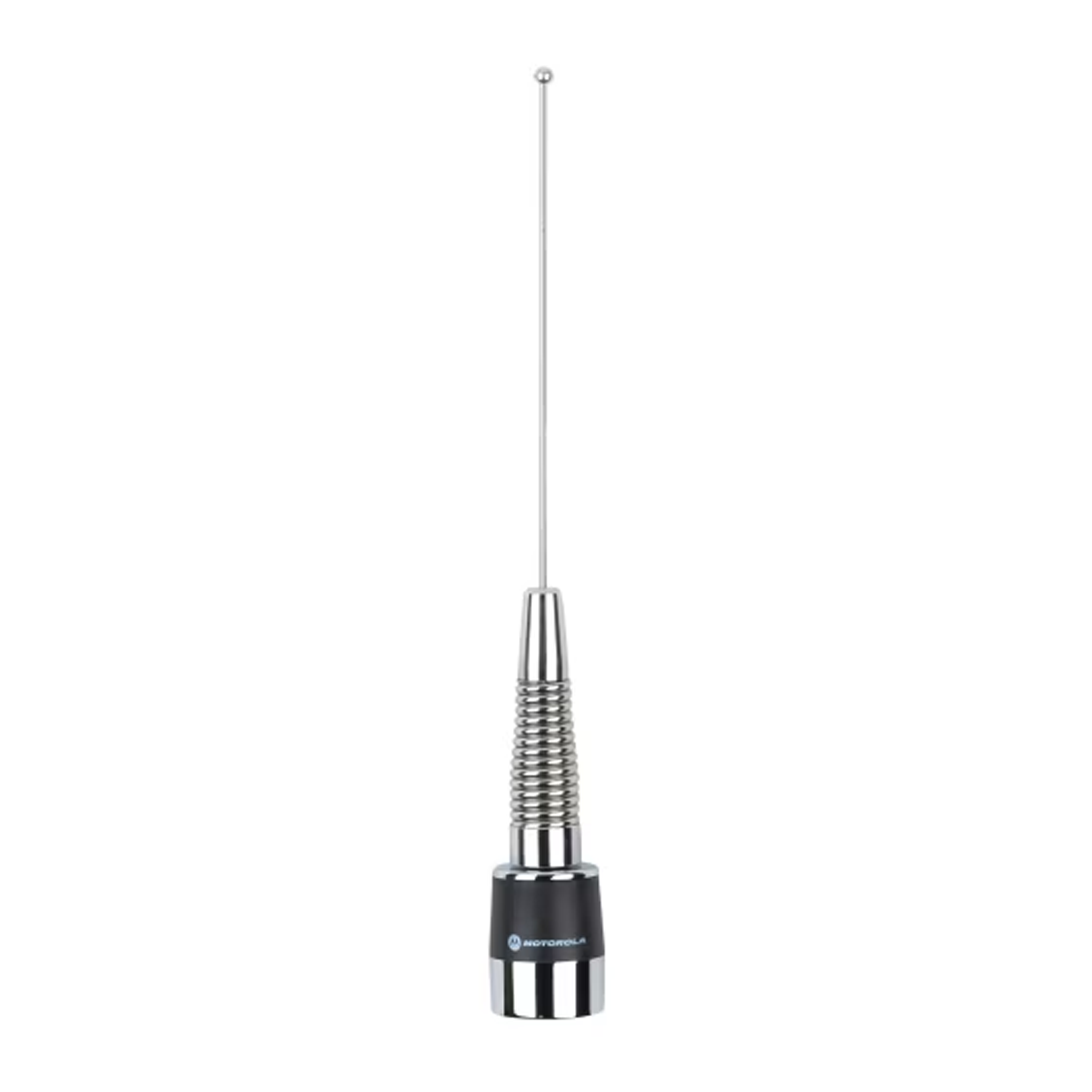

Motorola HAE6013A Wideband UHF (380–470 MHz) Through-Hole Roof Mount Antenna
2dB gain wideband UHF antenna for permanent vehicular through-hole roof mounting. Optimized for flat terrain coverage. Compatible with APX 1500–8500 series mobile radios.
The Motorola HAE6013A is a high-performance wideband UHF antenna designed for permanent through-hole roof mounting on mission-critical vehicles. Operating across the 380–470 MHz frequency band with 2dB gain, it directs signal toward the horizon — making it ideal for geographically flat regions where signals are sparse and must cover a large area. Compatible with the Motorola APX series mobile radios including the APX 1500, 2500, 4500, 5500, 6500, 7500, and 8500. The HAE6013A is the updated version of the HAE6013.
Key Features & Benefits
Wideband UHF (380–470 MHz): Covers the full UHF band used by APX series public safety mobile radios.
2dB Gain: Horizon-directed radiation pattern for improved coverage in flat geographical areas where signals are sparse.
Through-Hole Roof Mount: Permanent vehicular installation provides a secure, vibration-resistant connection for mission-critical vehicles.
Compact Profile: 11.5" height, 0.13" diameter — low-profile for professional vehicle installations.
No Integrated GPS: Dedicated solely to high-performance UHF voice and data transmission.
Specifications
| Attribute |
Details |
| Brand |
Motorola |
| Model / SKU |
HAE6013A |
| Replaces |
HAE6013 |
| Product Type |
Wideband UHF Through-Hole Roof Mount Antenna |
| Frequency Range |
380–470 MHz (UHF) |
| Gain |
2dB |
| Mounting Style |
Through-Hole (Permanent Roof Mount) |
| Height |
11.5 in |
| GPS |
No |
| Country of Origin |
Malaysia |
Compatibility
| Model |
Series |
| APX1500, APX1500ENH, APX2500, APX2500ENH |
Motorola APX Series Mobile Radios |
| APX4500, APX4500ENH, APX5500, APX6500 |
Motorola APX Series Mobile Radios |
| APX7500, APX7500 Consolette, APX8500 |
Motorola APX Series Mobile Radios |
| Enhanced APX5500, Enhanced APX6500, Enhanced APX6500/LI |
Motorola APX Series Mobile Radios |
Frequently Asked Questions
What is a through-hole roof mount antenna and how is it installed?
A through-hole roof mount antenna requires drilling a hole in the vehicle roof to pass the antenna cable through and secure the mounting base. This provides a permanent, vibration-resistant installation with superior RF grounding compared to magnetic or NMO-style surface mounts. It is the preferred mounting method for public safety and mission-critical fleet vehicles.
Why is 2dB gain recommended for flat terrain?
A 2dB gain antenna has a broader vertical radiation pattern compared to higher-gain antennas. In flat, open terrain where the repeater or base station may be at a similar elevation to the vehicle, this broader pattern ensures reliable signal contact. Higher-gain antennas compress the radiation pattern toward the horizon, which can cause signal loss in hilly or varied terrain.
Does the HAE6013A support GPS?
No. The HAE6013A is a dedicated UHF voice and data antenna with no integrated GPS capability. If your APX radio requires GPS, a separate GPS antenna or a combination UHF/GPS antenna is required.
What is the difference between the HAE6013 and HAE6013A?
The HAE6013A is the current updated revision of the original HAE6013. Both are direct replacements for each other with the same frequency range, gain, and mounting style.
Warranty
1-year manufacturer’s warranty.
