Description

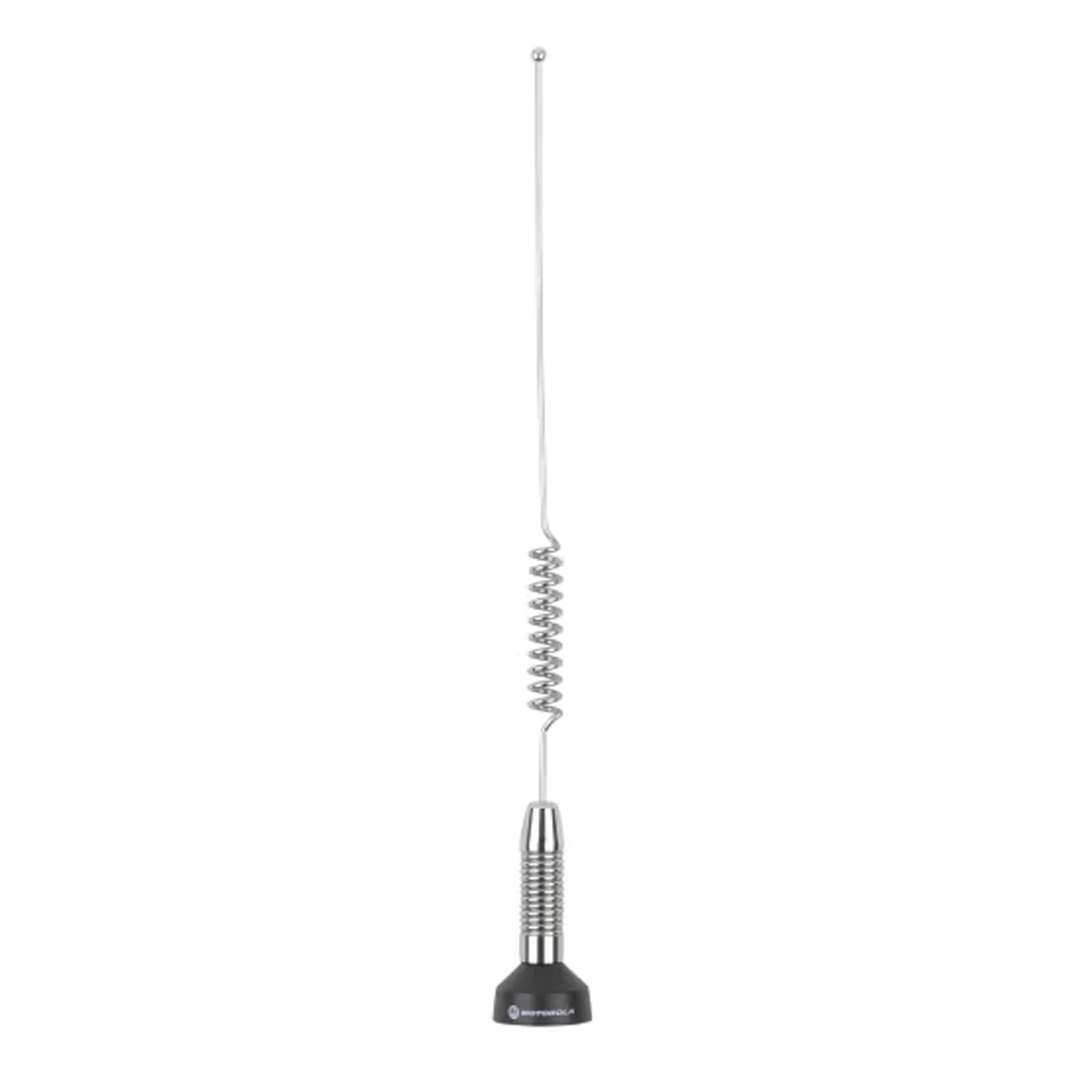

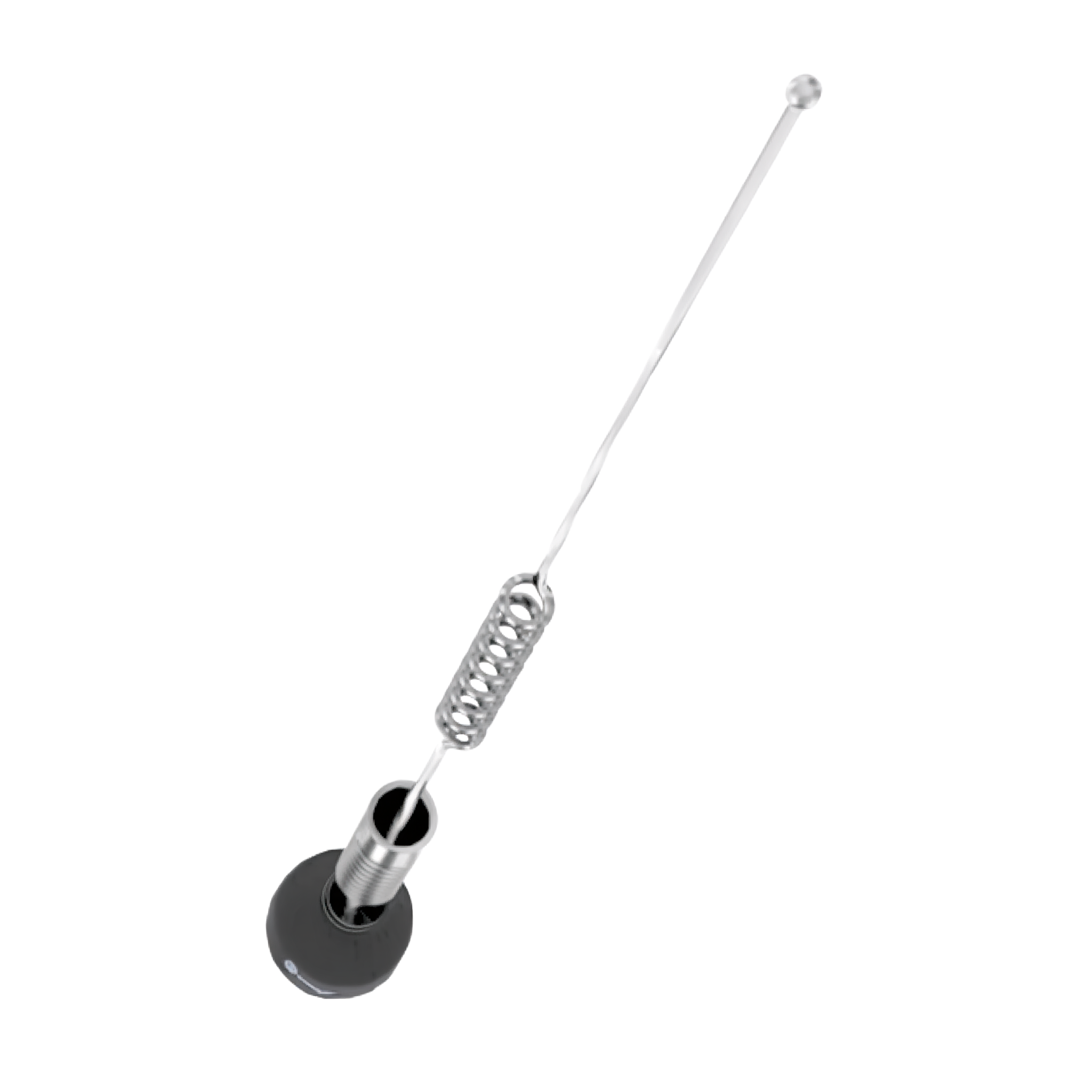

700/800 MHz Collinear Mobile Antenna
3 dB gain 762–870 MHz vehicular roof-mount antenna for Motorola APX mobile radios.
The Motorola HAF4017A (also designated as HAF4017) is a genuine OEM 3 dB gain collinear mobile antenna designed for high-performance transmission and reception across the 700/800 MHz public safety and commercial frequency bands (762–870 MHz). Engineered specifically for vehicle roof installations, the Motorola HAF4017A expands communication range and improves signal penetration in urban, suburban, and rural operating environments.
Designed for emergency response vehicles, police cruisers, fire apparatus, public works fleets, and utility trucks, the Motorola HAF4017A delivers reliable RF performance for Motorola APX series mobile transceivers. Measuring 14 inches in height and utilizing standard NMO mount bases, the collinear design provides elevated gain over standard quarter-wave whips without requiring excessive physical height. For multi-band mobile radios such as the APX 8500, each active RF band requires its own dedicated antenna connected to its corresponding RF port on the transceiver chassis.
Key Features & Benefits
-
762–870 MHz Band Coverage: Optimized for 700 MHz and 800 MHz P25 digital and analog public safety communications.
-
3 dB Collinear Gain: Enhances transmit and receive performance over standard quarter-wave antennas for extended signal range.
-
Standard NMO Base Mount: Standardized vehicular roof-mount footprint enables straightforward installation and replacement on vehicle NMO mounts.
-
Motorola HAF4017A Compact 14-Inch Profile: Delivers high gain efficiency in a low-profile 14-inch whip design to reduce overhead clearance concerns.
-
Multi-Band APX Compatibility: Functions as the dedicated 700/800 MHz RF antenna for multi-port APX mobile transceivers and consolettes.
Specifications
| Attribute |
Details |
| Brand |
Motorola Solutions |
| Model/SKU |
HAF4017A (HAF4017) |
| Product Type |
Vehicular Mobile Radio Antenna |
| Frequency Range |
762 – 870 MHz |
| Frequency Band |
700 / 800 MHz Public Safety Band |
| Gain |
3 dB Collinear |
| Integrated GPS |
No |
| Installation Type |
Vehicular Roof Mount (NMO) |
| Height |
14.0 Inches (355.6 mm) |
| Weight |
0.85 lbs (385.5 g) |
Compatibility
|
|
|
|
| APX1500 |
APX2500 |
APX4500 |
APX5500 |
| APX6500 |
APX7500 |
APX8500 |
APX7500 Consolette |
What’s Included
| Description |
SKU/Model |
Status |
| Motorola 762-870 MHz 3 dB Collinear Antenna |
HAF4017A |
Included |
Recommended Accessories
Mounting Kits & Cables
-
Motorola HKN7000A NMO Roof Mount Cable Assembly – Standard 17-foot low-loss coaxial cable assembly with NMO mount base.
Mobile Radios
-
Motorola APX 6500 P25 Single-Band Mobile Radio – Mission-critical P25 digital mobile transceiver for public safety fleets.
-
Motorola APX 8500 P25 All-Band Mobile Radio – All-band P25 mobile radio supporting dedicated 700/800 MHz RF ports.
More Resources
- No verified internal resource link available.
- Browse All Motorola Mobile Radio Accessories & Parts
Frequently Asked Questions
What is the primary function of the Motorola HAF4017A antenna?
The Motorola HAF4017A is a 3 dB gain collinear mobile antenna designed to send and receive 700/800 MHz signals on Motorola APX series vehicular mobile radios.
What frequency range does the Motorola HAF4017A cover?
The Motorola HAF4017A operates across the 762 MHz to 870 MHz frequency range.
Does the Motorola HAF4017A include an integrated GPS antenna?
No, the Motorola HAF4017A is a dedicated RF voice/data antenna and does not include an integrated GPS receiver element.
How many antennas are required for multi-band APX mobile radios?
Multi-band APX mobile radios (such as the APX 8500) feature separate RF ports for each programmed frequency band and require one dedicated antenna for each active band.
What type of mount does the Motorola HAF4017A use?
The Motorola HAF4017A mounts on standard vehicular NMO antenna bases and cable assemblies.
Is the Motorola HAF4017A a genuine Motorola OEM part?
Yes, the Motorola HAF4017A is an original equipment manufacturer mobile antenna produced directly by Motorola Solutions.
Warranty
1-year manufacturer’s warranty.
