Description

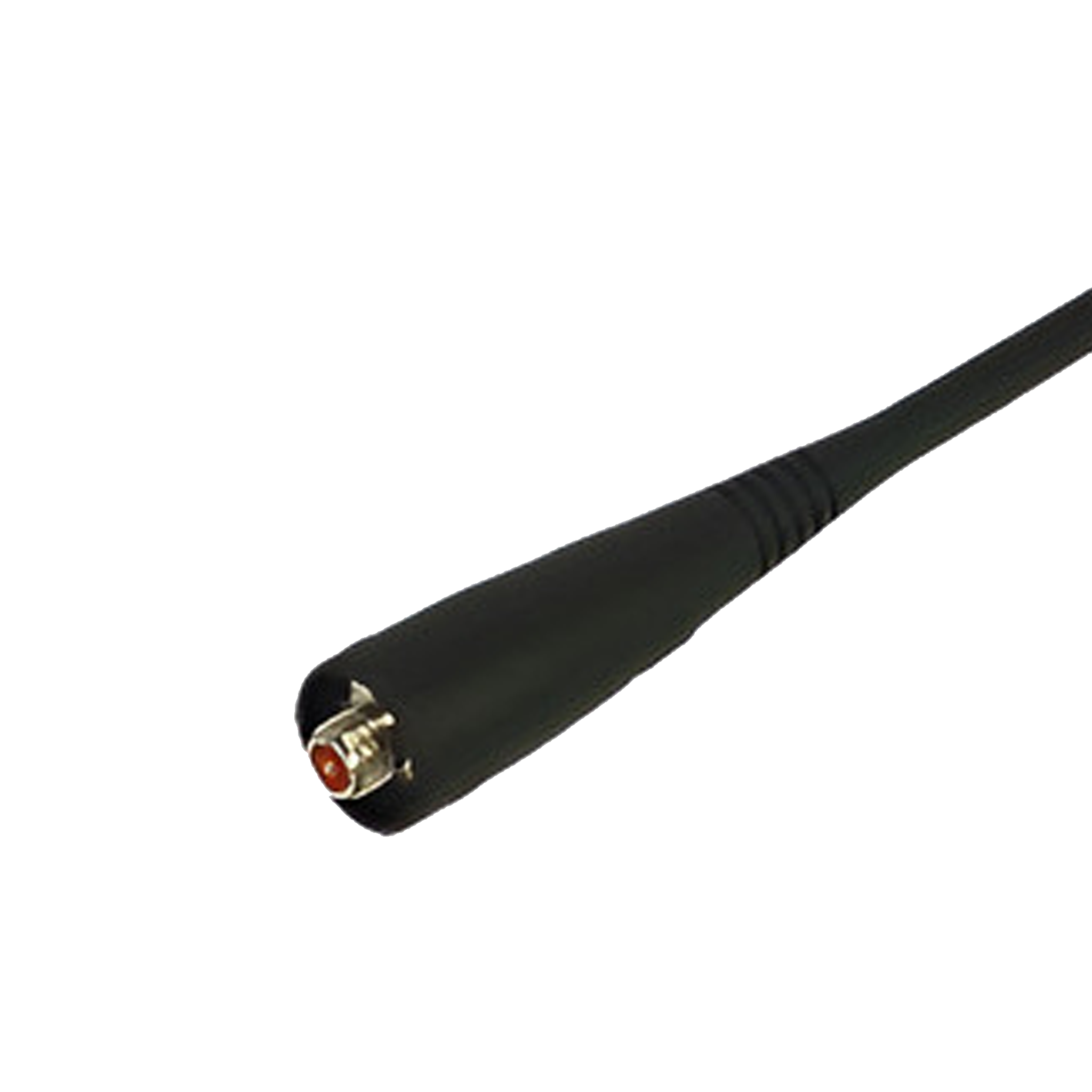

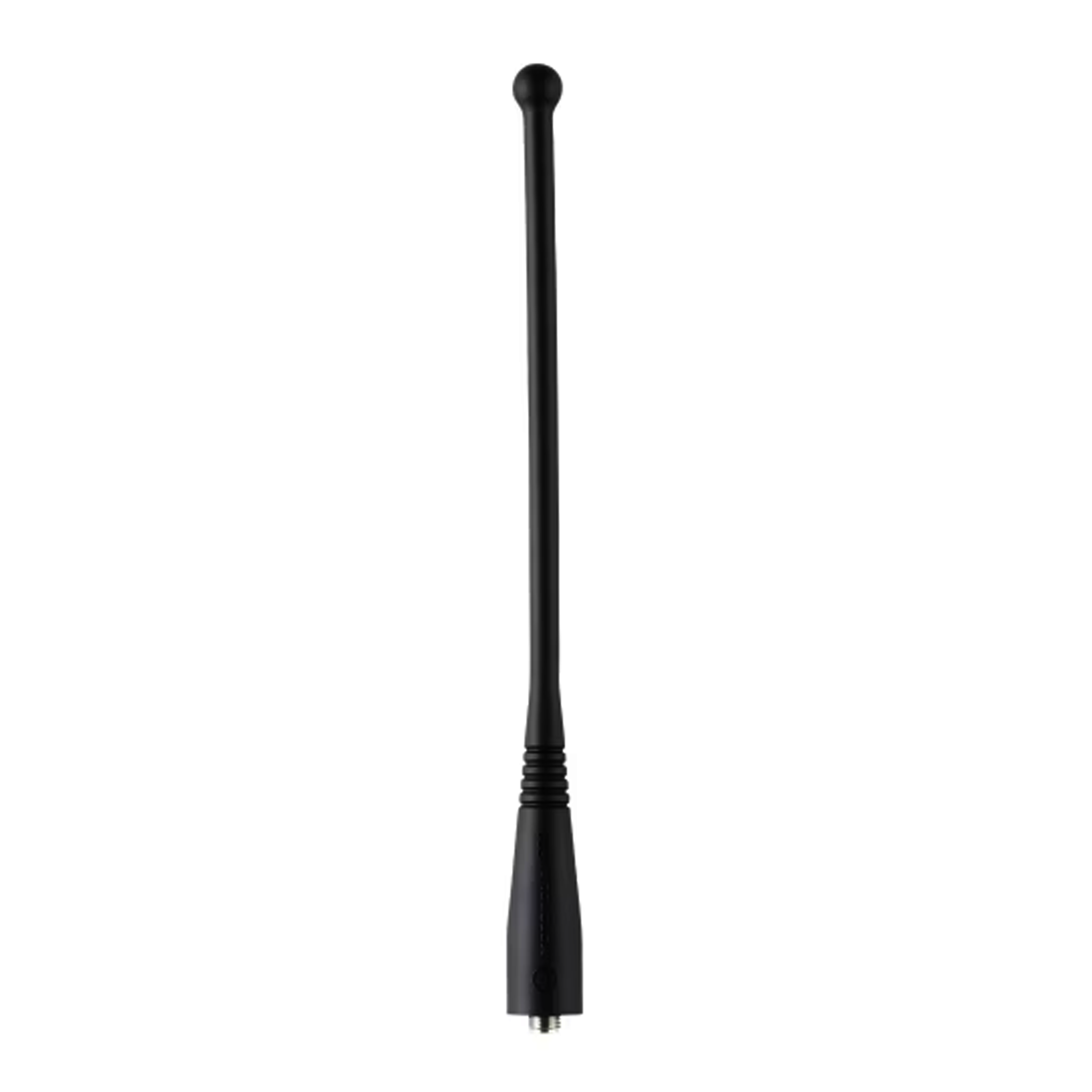

Motorola NAF5037A
800 MHz Flexible Whip Antenna (806-870 MHz)
High-Gain 1/2 Wave Design for Superior 800 MHz Coverage
The Motorola NAF5037A is a high-performance, 1/2-wave flexible whip antenna engineered specifically for the 806-870 MHz frequency band. Measuring 7 inches in height, this antenna provides significantly better gain and signal penetration compared to standard stubby antennas. The Motorola NAF5037A is the ideal solution for public safety and industrial users who operate on 800 MHz trunked systems and require maximum range in dense urban environments or large-scale facilities. The Motorola NAF5037A is the updated version of the Motorola NAF5037.
Built to withstand the rigors of daily professional use, the Motorola NAF5037A features a flexible core that resists snapping and deformation during physical activity. Its through-hole mounting style ensures a secure, low-profile fit on a wide variety of legacy and modern Motorola portable radios. By choosing the Motorola NAF5037A, you ensure that your critical voice communications remain clear and consistent even at the fringes of your system's coverage area.
The Motorola NAF5037A is a mission-critical accessory for the XTS and XPR series, providing the reliable RF performance necessary for first responders and utility workers. Its 1/2-wave design does not require a ground plane, making the Motorola NAF5037A highly efficient at radiating signal away from the user's body to reduce interference and dropouts during emergency transmissions.
Key Features & Benefits
-
Optimized 800 MHz Performance: The Motorola NAF5037A is precision-tuned for the 806-870 MHz range, ensuring peak resonance for 800 MHz trunking systems.
-
1/2 Wave High-Gain Design: Provides superior signal radiation and reception sensitivity compared to shorter, less efficient antenna types.
-
Rugged Flexibility: The 7-inch whip construction of the Motorola NAF5037A is designed to bend and flex without breaking, ideal for belt-worn use.
-
Extended Coverage Range: Increases the effective footprint of your portable radio, helping the Motorola NAF5037A maintain a link in weak signal areas.
-
Secure Fitment: Engineered for a precise match with Motorola's specialized antenna connectors to prevent moisture ingress and signal loss.
-
Legacy & Modern Compatibility: Seamlessly integrates with a vast range of Motorola portables from the classic Saber to the digital XPR 6000 series.
Specifications
-
Frequency Range: 806-870 MHz
-
Band: 800 MHz
-
Antenna Type: Whip (1/2 Wave)
-
Length: 7 Inches
-
Integrated GPS: No
-
Mounting Style: Through-hole
Compatibility
|
|
|
|
| XTS5000 |
XTS3500 |
XTS3000 |
XTS2500 |
| XTS1500 |
PR1500 |
XPR6580 |
XPR6380 |
| MT1500 |
HT1000 |
SABER |
MTP700 |
| MTP750 |
|
|
|
Recommended Accessories
- Remote Speaker Microphone (PMMN4013A)
- Replacement Li-Ion Battery (NNTN6034)
Frequently Asked Questions
-
Will this antenna improve my radio's range? Yes, the 7-inch 1/2 wave design of the Motorola NAF5037A generally provides better range than shorter stubby antennas in the 800 MHz band.
-
Does the NAF5037A support GPS? No, this is a dedicated RF voice antenna and does not include an integrated GPS element.
-
Is this antenna compatible with VHF or UHF radios? No, the Motorola NAF5037A is tuned strictly for 800 MHz frequencies and will not function on VHF or UHF bands.
Warranty
1-year manufacturer's warranty
