Description
Intrinsically Safe Power for Hazardous & High-Impact Environments

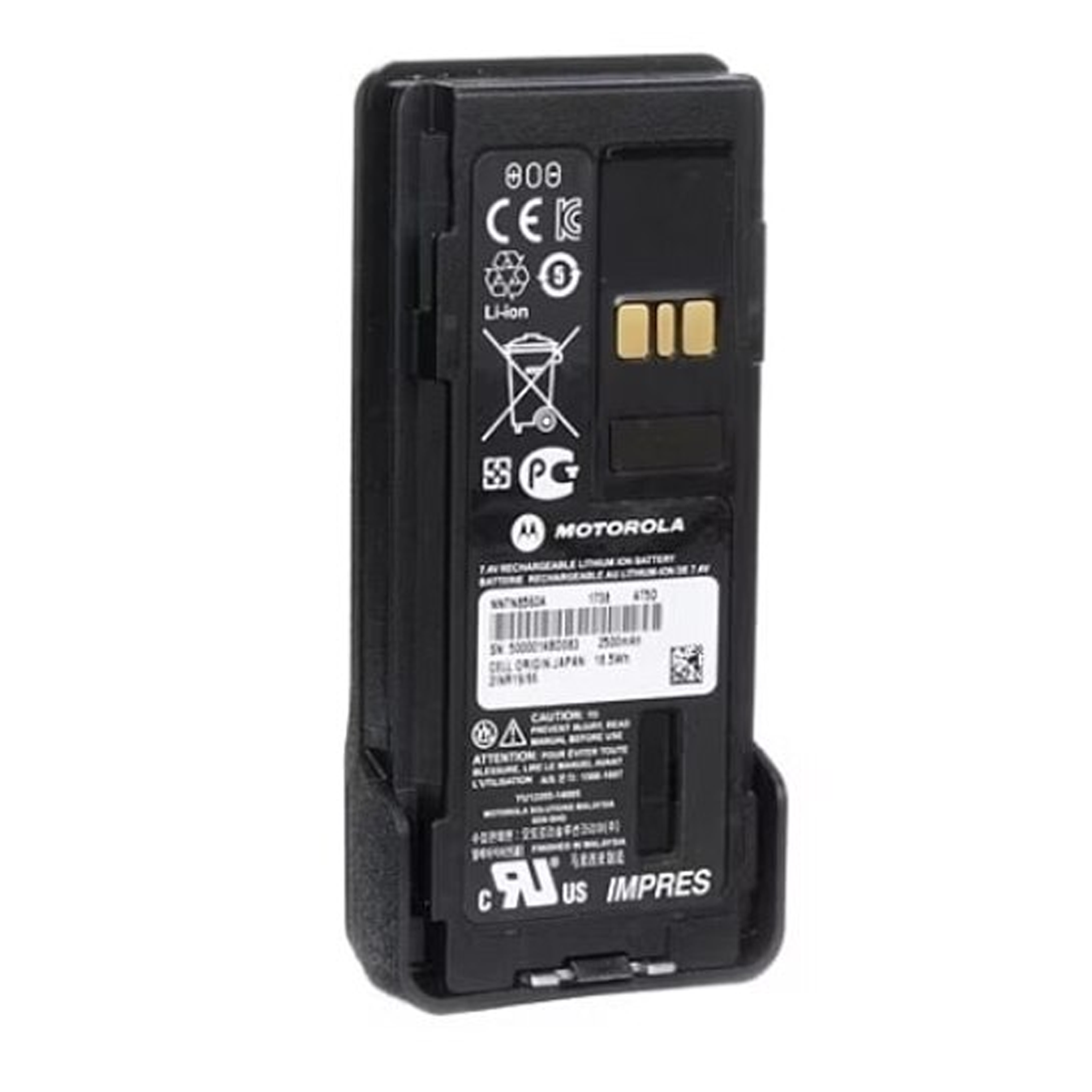

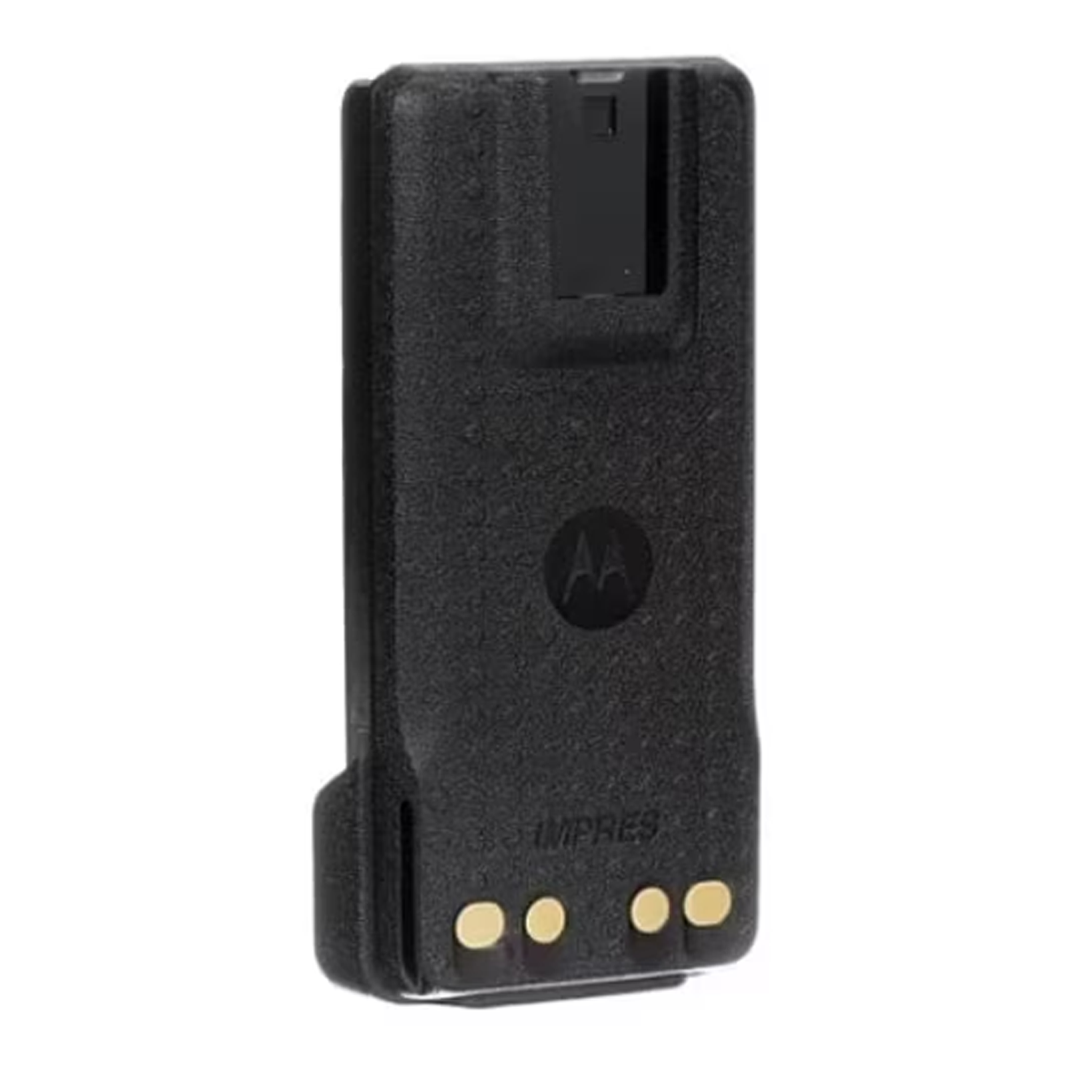

The Motorola NNTN8560C is a high-density, intrinsically safe lithium-ion battery engineered for mission-critical performance in the world's most demanding workspaces. This battery is TIA4950 certified (UL-rated), ensuring safe and reliable operation in potentially explosive atmospheres where sparks could be catastrophic. As the latest hardware iteration, the NNTN8560C replaces all previous versions, including the NNTN8560, NNTN8560A, and NNTN8560B, offering the most up-to-date safety and power management protocols.
Equipped with Motorola’s exclusive IMPRES™ technology, the NNTN8560C automates battery maintenance and optimizes life cycles by communicating real-time data to compatible chargers. This "smart" system eliminates the memory effect and ensures your fleet is always ready for extended shifts. With its ruggedized high-impact construction and an IP68 waterproof rating, this battery is built to survive complete submersion and the punishing conditions found in oil and gas, chemical processing, and heavy manufacturing sectors.
Key Features & Benefits
-
Intrinsically Safe Certification: TIA4950 (UL) rated for safe use in Division 1 hazardous locations where explosive gases or dust are present.
-
IMPRES™ Smart Technology: Automates reconditioning and tracks battery health to maximize talk-time and extend the overall service life.
-
IP68 Submersible Rating: Dust-tight and capable of withstanding water submersion, ensuring reliability in heavy rain or accidental drops.
-
High-Capacity 2500mAh: Provides substantial power density to support long-lasting communication during extended work shifts.
-
Rugged High-Impact Housing: Built with premium ABS and polycarbonate plastic to withstand extreme drops and mechanical stress.
-
Lightweight Efficiency: Designed to offer a slim profile and reduced weight without compromising on safety certifications or power output.
Specifications
| Feature |
Specification |
| Chemistry |
Lithium-Ion (Li-Ion) |
| Capacity |
2500 mAh |
| Safety Rating |
TIA4950 (UL) Intrinsically Safe |
| IP Rating |
IP68 (Submersible) |
| Technology |
IMPRES™ |
| Warranty |
1 Year Manufacturer's Warranty |
Compatibility
|
|
|
|
| APX1000 |
APX2000 |
APX3000 |
APX4000 |
| XPR7350 |
XPR7350e |
XPR7380 |
XPR7380e |
| XPR7550 |
XPR7550e |
XPR7580 |
XPR7580e |
| DGP5050e |
DGP5550e |
DGP8050e |
DGP8550e |
Recommended Accessories
- Motorola IMPRES Single Unit Charger (PMPN4175A)
- Motorola IMPRES Multi-Unit Charger (PMPN4284B)
- Motorola Heavy-Duty Spring Belt Clip (PMLN7008A)
Frequently Asked Questions
What is the difference between the "B" and "C" versions? The NNTN8560C is the most recent factory update. It maintains the same compatibility and safety ratings while utilizing the latest internal cell components for improved reliability.
Does this battery require a special charger? To utilize the automated maintenance and health tracking features, you must use a Motorola IMPRES compatible charger. However, it will charge in standard Motorola XPR chargers as well.
Is this battery safe for refinery use? Yes. The TIA4950 certification is specifically designed for hazardous environments like refineries and chemical plants where intrinsic safety is a legal requirement.
Warranty
1-year manufacturer's warranty.
