Description

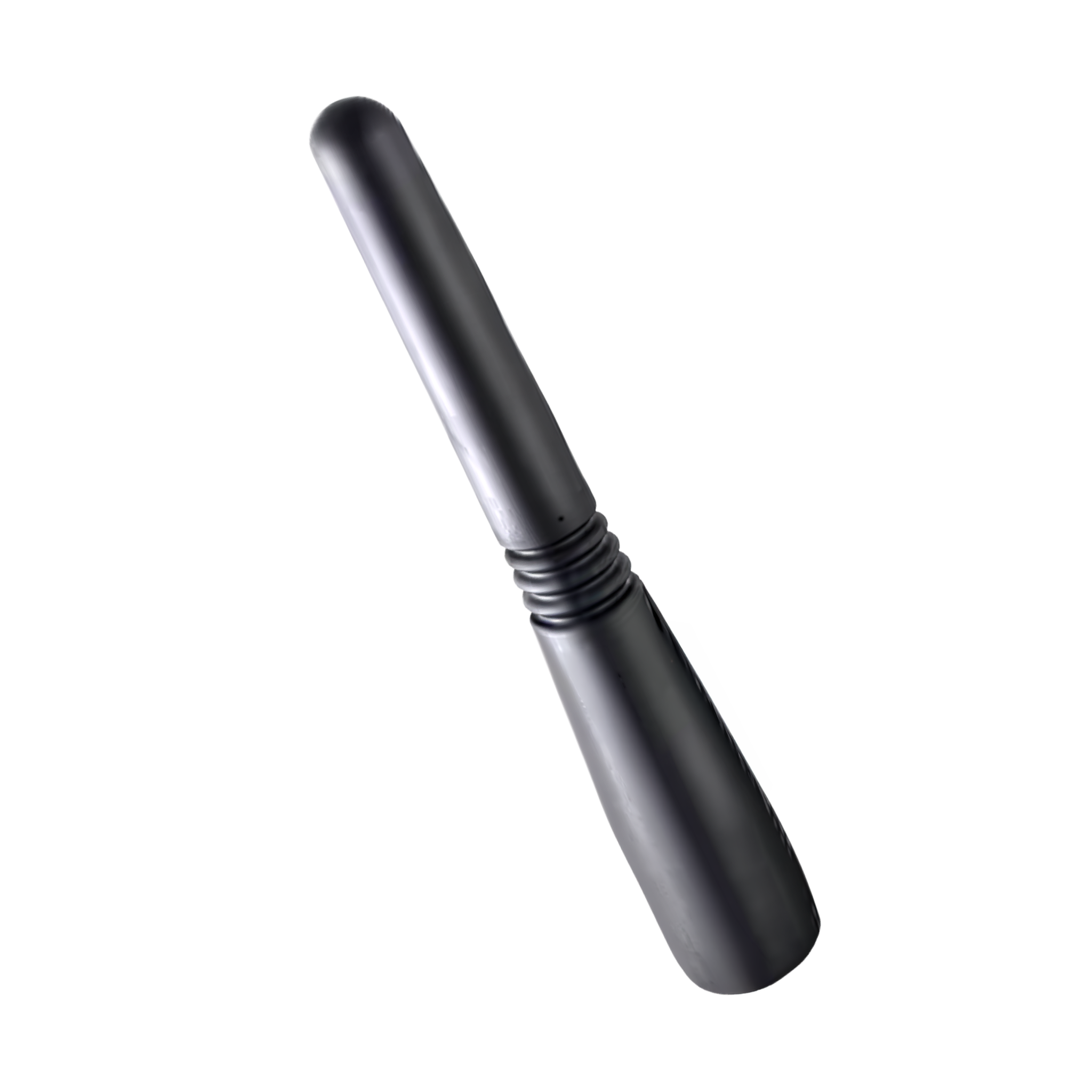

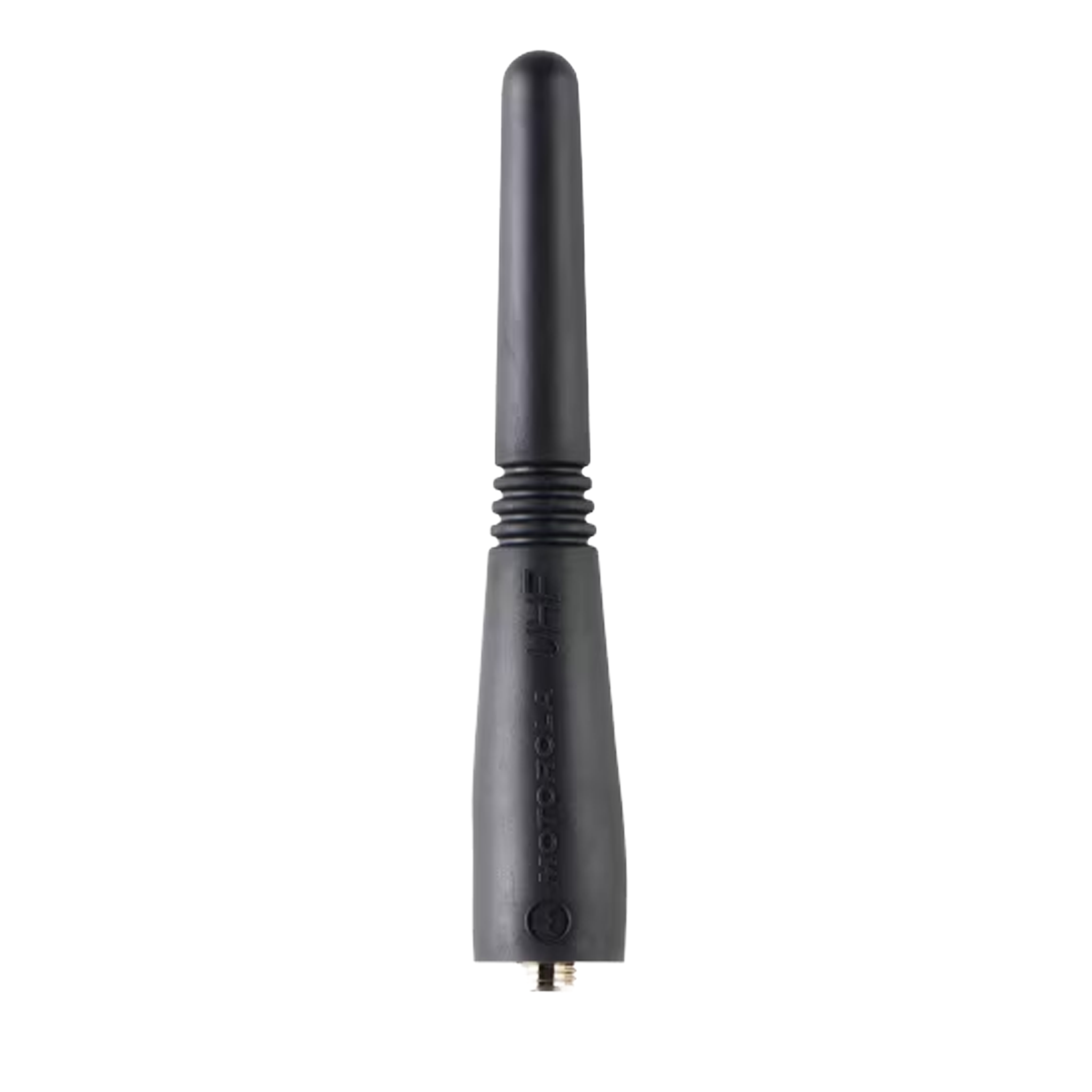

Motorola PMAE4006
UHF Stubby Helical Antenna
Low-Profile, High-Performance Communication for Belt-Worn Radios
The Motorola PMAE4006 is a professional-grade UHF stubby antenna designed for operators who prioritize mobility and discretion. Measuring just 9cm (3.5 inches) in length, this helical antenna is optimized for the 465–495 MHz frequency range. The stubby design is specifically engineered to be non-obtrusive, making it the ideal choice for security personnel, hospitality staff, and tactical teams who wear their radios on a belt or concealed under a jacket.
Constructed with a durable helical core and a rugged outer sleeve, the Motorola PMAE4006 provides reliable signal integrity while significantly reducing the snagging and poking associated with full-length whip antennas. The stud-style mounting ensures a secure, vibration-proof connection to the radio chassis, maintaining consistent performance in demanding physical environments. Whether you are managing a warehouse or conducting field operations, this antenna delivers the perfect balance of compact form and UHF wideband performance.
Key Features & Benefits
-
Compact 9cm Profile: The short, "stubby" design prevents the antenna from digging into the side or snagging on clothing, ideal for belt-worn use.
-
Optimized UHF Range: Precisely tuned for the 465–495 MHz band to ensure maximum signal clarity and transmission distance.
-
Helical Core Technology: High-quality internal windings provide robust performance and durability for years of daily use.
-
Wide Compatibility: Engineered to fit a vast range of Motorola legacy and modern portables, including the CP, HT, and GP series.
-
Rugged Construction: Built to Motorola’s "Proven Tough" standards to withstand impact, moisture, and temperature extremes.
-
Seamless Installation: Standard stud mounting allows for quick, tool-free replacement in the field.
Specifications
| Feature |
Specification |
| Frequency Range |
465–495 MHz |
| Band |
UHF |
| Type |
Stubby Helical |
| Length |
9cm (3.5 in) |
| Mounting Style |
Stud |
| Integrated GPS |
No |
Compatibility
|
|
|
|
| CP100d |
CP185 |
CP200 |
CP200d |
| CP261 |
CP264i |
DEP250 |
DP540 |
| EP350MX |
GP329+ |
GP339+ |
GP340 |
| GP344 |
GP380 |
GP388 |
HT750 |
| HT1250 |
HT1250LS |
HT1250LS+ |
HT1550XLS |
| PR860 |
EX500 |
EX600 |
P100 Series |
| PRO5150 |
PRO7150 |
PRO7150 Elite |
XiR C1200 |
| XiR C2620 |
XiR C2660 |
|
|
Recommended Accessories
- Motorola CP200d Digital Portable Radio (CP100d)
- Motorola CP100d Portable Two-Way Radio (CP200d)
- Motorola High-Capacity Li-Ion Battery (NNTN4497DR)
Frequently Asked Questions
Why choose a stubby antenna over a whip antenna? Stubby antennas like the PMAE4006 are significantly shorter, which provides better comfort for belt-worn radios and prevents the antenna from snagging. However, they may have a slightly reduced range compared to a full-length whip in very weak signal areas.
Is this antenna compatible with the R2 series? While the R2 uses a similar mount, you should verify your specific frequency plan, as the R2 is often paired with newer wideband antennas. The PMAE4006 is specifically optimized for the 465–495 MHz range.
Does this antenna support GPS? No. The PMAE4006 is a voice-only antenna and does not include an integrated GPS element.
Warranty
1-year manufacturer's warranty.
