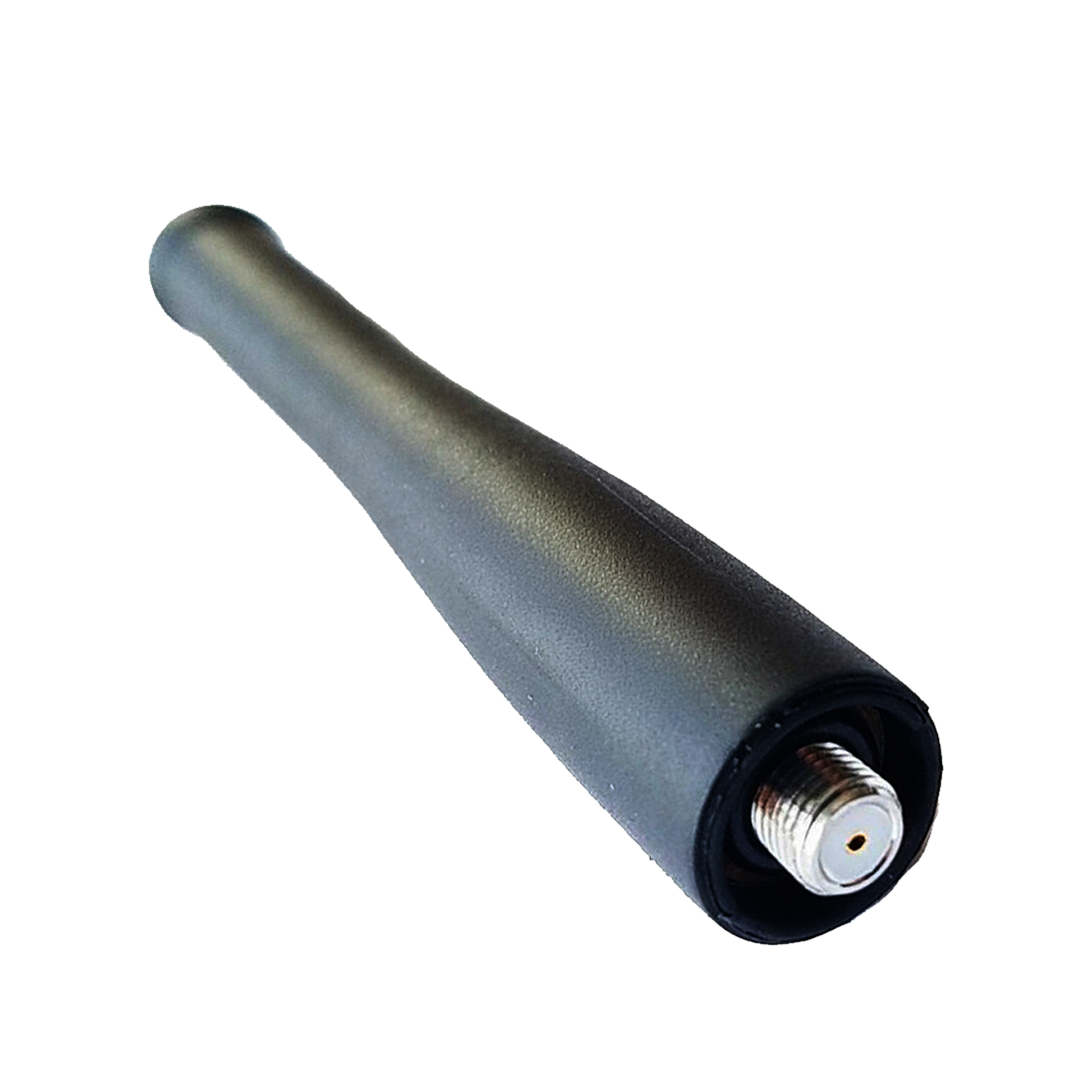

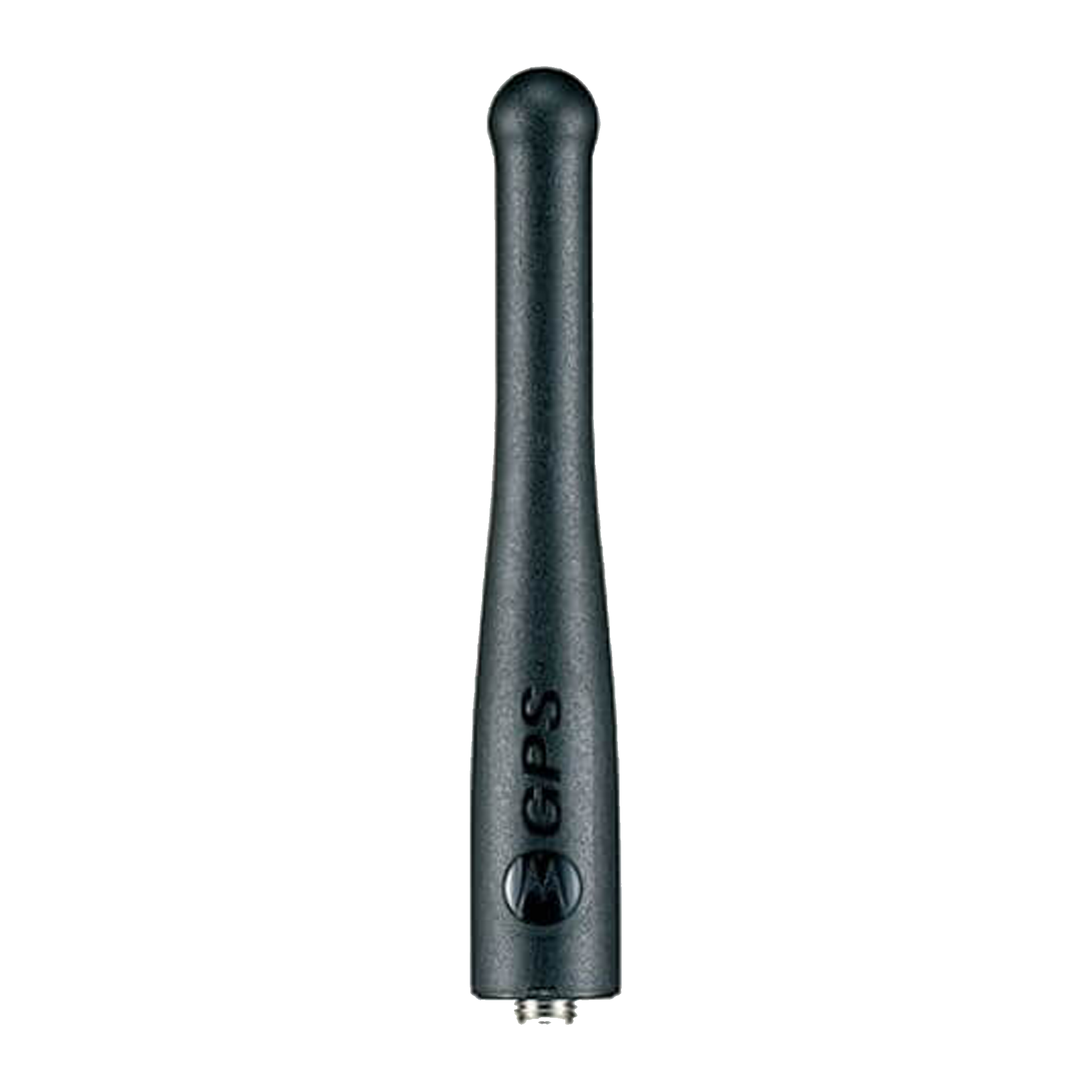

Motorola PMAE4023B
UHF Stubby Antenna (430–470 MHz)
Compact and Durable UHF/GPS Solution
The Motorola PMAE4023B is a professional-grade, combination UHF and GPS stubby antenna designed for MOTOTRBO portable radios. Operating in the 430-470 MHz frequency range, this antenna is specifically engineered for users who require a low-profile communication solution without sacrificing GPS location tracking capabilities. The Motorola PMAE4023B is the updated version of the Motorola PMAE4023A and Motorola PMAE4023.
Standing at only 9 cm (3.5 inches) tall, this "stubby" antenna is the ideal choice for professionals who wear their radios on a belt or a chest harness. Its short, non-obtrusive design prevents the antenna from poking the user or snagging on clothing and equipment. Despite its size, it features a rugged helical design with a capless sheath, providing maximum flexibility and impact resistance in demanding work environments.
Key Features
-
Integrated GPS: Features built-in GPS capability, allowing your radio to support location-based services and fleet tracking.
-
Low-Profile Design: At only 3.5 inches, it is perfect for covert operations or for users who find standard whip antennas too cumbersome.
-
Rugged Helical Construction: Built to handle the rigors of field use with a flexible, capless sheath that resists snapping or cracking.
-
Intrinsically Safe (IS) Rated: Certified for use in hazardous environments when paired with compatible intrinsically safe radios.
-
Frequency Color Coding: Features a Green color-coded band at the base for easy visual identification of the 430-470 MHz frequency range.
-
SMA-Female Mount: Utilizes a standard SMA-Female connector for a secure, threaded fit to the radio housing.
Compatibility
|
|
|
|
| DGP4100 |
DGP6100 |
DP3000 |
GP329PLUS |
| GP339PLUS |
GP344 |
GP388 |
XPR6100 |
| XPR6300 |
XPR6350 |
XPR6500 |
XPR6550 |
| XPR7550IS |
|
|
|
Specifications
-
Part Number: PMAE4023B
-
Frequency Band: UHF
-
Frequency Range: 430-470 MHz
-
Integrated GPS: Yes
-
Connector Type: SMA-Female
-
Length: 9 cm (3.5")
-
Color Code: Green
-
Safety Rating: Intrinsically Safe (IS)
-
Manufacturer: Motorola
Benefits
-
Enhanced Comfort: The short form factor significantly improves user comfort when the radio is worn on the belt or at the hip.
-
Mission-Ready Durability: Flexibility ensures the antenna can bend and return to its original shape, reducing the need for frequent replacements.
-
Multi-Functionality: Eliminates the need for separate antennas by combining high-performance UHF voice/data transmission with GPS tracking.
Warranty
1-year manufacturer's warranty.
