Description
Professional IMPRES 2-Wire Surveillance Earpiece with In-Line Microphone
Genuine Motorola covert acoustic accessory in discreet beige featuring a quick-disconnect translucent tube, separate receive/transmit lines, and smart IMPRES audio optimization.

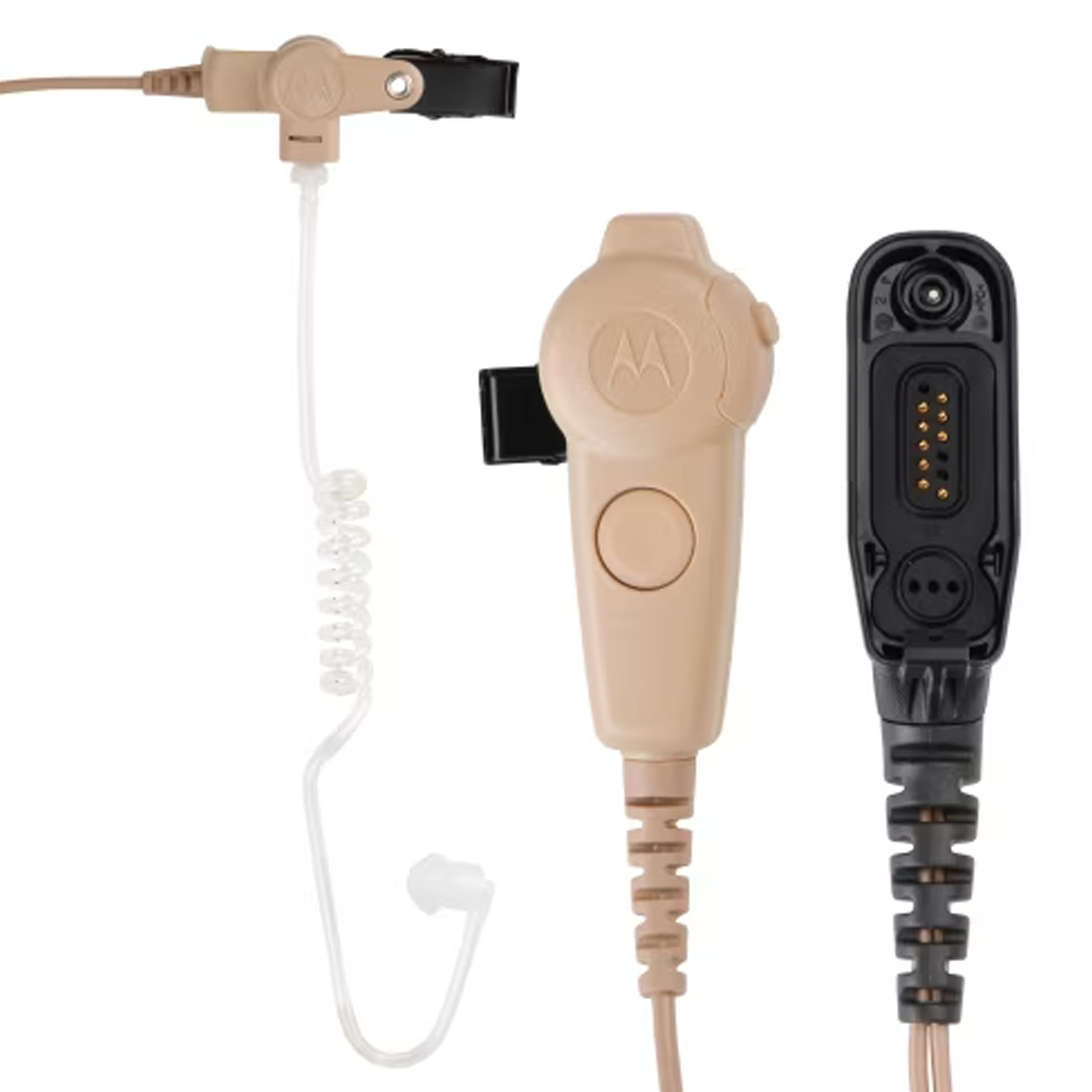

The Motorola PMLN6130A (catalog part PMLN6130 / PMLN6130A) is an authentic original equipment manufacturer (OEM) commercial 2-wire covert surveillance earpiece kit designed for high-stakes security operations, executive protection, hospitality management, and public safety personnel. Engineered in an unobtrusive beige finish to blend naturally against lighter clothing and skin tones, this surveillance kit features an ergonomic quick-disconnect translucent acoustic tube paired with a dedicated secondary wire housing an in-line microphone and tactile Push-To-Talk (PTT) switch with a programmable button.
Powered by Motorola’s proprietary IMPRES smart audio technology, the Motorola PMLN6130A automatically negotiates optimal gain parameters and frequency equalization when connected to the radio. This advanced processing suppresses ambient environmental background noise while boosting vocal clarity and preventing audio distortion, even when whisper-level transmissions are required. Built with flexible, heavy-duty cabling and precision strain reliefs, the assembly features a quick-disconnect acoustic coupling that allows users to clean, sanitize, or swap personal ear tubes between work shifts without replacing the primary radio harness. Operating under commercial FCC Licensing standards, the PMLN6130A delivers clear communications across MOTOTRBO XPR, DP, DGP, and APX series portable transceivers.
Key Features & Benefits
-
IMPRES Intelligent Audio Technology: Communicates directly with the host radio to auto-optimize microphone gain and audio output levels, ensuring clear reception in variable acoustic environments.
-
Streamlined 2-Wire Architecture: Separates the acoustic earpiece line from the microphone and PTT harness, allowing the PTT module to be routed down a sleeve or clipped to a lapel.
-

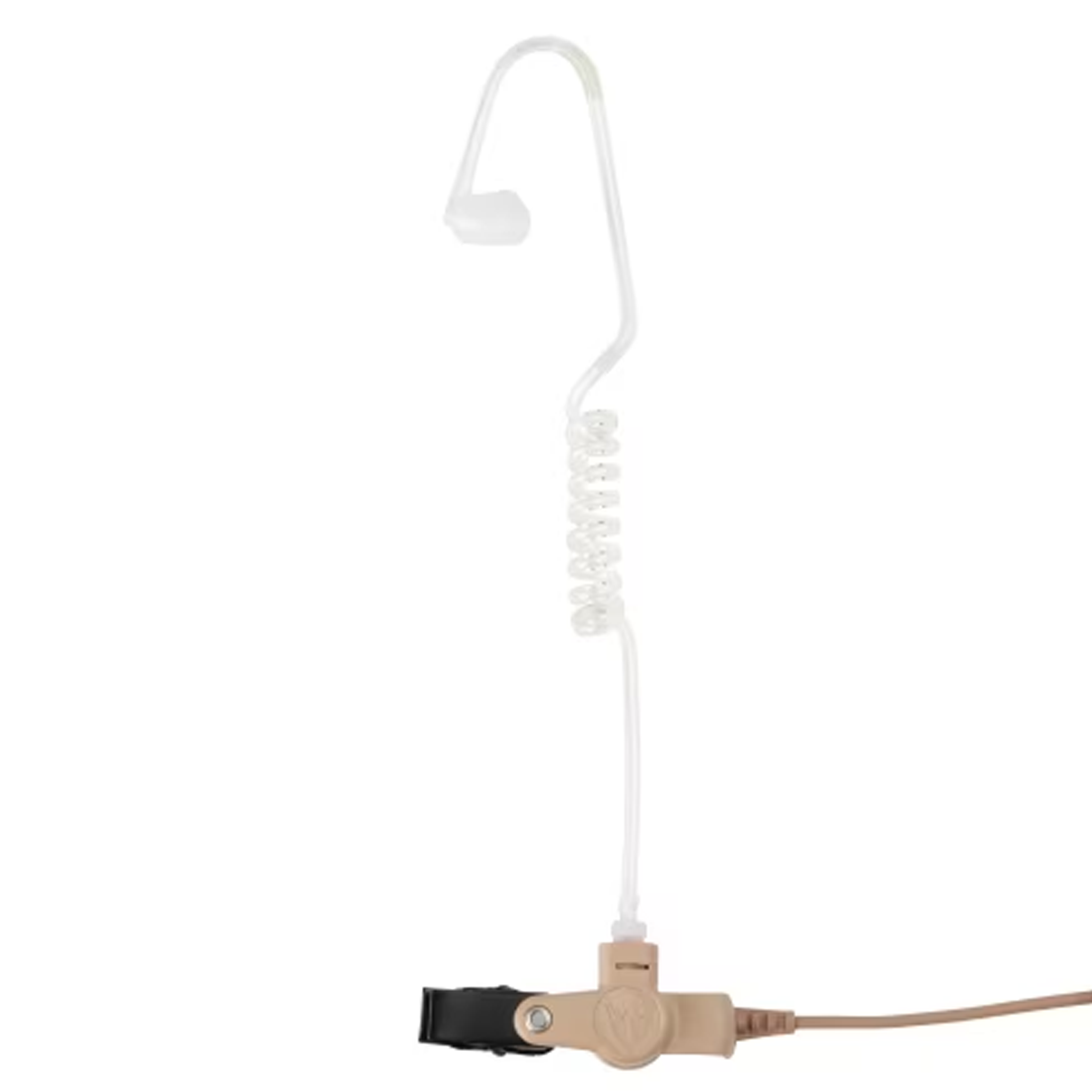

Quick-Disconnect Translucent Tube: Medical-grade clear coiled tube detaches instantly for effortless sanitization, acoustic tube swaps, or shift-sharing between personnel.
-
Discreet Beige Color Profile: Neutral beige wiring and housing provide visual concealment under dress shirts, light blazers, or light-colored tactical gear.
-

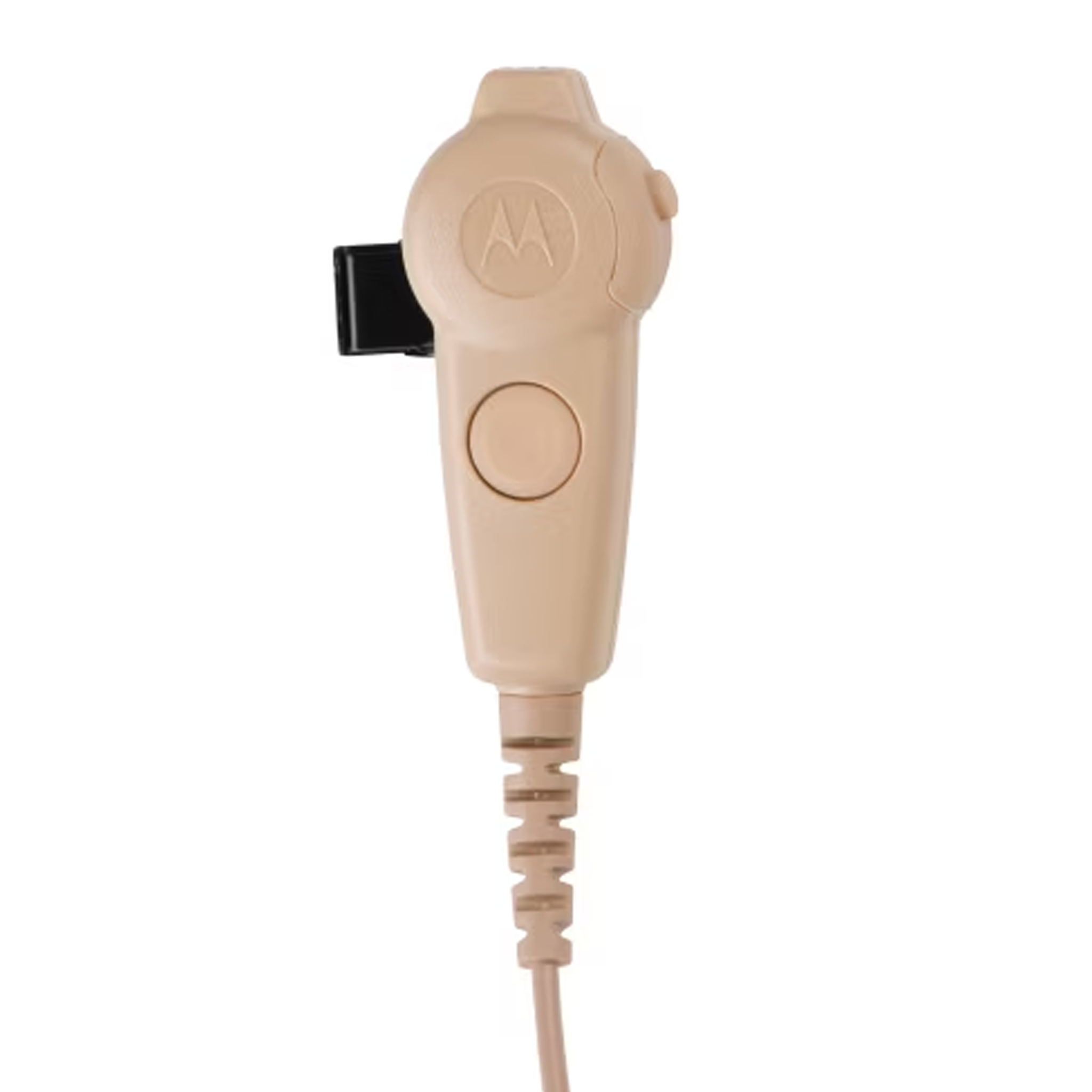

Integrated In-Line Microphone & PTT: Sensitive electret microphone element captures clear speech while the tactile PTT switch includes an accessible programmable control button.
-
Broad Multi-Platform Compatibility: Factory certified for seamless operation across APX, MOTOTRBO XPR 6000/7000, and DGP series portable transceivers.
Specifications
| Attribute |
Details |
| Brand |
Motorola Solutions |
| Model / SKU |
PMLN6130A / PMLN6130 |
| Product Type |
IMPRES 2-Wire Surveillance Kit with In-Line Mic & PTT |
| Wiring Configuration |
2-Wire Architecture (Separate Earpiece and PTT/Mic Leads) |
| Technology |
IMPRES Smart Audio Optimization |
| Acoustic Tube |
Quick-Disconnect Translucent Coiled Acoustic Tube |
| Microphone Type |
In-Line Omnidirectional Electret Condenser |
| Push-To-Talk |
In-Line Tactile PTT Button with Programmable Key |
| Wearing Style |
In-Ear with Clear Acoustic Tube (Left or Right Ear) |
| Dimensions (W x H x L) |
0.50 x 7.50 x 1.00 in (12.70 x 190.50 x 25.40 mm) |
| Weight |
0.35 lbs (158.8 g) |
| Color Finish |
Covert Beige Housing and Wiring |
Compatibility
Compatible Motorola Portable Two-Way Radios
|
|
|
|
| APX2000 |
APX5000 |
APXNEXT |
APXNEXTXE |
| DGP4100 |
DGP5050e |
DGP5550e |
DGP6100 |
| DGP8550e |
DP3000 |
DP4400 |
DP4400e |
| DP4401 |
DP4401e |
DP4401ESMA |
DP4600 |
| DP4600e |
DP4601 |
DP4601e |
DP4800 |
| DP4800e |
DP4801 |
DP4801e |
DP4801ESMA |
| MTP6000SERIES |
MTP6650 |
MTP850FuG |
MTP850S |
| XPR6100 |
XPR6350 |
XPR6380 |
XPR6550 |
| XPR6580 |
XPR7350 |
XPR7350e |
XPR7380 |
| XPR7380e |
XPR7550 |
XPR7550e |
XPR7580 |
| XPR7580e |
|
|
|
What’s Included
| Description |
SKU/Model |
Status |
| Motorola IMPRES 2-Wire Surveillance Kit (Beige) |
PMLN6130A |
Included |
| Quick-Disconnect Translucent Acoustic Tube Assembly |
Integrated |
Included |
| Clear Hypoallergenic Silicone Mushroom Ear Tip |
Integrated |
Included |
| Rotating Garment / Lapel Clothing Clip |
Integrated |
Included |
Recommended Accessories
Batteries & Power Hardware
Antennas & Programming Hardware
More Resources
Frequently Asked Questions
What does the "A" suffix at the end of part number PMLN6130A mean?
The "A" suffix designates the latest official manufacturing revision from Motorola Solutions. PMLN6130A represents the newest production version of the base part number PMLN6130, incorporating reinforced cable shielding and updated IMPRES firmware optimization while delivering complete backward compatibility.
What is the difference between a 1-wire and a 2-wire surveillance kit?
A 1-wire kit integrates the earpiece, microphone, and PTT into a single branched lead intended for lapel placement. A 2-wire kit like the PMLN6130A splits the earpiece and PTT/microphone into two independent leads, enabling you to route the earpiece up to the collar while extending the PTT/microphone cord down a shirt sleeve for palm operation or concealed under an outer jacket.
How does IMPRES audio technology benefit surveillance operations?
Motorola IMPRES audio technology dynamically manages input gain levels. If an operative is speaking in a whisper to avoid detection, IMPRES boosts microphone sensitivity to keep the transmission audible; if the user is in a loud environment, it compresses extreme peaks to protect the recipient's hearing and prevent signal distortion.
Can the acoustic tube be detached for cleaning or shift-sharing?
Yes. The PMLN6130A features an integrated quick-disconnect twist-lock fitting. This allows individual staff members to detach their acoustic tube and silicone ear tip for sanitizing or swap in their own personal acoustic tubes while sharing the underlying wiring harness between shifts.
Why choose a beige surveillance kit instead of black?
The beige colorway is designed specifically for undercover and covert assignments where black cables stand out against light-colored dress shirts, blazers, uniforms, or skin tones.
Warranty
1-year manufacturer’s replacement warranty.
