Description
Mag One Swivel Earpiece with In-Line Microphone, PTT and VOX Switch

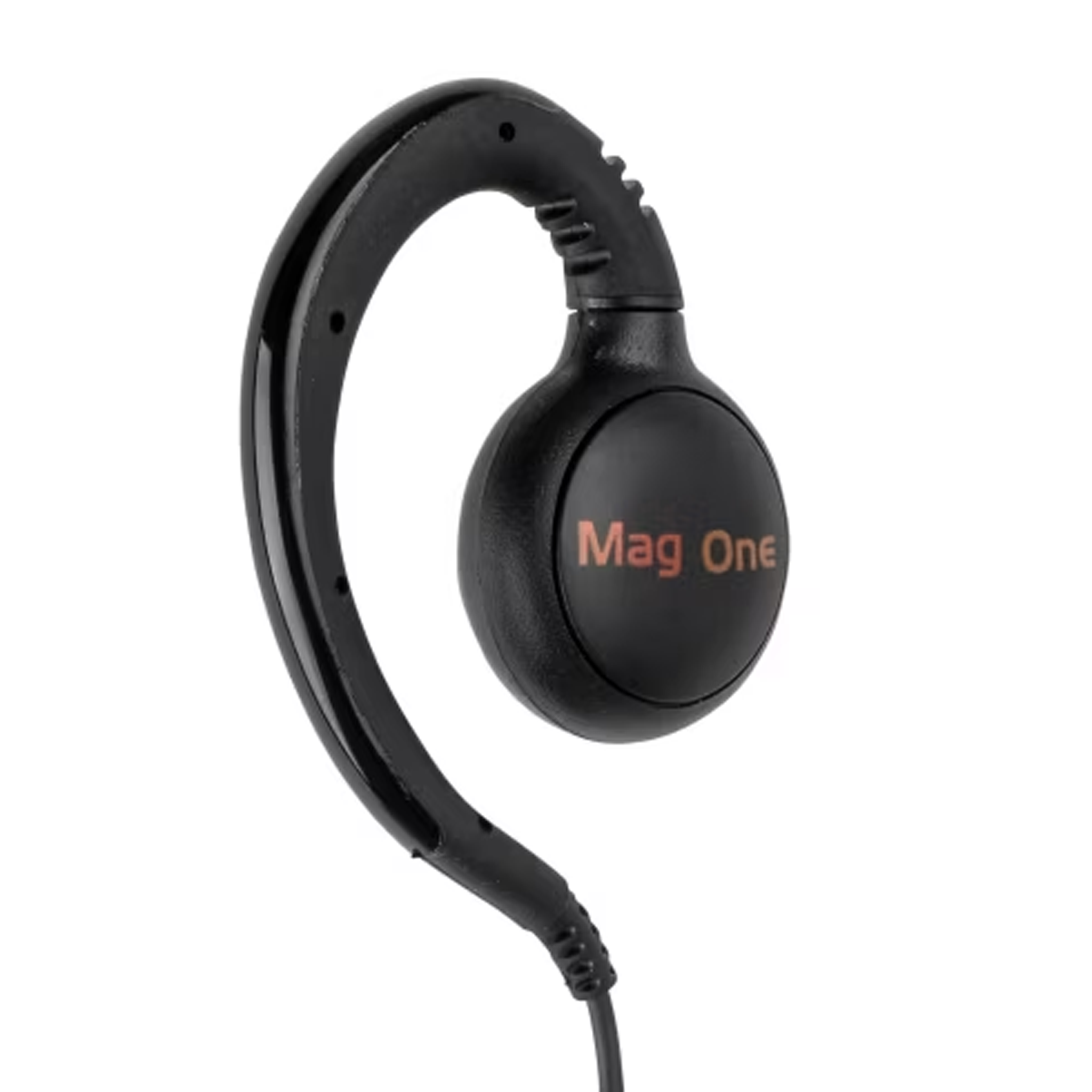

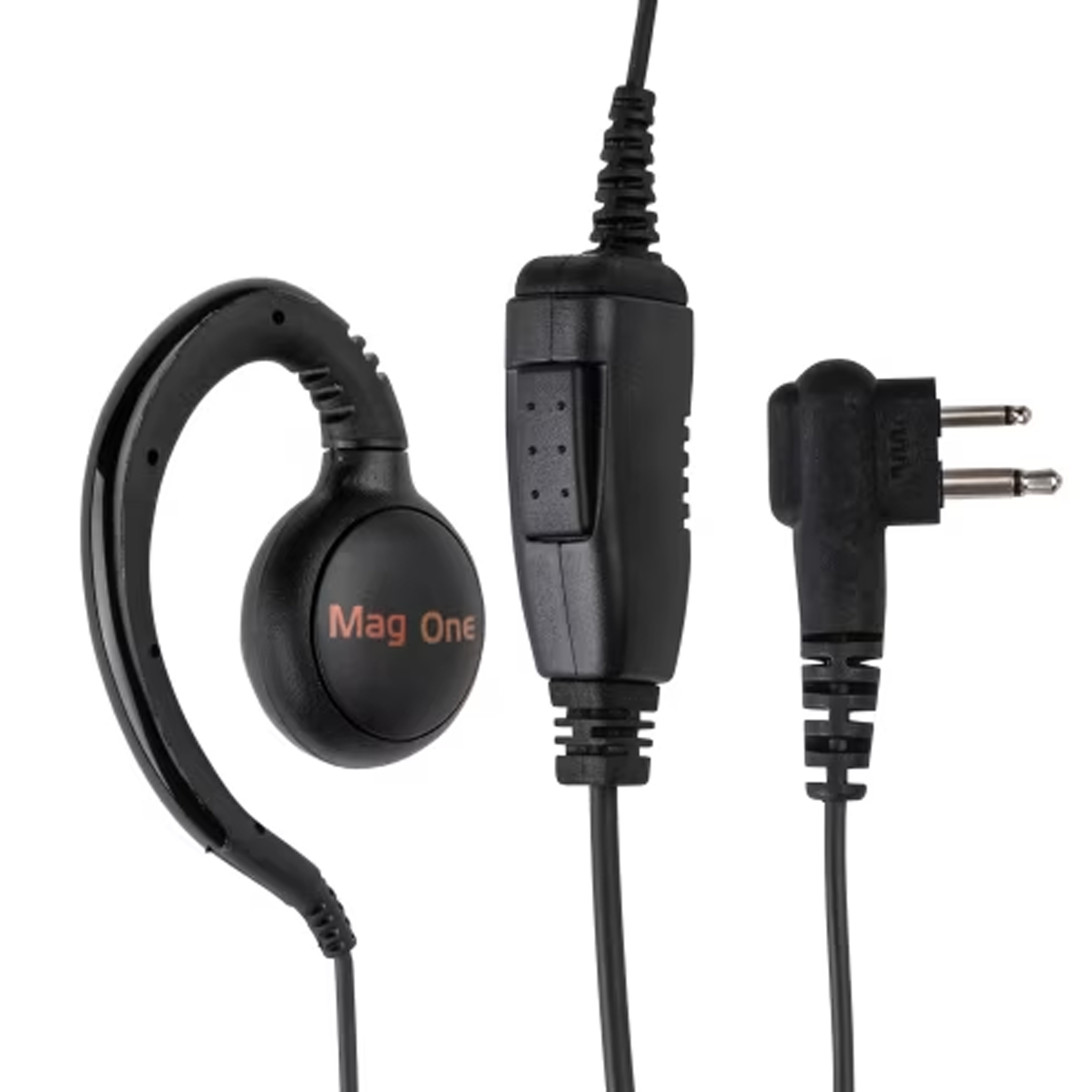

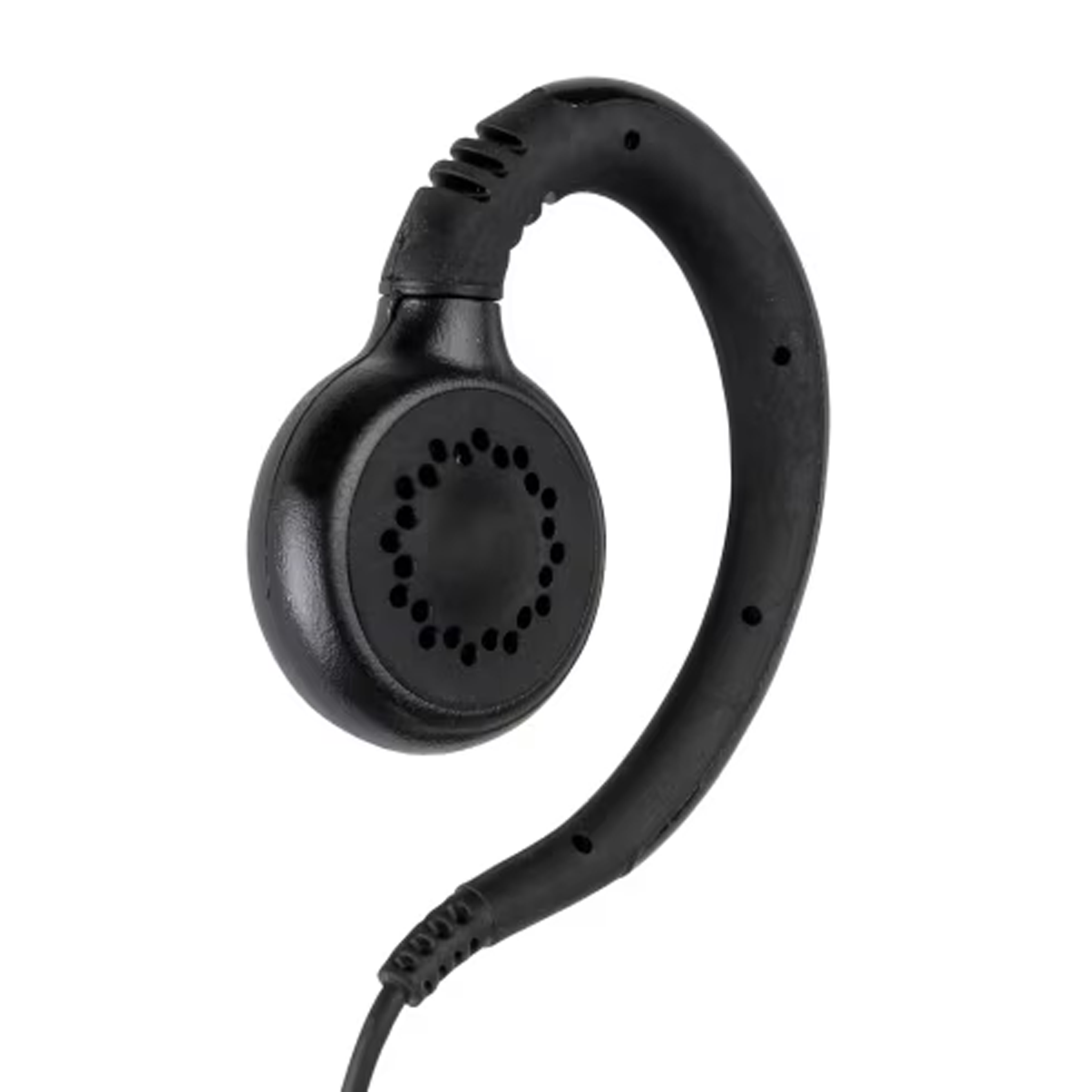

The Motorola PMLN6532A Mag One swivel earpiece combines an over-the-ear C-shell design with an in-line microphone and push-to-talk (PTT) control for supported Motorola radios. The swivel allows left- or right-ear positioning, providing an alternative to an acoustic-tube ear insert.
On a retail floor, at an event entrance or during a hospitality shift, position the microphone where it is easy to reach and route the cable with room for normal movement. You can then listen through the earpiece and press PTT to speak while the radio remains carried. Check fit and audio before starting work rather than assuming one adjustment will suit every wearer.
The accessory includes a VOX switch, but voice-activated transmission depends on the exact radio's support and configuration. The switch does not add VOX capability to an unsupported radio. PMLN6532 is also used as a part reference in this listing; confirm the supplied revision when replacing an existing unit.
Key Features
-
Swivel C-shell wearing style: Positions the speaker at the outer ear and allows adjustment for either ear.
-
In-line microphone and PTT: Keeps manual transmit control accessible without lifting the radio.
-
VOX selection: Supports selecting voice-activated operation where the connected radio and its configuration permit it.
-
Motorola 2-pin connection: For the supported applications below, not a universal connection for every Motorola radio.
-
Black finish: A practical audio option for public-facing teams that prefer a swivel earpiece rather than an acoustic tube.
Specifications
| Attribute |
Details |
| Brand |
Motorola / Mag One |
| Part number |
PMLN6532A; PMLN6532 also appears as a part reference |
| Product type |
Wired swivel earpiece with microphone and transmit control |
| Wearing style |
Over-the-ear C-shell |
| Ear positioning |
Left or right, with swivel adjustment |
| Microphone |
In-line; described in the existing listing as omnidirectional |
| Controls |
In-line PTT and VOX switch |
| Connector |
Motorola 2-pin, subject to exact-radio compatibility |
| Color |
Black |
| Previously listed dimensions |
2.25 × 1.00 × 1.50 inches (57.15 × 25.40 × 38.10 mm), H × W × L. Measurement scope is not established; do not use these figures as cable length or a fit guarantee. |
Compatibility
The seven radio references from the existing description are retained below. Confirm the exact model, accessory interface and required features before purchasing. Physical connection and VOX availability are separate checks.
| Listed radio models |
Selection guidance |
| BC400D, BPR50dx, X10D |
Check the exact radio version and required PTT/VOX operation. |
| DEP250, DEP450, DP1400 |
Confirm the model suffix and accessory connection before substituting an existing earpiece. |
| R2 |
Confirm the radio configuration if VOX operation is required. |
Additional model names in tags or filters are not independent evidence of compatibility. Do not assume every Motorola 2-pin radio supports the same accessory functions, or substitute this connection for an SL-, TLK- or XPR-series connection based on appearance.
What's Included
| Item |
Details |
Status |
| Mag One swivel earpiece assembly |
PMLN6532A with in-line microphone, PTT and VOX switch |
Included |
| User instruction guide |
As identified in the existing package listing |
Included |
| Two-way radio |
Compatible radio required for operation |
Sold separately |
| Charging cable and belt clip |
Separate radio accessories, not part of the earpiece assembly |
Sold separately |
Setup and Everyday Use
- Turn the radio off before connecting or removing the accessory, following the radio's instructions.
- Seat the correct connector fully without forcing it. Keep the connection clean and dry.
- Adjust the swivel for the preferred ear without forcing the hinge beyond its travel.
- Position the microphone away from rubbing clothing and leave sufficient cable slack for head movement.
- Begin with low listening volume, then test receive audio and PTT transmission with another radio.
- If VOX is needed, confirm radio support and setup, then test it in the intended working environment before relying on it.
Suggested Alternative Earpieces
These separately sold products are alternative audio accessories, not attachments for the PMLN6532A. Select the exact connector for the radio in use.
Recommended Radio Accessories
These are accessories for supported radios, not components needed to power or connect the earpiece.
Replacement Ear-Contact Parts
The previous recommendation labeled a link as an RLN6232A foam earpad, but the destination is RLN6282A rubber ear tips for acoustic-tube surveillance accessories. The separate RLN6232 foam earplug kit is also a different product. Neither is established here as a replacement cover for the PMLN6532A swivel speaker. Confirm the correct replacement part before ordering.
Frequently Asked Questions
Can I wear the PMLN6532A on either ear?
Yes. The swivel C-shell design permits left- or right-ear positioning. Adjust gently and check fit; comfort varies by wearer and is not guaranteed for an entire shift.
Does the VOX switch provide automatic transmission on every radio?
No. Voice-activated operation requires a compatible radio and the appropriate configuration. Check the radio instructions and test the complete setup. The earpiece switch does not supply missing radio functionality.
Can I use manual push-to-talk instead?
The assembly includes an in-line PTT button. Use the appropriate PTT/VOX setting for the connected radio, press PTT to transmit and release it to listen.
Is this a receive-only earpiece for a speaker microphone?
No. This is a radio-connected earpiece with microphone and transmit controls. It is not described as a receive-only accessory for a remote speaker microphone's listening jack.
Does a Motorola 2-pin plug guarantee compatibility?
No. Match the exact radio and supported accessory functions. Connector appearance alone does not establish electrical compatibility or VOX support.
How does it differ from an acoustic-tube surveillance kit?
The swivel style places the speaker at the outer ear. An acoustic-tube kit routes sound through a tube to an ear insert. Choose based on wearing preference, fit and the exact radio connection, not a promise that either style will be comfortable for everyone.
Does it provide hearing protection or block surrounding noise?
No hearing-protection rating is established here. Do not substitute it for required protective equipment or assume it guarantees awareness of alarms or nearby conversations.
Are the listed dimensions the cable length?
No cable-length specification is established. The earlier H × W × L figures are preserved as a reference with their measurement scope unconfirmed.
What should I check if audio or PTT is not working?
Turn the radio off, check that the accessory is appropriate for the exact model and reseat the connector according to the radio instructions. Check volume, operating mode and cable condition, then repeat a two-way test. Do not pull on the cable or continue using damaged equipment.
How should it be cleaned and stored?
Disconnect it before care and follow manufacturer-approved cleaning instructions. Keep liquid out of the speaker, microphone, switch and connector. Avoid immersion and unapproved solvents; store it dry with the cable loosely arranged.
Is it waterproof or approved for hazardous locations?
No such rating is established by this listing. Where a specialized approval is required, confirm the documented complete radio, battery and accessory combination rather than assuming a radio's rating extends to any connected earpiece.
Warranty
1-year manufacturer's warranty.
