Description
Rugged IMPRES 2 Li-Ion 2900 mAh TIA-4950 Intrinsically Safe Battery
Genuine Motorola submersible IP68 rechargeable power pack delivering extended shift runtime, smart diagnostics, and UL-certified HazLoc protection for MOTOTRBO Ion smart radios.

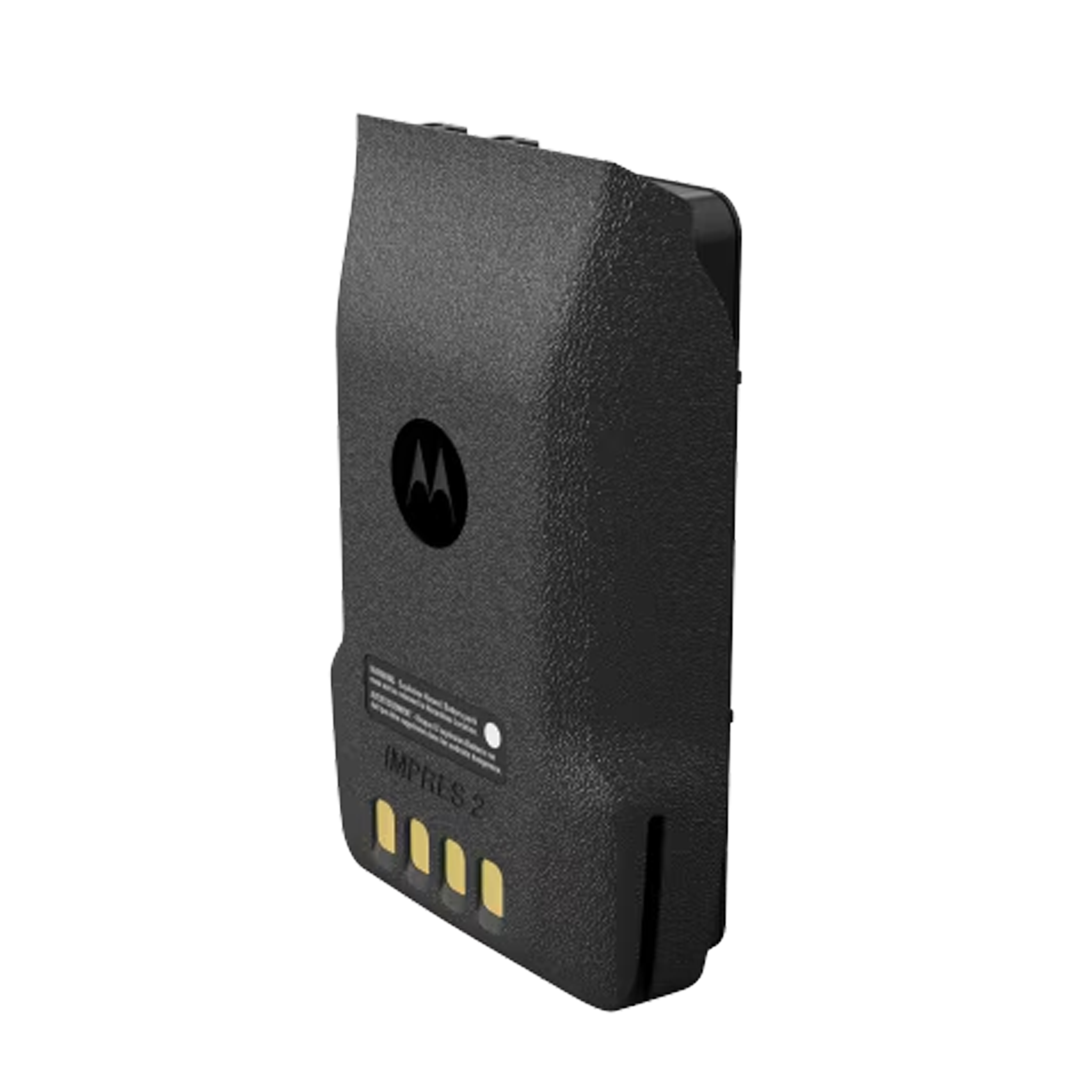

The Motorola PMNN4804A (catalog part PMNN4804 / PMNN4804A) is an authentic original equipment manufacturer (OEM) rechargeable lithium-ion battery pack engineered specifically for the MOTOTRBO Ion smart radio. Please note: The Motorola PMNN4805A battery has been discontinued and is no longer available; the PMNN4804A is the official direct replacement and alternative. Delivering 2900 mAh of rated capacity, this high-energy power pack ensures all-day voice, broadband LTE data, and video streaming performance under demanding operational tempos. Built with intelligent IMPRES 2 energy technology, the battery communicates directly with proprietary Motorola charging solutions to automate reconditioning, optimize cell longevity, and provide exact state-of-charge analytics.
Engineered to excel in hazardous industrial locations, the Motorola PMNN4804A is certified to UL TIA-4950 standards for Division 1, Class I, II, III, Groups C, D, E, F, G; Division 2, Class 1, Groups A, B, C, D T3C environments (Tamb = -20°C to +60°C). Its ultra-rugged enclosure achieves an IP68 ingress protection rating, capable of surviving total submersion under two meters of water for up to four hours without seal failure. Backed by Motorola Solutions' 24-month capacity warranty and 48-month workmanship warranty, this intrinsically safe battery maximizes fleet uptime across chemical processing plants, refineries, utilities, and emergency response operations under FCC Licensing standards.
Key Features & Benefits
-
Official PMNN4805A Replacement: Direct alternative and updated factory replacement for the discontinued Motorola PMNN4805A battery pack.
-
2900 mAh High Capacity: Delivers extended operating runtime to power MOTOTRBO Ion voice communications, advanced applications, and broadband data.
-
TIA-4950 Intrinsically Safe Certification: UL approved for hazardous locations (Div 1 Class I, II, III Groups C-G; Div 2 Class 1 Groups A-D) across extreme ambient temperatures (-20°C to +60°C).
-
IP68 Submersible Durability: Sealed to withstand full submersion in two meters of water for up to four hours without moisture intrusion.
-
IMPRES 2 Smart Energy Technology: Proprietary adaptive charging algorithms increase rated charge/discharge cycle life by up to 60% when maintained on IMPRES 2 chargers.
-
Automated Battery Conditioning: Communicates with chargers to eliminate the memory effect, automate calibration, and eliminate manual maintenance schedules.
-
Proven Tough Construction: Rigorously tested against severe drop, vibration, and thermal shock environments.
Specifications
| Attribute |
Details |
| Brand |
Motorola Solutions |
| Model / SKU |
PMNN4804A / PMNN4804 |
| Replaces / Supersedes |
PMNN4805A / PMNN4805 (Discontinued) |
| Product Type |
Rechargeable Battery Pack |
| Chemistry |
Lithium-Ion (Li-Ion) |
| Rated Capacity |
2900 mAh |
| Technology |
IMPRES 2 / IMPRES |
| Intrinsic Safety Rating |
TIA-4950 / UL Approved (Div 1 Class I, II, III Groups C-G; Div 2 Class 1 Groups A-D T3C) |
| Ingress Protection |
IP68 (Submersible up to 2 meters for 4 hours) |
| Operating Temperature |
-20°C to +60°C (-4°F to +140°F) |
| Dimensions (W x H x L) |
2.25 x 0.93 x 5.32 in (57.1 x 23.6 x 135.1 mm) |
| Weight |
0.48 lbs (217.7 g) |
Compatibility
Compatible Motorola Portable Radios
Recommended Accessories
Charging & Power Hardware
More Resources
Frequently Asked Questions
Is the Motorola PMNN4804A a replacement for the PMNN4805A?
Yes. The Motorola PMNN4805A battery has been discontinued and is no longer available. The Motorola PMNN4804A is the official direct replacement and alternative, providing full mechanical and electrical compatibility with the MOTOTRBO Ion smart radio, as well as identical IMPRES 2 performance and certified TIA-4950 intrinsic safety.
What does the "A" suffix at the end of part number PMNN4804A mean?
The "A" suffix indicates the latest official manufacturing revision from Motorola Solutions. PMNN4804A represents the newest production version of the base part number PMNN4804, offering identical form, fit, and certified performance on MOTOTRBO Ion radios.
Is the Motorola PMNN4804A intrinsically safe?
Yes. The PMNN4804A is UL approved to TIA-4950 standards for use in Hazardous Locations, Division 1, Class I, II, III, Groups C, D, E, F, G; and Division 2, Class 1, Groups A, B, C, D (T3C, Tamb = -20°C to +60°C).
What is the water resistance rating of the PMNN4804A battery?
The battery achieves an IP68 ingress protection rating, allowing it to withstand total submersion under two meters of water for up to four hours without degradation.
How does IMPRES 2 technology benefit this battery?
When used with Motorola IMPRES 2 chargers (such as the PMPN4498 multi-unit charger or PMPN4524 single-unit charger), proprietary conditioning algorithms extend cycle life by up to 60% compared to standard charging.
What should I do if the battery is not deployed within 30 days?
If the battery is stored and not deployed within 30 days of receipt, follow Motorola Battery Care guidelines to maintain storage state and prevent capacity degradation.
Warranty
24-month capacity warranty and 48-month workmanship warranty from Motorola Solutions.
