Description
Single-Unit Desktop Charging Station for Motorola DTR700
Genuine Motorola Solutions drop-in charging solution for the DTR700 portable radio—available as the PMPN4468 base cradle only or the PMPN4469 complete kit with AC power supply.
The Motorola PMPN4469 (complete kit) and Motorola PMPN4468 (cradle only) are authentic original equipment manufacturer (OEM) commercial charging solutions engineered specifically for the Motorola DTR700 digital on-site portable two-way radio. Designed to accommodate different fleet deployment requirements, the standalone PMPN4468 provides the drop-in desktop charging tray for facilities that already possess compatible micro-USB power sources, while the PMPN4469 provides a complete, ready-to-use charging bundle pairing the cradle with the official Motorola PS000228A01 micro-USB AC power adapter. Whether deployed across educational facilities, retail stores, healthcare operations, or hospitality security desks, both options deliver dependable battery replenishment across daily operating shifts.
Engineered with a versatile dual-purpose charging pocket, the dock can recharge the complete DTR700 radio with the battery attached or charge an individual Motorola PMNN4578 / PMNN4578A Lithium-Ion battery pack independently. An intelligent on-board microprocessor continuously analyzes battery impedance, voltage, and thermal thresholds to calibrate an optimized charging curve, preventing overcharging and extending overall cell life. Operating in full compliance with commercial FCC Licensing equipment standards, the unit features a weighted, slip-resistant base and an intuitive tricolor LED indicator that provides immediate visual confirmation of charge status.
Key Features & Benefits
-
Flexible Configuration Options: Available as the standalone PMPN4468 cradle tray or the turnkey PMPN4469 kit bundled with the PS000228A01 micro-USB AC power supply.
-
Dual-Purpose Drop-In Pocket: Charges the complete DTR700 radio or accommodates an individual spare PMNN4578 / PMNN4578A battery pack on its own.
-
Intelligent Microprocessor Regulation: Actively manages charging current and voltage to protect battery health and prevent cell degradation.
-
Tricolor LED Charging Indicator: Displays real-time charging status: rapid charging (solid red), 90% top-off (flashing green), and 100% complete (solid green).
-
Weighted Slip-Resistant Base: Heavy-duty desktop chassis with non-slip rubber feet stays firmly anchored to desks during one-handed docking and removal.
-
Standard Micro-USB Power Port: Connects via a universal 5V DC micro-USB input, supporting convenient workspace deployment.
Specifications
| Attribute |
Details |
| Brand |
Motorola Solutions |
| Complete Kit SKU |
PMPN4469 (Cradle + AC Power Supply) |
| Cradle Base Only SKU |
PMPN4468 (Cradle Only; Power Supply Sold Separately) |

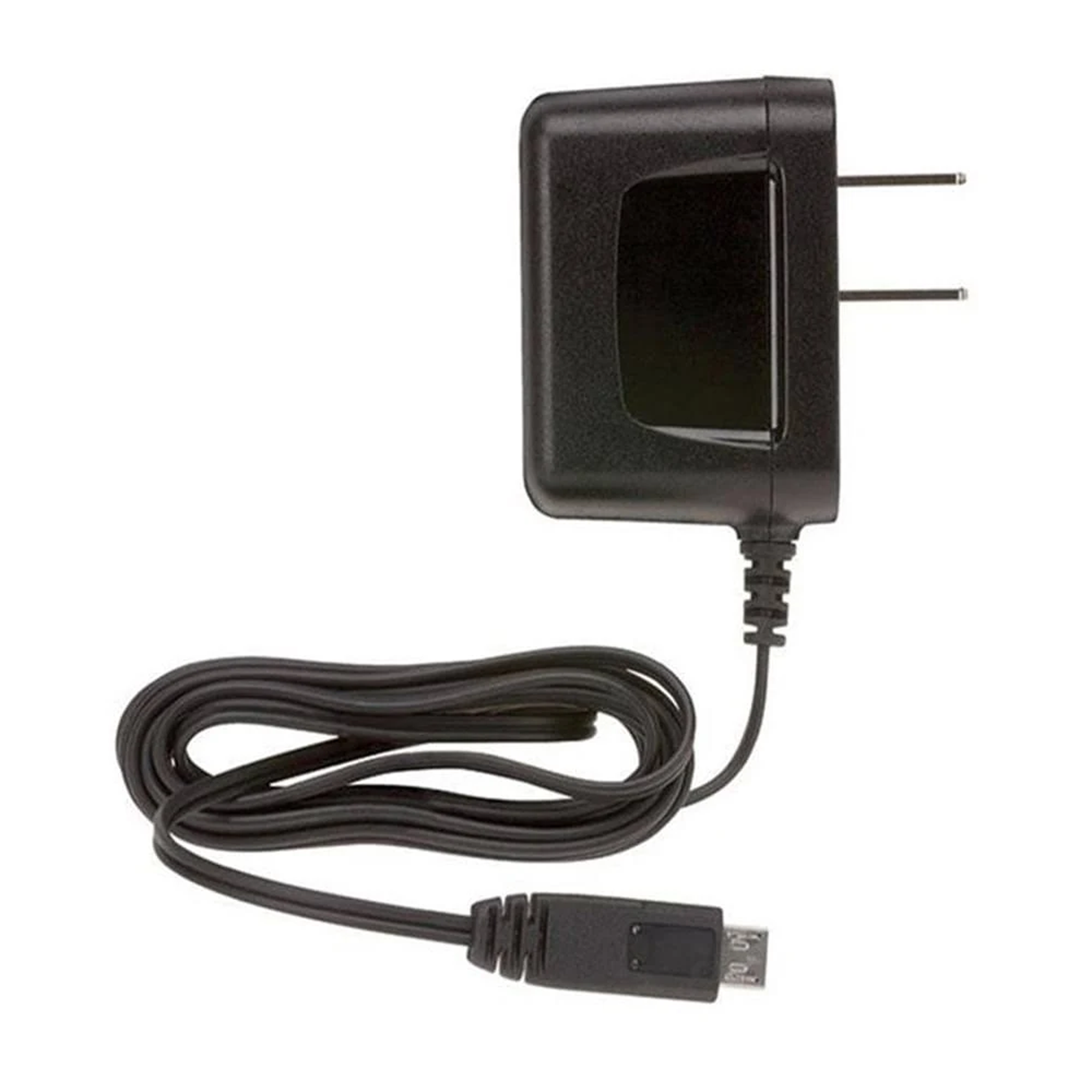

| Included Power Supply (Kit Only) |
PS000228A01 (Micro-USB AC Adapter) |
| Product Type |
Single-Unit Drop-In Desktop Charger |
| Pocket Configuration |
1 Drop-In Battery / Radio Charging Pocket |
| Supported Chemistry |
Lithium-Ion (Li-Ion) |
| Power Supply Input (Kit) |
100–240 V AC ~ 50/60 Hz |
| Cradle Input Interface |
Micro-USB Port (5V DC / 1.0 A) |
| Operating Temperature |
0°C to +45°C (32°F to +113°F) |
| Color Finish |
Matte Black Heavy-Duty Polymer |
Model Variations
| Model |
Configuration |
Included Elements |
| PMPN4468 |
Base-Only Unit |
Single-Pocket Charger Base (Requires External Micro-USB Supply) |

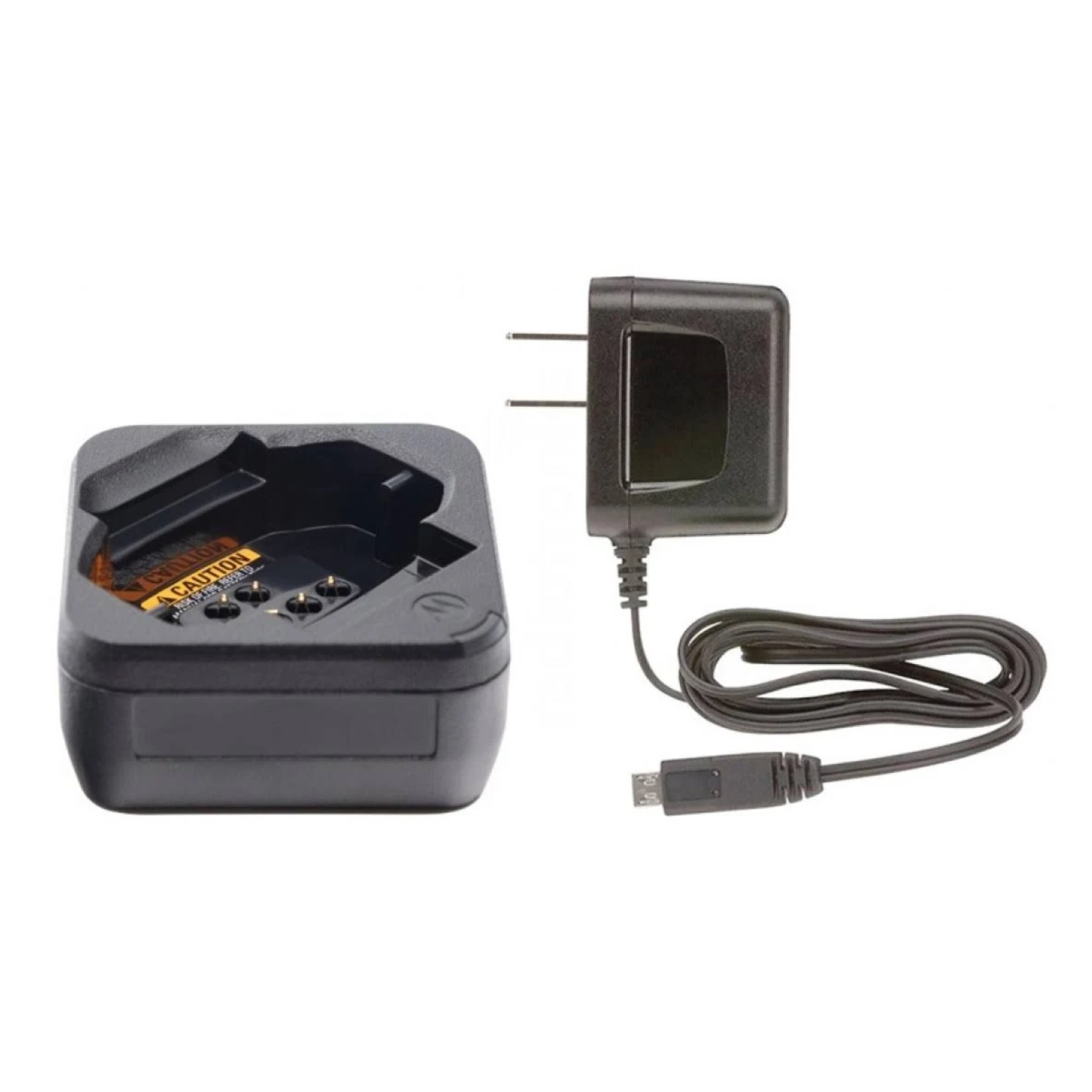

| PMPN4469 |
Complete Charging Kit |
Single-Pocket Charger Base + Official AC Power Adapter |
Compatibility
Compatible Motorola Digital Portable Radios
Compatible Motorola Battery Packs
Recommended Accessories
Carrying Solutions & Hand Straps
Fleet Power Hardware & Cables
More Resources
Frequently Asked Questions
Which configuration should I choose: PMPN4468 or PMPN4469?
Choose PMPN4468 if you only need the desktop charging base (ideal if you are replacing a damaged cradle or already have an authorized micro-USB power adapter). Choose PMPN4469 if you need the complete package, which bundles the PMPN4468 cradle tray together with the official Motorola PS000228A01 micro-USB AC wall power supply.
Can this charger recharge a battery without the radio?
Yes. The pocket is molded to dock the entire DTR700 radio with the battery attached or recharge a standalone PMNN4578 / PMNN4578A battery pack on its own.
Can the cradle charge a radio and a spare battery at the same time?
No. This is a single-pocket desktop charger that accommodates either one complete radio or one standalone battery pack at a time.
How do the LED indicator lights work?
-
Solid Red: Rapid charging in progress.
-
Flashing Green: Battery has reached 90% charge capacity.
-
Solid Green: Battery is 100% fully charged.
-
Flashing Red: Battery fault or dirty contact terminals.
-
Flashing Amber: Temperature condition detected (charging paused until within safe operating limits).
Should I turn off my DTR700 while charging?
Yes. It is recommended to turn the radio OFF before placing it into the charging dock to ensure rapid charging and protect long-term battery lifespan.
Warranty
1-year manufacturer’s replacement warranty.
