Description

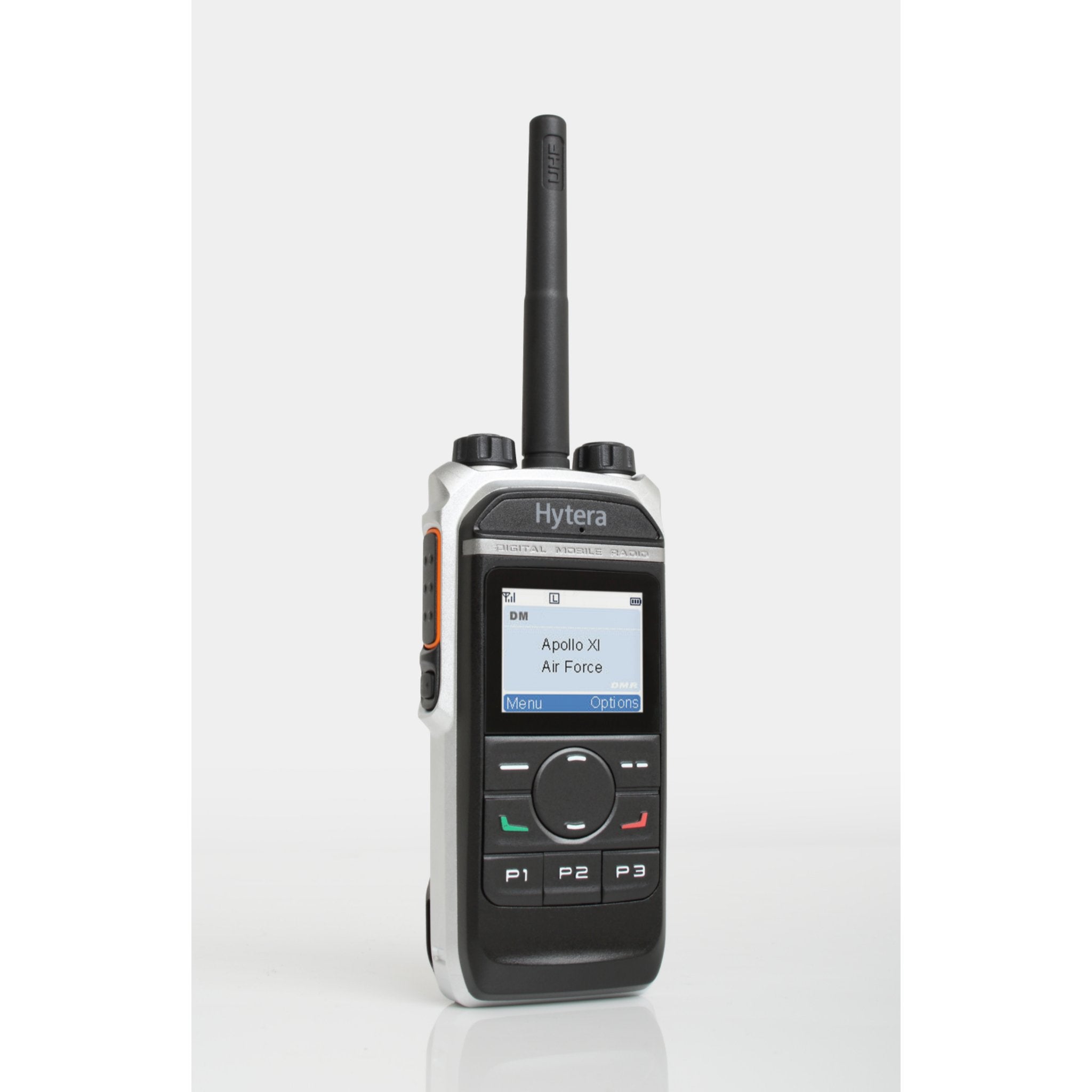

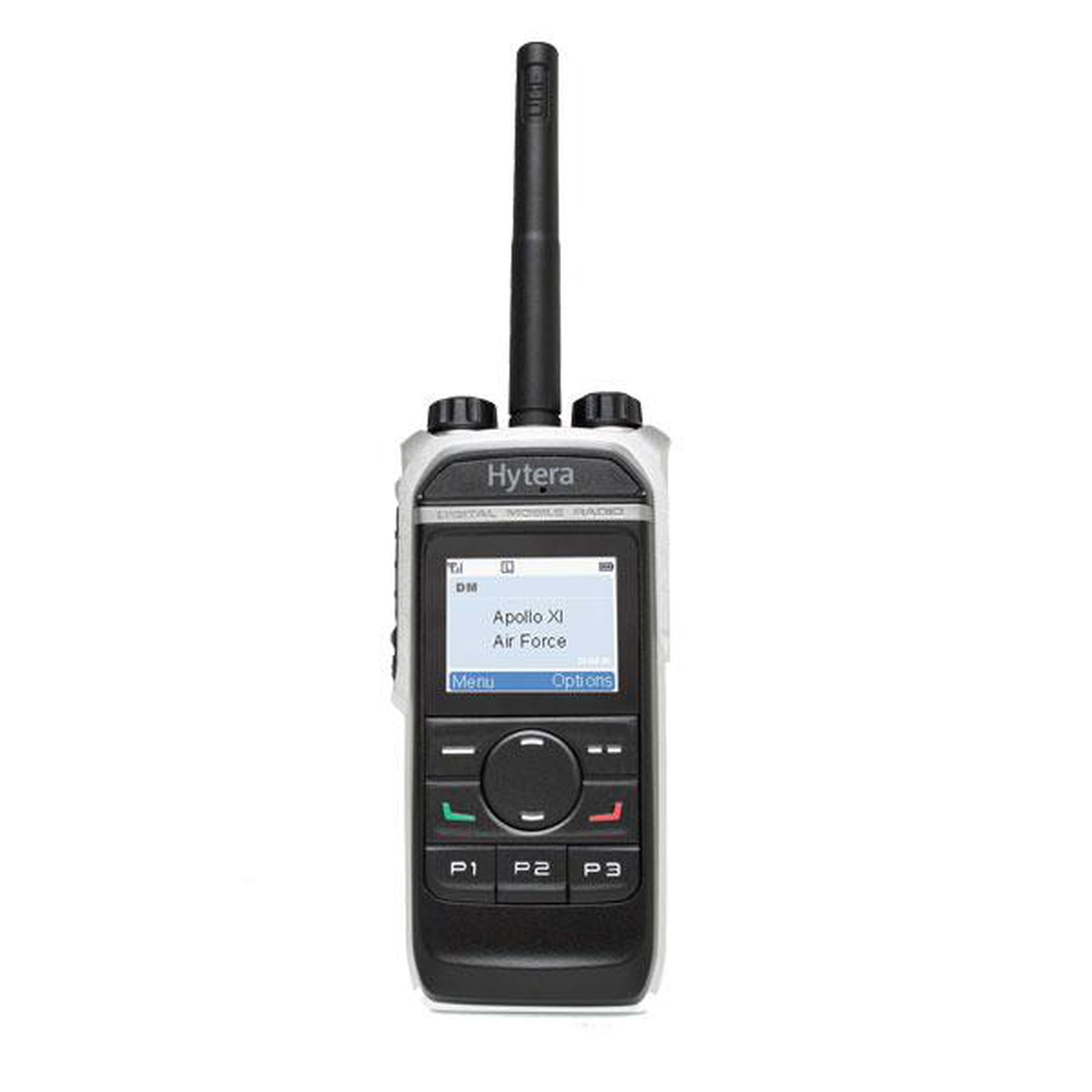

Hytera PD662i Slim Digital Two-Way Radio
Compact DMR digital portable with GPS, encryption, OTAP, and Tier III trunking. Available in UHF, VHF, and Intrinsically Safe variants.
The Hytera PD662i is a compact, feature-rich DMR digital two-way radio with an LCD screen and programmable keys. At just one inch thick and weighing less than 11 ounces, it is designed for long shifts across warehouse, security, medical, and business communication environments. Built to IP67 and MIL-STD-810 C/D/E/F/G standards, the PD662i is engineered for demanding environments and is an ideal solution for organizations migrating from analog to digital technology. Fully compliant with the DMR standard, the PD662i delivers superior voice clarity, enhanced encryption, advanced GPS capabilities, and Pseudo Trunking to maximize channel usage. Suitable for construction, education, hospitals, hotels, security, factories, farming, and forestry operations.
Key Features & Benefits
-
Over-the-Air Alias: Transmits radio alias over the air when PTT is pressed. Receiving radios can automatically create or update contacts, eliminating the need to reprogram each unit individually.
-
Voice with GPS: Transmits GPS location data in the same channel during voice transmission, enabling immediate location awareness when a user pushes to talk.
-
OTAP (Over-the-Air Programming): Modifies parameters of remote terminals through the air interface, including digital conventional channel parameters, saving time and manpower for fleet management.
-
Secure Communication: Supports basic and advanced end-to-end encryption and over-the-air encryption in digital mode, plus scrambler in analog mode. Compatible with DMR conventional and Tier III trunked operation.
-
Out-of-Range Notification: Alerts the user with a tone when the radio has left repeater coverage, ensuring awareness of talk range at all times.
-
Enhanced Quick GPS: Compressed GPS data packaged in a single frame increases capacity up to 450 units/min — triple the standard DMR Tier II rate — improving channel efficiency and reducing hardware costs.
-
Trunked & Conventional Switch: Switch between DMR Tier III trunking and conventional mode with a single button press or channel knob twist, without restarting the radio. Registration and deregistration are handled automatically.
-
Optimized Push-to-Talk: Audio buffer stores speech before the call is established and transmits it with real-time audio once connected, eliminating the need to wait for a go-ahead tone. Also enhances handover in Tier III systems during site switches.
Specifications
| Attribute |
Details |
| Brand |
Hytera |
| Model |
PD662i |
| Protocol |
DMR (ETSI TS102 361-1, 2 & 3) |
| Available Bands |
UHF (GPS, MD) | VHF (GPS, MD) | VHF (Intrinsically Safe) |
| Frequency Range |
VHF: 136–174 MHz | UHF: 400–527 MHz |
| Channel Capacity |
1024 |
| Zone Capacity |
64 |
| Channel Spacing |
25 / 20 / 12.5 kHz |
| Display |
LCD with programmable keys |
| Dimensions (H×W×D) |
4.8 × 2.17 × 1.1 inches |
| Weight |
10.93 oz |
| Operating Voltage |
7.4V |
| Battery |
2000 mAh Li-Ion (BL2010) |
| Battery Life (5/5/90) |
Analog: ~11 hrs | Digital: ~16 hrs |
| RF Power Output |
VHF: High 5W / Low 1W | UHF: High 4W / Low 1W |
| Digital Vocoder |
AMBE+2™ |
| Frequency Stability |
0.5 ppm |
| GPS TTFF — Cold Start |
< 1 minute |
| GPS TTFF — Hot Start |
< 10 seconds |
| GPS Horizontal Accuracy |
< 10 meters |
| Operating Temperature |
−22°F to +140°F |
| Storage Temperature |
−40°F to +185°F |
| Dust & Water Intrusion |
IP67 |
| Military Standard |
MIL-STD-810 C/D/E/F/G |
| ESD |
IEC 61000-4-2 Level 4 — 8kV contact / 15kV air |
| Country of Origin |
China |
What's Included
Recommended Accessories
Programming
Hytera PC45 USB Programming Cable — USB programming cable for the PD662i and compatible Hytera portable radios.
Hytera Customer Programming Software (CPS) — Official Hytera CPS for programming the PD662i and compatible radios.
Batteries
Hytera BL2010 2000mAh High-Capacity Li-Ion Battery — High-capacity standard battery compatible with the PD662i.
Hytera BL2020-Ex Intrinsically Safe Li-Ion Battery (2000mAh, UL913) — Intrinsically Safe battery for use with the IS variant of the PD662i.
Multi-Unit Charging
Hytera MCA08 Multi-Unit Rapid Rate Charger — 8-pocket multi-unit charger with power supply for fleet charging of PD662i radios.
Audio Accessories
Hytera SM26N1-P Remote Speaker Microphone — IP67-rated RSM with emergency button for the PD662i.
ATL 1-Wire Acoustic Tube Earpiece (ATL-AT1-PD6) — Discreet 1-wire acoustic tube earpiece compatible with PD6 series radios including the PD662i.
Hytera ACN-02-P PTT & Mic Cable — PTT and microphone cable for use with compatible Hytera earpieces and the PD662i.
Hytera EA-01 Receive-Only Acoustic Tube Earpiece — Receive-only acoustic tube earpiece compatible with the PD662i; replaces the ES-02.
Hytera EH-01 Receive-Only C-Style Earloop — Lightweight receive-only C-style earloop for the PD662i.
Hytera EH-02 Receive-Only Swivel Earpiece — Receive-only swivel earpiece compatible with the PD662i.
Hytera EHN26-P C-Style Earpiece with In-Line PTT & Mic — C-style earpiece with integrated PTT and microphone for the PD662i.
Frequently Asked Questions
What is the difference between the UHF GPS MD and VHF GPS MD variants?
The UHF GPS MD variant operates in the UHF frequency band (typically 400–527 MHz), while the VHF GPS MD variant operates in the VHF band (136–174 MHz). Both include GPS and Man Down (MD) functionality. The correct band depends on your existing radio system and licensing. Contact Atlantic Radio for guidance.
What does the Intrinsically Safe variant offer?
The VHF Intrinsically Safe variant is certified for use in hazardous locations where flammable gases, vapors, or combustible dust may be present. It meets the applicable IS certification standards required for oil and gas, chemical, and mining environments. Contact Atlantic Radio to confirm the specific IS certification for your jurisdiction.
Does the PD662i require programming before use?
Yes. The PD662i must be programmed with your system parameters before use. Programming can be done via the PC45 USB programming cable and Hytera CPS software, or remotely via OTAP once the radio is on-system. Contact Atlantic Radio for programming assistance.
Do I need special software to program this radio?
Yes. Proper configuration requires Hytera Customer Programming Software (CPS) and a compatible PC45 programming cable, both of which are sold separately.
Does the PD662i need to be programmed before use on my network?
Yes. The PD662i must be programmed with your licensed frequencies before it can be used on your network. You'll be asked at checkout whether you'd like programming, or you can add it to your cart in advance via our Atlantic Radio Programming Services page. If you prefer to program the radio yourself, you'll need the Hytera CPS software and a PC45 programming cable, both sold separately.
Is the PD662i compatible with DMR Tier III trunking?
Yes. The PD662i supports both DMR Tier II conventional and DMR Tier III trunking operation. A single button press switches between modes without restarting the radio, with automatic registration and deregistration in the trunking system.
Warranty
Covered by a 3-year manufacturer's warranty (new units). Refurbished units are covered by a 1-year warranty.
