Description
Professional DMR Portable Radio with Optional Single Frequency Repeater Mode

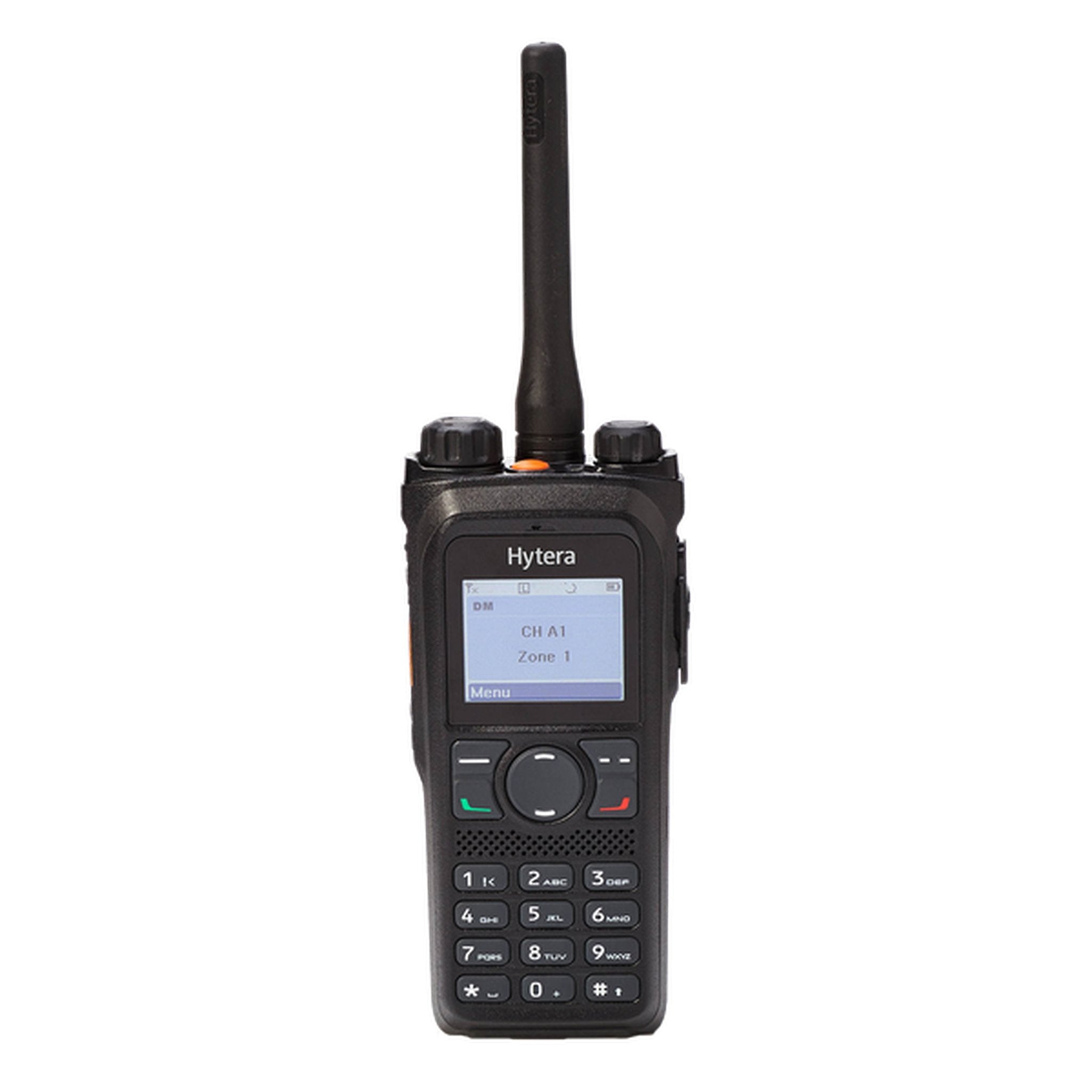

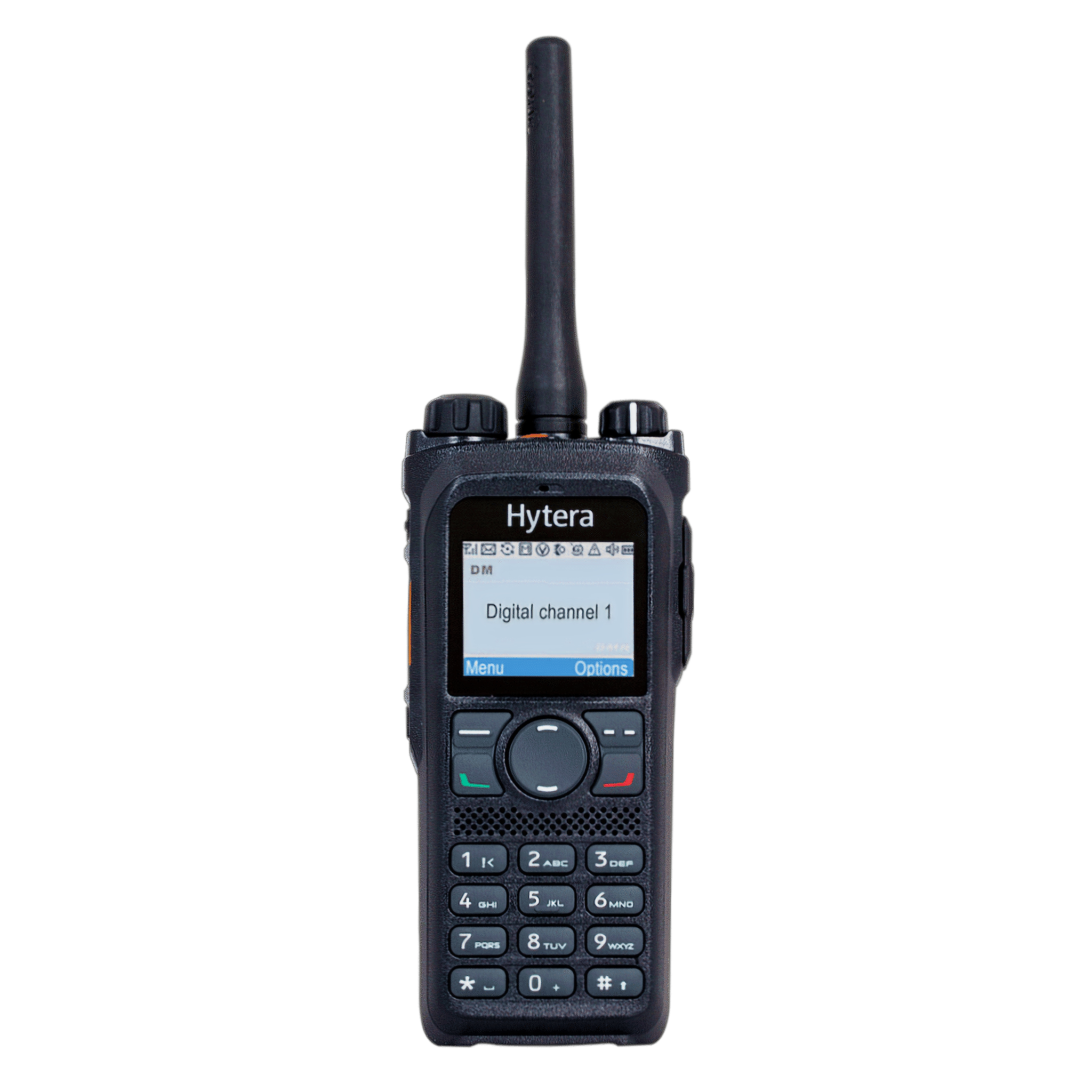

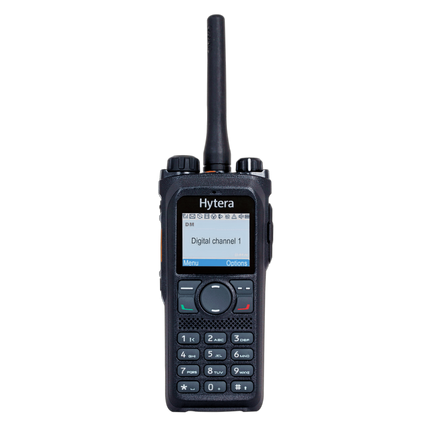

The Hytera PD982i is an analog and digital DMR portable radio with a color display, GPS, Bluetooth 4.0 and support for advanced communication features. Its Single Frequency Repeater (SFR) capability is an optional licensed feature, not an automatically included repeater activation.
For industrial and security teams, the PD982i combines a rugged handheld format with up to 1024 channels, smart-battery support and full-duplex calling capability. Select the appropriate band and radio configuration for your system, then confirm programming, feature licenses and accessory requirements before ordering.

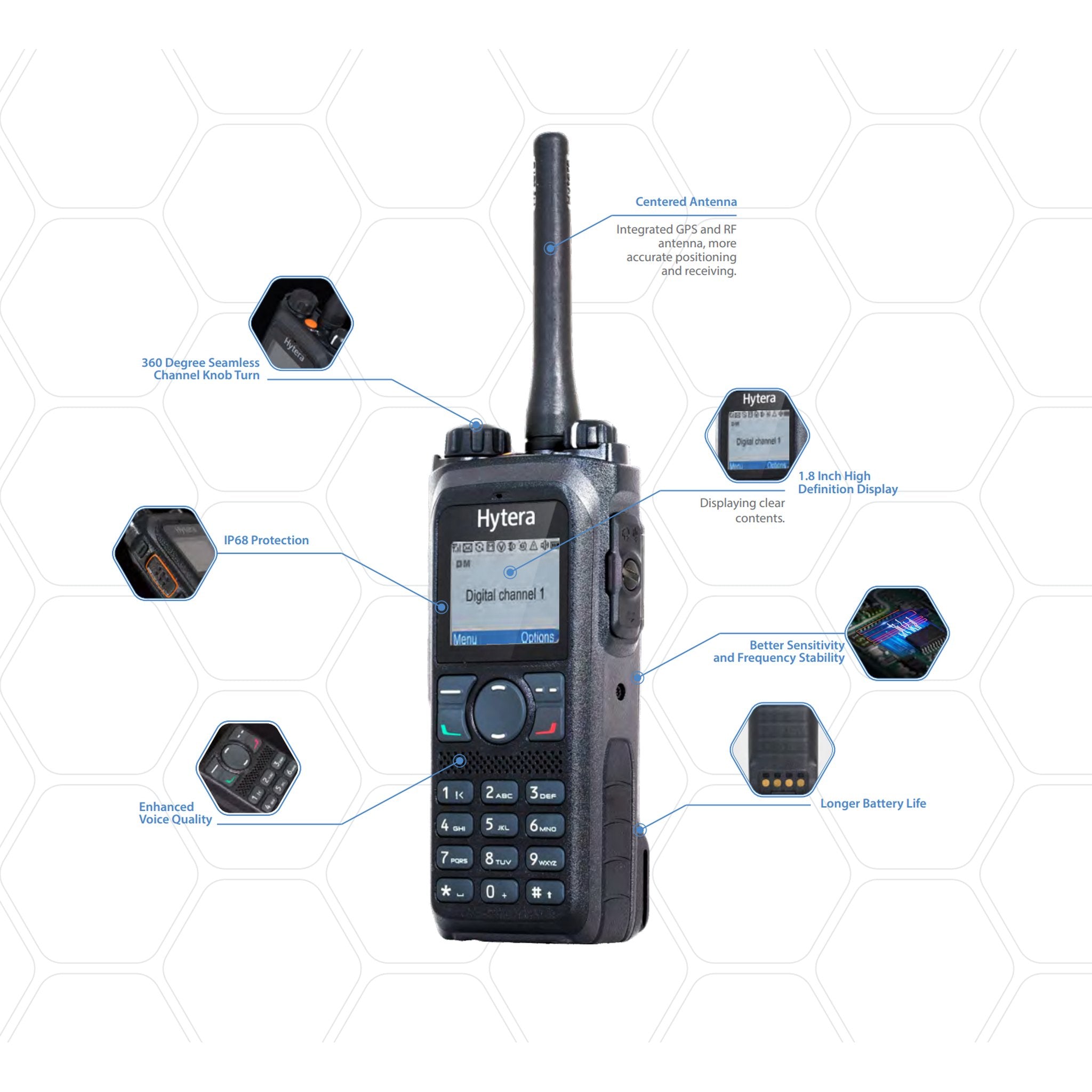

Key Features & Benefits
-
Analog and digital operation: Supports conventional analog and DMR communication for compatible radio systems.
-
Optional SFR mode: Receives on one time slot and retransmits on another on the same frequency to support direct-mode coverage extension. Requires the appropriate feature license and configuration; actual coverage depends on the installation and operating conditions.
-
Full-duplex capability: Supports simultaneous two-way voice in supported configurations. Calls involving telephones or cellphones require suitable system interconnection, not simply the radio alone.
-
Bluetooth 4.0: Supports compatible wireless audio and data functions, including supported Bluetooth programming configurations.
-
GPS-equipped variants: All four options currently offered in this listing are designated GPS and Bluetooth models.
-
Color display: 1.8-inch TFT screen with 160 × 128-pixel resolution.
-
IP68 protection: Manufacturer-listed dust and water protection, subject to the radio's specified conditions and correct assembly.
-
Smart-battery support: Battery-status functions depend on using compatible smart-battery and charging equipment.
-
Optional local recording: Supports a compatible microSD card with the required recording activation. The feature license and storage card are separate requirements.
-
Operator alerts: Listed features include vibration, Man Down, Lone Worker and a dedicated emergency button. Availability and response depend on programming and system configuration.
Specifications
| Specification |
Details |
| Manufacturer / model |
Hytera PD982i |
| Radio type |
Portable analog / digital DMR radio |
| Channel capacity |
Up to 1024 |
| Zone capacity |
64; up to 128 channels per zone |
| Display |
1.8-inch color TFT; 160 × 128 pixels |
| Channel selector |
360-degree continuous-turn knob |
| Bluetooth |
4.0 |
| GPS |
Included in the designations of the offered variants |
| Nominal operating voltage |
7.4V |
| Antenna impedance |
50 ohms |
| Speaker audio output |
Brochure lists 0.5W rated audio and up to 2.5W maximum speaker output |
| Ingress protection |
IP68 |
| Environmental standard |
Manufacturer lists MIL-STD-810 C/D/E/F/G |
| Listed operating temperature |
−30°C to +60°C |
| Recording storage support |
Compatible microSD card, up to 32GB; recording license required |
Model Variations
| Current Option |
SKU |
Configuration |
| VHF (GPS & Bluetooth) |
PD982i-G-BT-V1 |
VHF with GPS and Bluetooth |
| UHF (GPS & Bluetooth) |
PD982i-G-BT-Ux |
UHF with GPS and Bluetooth |
| UHF IS (GPS & Bluetooth) |
PD982i-G-BT-UL913-Ux |
UL913-designated UHF option with GPS and Bluetooth |
| UHF-5 (GPS & Bluetooth) |
PD982i-G-BT-U5 |
UHF-5 option with GPS and Bluetooth; confirm the required operating range before ordering |
The VHF and UHF options are different hardware configurations, not a single dual-band radio. Confirm the exact SKU's frequency coverage against your system before purchase. The UL913 designation applies to the specific listed variant and approved equipment combination, not every PD982i or accessory.
System Compatibility & Feature Licensing
| Mode / Feature |
Requirements / Limitations |
| Conventional analog and DMR |
Matching band, frequencies and radio programming |
| Pseudo trunk operation |
Supported DMO / RMO configuration |
| XPT digital trunking |
Compatible Hytera XPT system and appropriate radio configuration; confirm feature entitlement |
| DMR Tier III trunking |
Compatible system, programming and required feature license |
| Single Frequency Repeater mode |
SW00074 activation and suitable DMO configuration |
| Local audio recording |
SW00073 activation and supported microSD storage |
| Encryption |
Existing listing specifies basic 40-bit capability and optional 256-bit advanced encryption; confirm the exact firmware, entitlement and fleet configuration |
| Full-duplex / telephone calls |
Supported radio and system configuration; telephone calls require appropriate network interconnection |
What's Included & What to Confirm
| Description |
SKU / Model |
Status |
| Portable radio in the selected configuration |
Selected PD982i SKU above |
Included |
| Battery, antenna, charger, power adapter and belt clip package |
Configuration-specific |
Confirm exact supplied items with Atlantic Radio before ordering |
| Single Frequency Repeater activation |
SW00074 |
Optional; sold separately unless explicitly included in your quote |
| Local audio recording activation |
SW00073 |
Optional; sold separately unless explicitly included in your quote |
| DMR Tier III upgrade |
SW00029 |
Optional; sold separately unless explicitly included in your quote |
The existing package information does not identify a complete accessory kit for each variant. Confirm the supplied components, especially for the UL913 option, rather than assuming standard batteries or accessories apply to every configuration.
Recommended Accessories & Feature Upgrades
Programming tools, services and feature activations serve different purposes. Confirm the appropriate software version and existing feature entitlements before purchase.
Programming
Feature Licenses
More Resources
Frequently Asked Questions
Is Single Frequency Repeater mode included automatically?
No. SFR is listed as a licensed option requiring SW00074 activation and appropriate configuration. Confirm whether the feature is already activated on a quoted radio before purchasing an additional license.
How does Single Frequency Repeater mode work?
It uses one time slot to receive and another to retransmit on the same frequency in a supported direct-mode arrangement. It is not a guarantee of a particular coverage distance or a substitute for assessing your site's system requirements.
Can this radio call a cellphone by itself?
No. Full-duplex capability does not give the PD982i standalone cellular service. Telephone or cellphone calling requires compatible system infrastructure and interconnection, along with appropriate programming.
Does the PD982i need programming?
Yes. Configure its channels and system settings to match your fleet. DIY configuration requires compatible Hytera CPS and a supported programming connection such as the PC38 cable. Atlantic Radio also offers programming services; advanced features and system work should be scoped separately.
Can I switch between VHF and UHF with software?
Do not treat the listed variants as software-selectable bands on one radio. Choose the hardware SKU appropriate for your frequencies and confirm the range before ordering.
Can every PD982i be used as an intrinsically safe radio?
No. This listing has a specific UL913-designated UHF variant. Do not apply that designation to the standard VHF, UHF or UHF-5 options. Confirm the manufacturer's approved radio, battery and accessory combination for the intended environment.
What is required for local voice recording?
The radio supports compatible microSD storage up to 32GB. Recording requires the appropriate activation, listed here as SW00073, and a supported card. Neither the presence of a card slot nor purchase of programming software establishes that recording is already enabled.
Does the IP68 rating mean unrestricted underwater use?
No. Follow the manufacturer's water-exposure limits and ensure the radio is correctly assembled with appropriate covers and accessories. The rating is not a promise of unlimited immersion or protection for every attached accessory.
Are a battery and charger included with every option?
The current package information does not establish the exact supplied accessory kit for each SKU. Confirm the battery, charger, power supply, antenna and belt clip with Atlantic Radio before ordering, particularly for the UL913 variant.
Warranty
3-year standard manufacturer's warranty on the radio body. Confirm warranty terms for any supplied or separately purchased accessories with Atlantic Radio Communications.
