Description
Professional Desktop Base Station & Dispatch Microphone
Heavy-duty desktop dispatch microphone with oversized PTT button, lockable monitor key, and 10-pin connector.

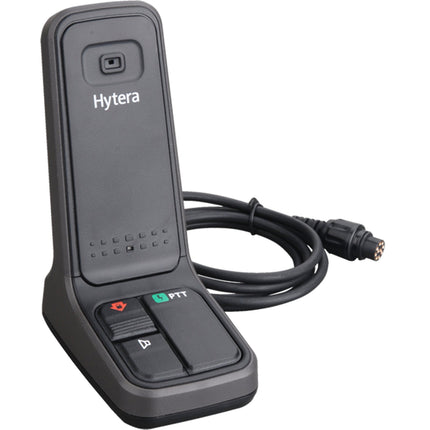

The Hytera SM10A1 is a professional-grade desktop microphone engineered to deliver exceptional communication precision and operational efficiency for dispatch centers, base stations, and fleet control consoles. Featuring an oversized Push-to-Talk (PTT) key with distinct tactile feedback, this microphone allows operators to transmit effortlessly without taking their eyes off critical monitoring screens or computer systems.

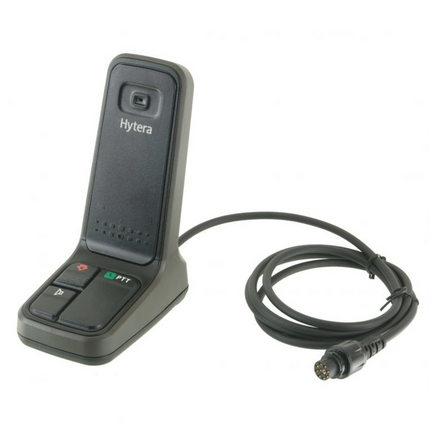

Constructed with a weighted desktop chassis and anti-slip rubber feet, the Hytera SM10A1 stays anchored securely on desks and consoles during high-volume shift operations. A lockable monitor button provides hands-free channel monitoring, allowing dispatch personnel to listen continuously to open channels without holding down controls. Equipped with a standard 10-pin aviation connector, the Hytera SM10A1 integrates seamlessly into Hytera mobile radios, repeaters, and PoC base station systems across DMR Association digital networks regulated under FCC Licensing standards.
Key Features & Benefits
-
Oversized PTT Switch: Prominent, tactile PTT button ensures immediate, positive activation to eliminate missed or delayed voice transmissions.
-
Lockable Monitor Key: Toggle button locks open receive channels for hands-free listening during continuous dispatch operations.
-
Weighted Anti-Slip Base: Heavy-duty desktop housing with rubberized feet prevents sliding, tilting, or accidental displacement.
-
10-Pin Aviation Connector: Threaded 10-pin plug provides a secure, vibration-proof connection to mobile radios and base stations.
-
Flexible Gooseneck Stem: Allows operators to adjust microphone height and angle for optimal voice pickup and comfort.
-
All-Weather Durability: Engineered to operate reliably across extreme industrial temperatures ranging from -22°F to 140°F (-30°C to 60°C).
Specifications
| Attribute |
Details |
| Brand |
Hytera |
| Model/SKU |
SM10A1 |
| Product Type |
Desktop Base Station & Dispatch Microphone |
| Connector Type |
10-Pin Aviation-Style Connector |
| Microphone Sensitivity |
-32 ± 5dB @ 1KHz (0dB = 1V/Pa) |
| Output Impedance |
≤2.2kΩ |
| Controls |
Oversized PTT Key & Lockable Monitor Button |
| Chassis |
Weighted Desktop Base with Rubber Anti-Slip Feet |
| Operating Temperature |
-22°F to 140°F (-30°C to 60°C) |
Compatibility
Compatible Hytera Mobile Radios, Repeaters & Base Stations
Recommended Accessories
Compatible Mobile Radios & Base Stations
Power Supplies & Mounting Gear
More Resources
Frequently Asked Questions
What is the function of the lockable monitor key on the Hytera SM10A1?
The lockable monitor button allows dispatchers to lock open incoming audio channels for continuous hands-free monitoring without having to press and hold any keys.
Does the Hytera SM10A1 require an external battery or power supply?
No, the Hytera SM10A1 draws its operational power directly through the 10-pin accessory connector when plugged into a compatible Hytera mobile radio or repeater.
What radios are compatible with the Hytera SM10A1 desktop mic?
The Hytera SM10A1 is compatible with Hytera 10-pin mobile radios, repeaters, and base stations including the HM652, HM682, HM782, HR1062, MD782i, RD982i, and MNC360.
Does the desktop microphone slide on smooth surfaces?
No, the Hytera SM10A1 features a weighted metal interior chassis combined with high-friction anti-slip rubber pads on the base to remain firmly in place during use.
Can the microphone angle be adjusted?
Yes, the microphone element is mounted on a flexible gooseneck stalk that can be positioned at various angles for comfortable desk operation.
Is the Hytera SM10A1 an authentic Hytera OEM product?
Yes, the Hytera SM10A1 is a genuine original equipment manufacturer accessory produced directly by Hytera Communications.
Warranty
1-year manufacturer's warranty.
