Description
Hytera SM25A1
Remote Speaker Microphone with Display
Advanced Control and Monitoring for Mobile Radios

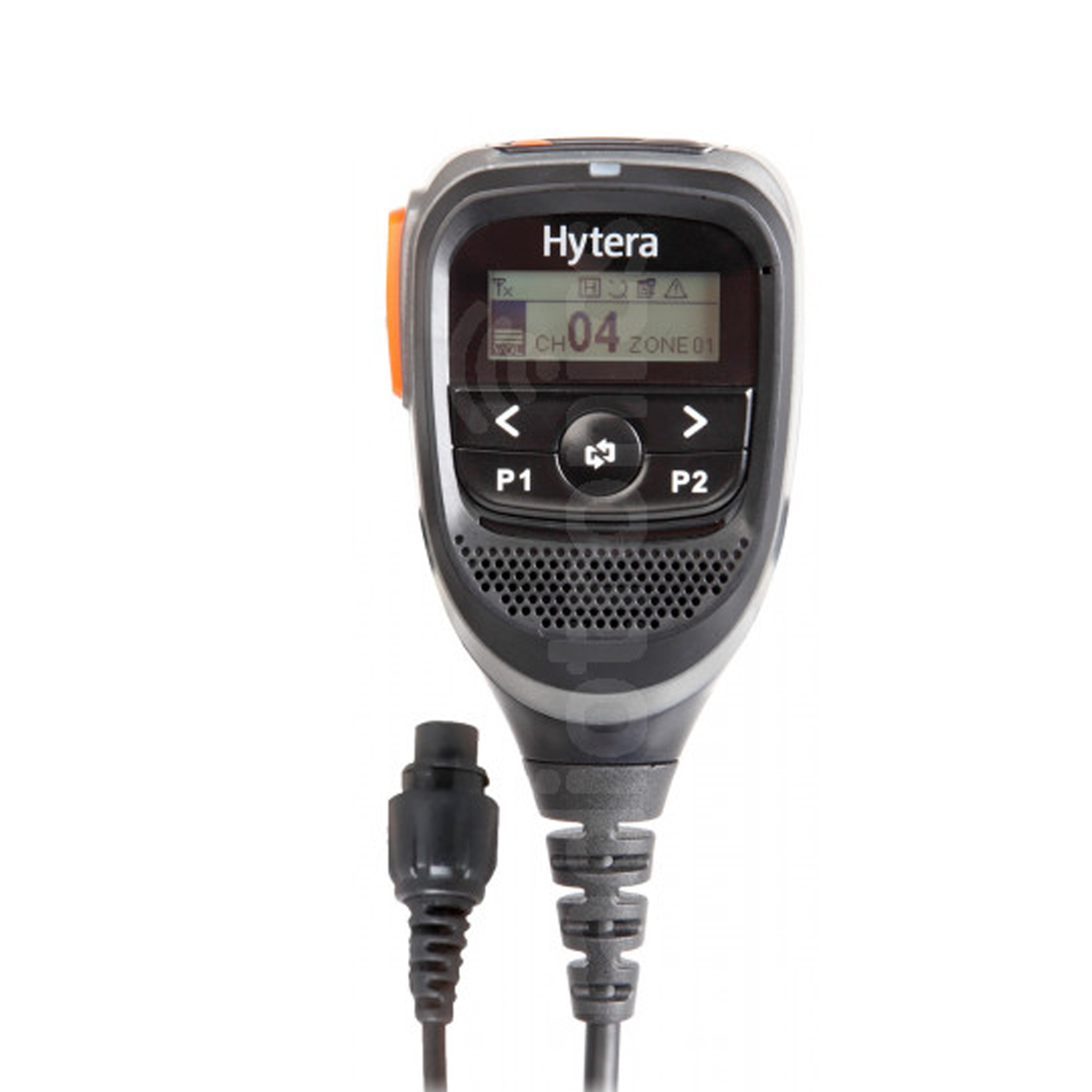

The Hytera SM25A1 is a high-performance remote speaker microphone designed specifically for Hytera mobile and base station radios. Featuring a built-in LCD display and a limited keypad, this microphone allows users to monitor radio status, view channel information, and manage basic functions directly from the handset. Its ergonomic design ensures comfortable use during long shifts, while the integrated IP54 rating provides reliable protection against dust and water splashes.
Equipped with a powerful 2W internal speaker, the SM25A1 delivers clear, loud audio even in high-noise environments. The 7-foot (3m) coiled cable provides ample reach for vehicle-mounted setups, and the dedicated emergency key ensures that critical alerts can be sent instantly. This microphone is the ideal solution for dispatchers and drivers who need a professional interface without having to reach for the main radio unit.
Key Features
-
Integrated LCD Display: View real-time radio status, channel aliases, and system notifications at a glance.
-
Ergonomic Limited Keypad: Simplifies channel switching and menu navigation for efficient operation.
-
High-Power Audio: Rated at 2W (3W max) to ensure incoming transmissions are heard clearly over vehicle or engine noise.
-
Dedicated Emergency Key: Quick-access orange button for immediate distress signaling in mission-critical situations.
-
IP54 Compliant: Built to withstand the daily rigors of field use, including resistance to dust and moisture.
-

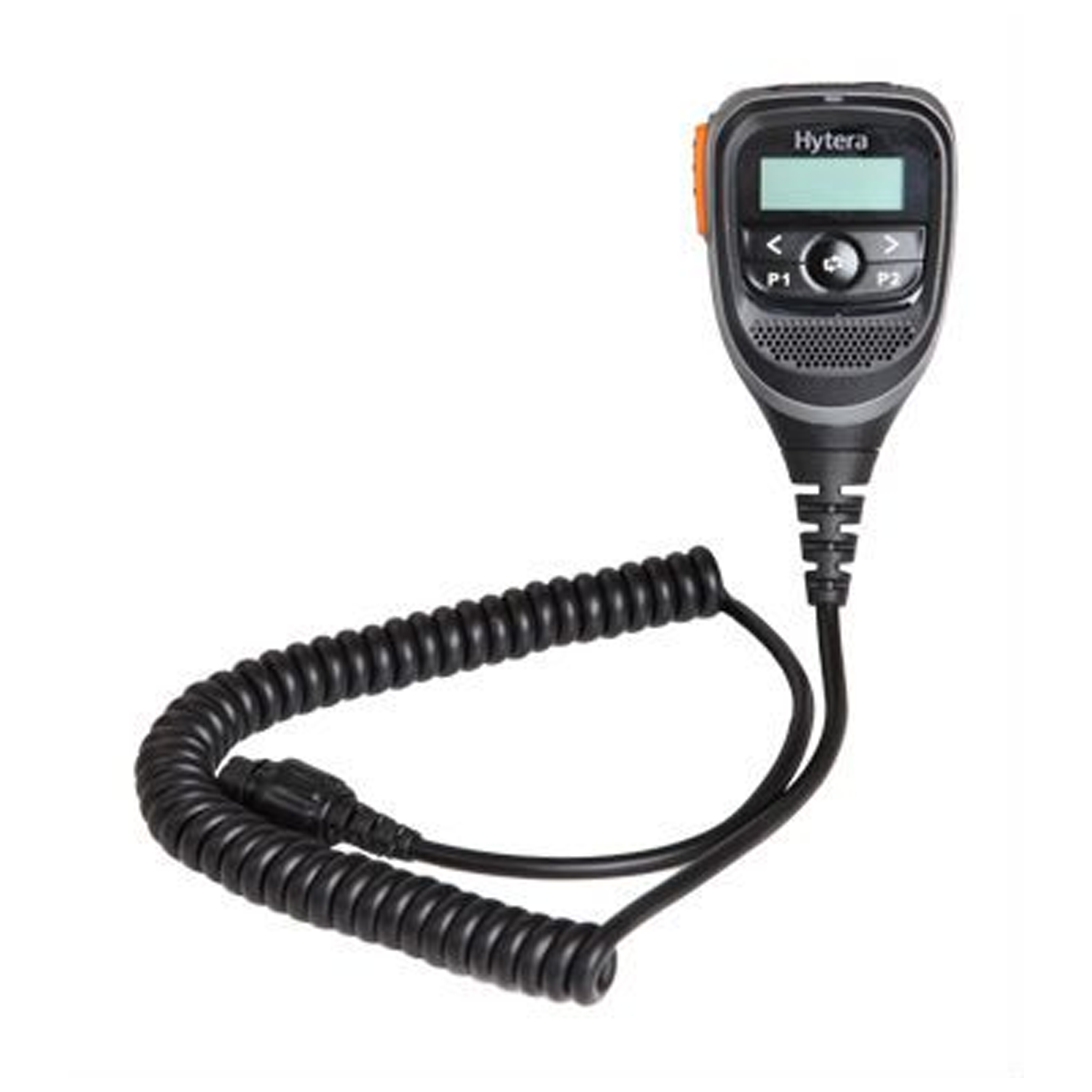

Heavy-Duty Coiled Cable: 7-foot (3m) extended length for versatile mounting and ease of movement within a vehicle.
Compatibility
|
|
|
|
| MD652i |
MD652iG |
HM652 |
HR652 |
Specifications
-
Part Number: SM25A1
-
Connector: 10-pin connector
-
IP Rating: IP54
-
Speaker Power: 2W (Rated) / 3W (Max)
-
Dimensions: 92.8 x 62.5 x 32.1 mm
-
Weight: Approx. 160g
-
Operating Temp: –30°C to 60°C
-
Microphone Sensitivity: –42±3 dB @ 1 kHz
-
Manufacturer: Hytera
Benefits
-
Enhanced Safety: The top-mounted emergency key allows for rapid response without searching for the radio console.
-
Improved Workflow: Users can perform channel changes and monitor signal strength while keeping their eyes on the road.
-
Durable Connectivity: The 10-pin secure connector prevents accidental disconnections during high-vibration mobile use.
Warranty
1-year manufacturer's warranty.
