Description

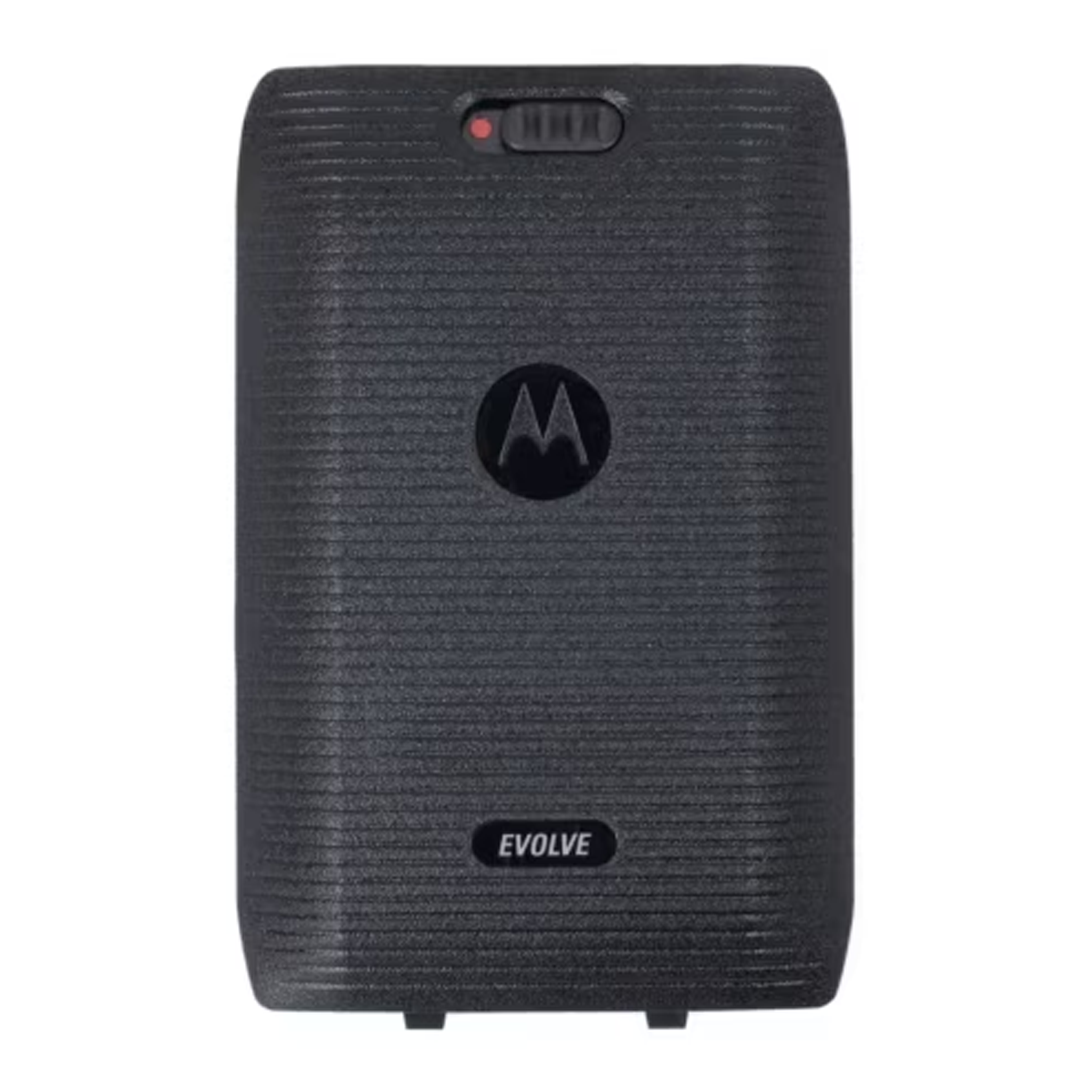

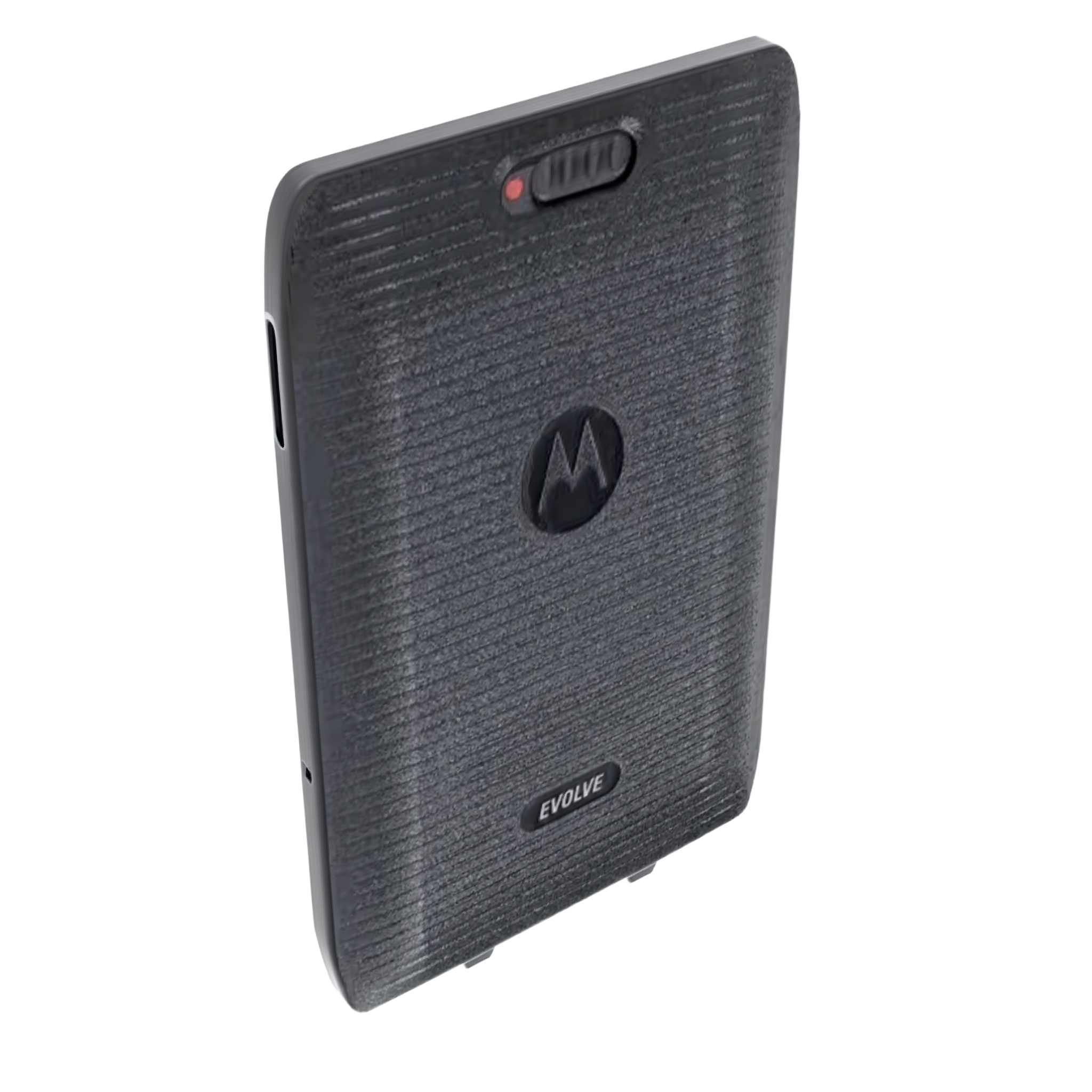

Replacement High-Capacity Battery Door Cover for Motorola Evolve
Genuine Motorola Solutions Original extended-depth rear battery compartment cover engineered for 5800 mAh high-capacity batteries on the Evolve LTE handheld.
The Motorola HKLN5002A (also cataloged as HKLN5002) is an authentic original equipment manufacturer (OEM) replacement rear battery door engineered specifically for the Motorola Evolve LTE Rugged Smart Handheld. Built for frontline public safety, security operations, utilities, and enterprise mobile teams operating across demanding double-shift duty cycles, this deep-profile replacement door encloses extended high-capacity battery packs. Sourced directly from our verified inventory of Motorola Two-Way Radios & Accessories, the HKLN5002A replaces cracked, damaged, or lost rear doors to ensure secure battery retention and keep your broadband device deployment-ready.
Engineered with an expanded cavity profile, the Motorola HKLN5002A provides the internal clearance necessary to fit Motorola's 5800 mAh high-capacity lithium-ion power packs (including part numbers BT000593A01 and BT000594A01) that cannot fit beneath a standard flat cover. The interior perimeter features an integrated elastomeric sealing gasket engineered to maintain factory environmental ingress protection certified under IEC Standards (IEC 60529 IP68, submersible to 2 meters for 2 hours), sealing internal contact pins, dual SIM trays, and microSD slots against rain, moisture, and dust. Built to withstand physical shock and drop impacts in accordance with DoD Standards (MIL-STD-810H), the door features reinforced mechanical latches that prevent the heavy 5800 mAh battery from dislodging during active movement.
Key Features & Benefits
-
Expanded Cavity Clearance: Engineered specifically to enclose thicker 5800 mAh high-capacity battery packs on the Motorola Evolve handheld.
-
Restores IP68 Submersible Sealing: Integrated interior elastomer gasket preserves complete dust-tight and water-submersible sealing up to 2 meters for 2 hours.
-
Factory OEM Direct Fit: Molded to exact Motorola mechanical tolerances for a flush, rattle-free latch onto the Evolve rear chassis.
-
Heavy-Duty Retention Tabs: Precision-molded locking tabs firmly secure the heavier high-capacity battery against drop impacts and vibration.
-
High-Impact Polycarbonate Housing: Resists cracking, structural fatigue, jobsite chemical exposure, and operational temperature extremes.
-
Protects Sensitive Internal Bays: Shields battery terminals, dual SIM slots, and memory expansion bays from debris and moisture.
Specifications
| Attribute |
Details |
| Brand |
Motorola Solutions |
| Model / SKU |
HKLN5002A / HKLN5002 |
| Product Type |
Replacement Rear Battery Door Cover (High-Capacity) |
| Compatible Device |
Motorola Evolve LTE Rugged Smart Handheld |
| Compatible Battery Form Factor |
High-Capacity 5800 mAh Li-Ion (BT000593A01 / BT000594A01) |
| Environmental Ingress Protection |
Restores IP68 Rating (Dust-Tight & Submersible to 2m for 2 Hours) |
| Latch Style |
Multi-Point Mechanical Snap-Lock Retention Tabs |
| Intrinsic Safety Rating |
Non-Hazardous Component (Supports IS Battery BT000594A01) |
| Material |
High-Impact Injection-Molded Polycarbonate with Elastomer Gasket |
| Color Finish |
Matte Black Textured Finish |
Compatibility
Compatible Motorola Handheld Devices
More Resources
Frequently Asked Questions
What is the difference between the HKLN5002A and HKLN5001A battery doors?
The HKLN5002A is an extended-depth door designed specifically for thick 5800 mAh high-capacity batteries (BT000593A01 and BT000594A01). The HKLN5001A is the flat, shallow door designed exclusively for the slim standard 2900 mAh battery (BT000592A01).
Can I use this door with the standard 2900 mAh battery?
While the locking tabs align with the chassis, the HKLN5002A has extra internal depth. Using it over a slim 2900 mAh battery leaves an empty internal gap that can allow the smaller battery to shift, which may compromise terminal contact and gasket compression. Use the HKLN5001A for standard batteries.
Does this battery door fit the Motorola LEX series?
No. The Motorola Evolve uses an independent chassis architecture and does not share battery doors with the LEX L10 or LEX L11 handhelds.
Why is replacing a damaged battery cover important?
A cracked, warped, or loose cover compromises the perimeter elastomer gasket, allowing water and fine dust to penetrate the battery bay, SIM slots, and electrical contacts. Installing a genuine OEM replacement door restores factory IP68 submersibility.
Does the HKLN5002A include the battery?
No. The HKLN5002A includes only the authentic Motorola replacement high-capacity door cover. Battery packs are sold separately.
Warranty
1-year manufacturer’s replacement warranty.
